IP-503H Lite

  • Communication throughout the Coverage of LTE (4G) and 3G Network

  • Simultaneous TalkListen Function for Full-Duplex Communication

  • Multiple User Communication

  • IP67 Dust-Tight and Waterproof

IP503H Lite

IP503H Lite

IP Transceiver

Dual-SIM IP radio for full-duplex calls using a data SIM service.

Dual-SIM IP radio for full-duplex calls using a data SIM service.

Features

Cellular PTT

Uses a generally available data SIM and a separately registered radio service.

Dual SIM

Two SIM cards can be installed and selected as required; single standby operation.

Full-duplex groups

Simultaneous TalkListen enables phone-style individual and group conversations.

Specifications

LTE bands (EXP version)B1, B3, B7, B8, B20
3G bands (EXP version)W-CDMA B1, B8
Dimensions59 × 95 × 32 mm with BP-272
WeightApprox. 240 g with BP-272 and antenna
Internal speakerMore than 900 mW (8 Ω, 10% distortion)
Operating timeMore than 17 hours with BP-272 (5:5:90)
SIM operationDual SIM, single standby
ProtectionIP67 / IP55 / IP54

Specifications refer to the version identified above and are subject to change by ICOM.

Supplied Accessories

BP-272 Li-ion battery pack · MB-135 belt clip · Hand strap · Antenna

Optional Accessories

HM-153LS

HM-153LS

EARPHONE MICROPHONE

HM-166LS

HM-166LS

EARPHONE MICROPHONE

HM-183LS

HM-183LS

SPEAKER MICROPHONE

HM-186LS

HM-186LS

SPEAKER MICROPHONE

HM-215

HM-215

SPEAKER MICROPHONE For use with BC-218

HS-102

HS-102

HEADSET

HS-94

HS-94

EARHOOK TYPE HEADSET

HS-95

HS-95

NECK ARM TYPE HEADSET

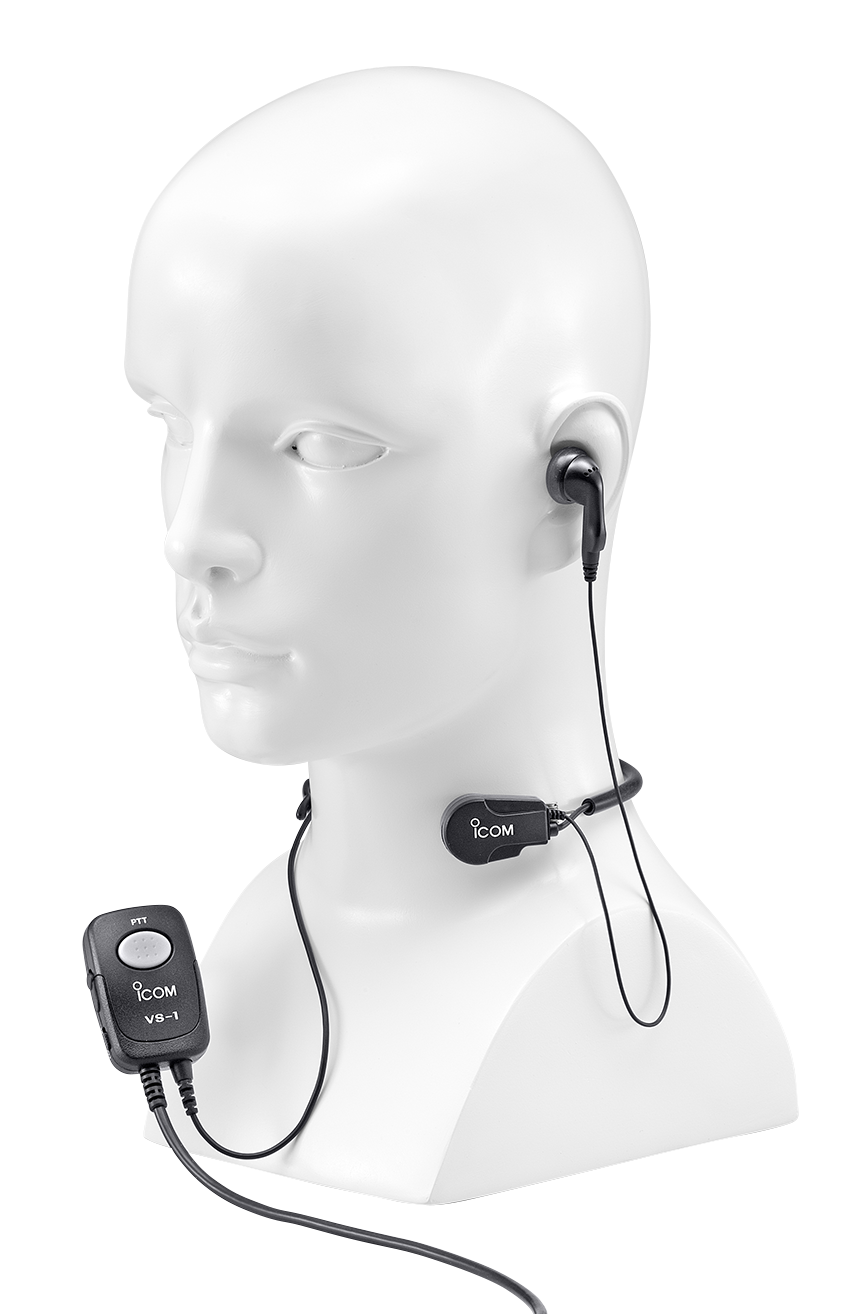

HS-97

HS-97

HEADSET WITH THROAT MICROPHONE

BP-272

BP-272

LI-ION BATTERY PACK

BP-307

BP-307

LI-ION BATTERY PACK

BC-202IP2

BC-202IP2

DESKTOP CHARGER AC adapter supplied depending on version.

BC-202IP3L

BC-202IP3L

MULTI-CONNECTABLE DESKTOP CHARGER AC adapter is not supplied.

BC-211

BC-211

MULTI-CHARGER AC adapter supplied depending on version.

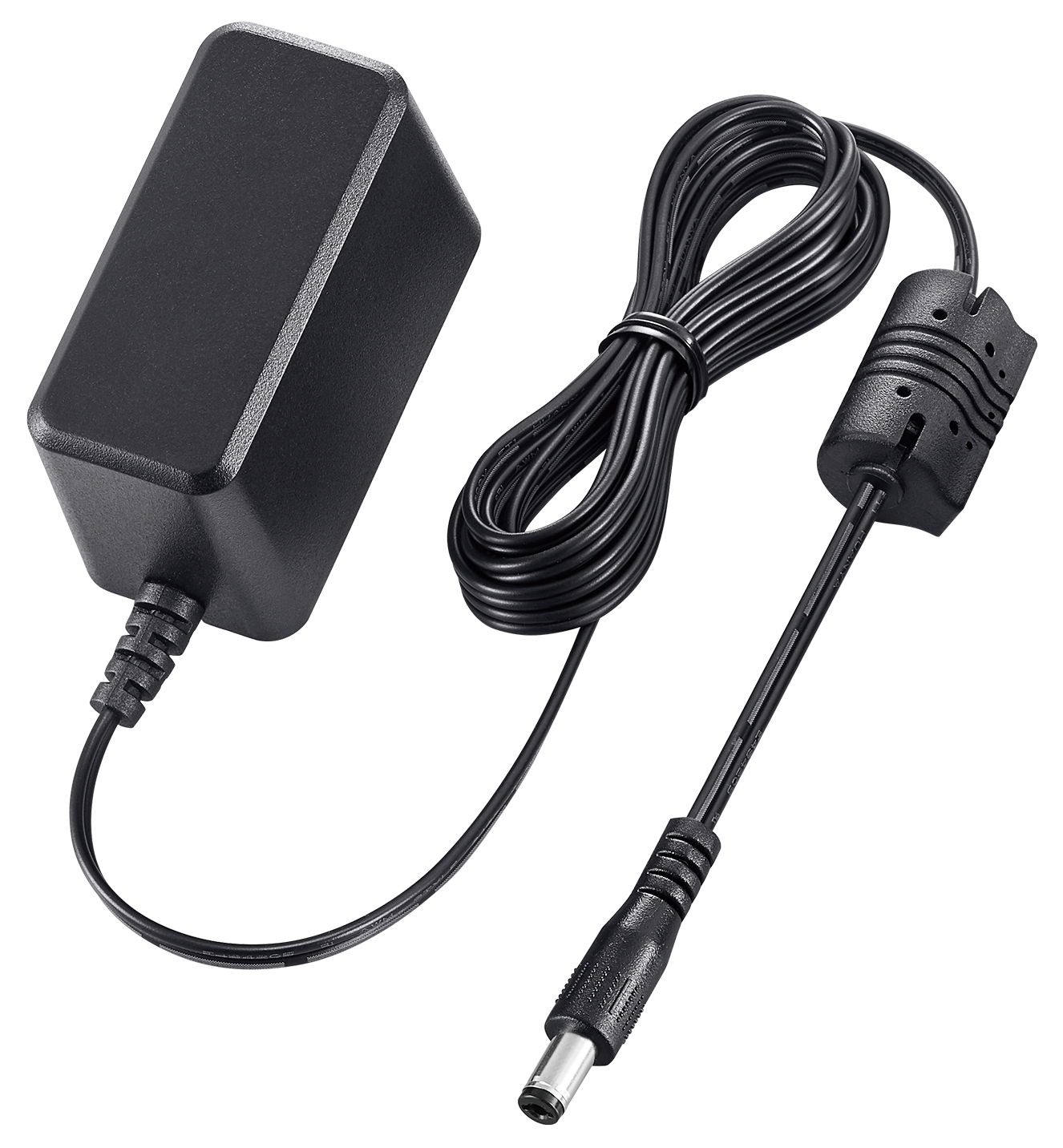

BC-123S

BC-123S

Straight plug type AC ADAPTER For BC-202IP3L (single unit)

BC-157S

BC-157S

Versions 22 - 24 AC ADAPTER

BC-207S

BC-207S

AC ADAPTER

BC-228

BC-228

AC ADAPTER For BC-202IP3L multiple connections.

CP-22

CP-22

CIGARETTE LIGHTER CABLE For 12-24V DC input

CP-23L

CP-23L

CIGARETTE LIGHTER CABLE For 12V DC input

CP-25H

CP-25H

CIGARETTE LIGHTER CABLE For 12V DC input

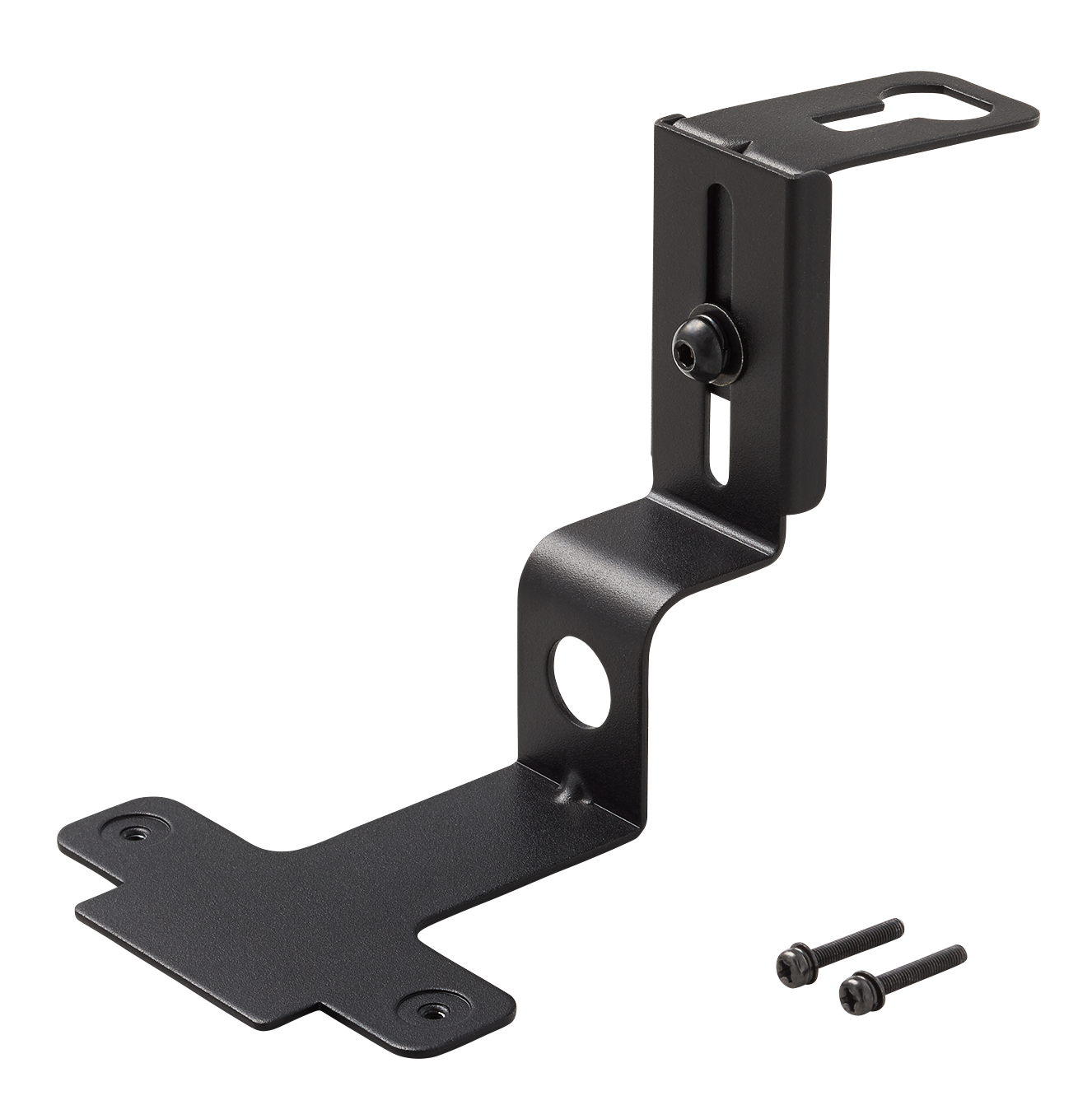

MBA-7

MBA-7

BRACKET ADAPTER

MBF-1

MBF-1

MOUNTING BASE

MB-135

MB-135

BELT CLIP

LC-185

LC-185

CARRYING CASE

OPC-2006LS

OPC-2006LS

PLUG ADAPTER CABLE

OPC-2328

OPC-2328

PTT SWITCH CABLE

OPC-2359

OPC-2359

PTT SWITCH CABLE

Select optional accessories for the transceiver version and follow ICOM connection instructions.
