IC-F1000/F2000
- Compact, Waterproof Durable Design (IP67 and MIL-STD-810-G)
Icom Custom High Power Handling Capacity Speaker for 1500 mW Powerful Audio
Motion detection sensors
Compact, Waterproof Durable Design (IP67 and MIL-STD-810-G)
The IC-F1000 / IC-F2000 transceiver series it is IP67 waterproof and dust-tight protection
It can withstand 1m depth water for 30 minutes.
Icom Custom High Power Handling Capacity Speaker for 1500 mW Powerful Audio
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers powerful 1500mW (typ) sound to pick up all calls in noisy environments.
Optional 1500 mW Speaker-Microphone, HM-222HLWP
AquaQuake™
Prevents audio degradation from a water-logged speaker
Motion and motion detection sensors
- Man down function
- Lone worker function
- Motion and stationary detection function
Up to 14 Hours of Operating Time with Supplied BP-279 Battery
General Features
- 136–174, 335–380, 400–470, 450–512, 450–520 MHz versions.
- 128 channels / 8 zones (with screen) with voice announcement.
- 16 channels (without screen) with voice announcement.
- Up to 100 ID numbers and names can be saved to show the alias name, instead of the ID number.
- Tested to 12 categories of MIL-STD-810-G environmental tests.
- Compact (52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in) and lightweight (240 g; 8.5 oz with BP-279).
- Ακρόαση χώρου.
- 16-code inversion voice scrambler.
- VOX function for hands-free operation.
- BIIS PTT ID transmission.
- Auto TX function (2-Tone and 5-Tone).
- Siren sound for security alarm.
Made in Japan Quality and Reliability
All Icom products are tested to pass rigorous in-house tests as well as environmental tests at the Wakayama Icom plant before shipping. Our world-leading products and quality is tradition.
- Battery pack, BP-279
- Desktop charger, BC-213*
- AC adapter, BC-123SA/SE/SUK/SV or BC-242*
- Belt clip, MB-133
- Antenna

IC-F1000/IC-F2000
VHF/UHF HANDHELD TRANSCEIVERS
Compact analogue radio with powerful audio
IC-F1000/IC-F2000: Typical 1500 mW audio output from the internal speaker.
Supplied accessories may differ or may not be supplied, depending on version.
Features
Powerful analogue audio
Typical 1500 mW audio output from the internal speaker.
IP67 protection
Compact construction with IP67 protection and MIL-STD-810G testing.
Safety functions
Motion/stationary sensor, Man Down and Lone Worker functions.
Display and non-display versions
128 channels in eight zones on T/S versions and 16 channels on non-display versions.
Specifications
| Frequency coverage | VHF: 136–174 MHz · UHF EUR: 400–470 MHz |
|---|---|
| RF output power | VHF: 5 / 2 / 1 W · UHF: 4 / 2 / 1 W, by version |
| Channels / zones | T/S: 128 / 8 · non-display: 16 channels |
| Operating modes | Analogue FM |
| Dimensions | 52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279) 52.2 × 111.8 × 30.3 mm; 2.1 × 4.4 × 1.2 in (With BP-280) |
| Weight, approximate | 240 g; 8.5 oz (With BP-279) 270 g; 9.5 oz (With BP-280) |
| Operating temperature | EUR VHF: −30 to +60 °C · EUR UHF: −25 to +55 °C |
| Power supply | 7.5 V DC nominal |
Specifications refer to the version identified above and are subject to change by ICOM.
Supplied Accessories
Battery pack, BP-279 or BP-280* · Desktop charger, BC-213 · AC adapter, BC-242 · Belt clip, MB-133 · Antenna
Optional Accessories

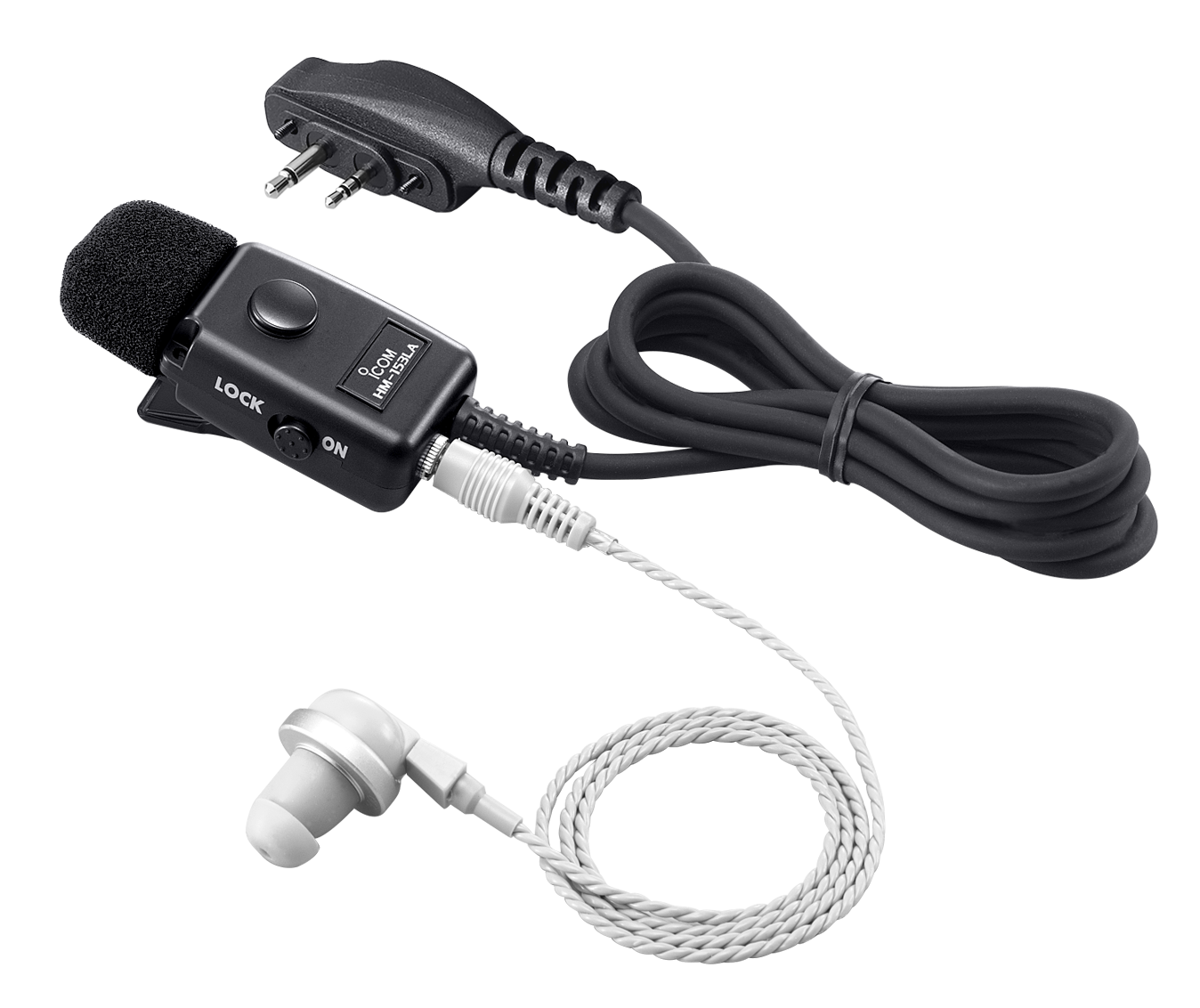

HM-153LA
EARPHONE MICROPHONE

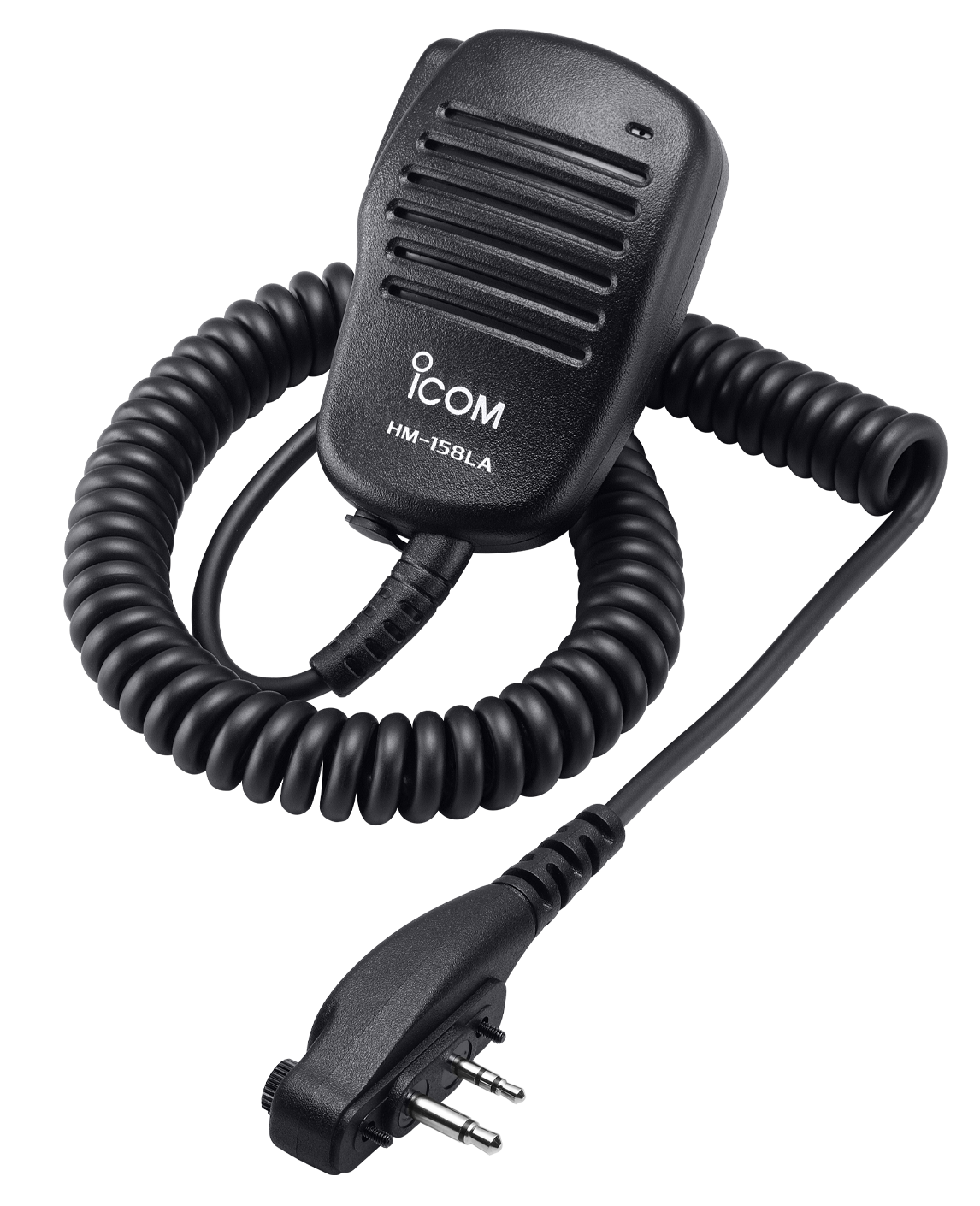

HM-158LA
Speaker Microphone

HM-159LA
Speaker Microphone

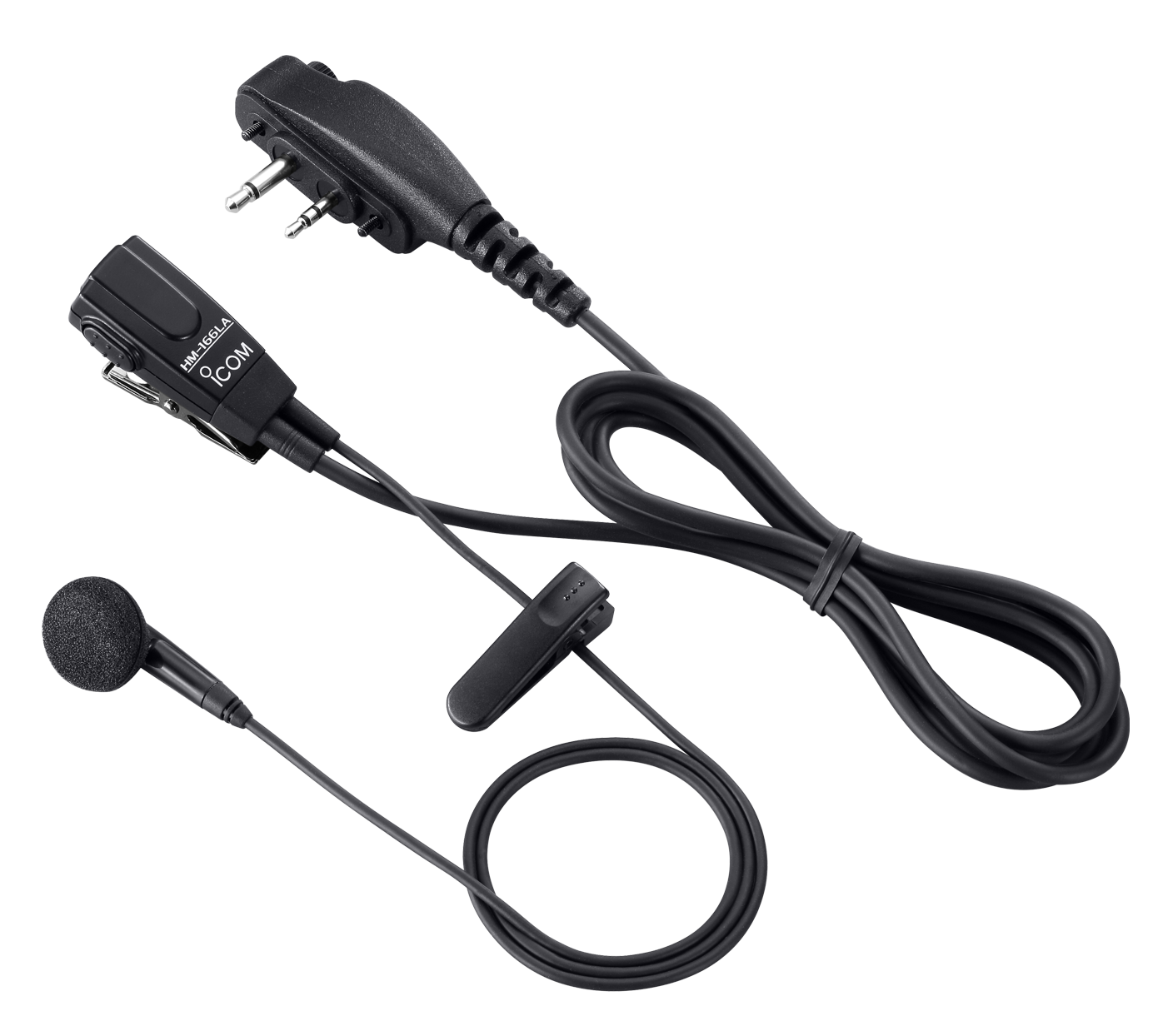

HM-166LA
EARPHONE MICROPHONE

HM-168LWP
Speaker Microphone

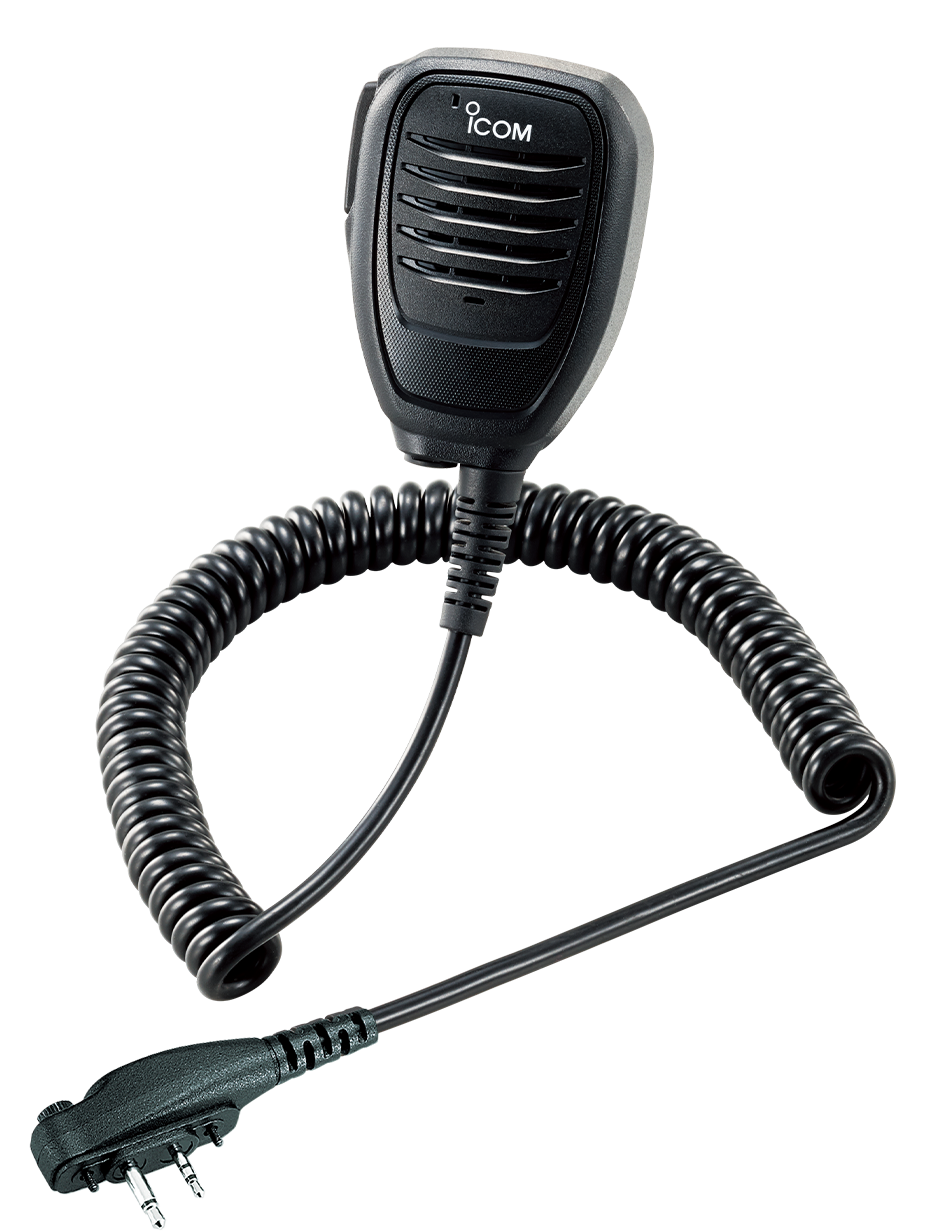

HM-222HLWP
SPEAKER MICROPHONE * Not available for USA versions.

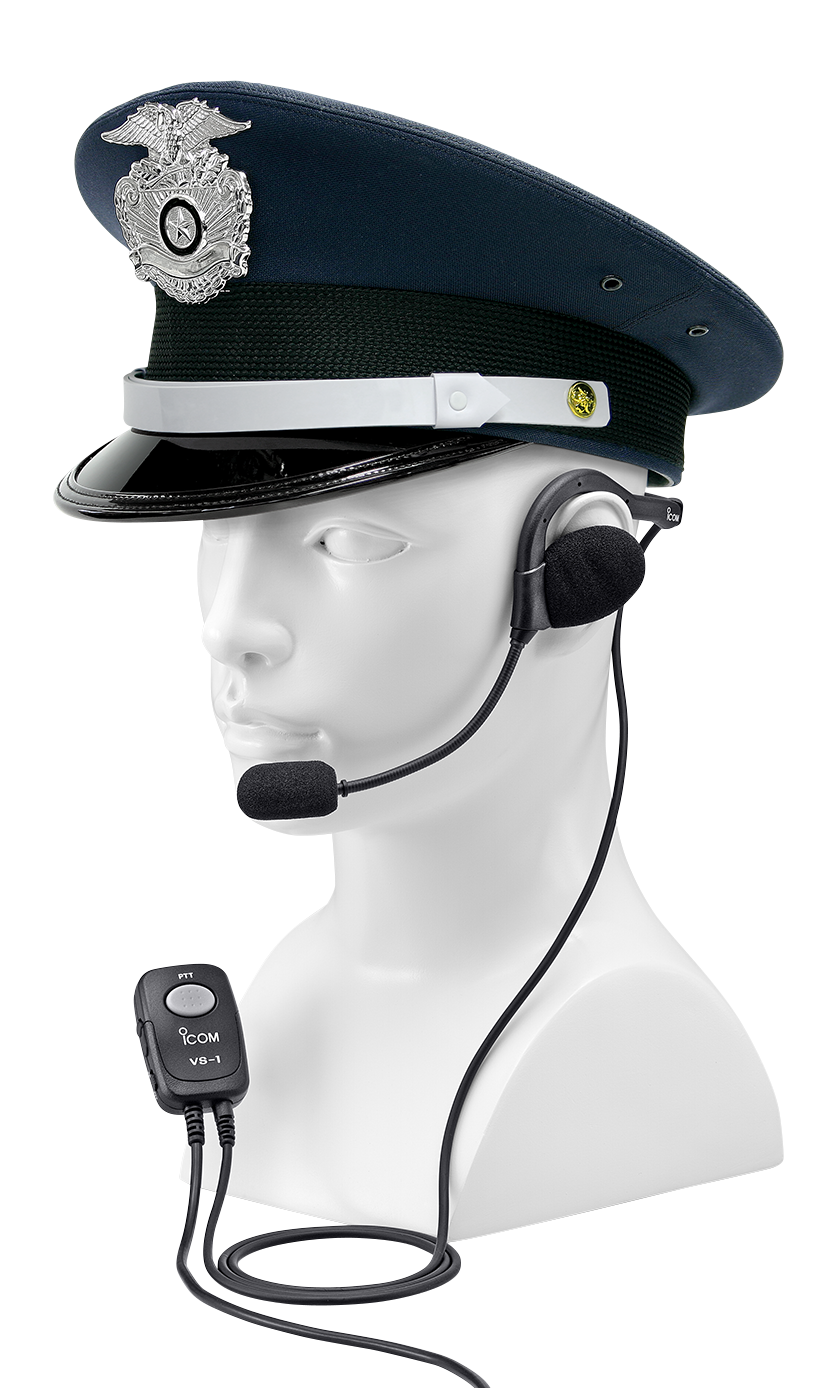

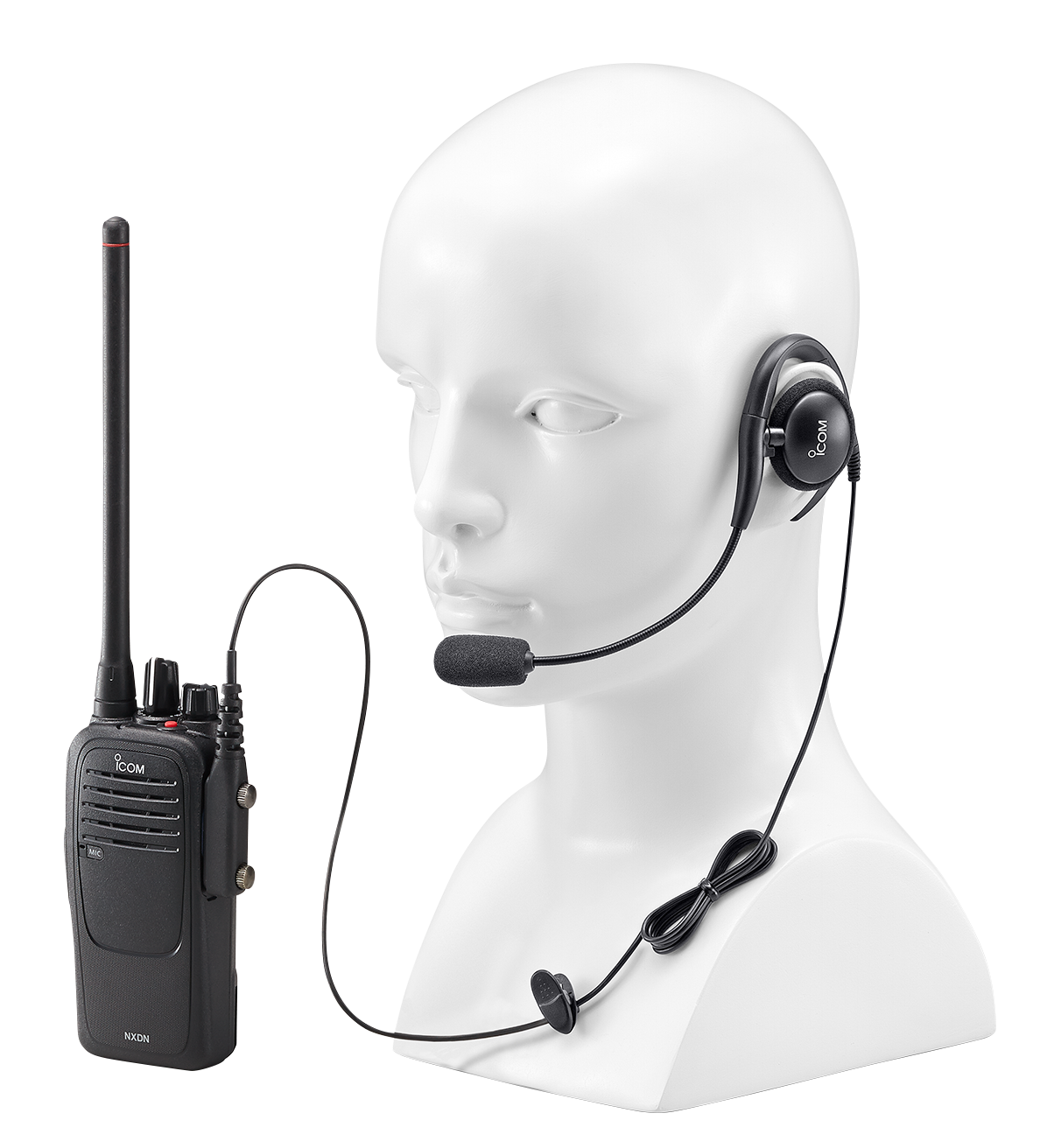

HS-94
EARHOOK TYPE HEADSET

HS-94LWP
EARHOOK TYPE HEADSET

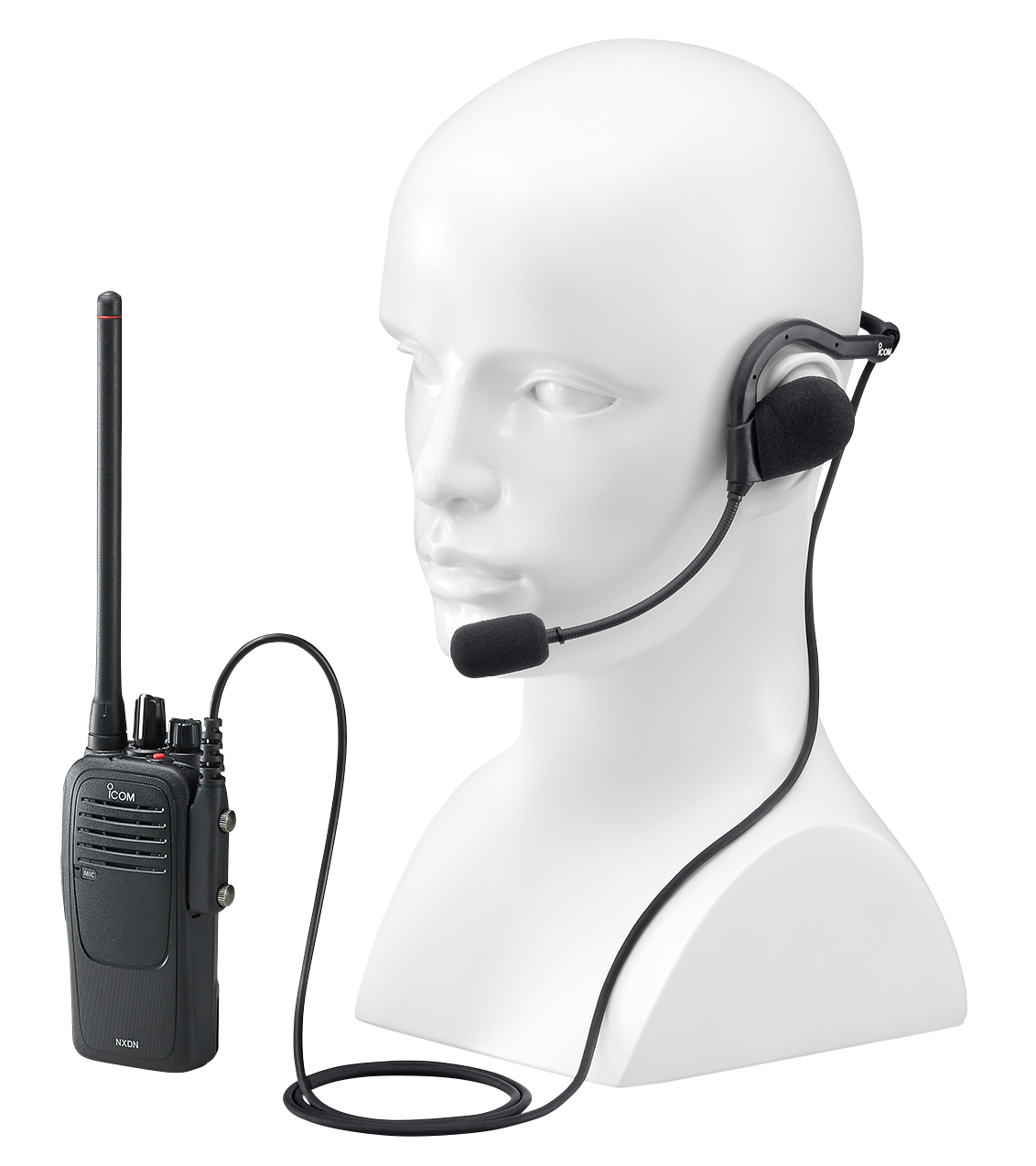

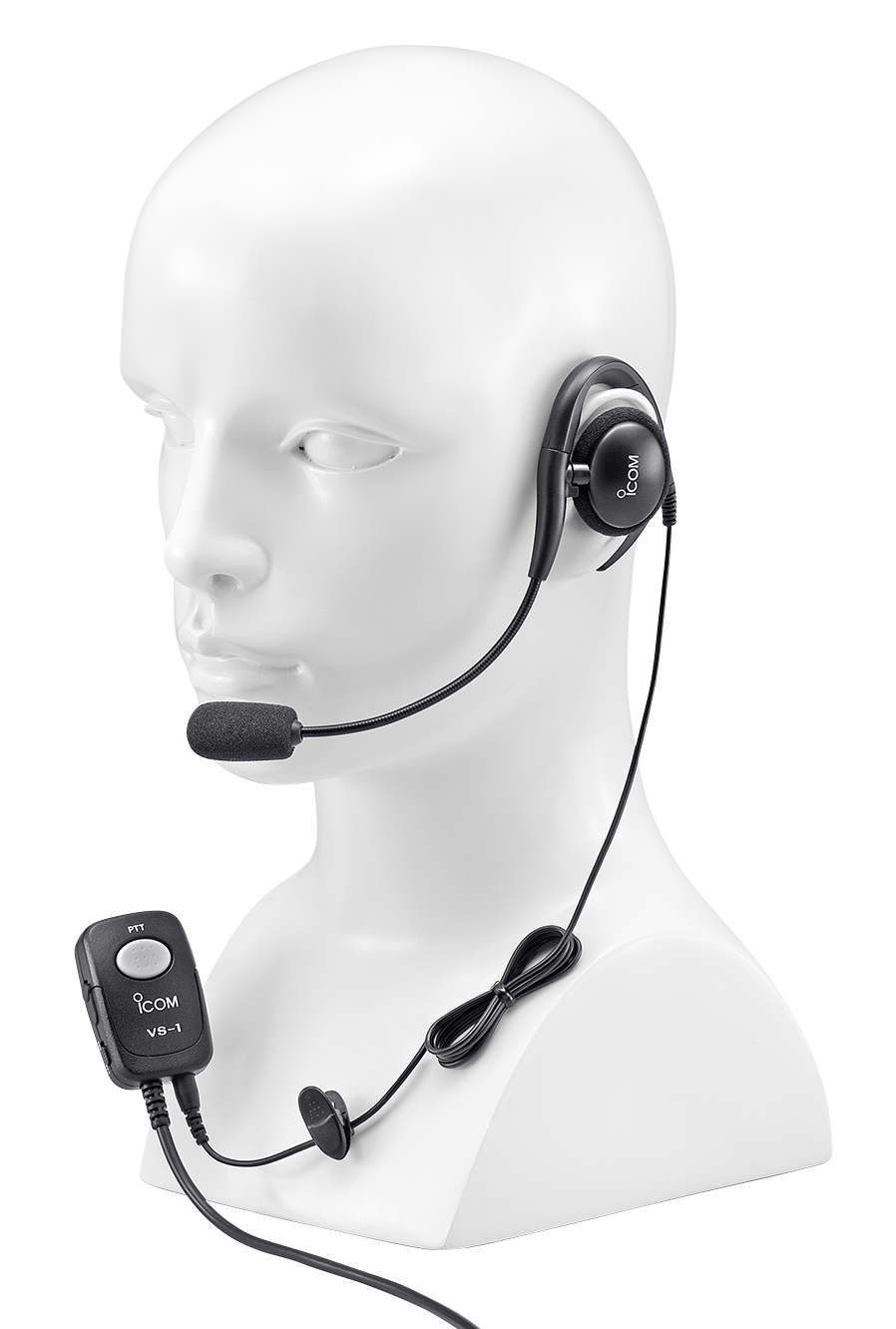

HS-95
NECK ARM TYPE HEADSET

HS-95LWP
NECK ARM TYPE HEADSET

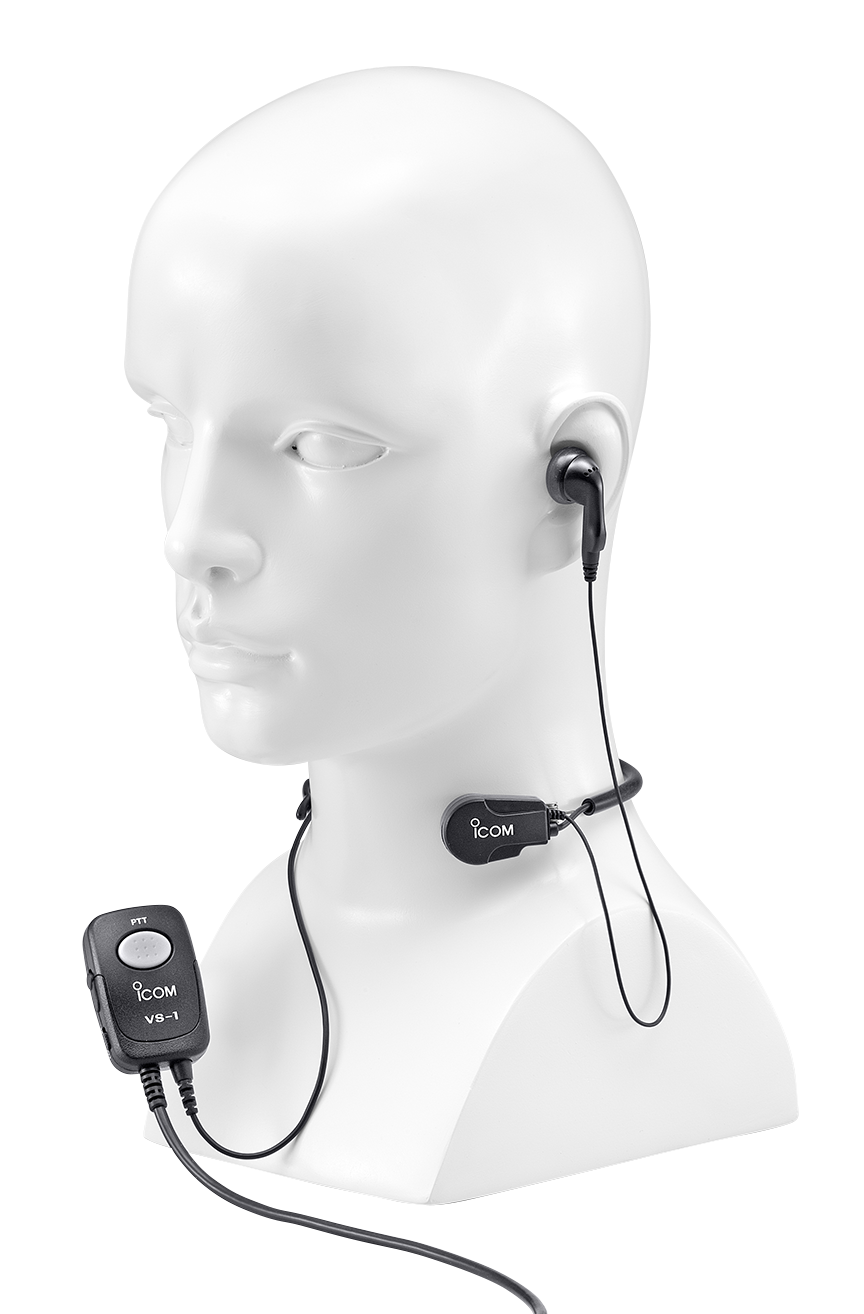

HS-97
HEADSET WITH THROAT MICROPHONE

BP-279
Li-Ion Battery Pack

BP-280
Li-Ion Battery Pack

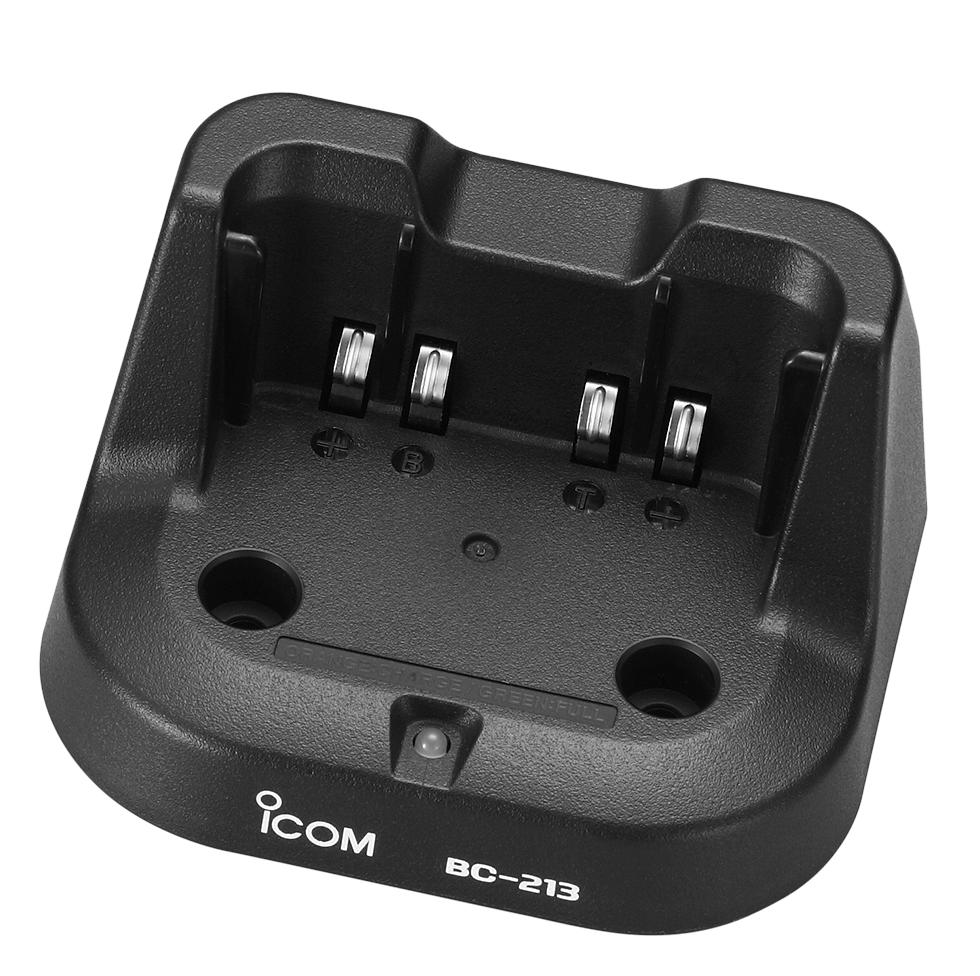

BC-213
Desktop Charger

BC-214N
#41-#43 (EN62368-1 compliant) MULTI-CHARGER * For BP-278/BP-279/BP-280. The AD-130 charger adapters are supplied.

BC-123S
AC ADAPTER Use with BC-213.

BC-157S
Versions 22 - 24 AC ADAPTER

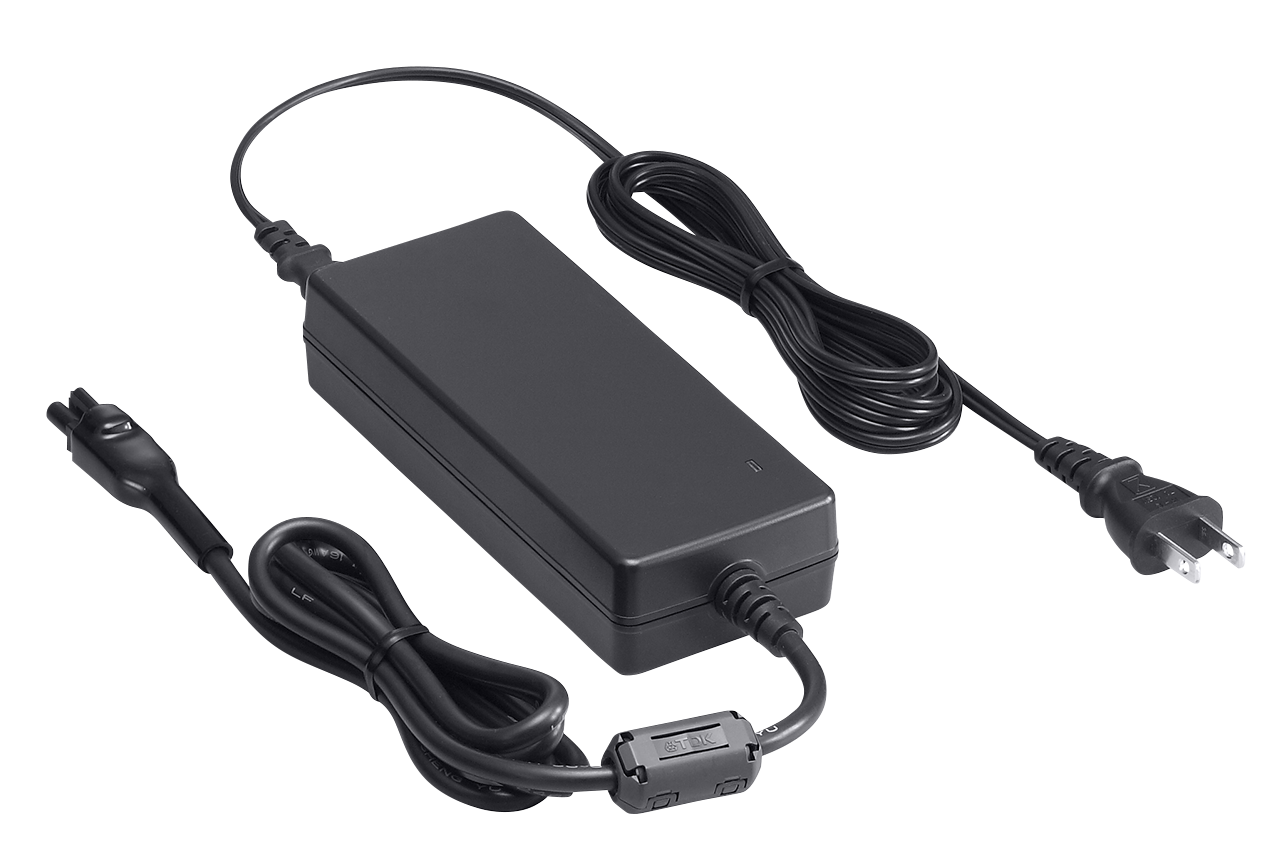

BC-242
AC ADAPTER Use with BC-213.

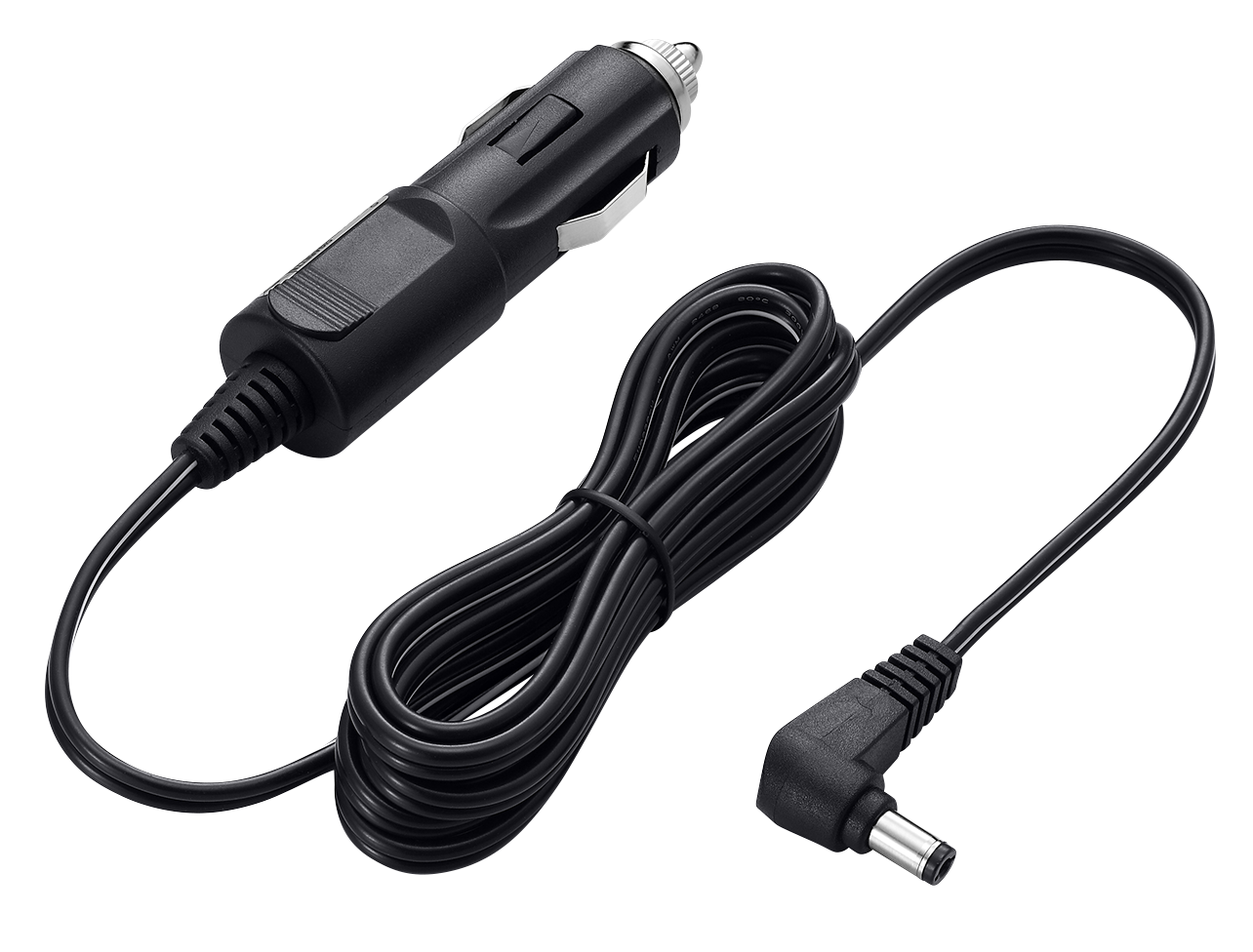

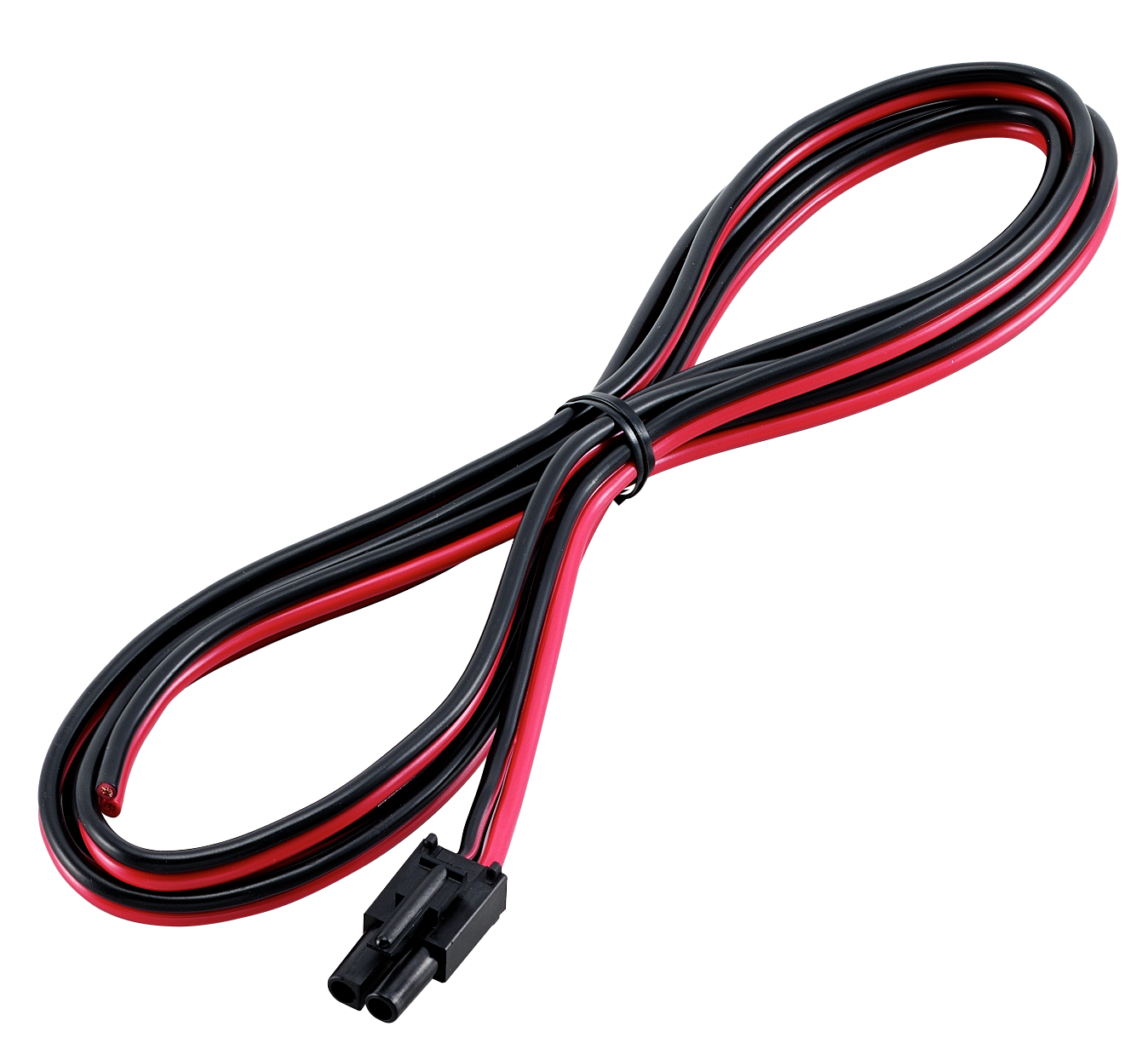

CP-23L
CIGARETTE LIGHTER CABLE

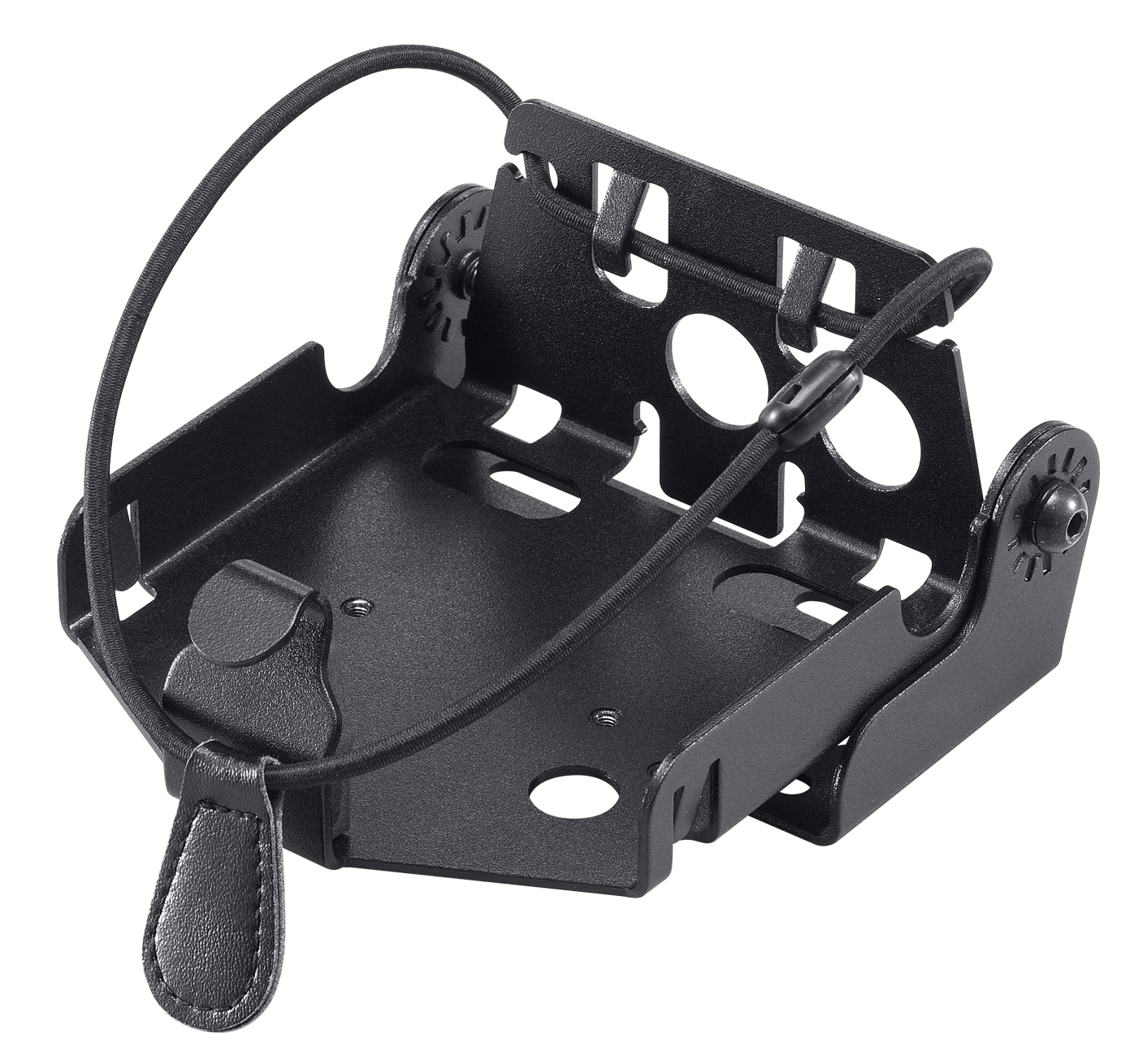

MB-130
VEHICLE CHARGER BRACKET

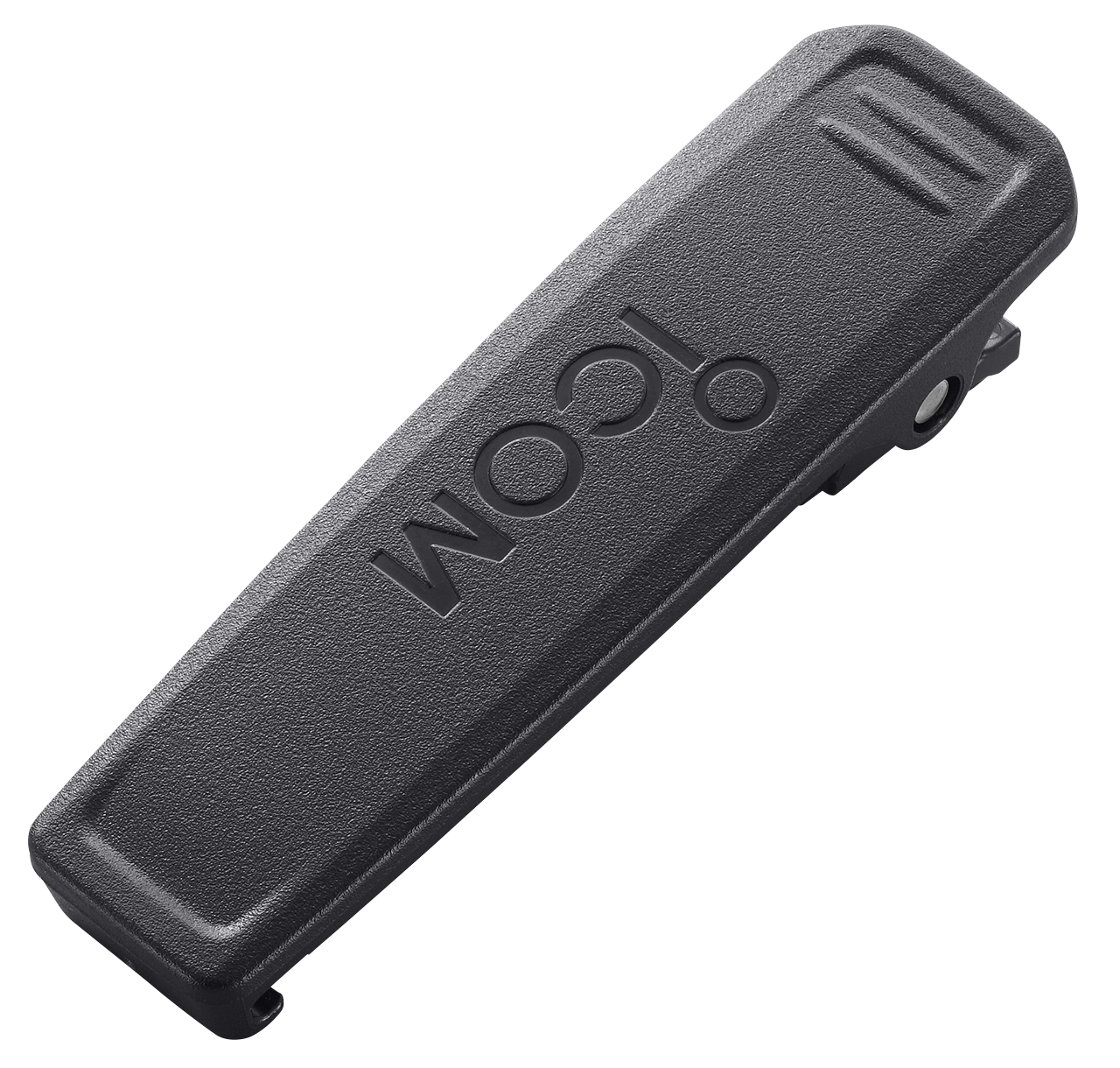

MB-133
Belt Clip

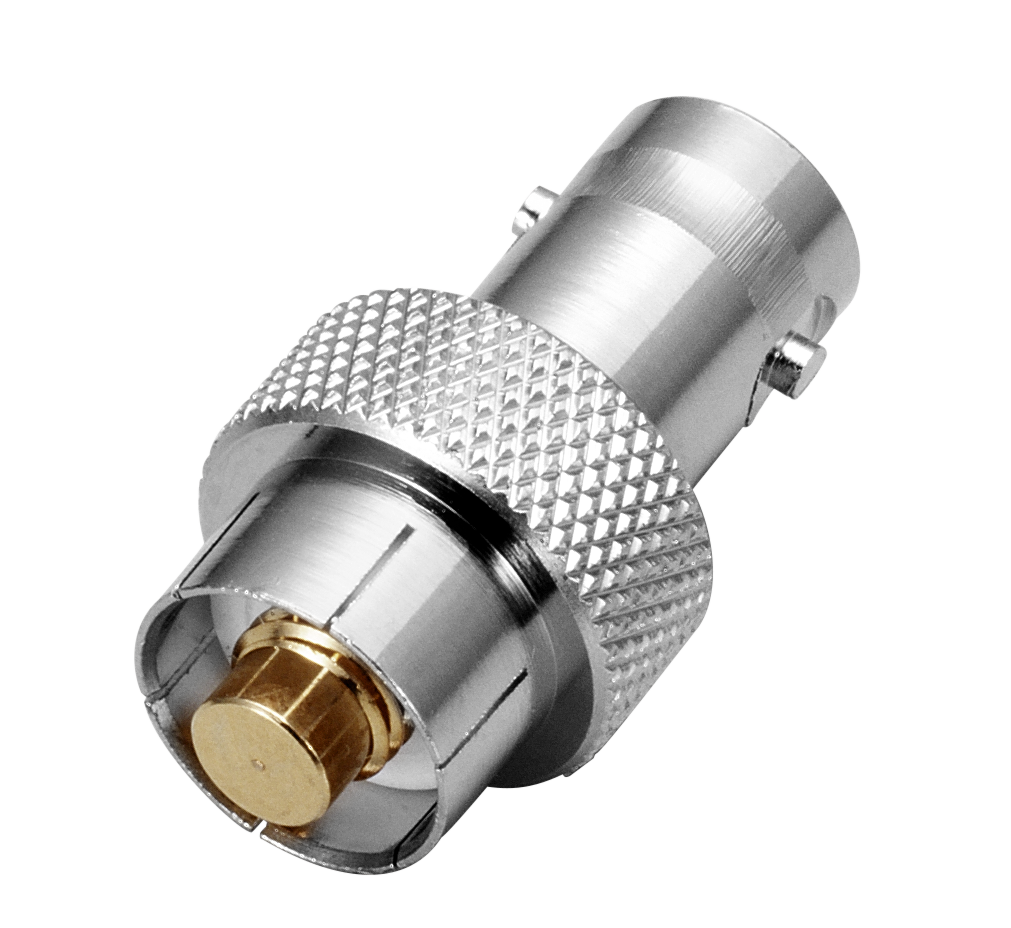

AD-98FSC
ANTENNA CONNECTOR ADAPTER

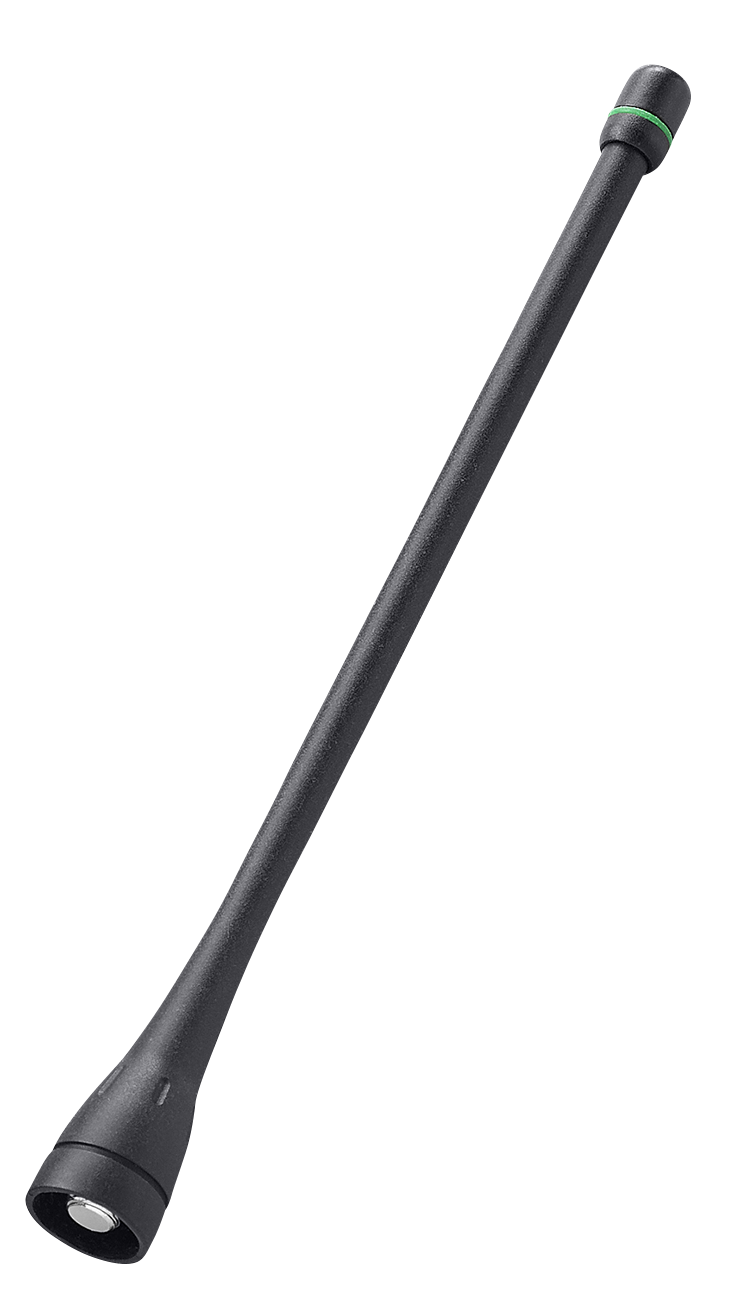

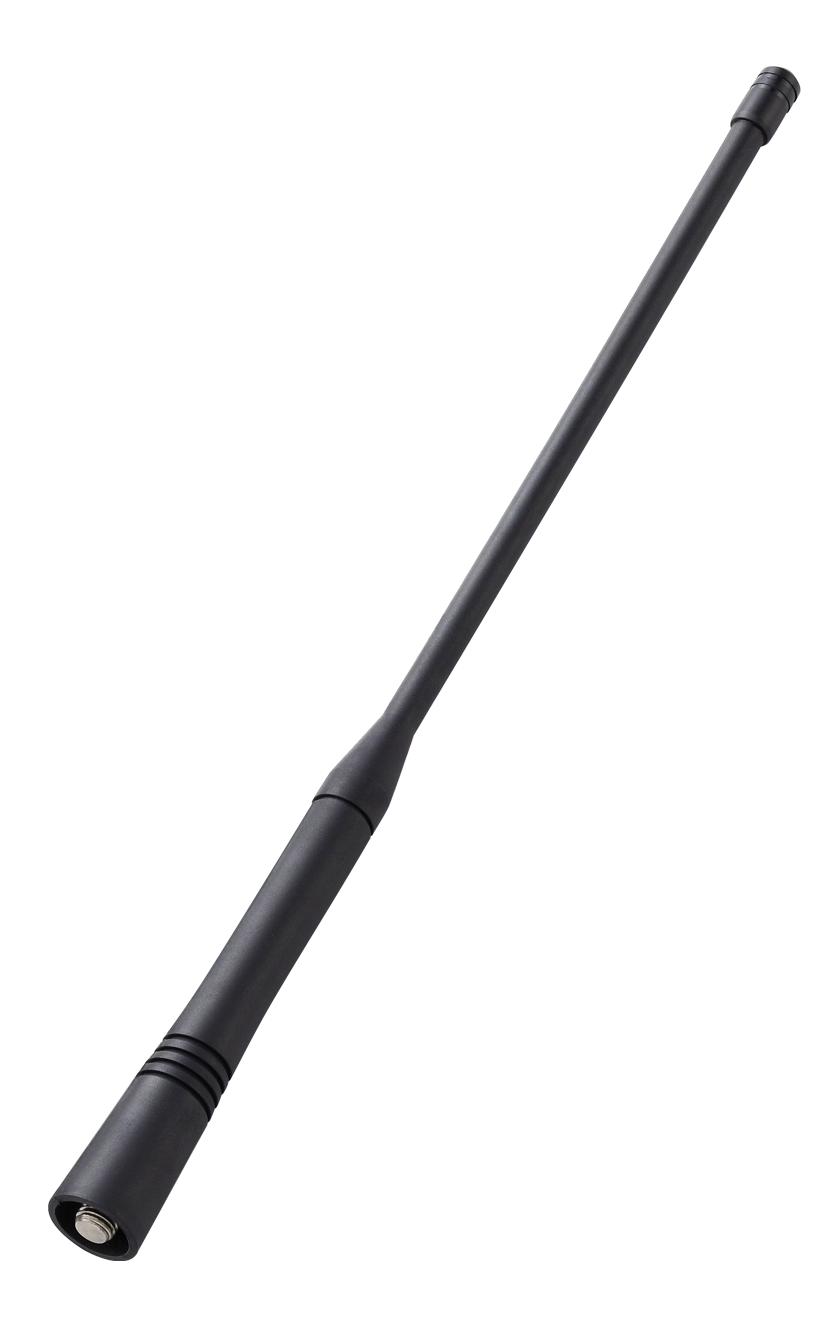

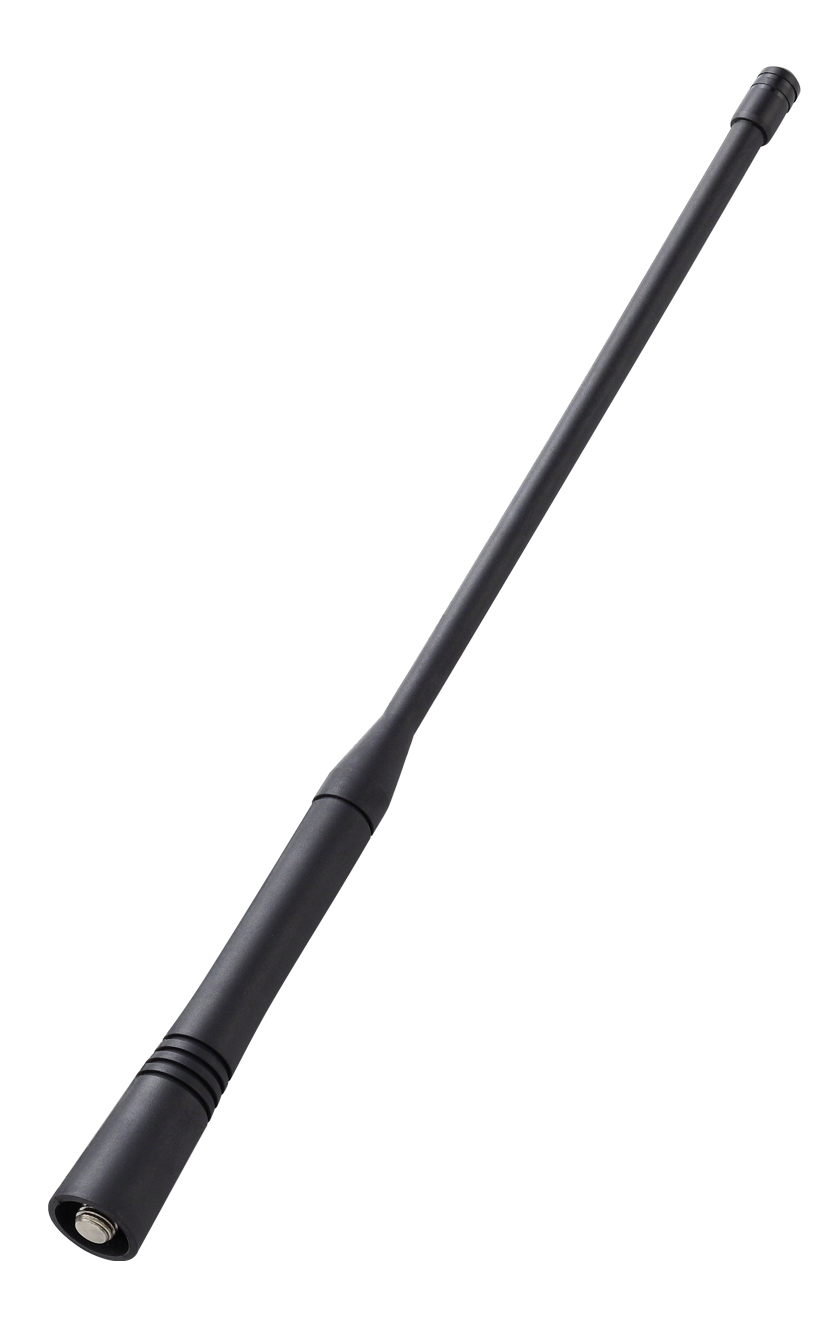

FA-SC25U
FLEXIBLE ANTENNA

FA-SC25V
FLEXIBLE ANTENNA

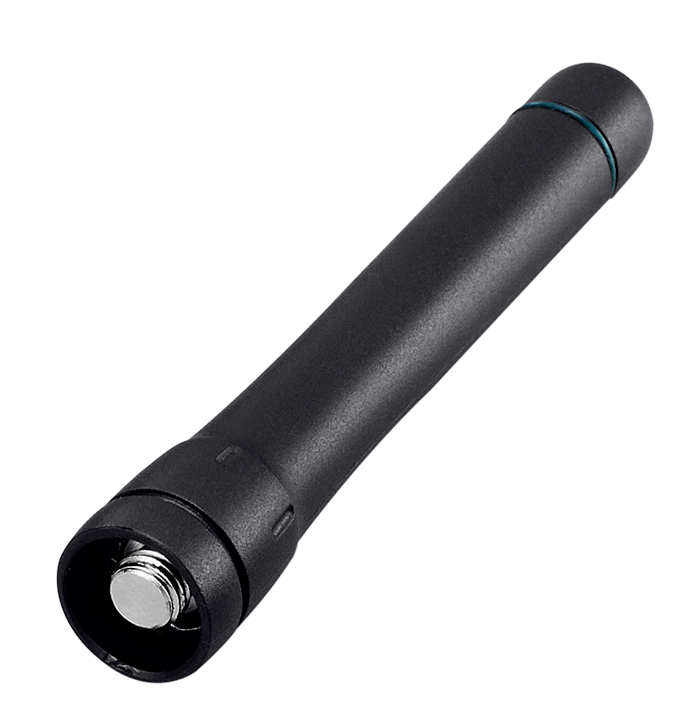

FA-SC26US
STUBBY ANTENNA

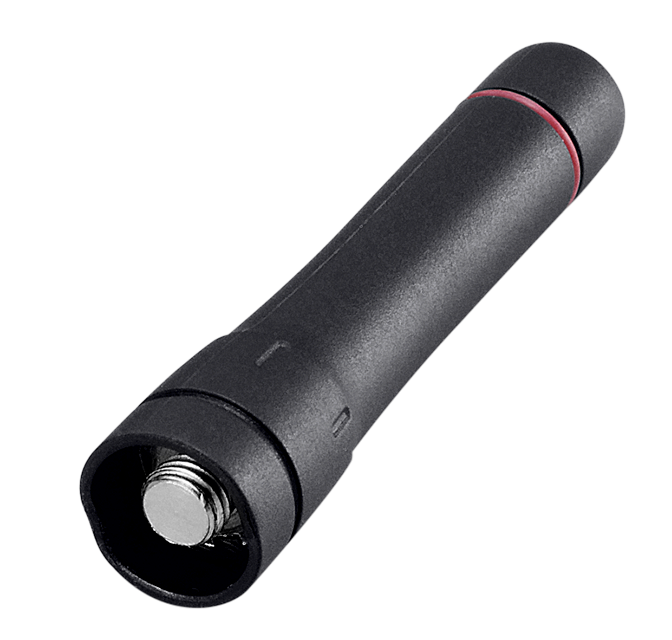

FA-SC26VS
STUBBY ANTENNA

FA-SC27VS
STUBBY ANTENNA

FA-SC28V
FLEXIBLE ANTENNA

FA-SC29V
FLEXIBLE ANTENNA

FA-SC55V
FLEXIBLE ANTENNA

FA-SC56VS
STUBBY ANTENNA

FA-SC57U
FLEXIBLE ANTENNA

FA-SC57VS
STUBBY ANTENNA

FA-SC61UC
CUT TYPE ANTENNA

FA-SC61VC
CUT TYPE ANTENNA

FA-SC62V
HIGH GAIN ANTENNA

FA-SC63V
HIGH GAIN ANTENNA

FA-SC72U
FLEXIBLE ANTENNA

FA-SC73US
STUBBY ANTENNA

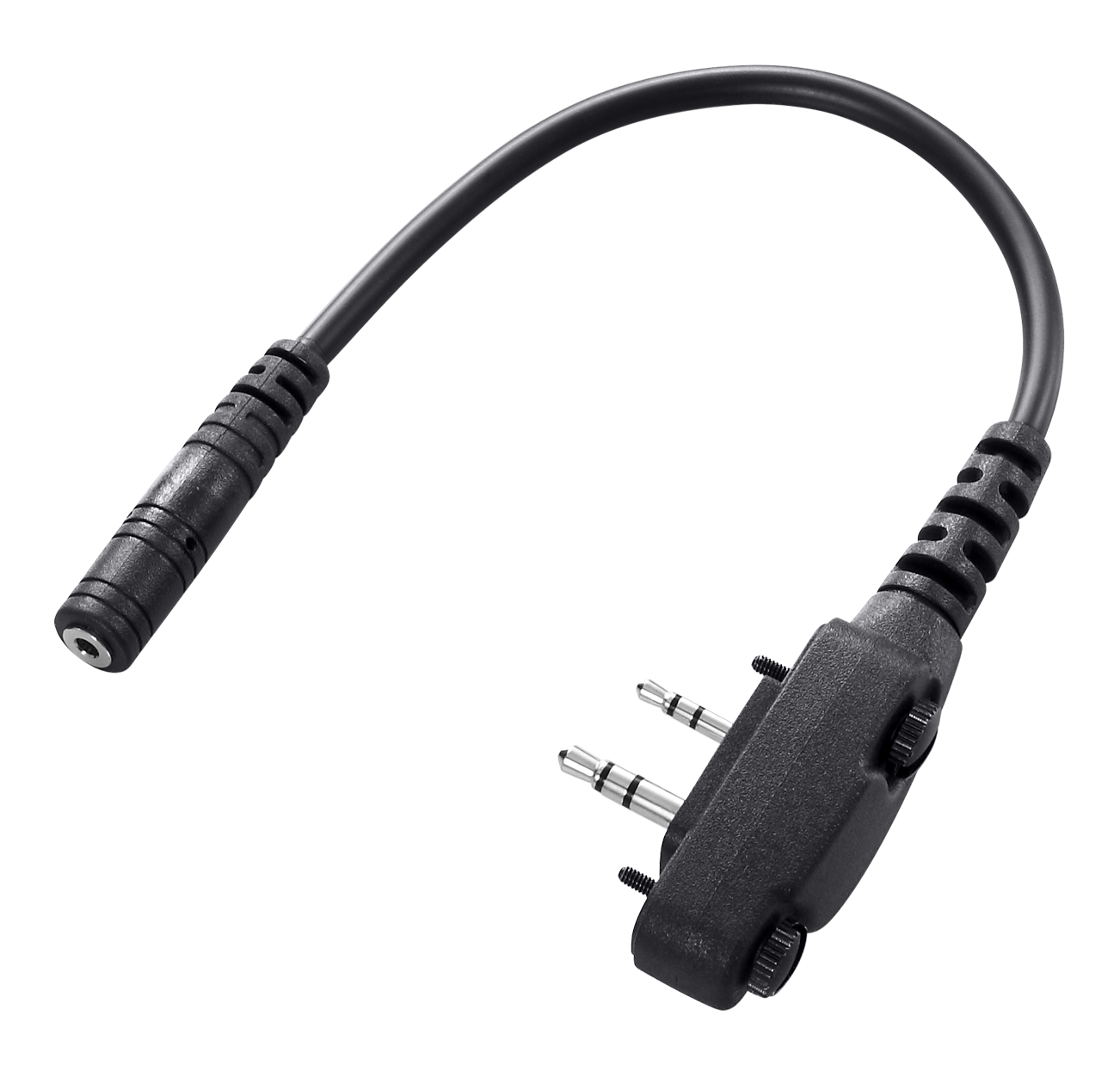

OPC-2004LA
PLUG ADAPTER CABLE

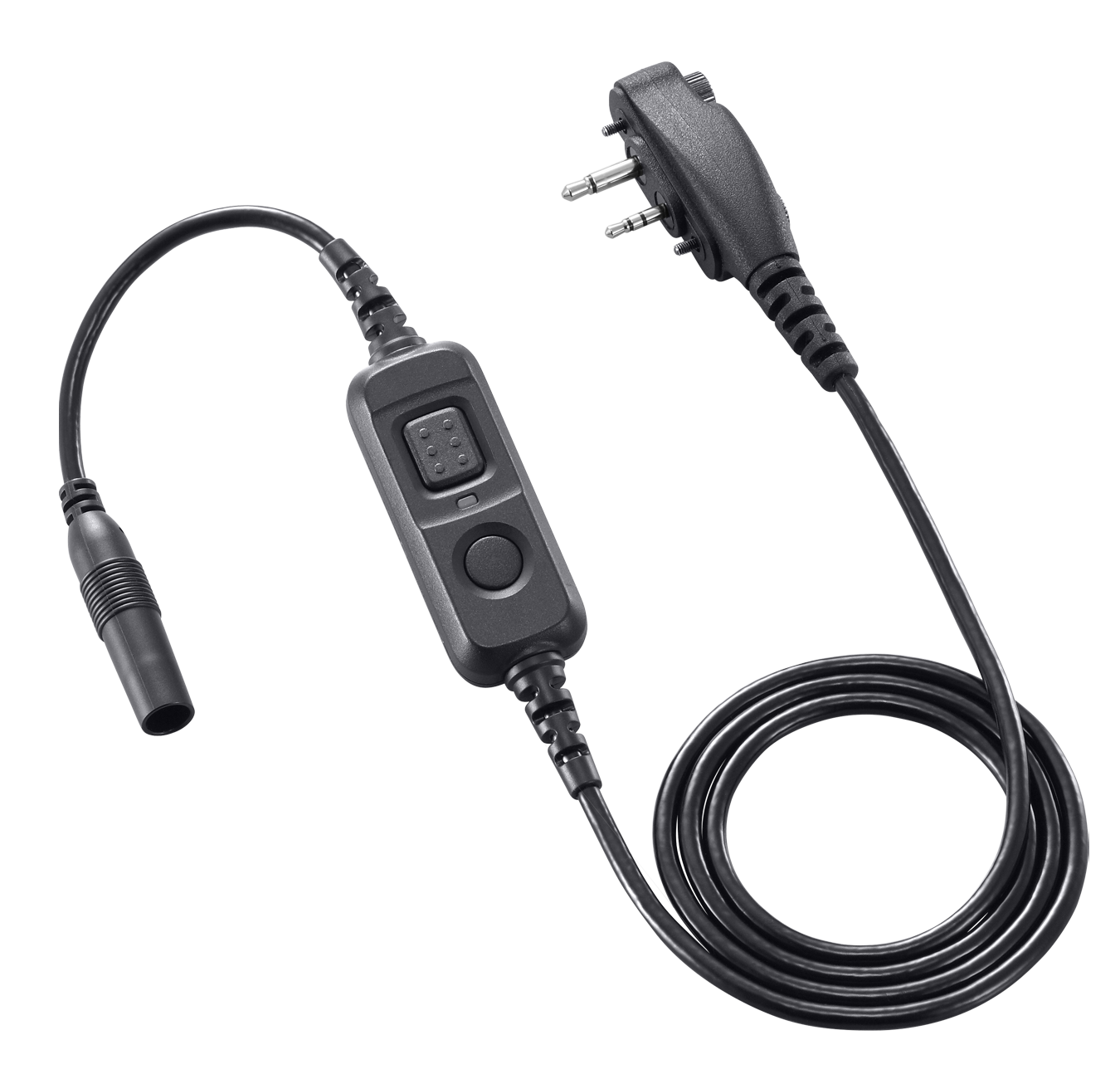

VS-4LA
PTT SWITCH CABLE
Select optional accessories for the transceiver version and follow ICOM connection instructions.
