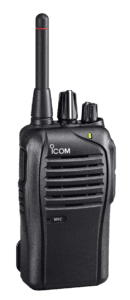

IC-F27SR
Up to 55 Hours of Operating Time
Lightweight, Compact Body
Just Three Main Controls
Internal VOX for Hands-free Operation
IC-F27SR
Outstanding audio quality, high performance and strong commercial build quality make the IC-F27SR the ideal licence free radio.
Ideal for users in diverse areas such as construction, catering, event management, shopping centres, factories, farms as well as serious outdoor enthusiasts.
Up to 55 Hours of Operating Time
The IC-F27SR features highly efficient circuitry, providing up to a massive 55 hours of operating time* with the supplied BP-299 3150 mAh lithium-ion battery pack.
This means it can be comfortably last an entire shift.
* Tx: Rx: Stand-by =5: 5: 90 with power save ON.
Outstanding audio quality
800 mW audio output is provided from the large 45 mm speaker meaning the
IC-F27SR can deliver loud and intelligible audio even in extremely noisy environments such as a busy shop floor or construction site.
Just Three Main Controls
Transmit button, volume control and channel selector.
This simple to use radio is ideal for high turnover environments and shift work where the radio is constantly passed from person to person.
Lightweight, Compact Body
Small size (58 × 186 × 36.5 mm) and lightweight (290 g) makes this transceiver ideal for all users.
Commercial Grade Construction
The IC-F27SR is extremely rugged.
It has been tested to 11 categories of environmental military standards for dust protection and water resistance making it ideally suited for outdoor use.
Internal VOX for Hands-free Operation
Built-in VOX function provides convenient hands-free operation, when used with our optional headset adapter cable.
Other features
- CTCSS and DTCS encoder and decoder for group call
- Surveillance function turns off the LED and beep sound
- Siren function can be used for security alarm
- Power save function
- Low battery Alert
- Time out timer
- Monitor function
Made in Japan Quality and reliability
All Icom products are checked to pass rigorous internal testing as well as environmental testing at the Wakayama Icom factory before shipment. Our world leading products and quality is a tradition.
- Li-ion battery pack, BP-299
- Belt clip, MB-124
- Battery charger, BC-240
- AC adapter, BC-242
IC-F27SR
PMR 446 TRANSCEIVER
Simple professional PMR446 with long operating time
IC-F27SR: Up to 55 hours with BP-299 under Icom’s test conditions.
Supplied accessories may differ or may not be supplied, depending on version.
Features
Extended operating time
Up to 55 hours with BP-299 under Icom’s test conditions.
Three main controls
Transmit button, volume control and channel selector.
Clear audio
A 45 mm speaker provides 800 mW audio output.
VOX with optional accessories
Hands-free operation with a compatible optional adapter cable and headset.
Specifications
| Frequency coverage | 446.00625–446.09375 MHz |
|---|---|
| RF output power | 500 mW ERP |
| Channels / zones | 8 |
| Operating modes | Analogue PMR446 |
| Dimensions | 58 × 186 × 36.5 mm |
| Weight, approximate | 290 g |
| Operating temperature | –25°C to +55°C (Radio only) |
Specifications refer to the version identified above and are subject to change by ICOM.
Supplied Accessories
Li-ion battery pack, BP-299 · Belt clip, MB-124 · Battery charger, BC-240 · AC adapter, BC-242
Optional Accessories

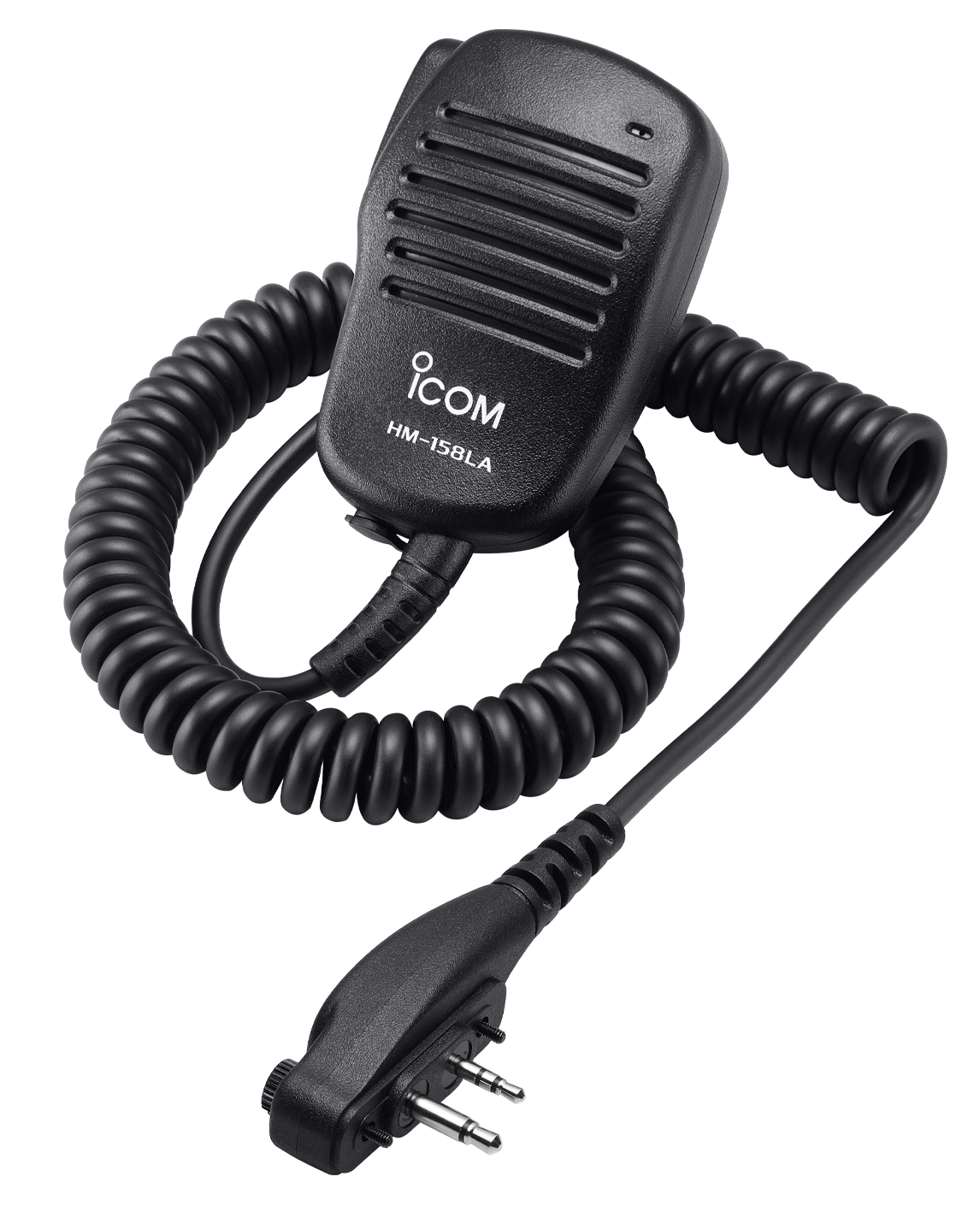

HM-158LA
SPEAKER MICROPHONE Compact speaker microphone with 3.5 mm earphone jack

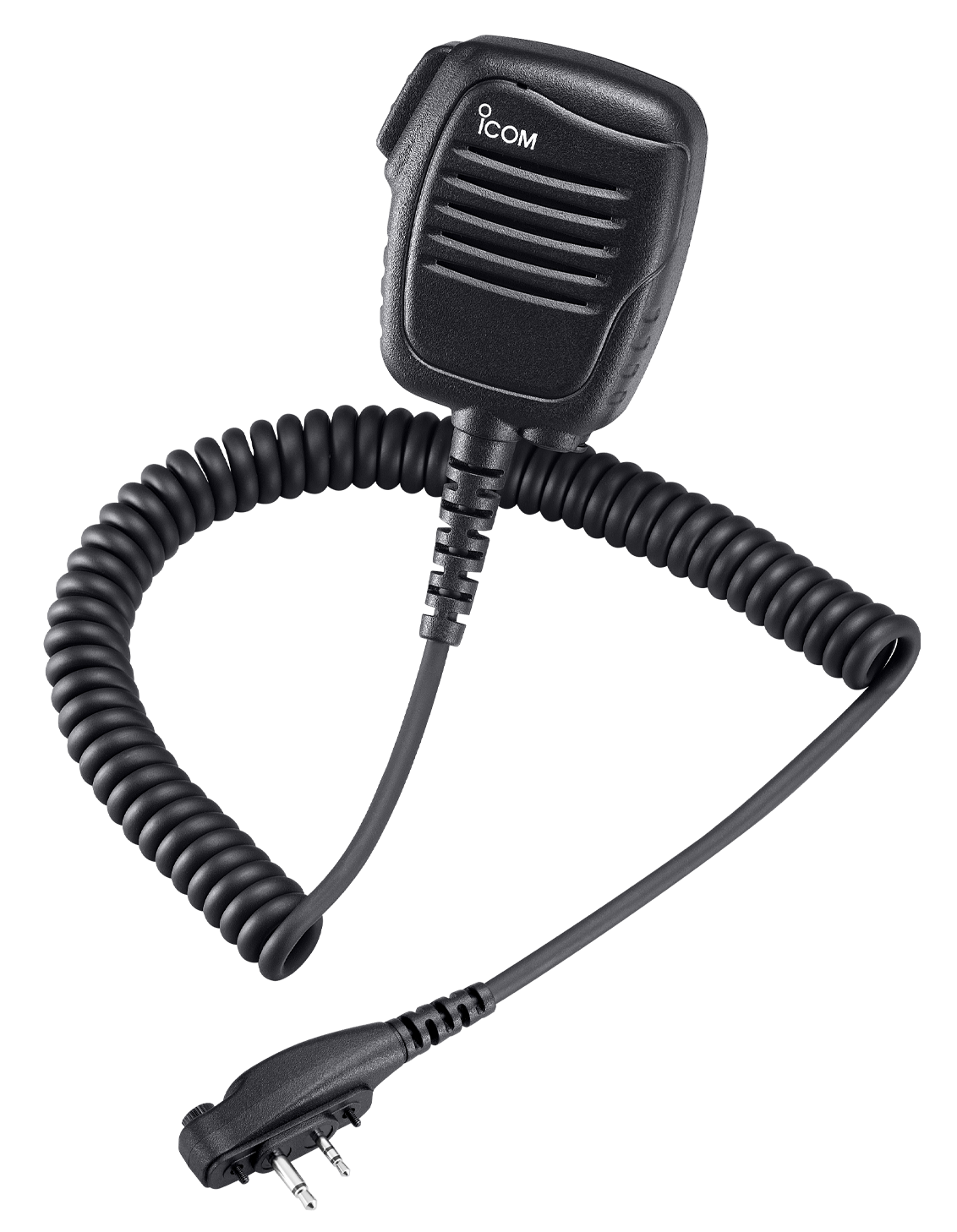

HM-159LA
SPEAKER MICROPHONE Loud and clear audio speaker microphone

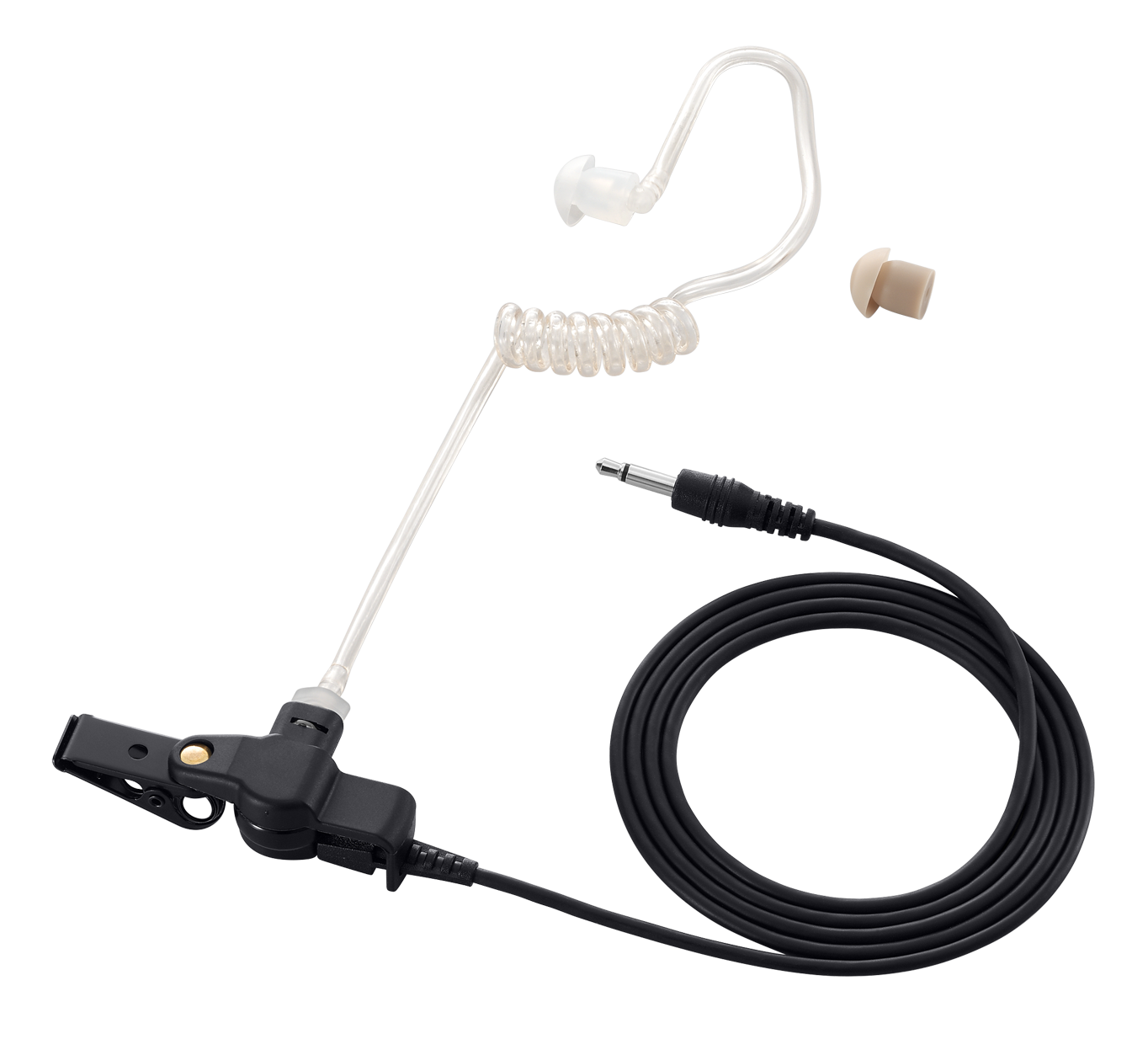

SP-27
Tube Earphone

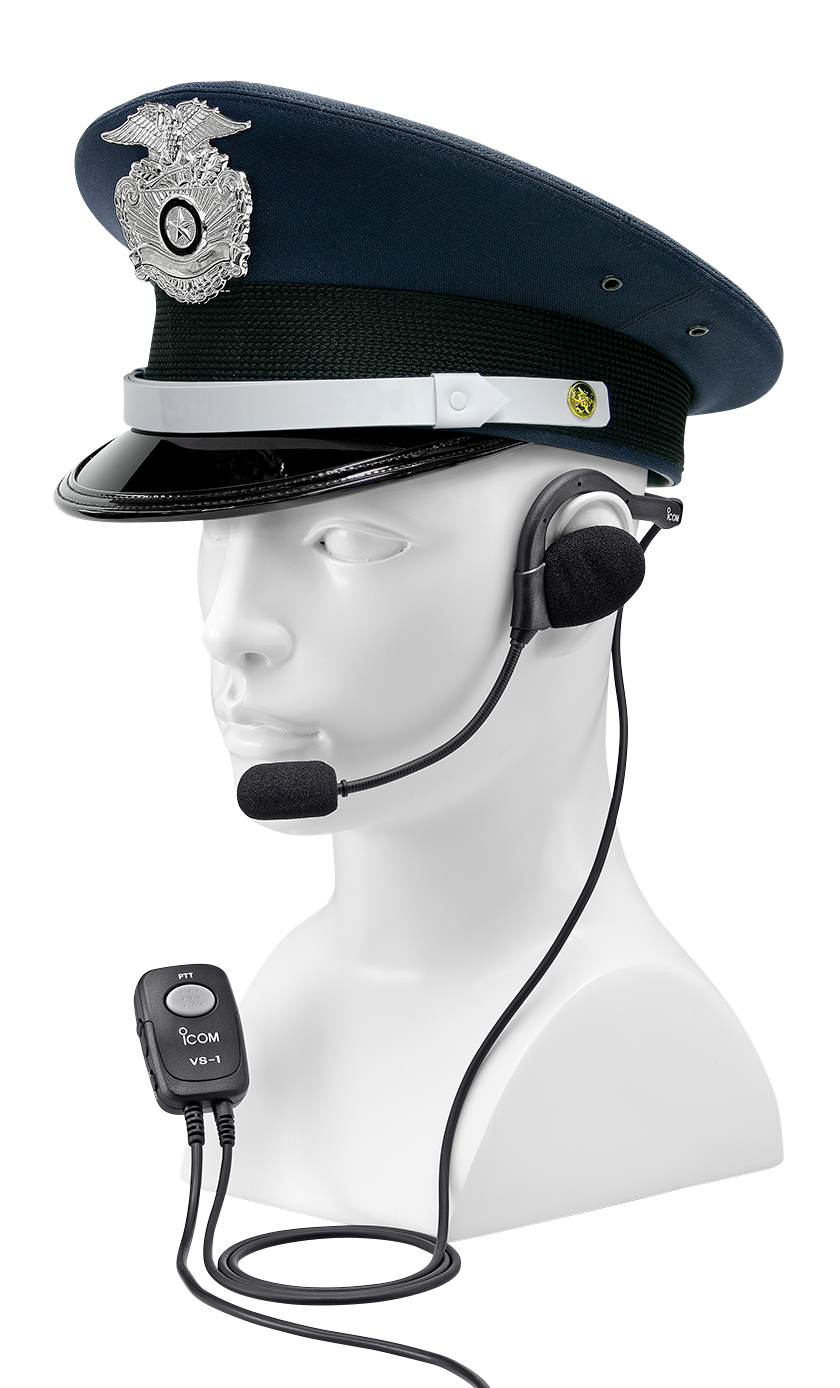

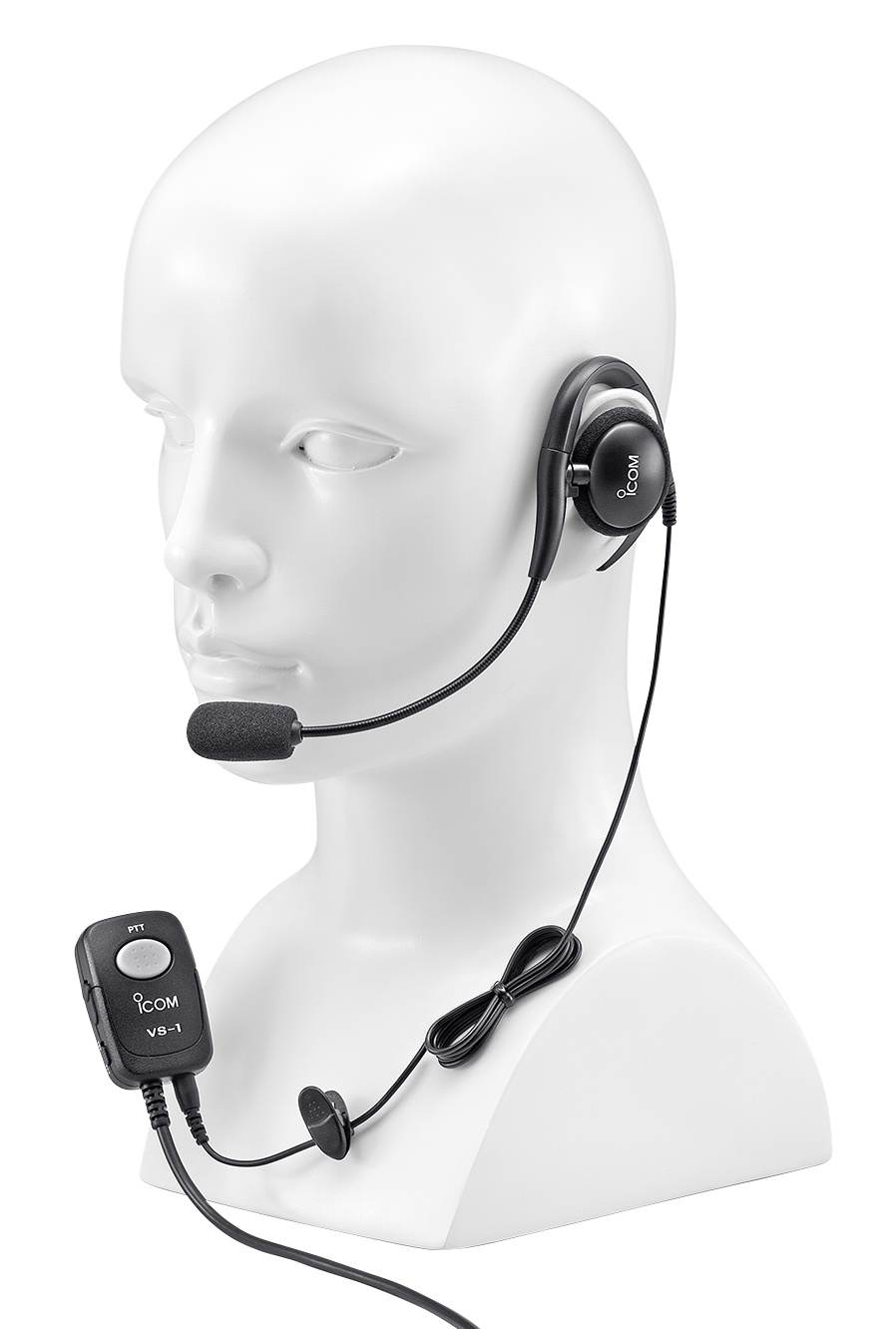

HS-94
EARHOOK TYPE HEADSET OPC-2004LA is required.
HS-95
NECK ARM TYPE HEADSET OPC-2004LA is required.

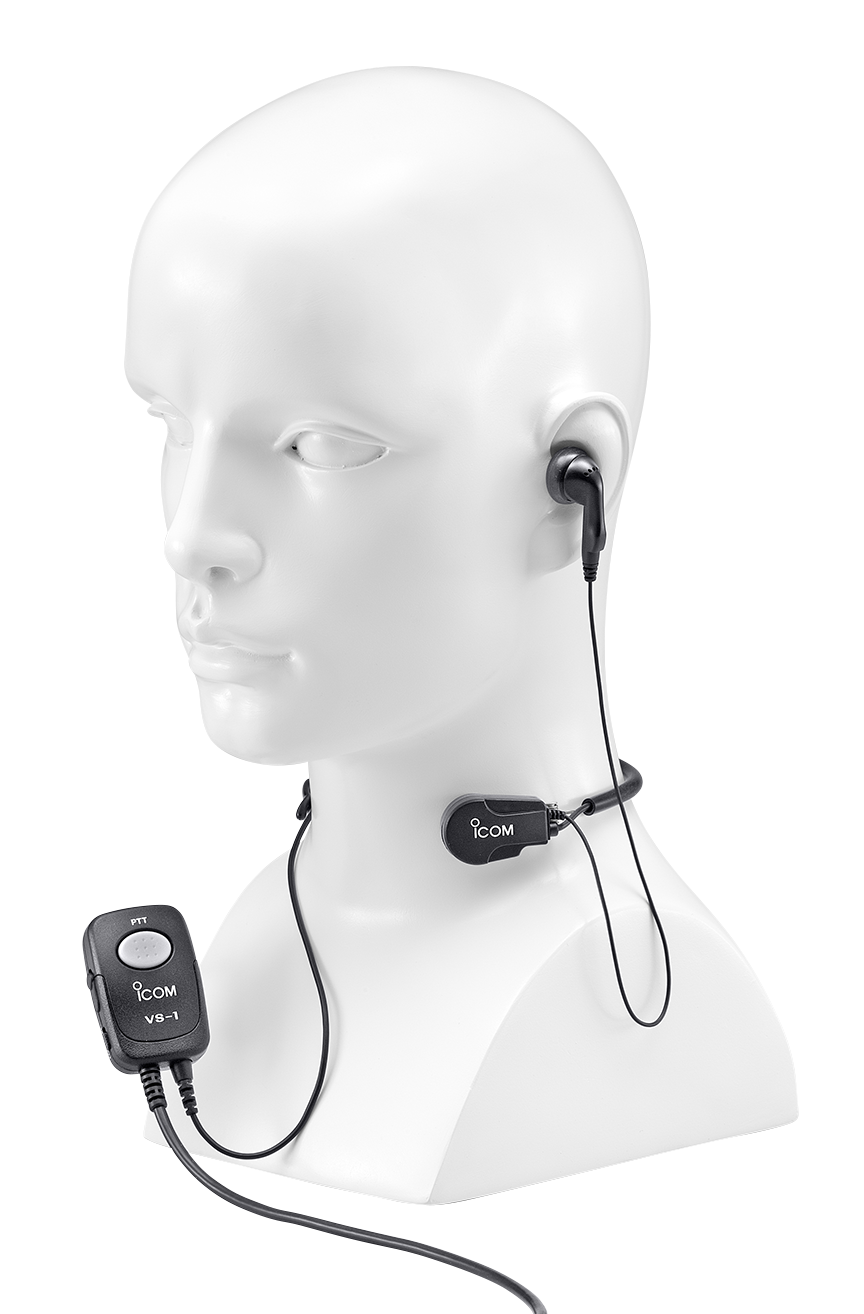

HS-97
HEADSET WITH THROAT MICROPHONE OPC-2004LA is required.
BP-263
BATTERY CASE
BP-299
LI-ION BATTERY PACK Same as supplied.

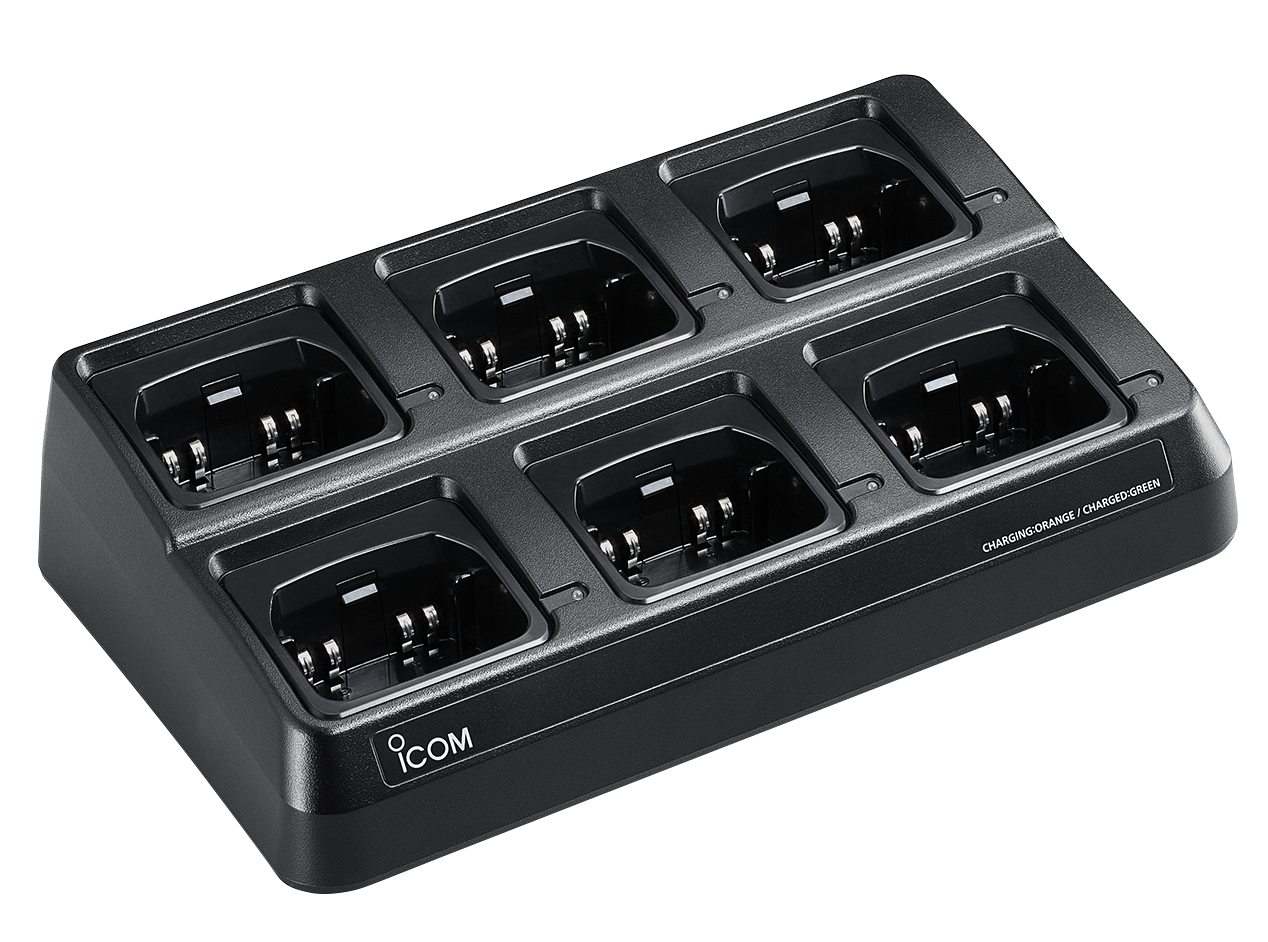

BC-214N
#26-#28 (EN62368-1 compliant) MULTI-CHARGER AC adapter supplied depending on versions.

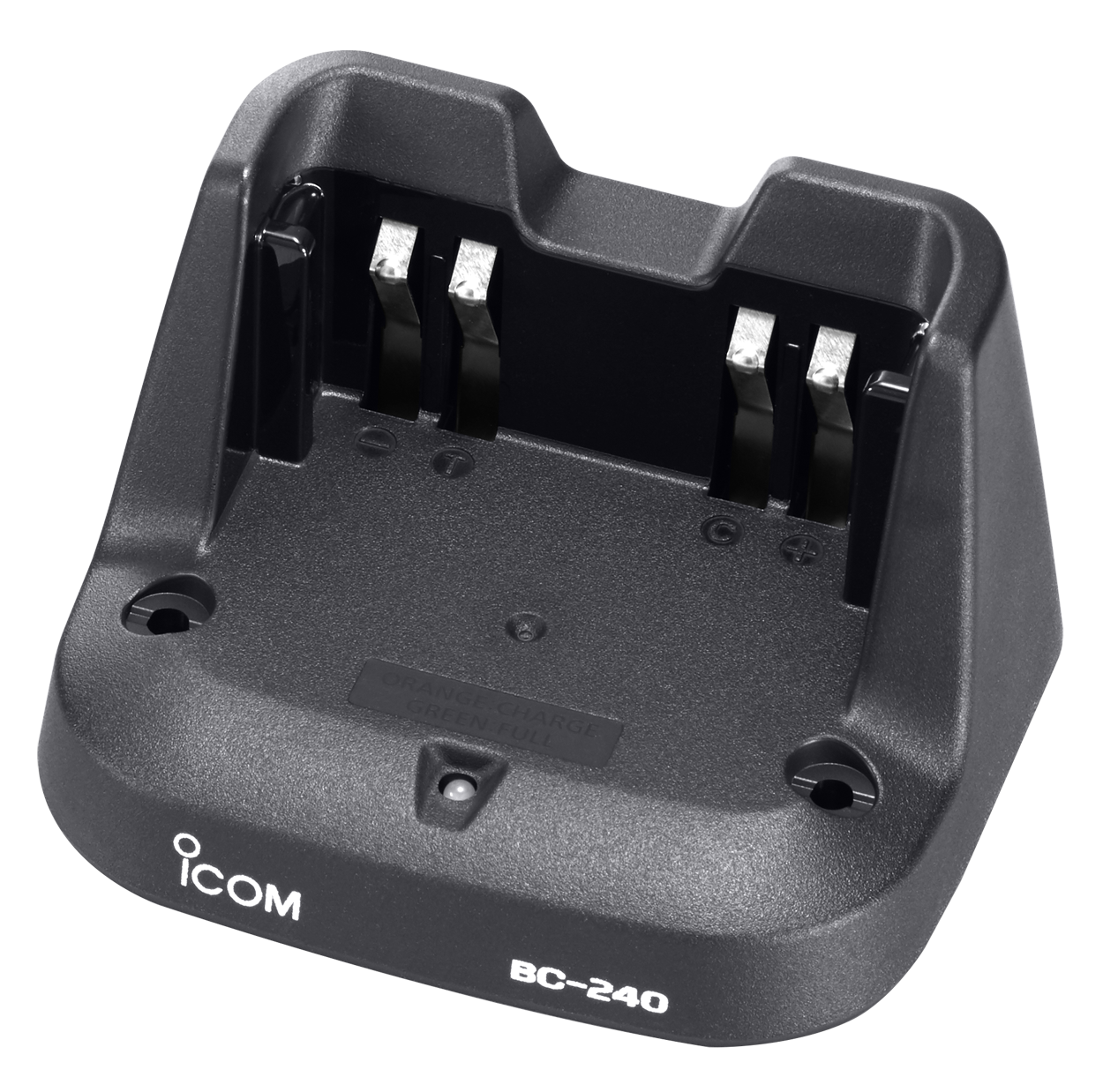

BC-240
DESKTOP CHARGER Same as supplied.The BC-242 is supplied with the BC-240.

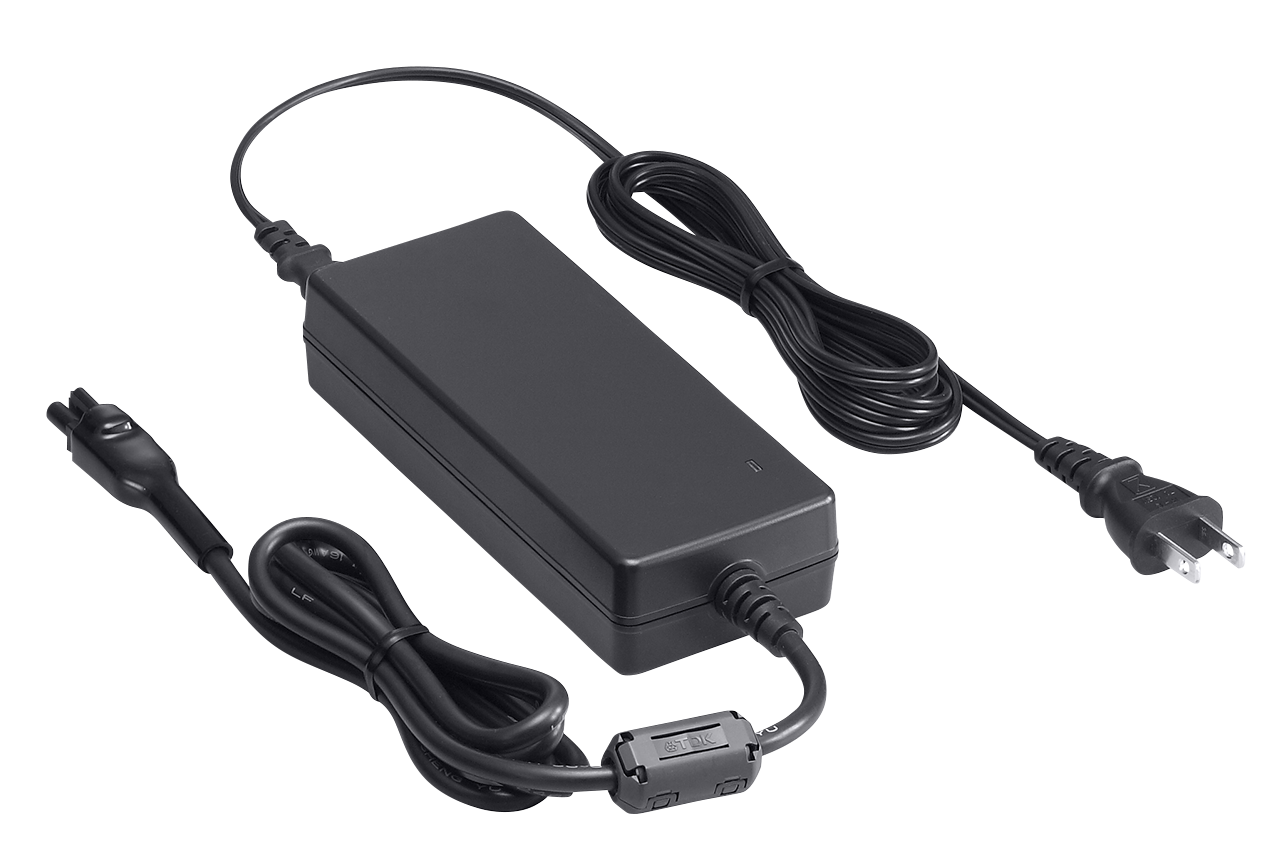

BC-157S
Versions 22 - 24 AC ADAPTER
BC-242
AC ADAPTER Same as supplied.The BC-242 is supplied with the BC-240.

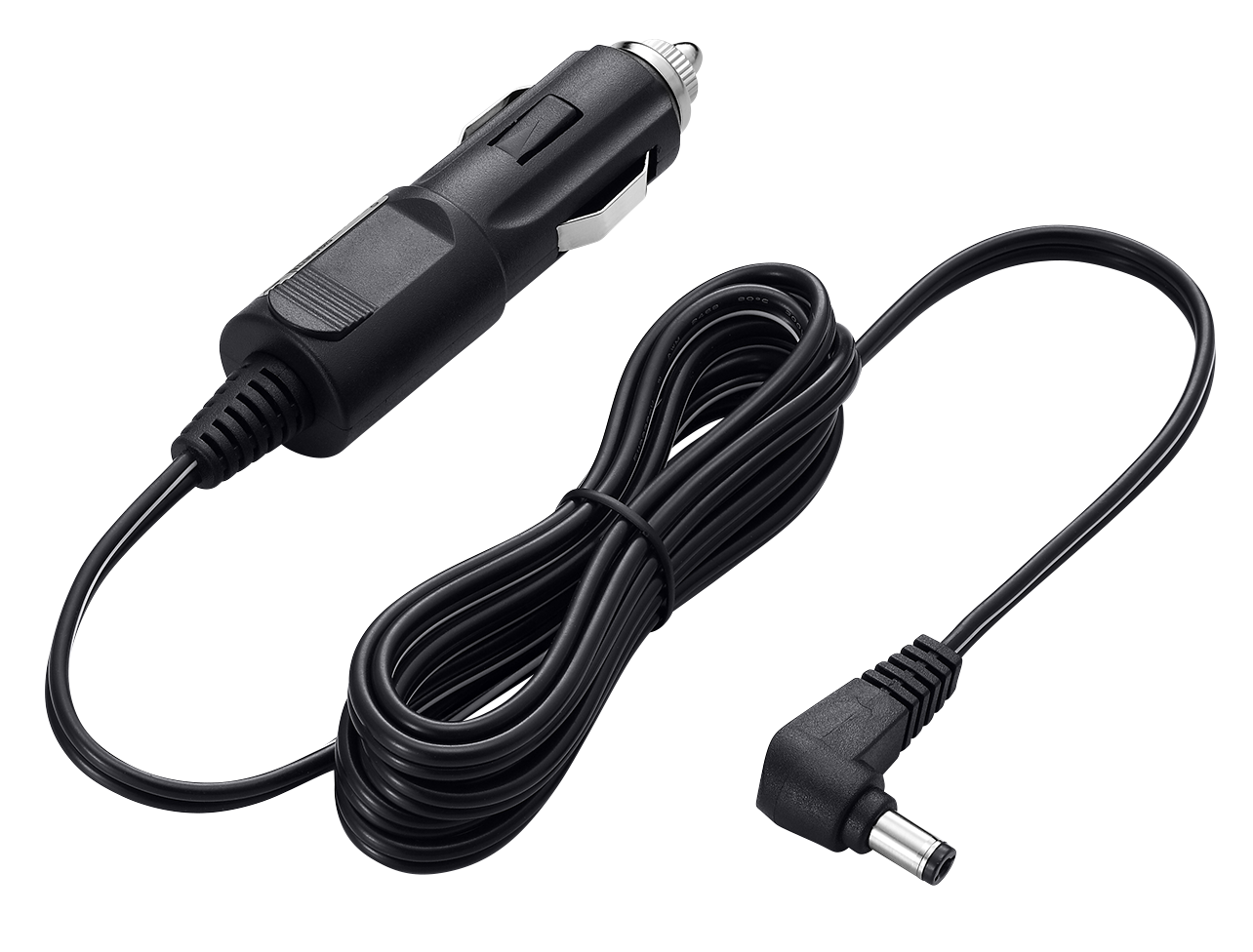

CP-23L
CIGARETTE LIGHTER CABLE For use with BC-240.for 12V DC input

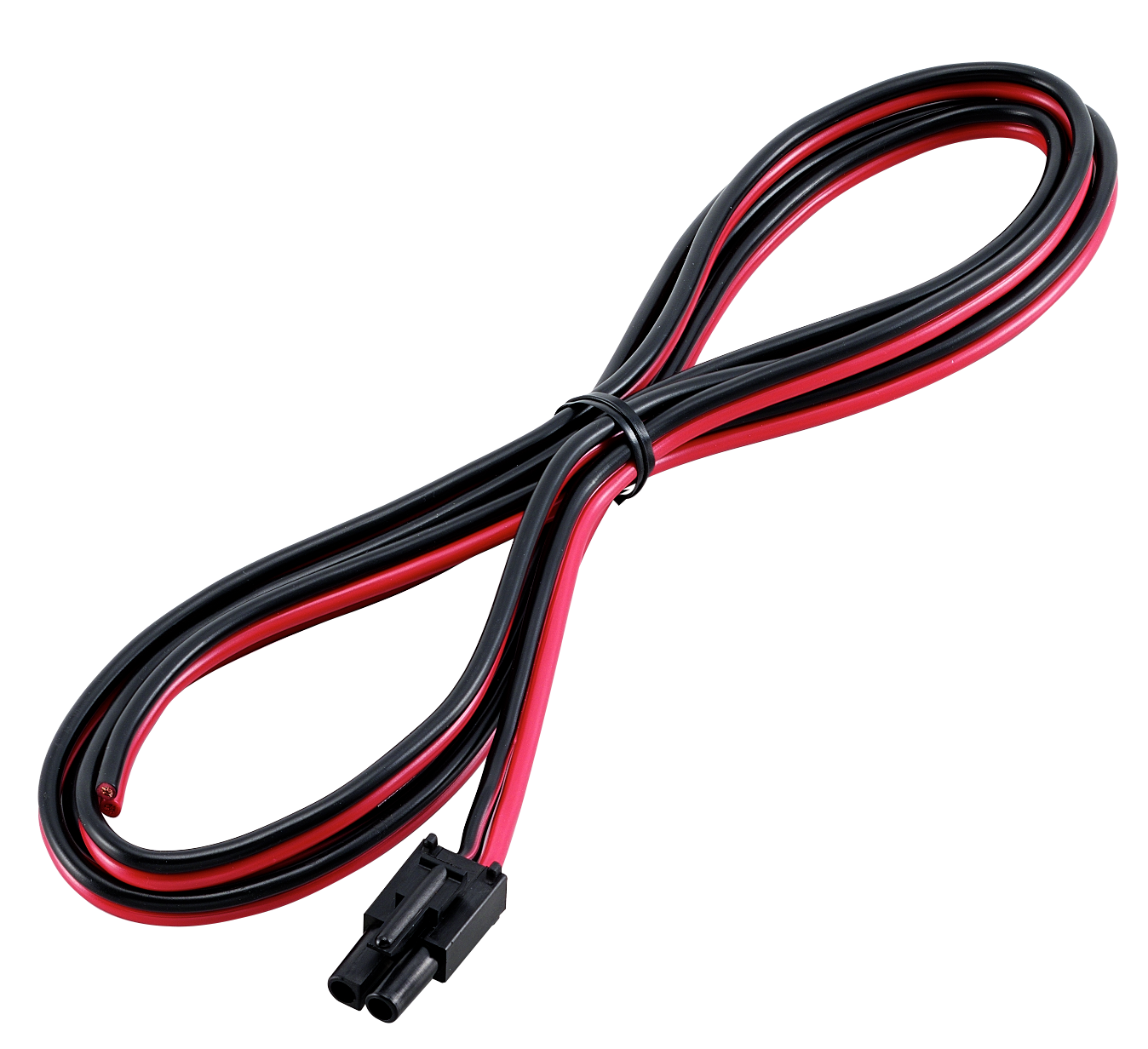

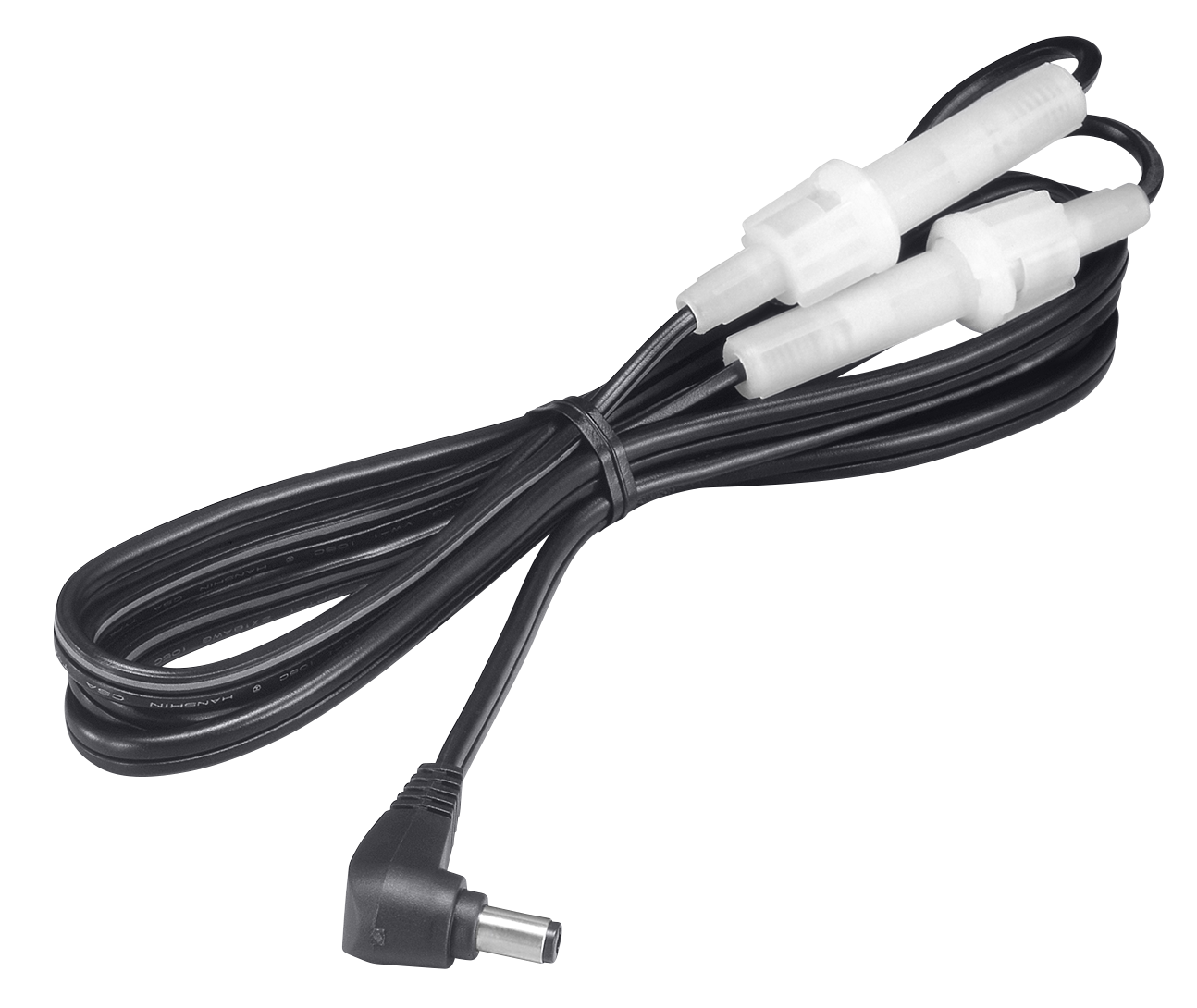

OPC-515L
DC POWER CABLE For use with BC-240
OPC-656
DC POWER CABLE For use with BC-214N

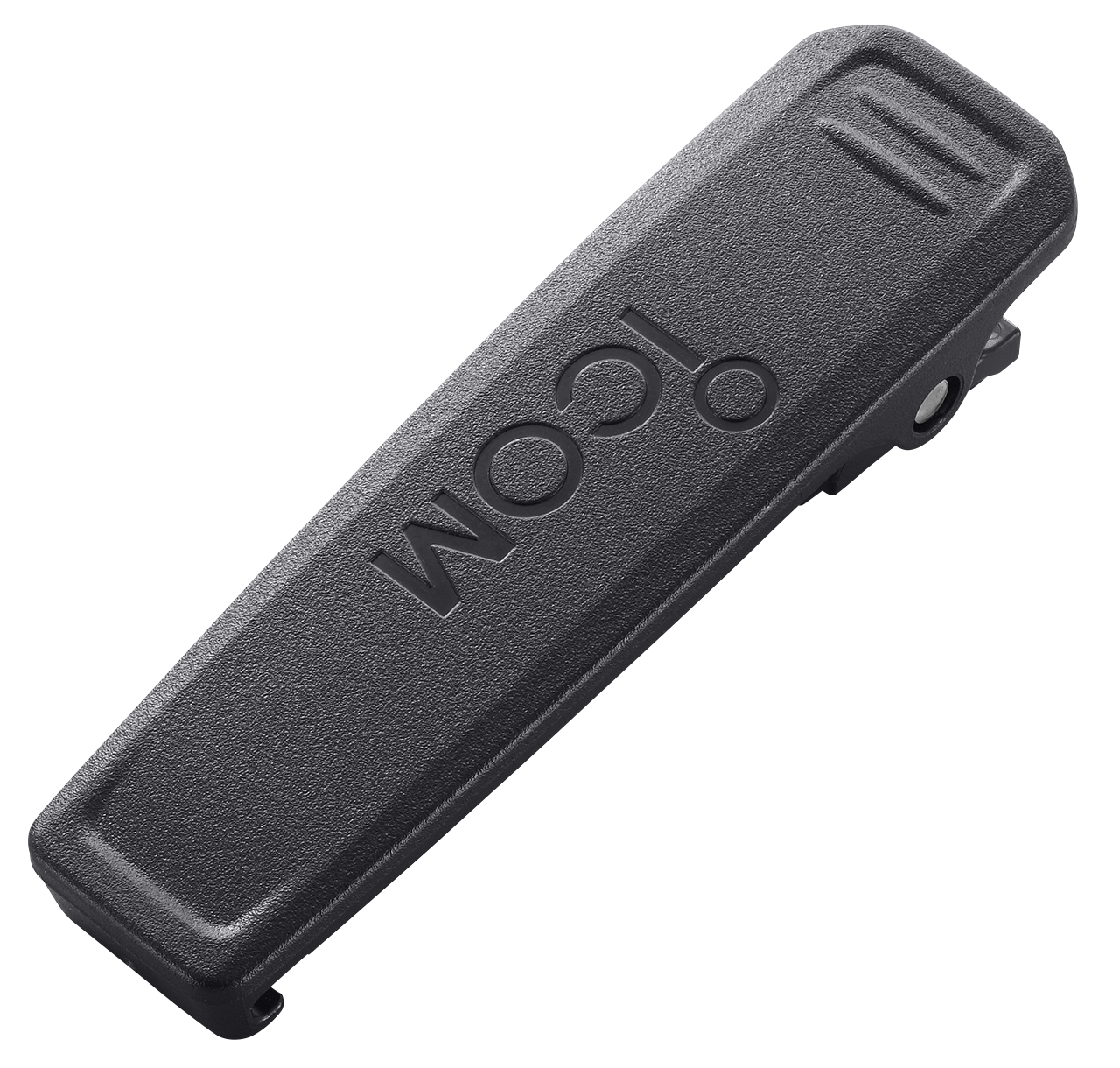

MB-124
BELT CLIP Same as supplied.

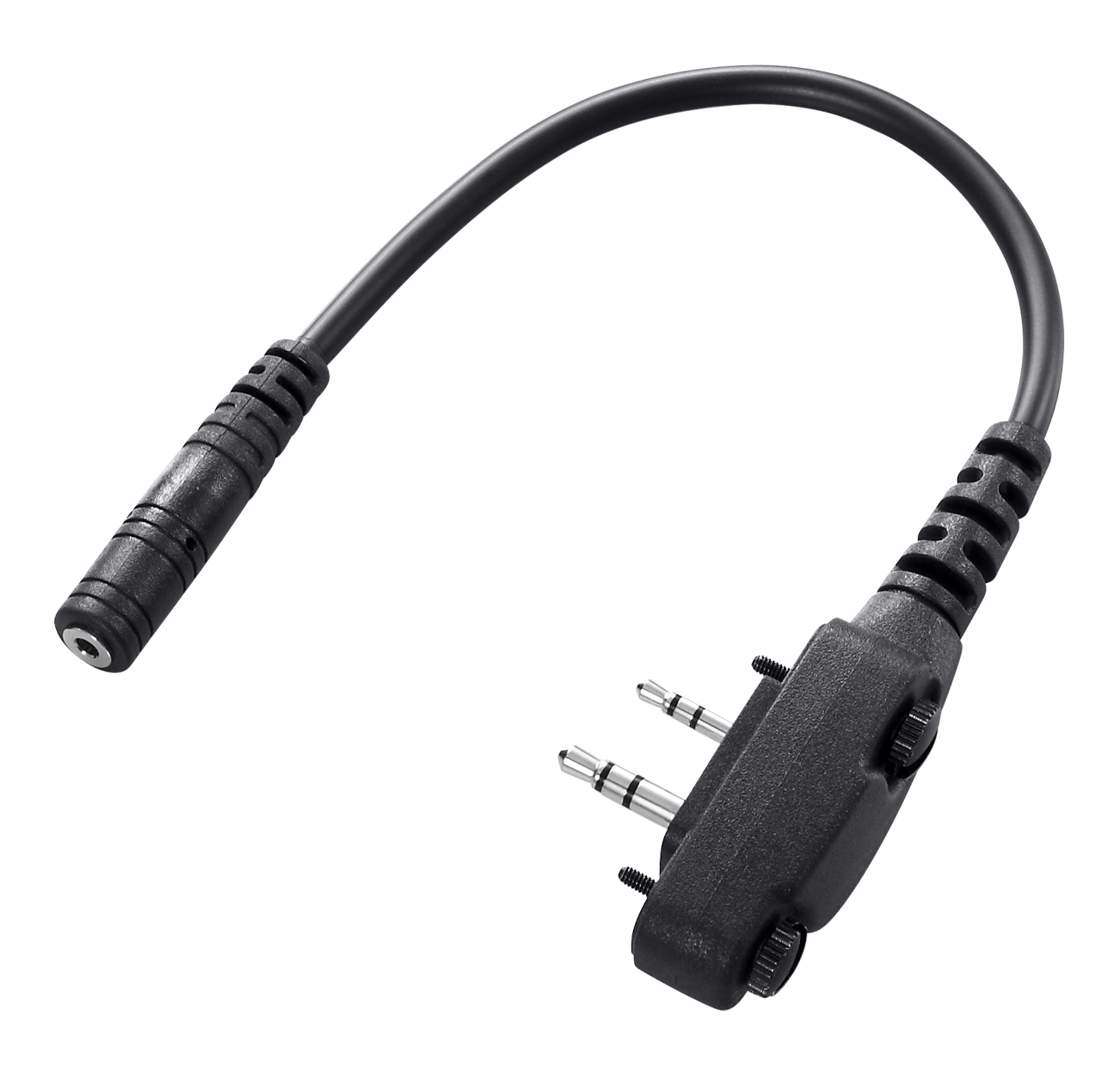

OPC-2004LA
PLUG ADAPTER CABLE
Select optional accessories for the transceiver version and follow ICOM connection instructions.
