IC-M330GE
VHF MARINE TRANSCEIVER WITH BUILT-IN GPS
Top Performance Ultra Compact VHF
The compact IC-M330GE measures only 156.5 (W) × 66.5 (H) × 88.2 (D) mm, making it ideal for a cockpit where space is limited.
Product gallery


Features
Ultra-Compact Body, Flexible Installation
The compact IC-M330GE measures 156.5 × 66.5 × 88.2 mm, making it ideal for a cockpit with limited space.
Intuitive User Interface
The directional keypad and soft keys provide simple, smooth operation and quick one-push access to frequently used functions.
New Speaker Delivers Dynamic, Clear Audio
The newly designed speaker provides clear, distortion-free audio even at full volume.
Class-Leading Receiver Performance
Reliable communication in RF-busy environments such as marinas, with selectivity and intermodulation rejection greater than 70 dB.
Built-in Class D DSC
Continuously monitors CH70 and supports distress, individual, group, all-ships, urgency and safety calls, position request/report, polling and DSC test calls.
GPS Receiver Built-in
Supports GPS, GLONASS and SBAS and provides position, bearing and speed data for DSC calls. A GPS antenna is supplied.

Made in Japan Quality and Reliability
Each unit undergoes rigorous in-house and environmental testing at Icom’s Wakayama plant.
Other Features
- IPX7 waterproof construction
- AquaQuake™ water draining function
- NMEA interface for external GPS/NAV equipment
- MA-500TR Class B AIS compatibility
- Tag scan, favorite channels, dualwatch and tri-watch
- Priority scan and backlit display/keypad

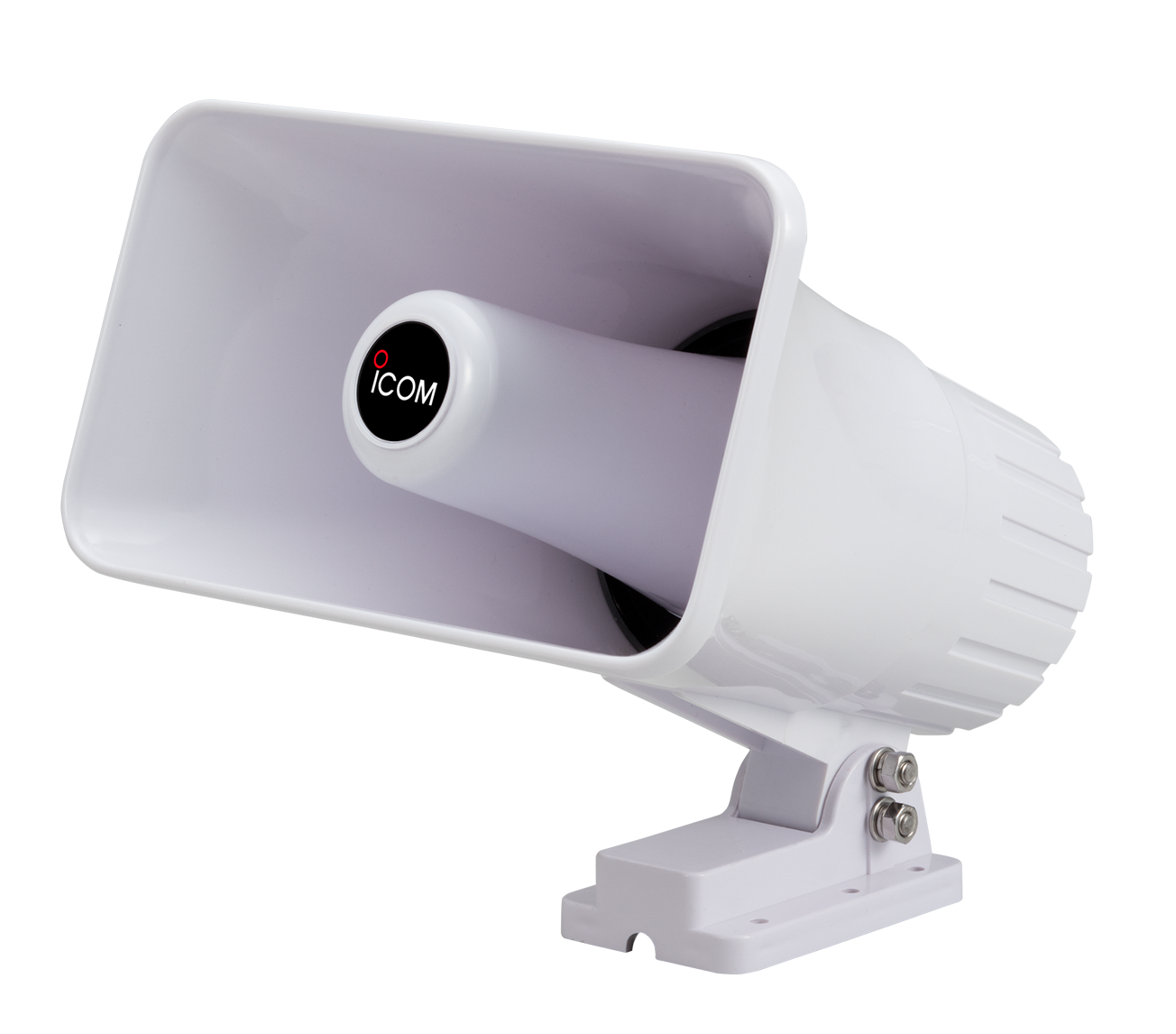

- External speaker connection
- HM-235B/W hand microphone supplied
Specifications
Specifications
General
| Frequency range | TX | 156.000–162.000 MHz |
|---|---|---|
| RX | 156.000–163.425 MHz | |
| CH70 | 156.525 MHz | |
| Usable channels | INT, USA* channels * Available depending on version |
|
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) | |
| Power supply requirement | 13.8 V DC nominal (10.8-15.6 V DC) |
|
| Current drain | TX 25 W output | 5 A |
| RX Max. audio | 1 A | |
| Operating temperature range | -20°C to +60°C | |
| Antenna impedance | 50 Ω (SO-239) | |
| Dimensions (W×H×D) (projections not included) |
156.5 × 66.5 × 88.2 mm | |
| Weight (approx.) | 730 g | |
| NMEA formats | In | RMC, GGA, GNS, GLL, VTG |
| Out | DSC, DSE, RMC, GSA, GSV | |
Transmitter
| Output power | 25 W, 1 W | |
|---|---|---|
| Max. frequency deviation | ±5.0 kHz | |
| Frequency stability | Less than ±0.75 kHz | |
| Spurious emissions | Less than 0.25 μW | |
Receiver
| Sensitivity | Main | -5 dBμ emf typ. (20 dB SINAD) |
|---|---|---|
| DSC | -5 dBμ emf typ. (1% BER) | |
| Squelch sensitivity | Main | Less than -2 dBμ emf |
| Adjacent channel selectivity | Main | More than 70 dB |
| DSC | More than 73 dBμ emf (1% BER) | |
| Spurious response | Main | More than 70 dB |
| DSC | More than 73 dBμ emf (1% BER) | |
| Intermodulation | Main | More than 70 dB |
| DSC | More than 68 dBμ emf (1% BER) | |
| Hum and noise | More than 40 dB | |
| Audio output power (at 10% distortion, 4 Ω load) |
More than 2 W (Internal SP) More than 4.5 W (External SP) |
|
Measurements made in accordance with EN 301 025-2, -3. All stated specifications are subject to change without notice or obligation.
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Water | IPX7 (Waterproof protection) |
Supplied Accessories
- HM-235B/W hand microphone
- DC power cable

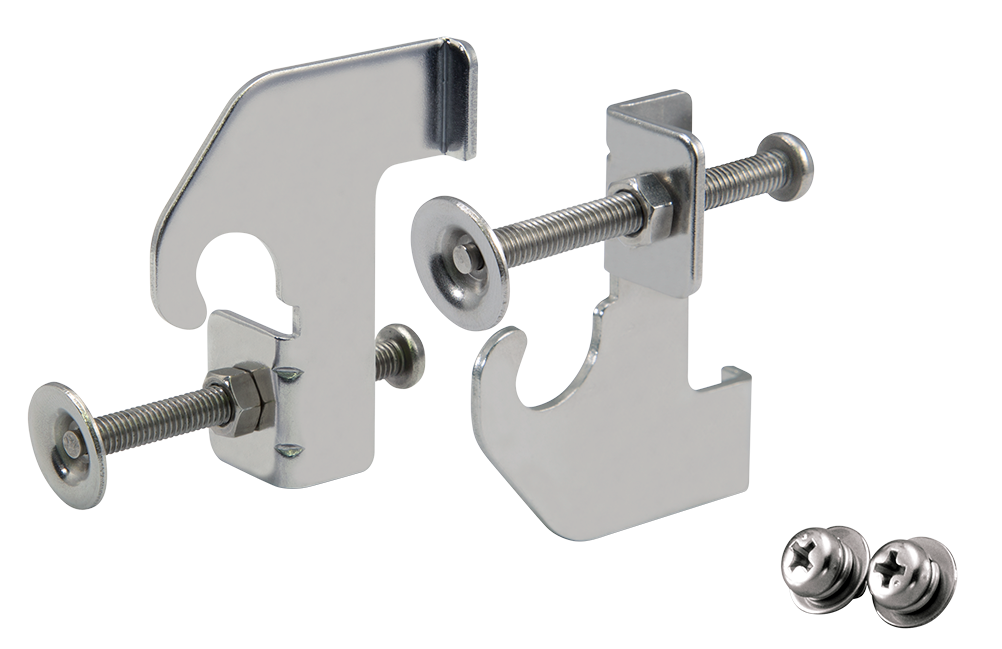

- Mounting bracket kit
- GPS antenna (5 m cable)
Optional Accessories
Optional Accessories
