VHF AIR BAND TRANSCEIVERS
IC-A25NE / IC-A25CE
Handheld VHF airband radios: NAV/COM and COM versions
Two European versions with 8.33/25 kHz spacing, 6 W PEP output and a large colour display. The IC-A25NE adds VOR navigation, GPS and Bluetooth; the IC-A25CE is the COM-only version.
Features
Choose the right version
IC-A25NE: COM communications and NAV reception from 108–136.992 MHz. IC-A25CE: COM communications from 118–136.992 MHz. VOR, GPS, flight plans and Bluetooth are IC-A25NE functions.
VOR and waypoint navigation
The IC-A25NE combines a CDI display and OBS/ABSS functions with GPS/GLONASS/SBAS reception. Direct-To NAV, up to 10 flight plans and 300 waypoints are supported.
Clear display and quick recall
A 2.3-inch colour display and large keypad support straightforward operation. Flip-flop recall accesses recently used channels, and a dedicated key provides immediate access to 121.5 MHz.
Durability and power options
IP57 construction, a BP-288 battery and optional BP-289 case for six AA alkaline cells. ANL, VOX, side tone and 300 memories in 15 groups support everyday operation.
Specifications
| Version | European: IC-A25NE / IC-A25CE |
|---|---|
| Transmit frequency | 118.000–136.992 MHz |
| IC-A25NE receive frequency | 108.000–136.992 MHz |
| IC-A25CE receive frequency | 118.000–136.992 MHz |
| Channel spacing | 8.33 / 25 kHz |
| RF output | 6.0 W PEP / 1.8 W carrier |
| Memory channels | 300 / 15 groups |
| Emission | 6K80A3E, 5K00A3E |
| Power supply | 7.2 V DC (BP-288); 11.0 V DC (external jack) |
| TX current | < 1.8 A |
| RX / standby current | < 500 mA / 90 mA typical (GPS, Bluetooth, light OFF) |
| Operating temperature | −20°C to +55°C |
| Dimensions W×H×D | 58.9 × 148.4 × 31.8 mm |
| Weight | Approx. 340 g with BP-288, without antenna |
| Antenna | BNC / 50 Ω |
| Frequency stability | ±1 ppm |
| COM sensitivity | < 0 dBμ (12 dB SINAD, CCITT) |
| NAV sensitivity (NE) | < 0 dBμ (6 dB S/N) |
| Adjacent-channel rejection | > 60 dB |
| Spurious-response rejection | > 70 dB |
| Internal / external speaker audio | 1200 / 530 mW typical (AM, 8 Ω) |
| External speaker connector | 3.5 mm, 3-conductor, 8 Ω |
| Ingress protection | IP57 — 1 m immersion for 30 minutes |
Dimensions exclude projections. Specifications refer to the version identified above and are subject to change by ICOM.
Supplied Accessories
Package contents vary by version. Confirm the supplied accessories for the specific European package.
Optional Accessories

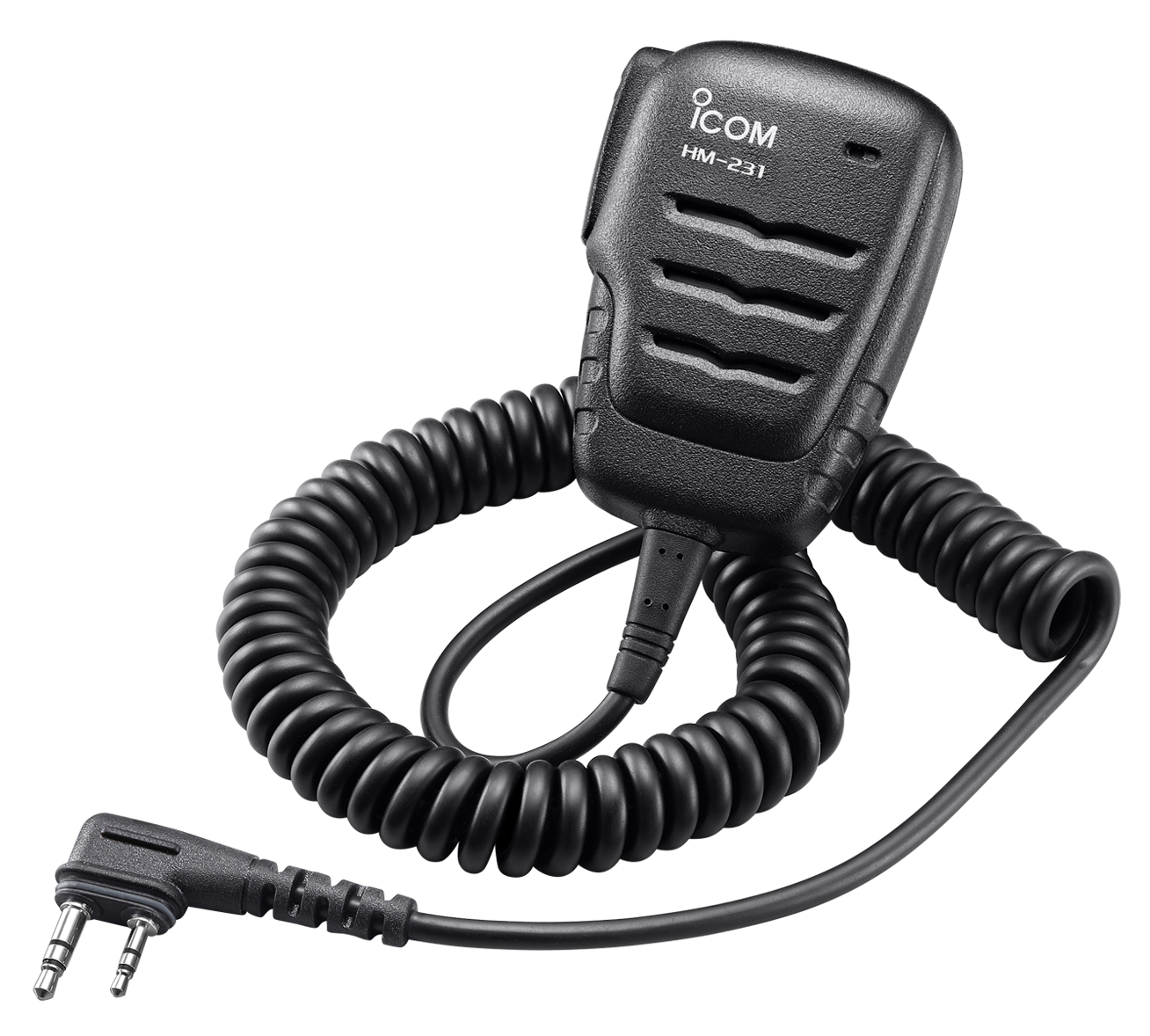

HM-231
Speaker microphone

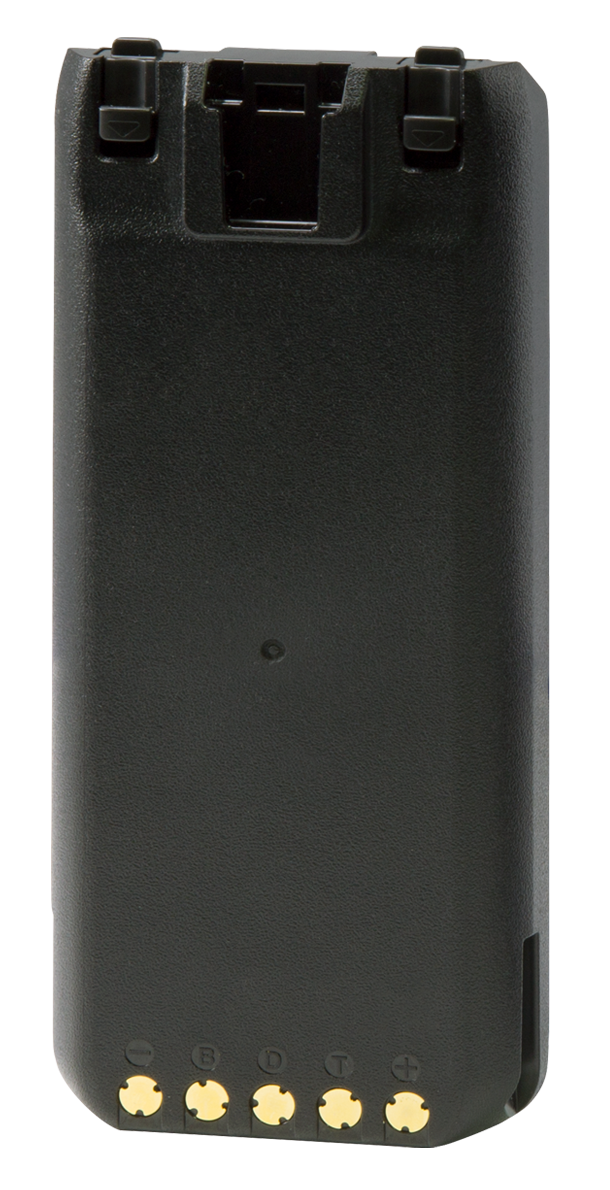

BP-288
Li-ion battery pack
BP-289
Battery case for 6 AA alkaline cells
BC-224
Desktop charger

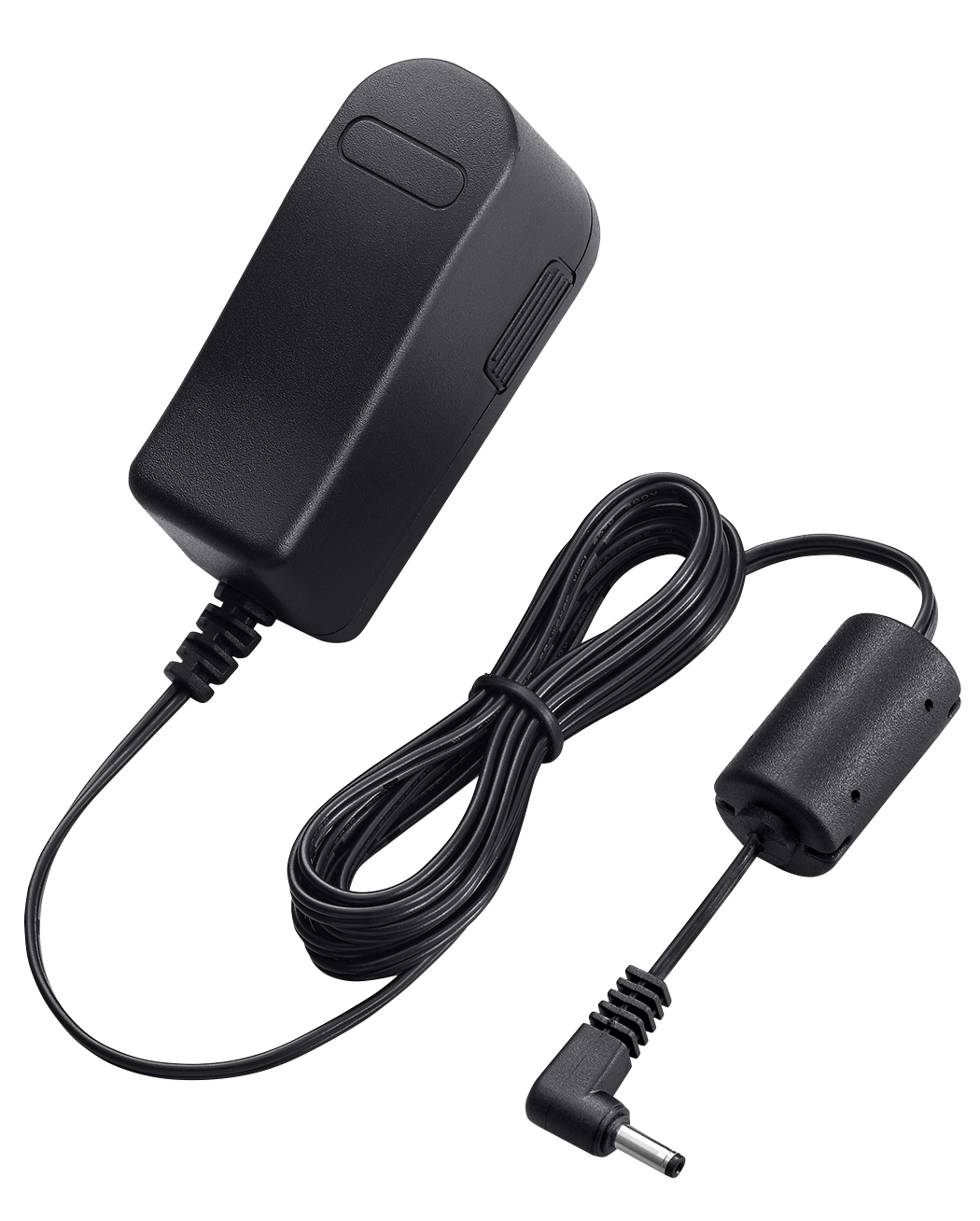

BC-167S
AC adapter, appropriate European version

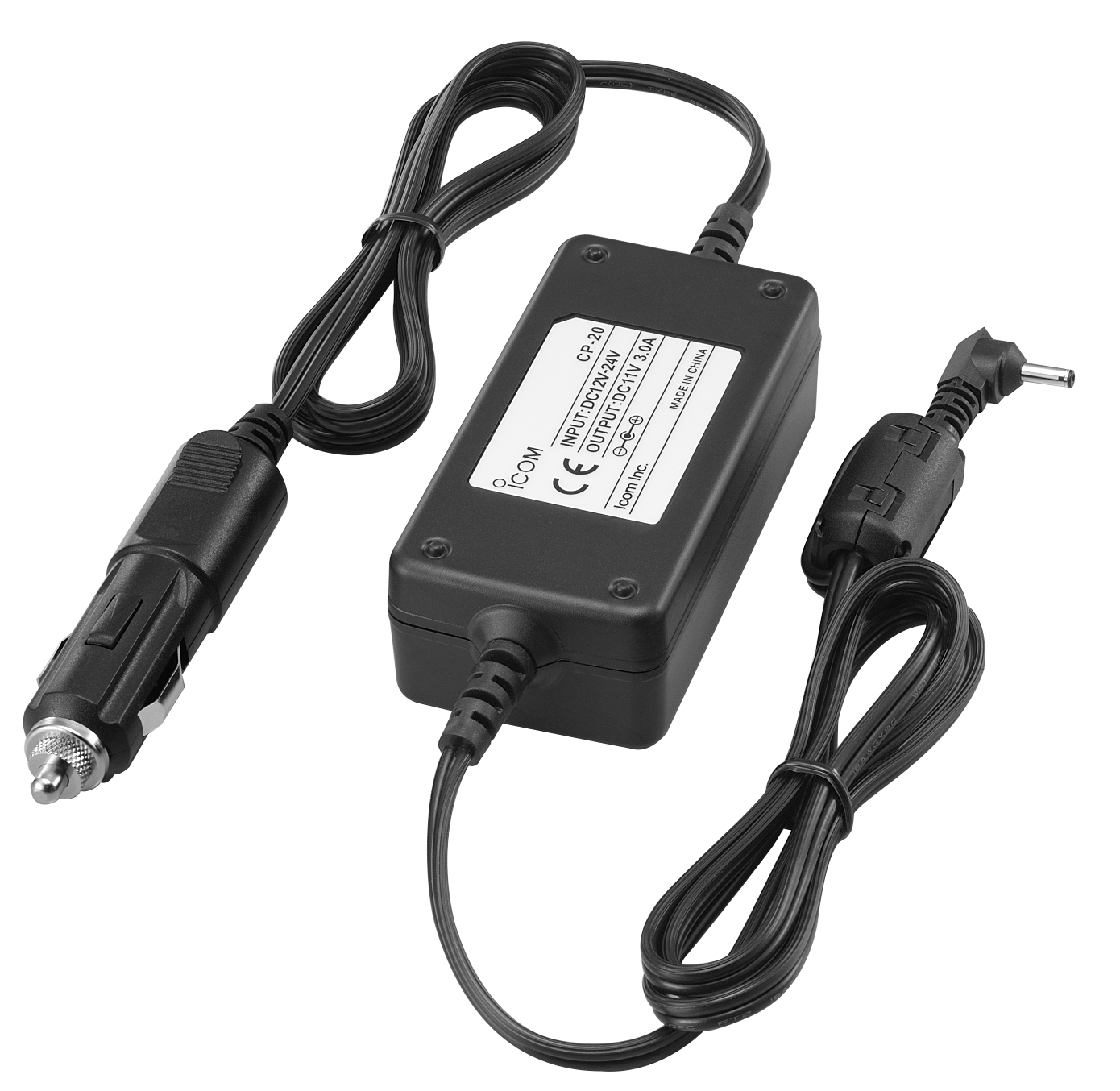

CP-20
Cigarette lighter power cable

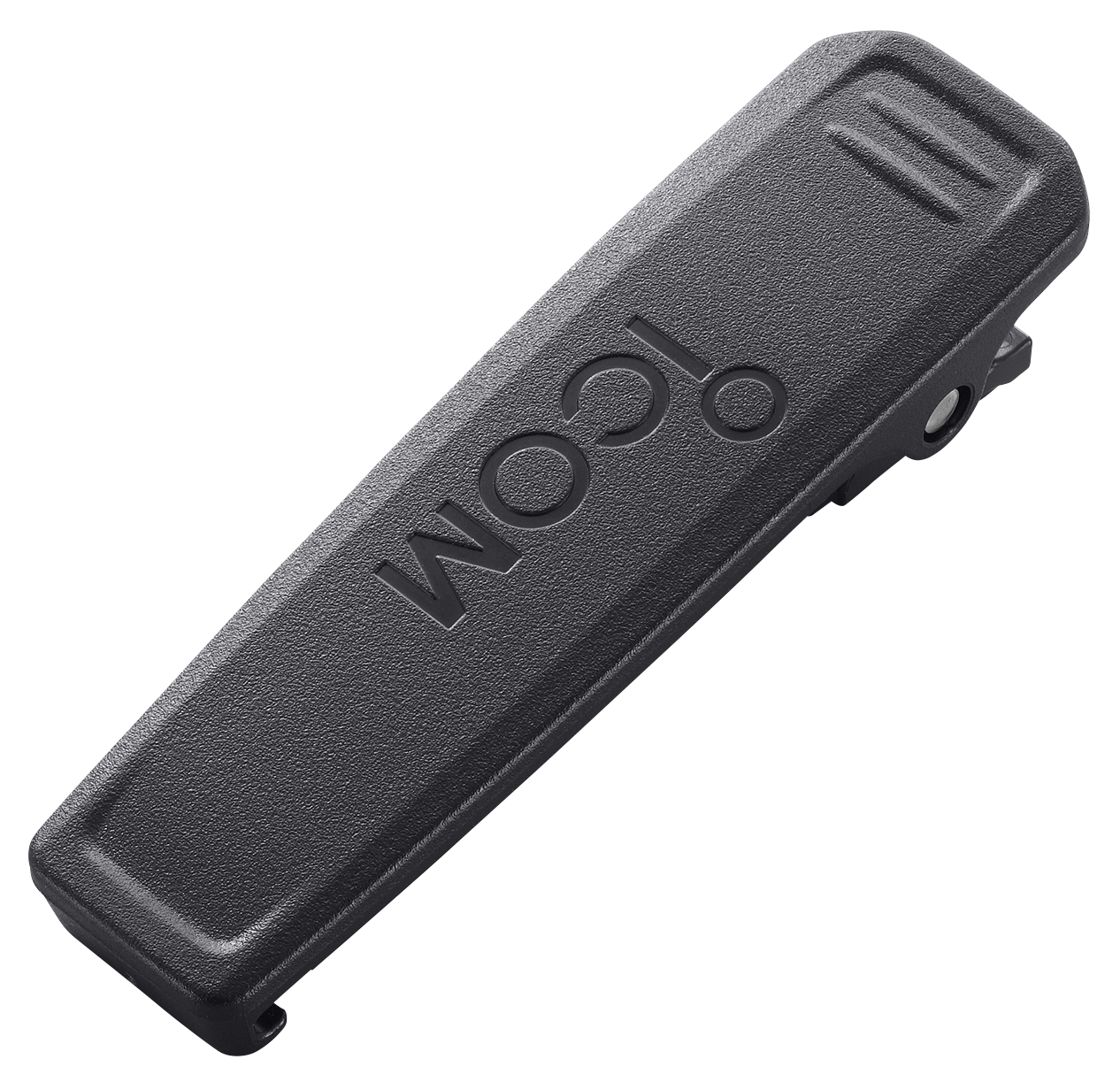

MB-133
Belt clip

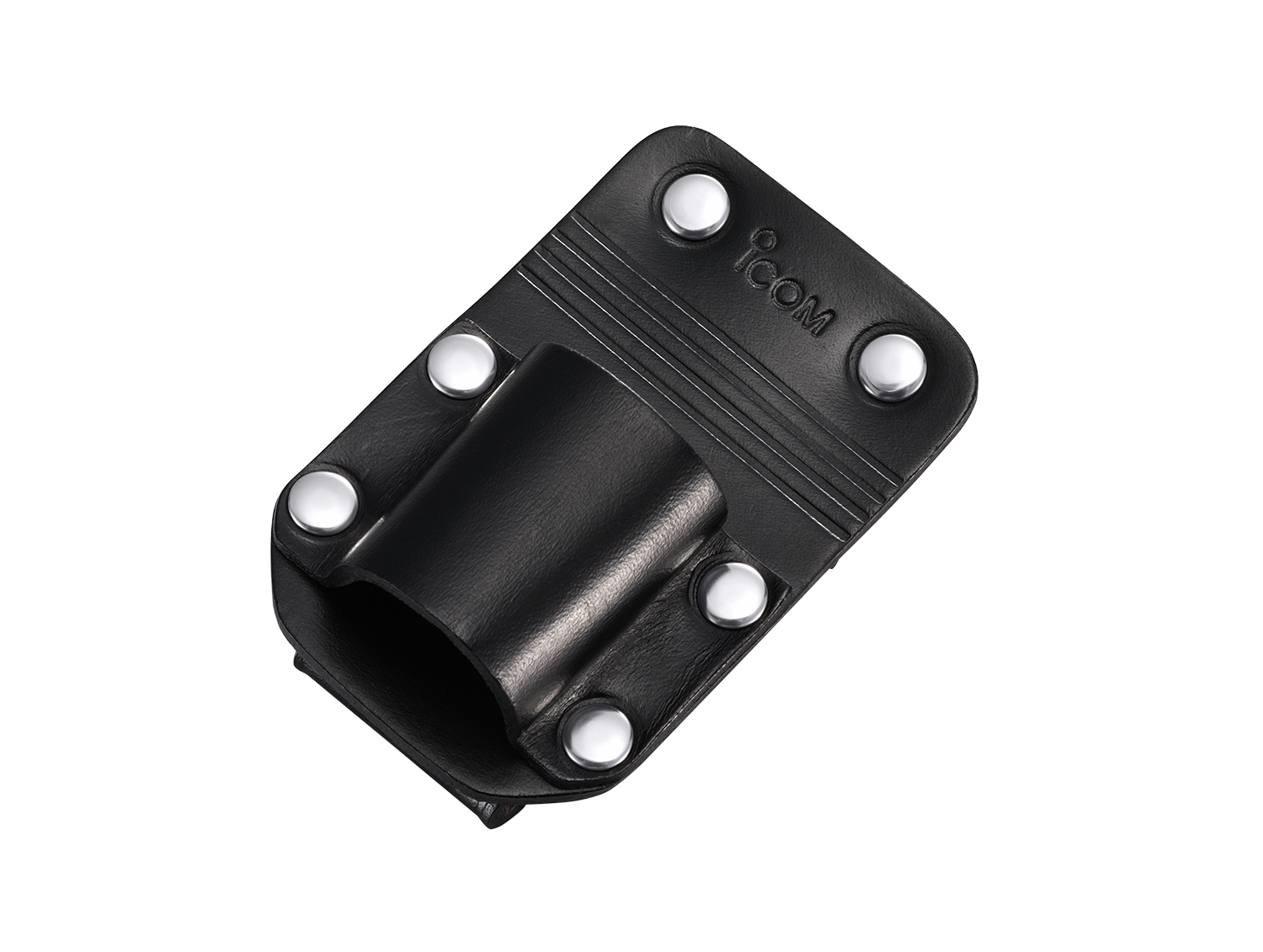

MB-96F
Belt hanger

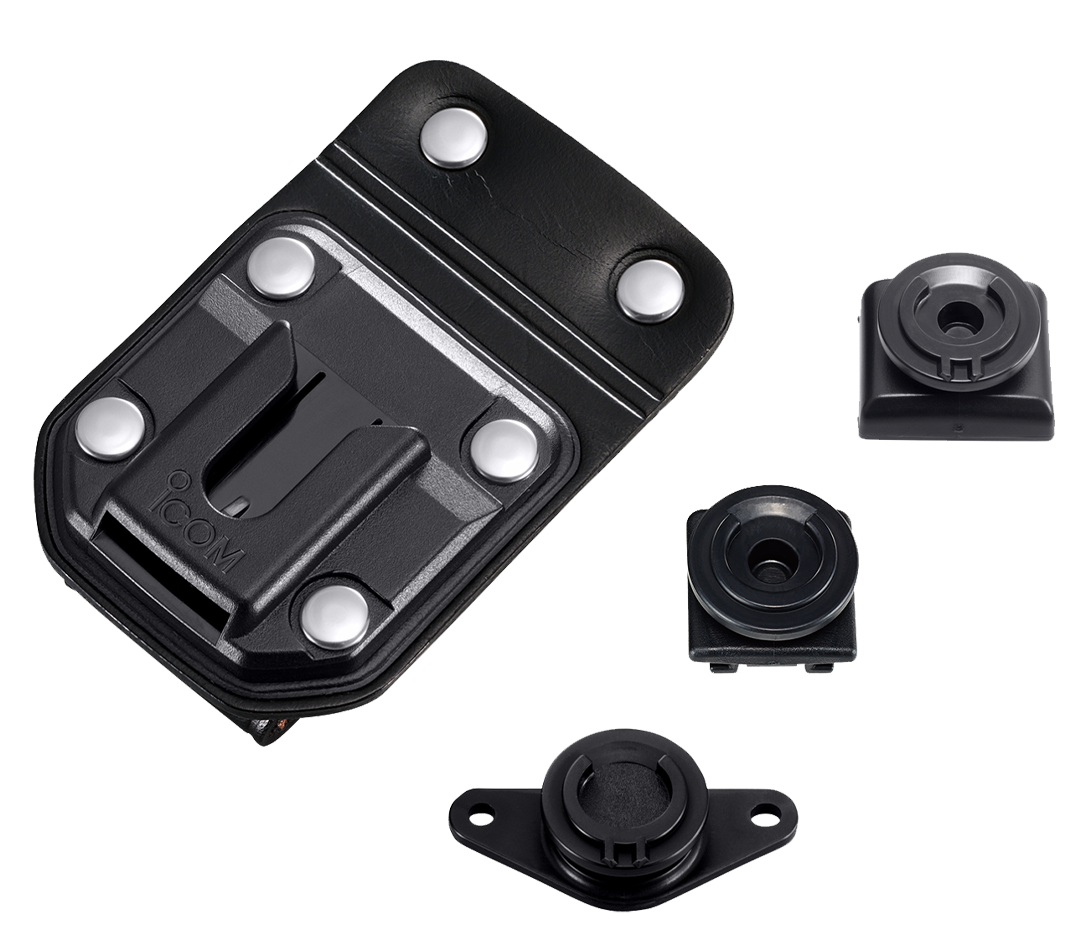

MB-96FL
Swivel belt hanger
MB-96N
Belt hanger

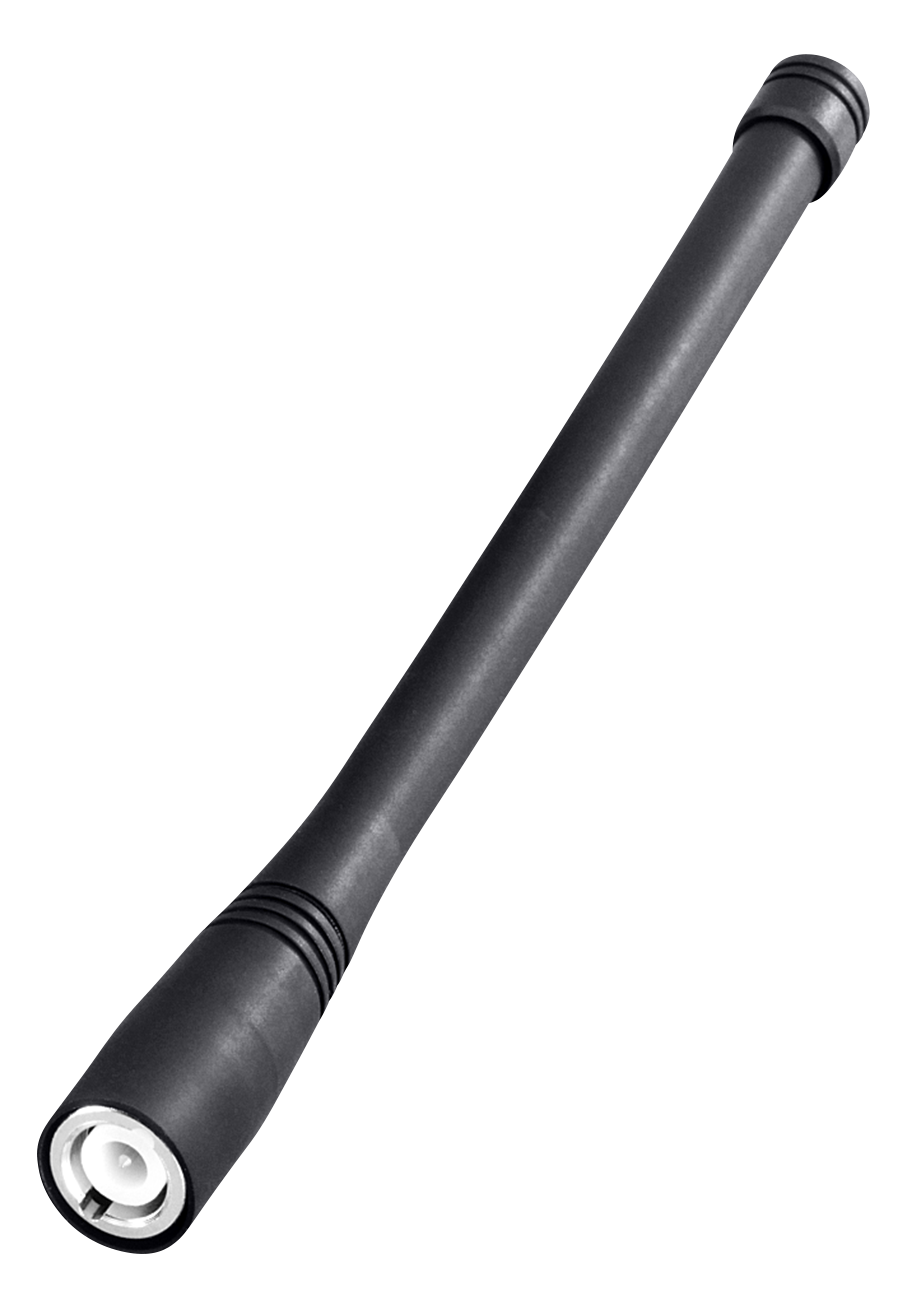

FA-B02AR
Flexible antenna
CS-A25
Programming software
RS-AERO1I
iOS flight planning software — IC-A25NE only
OPC-478UC
Programming cable
OPC-478UC-1
Programming cable
OPC-478UD
Programming cable

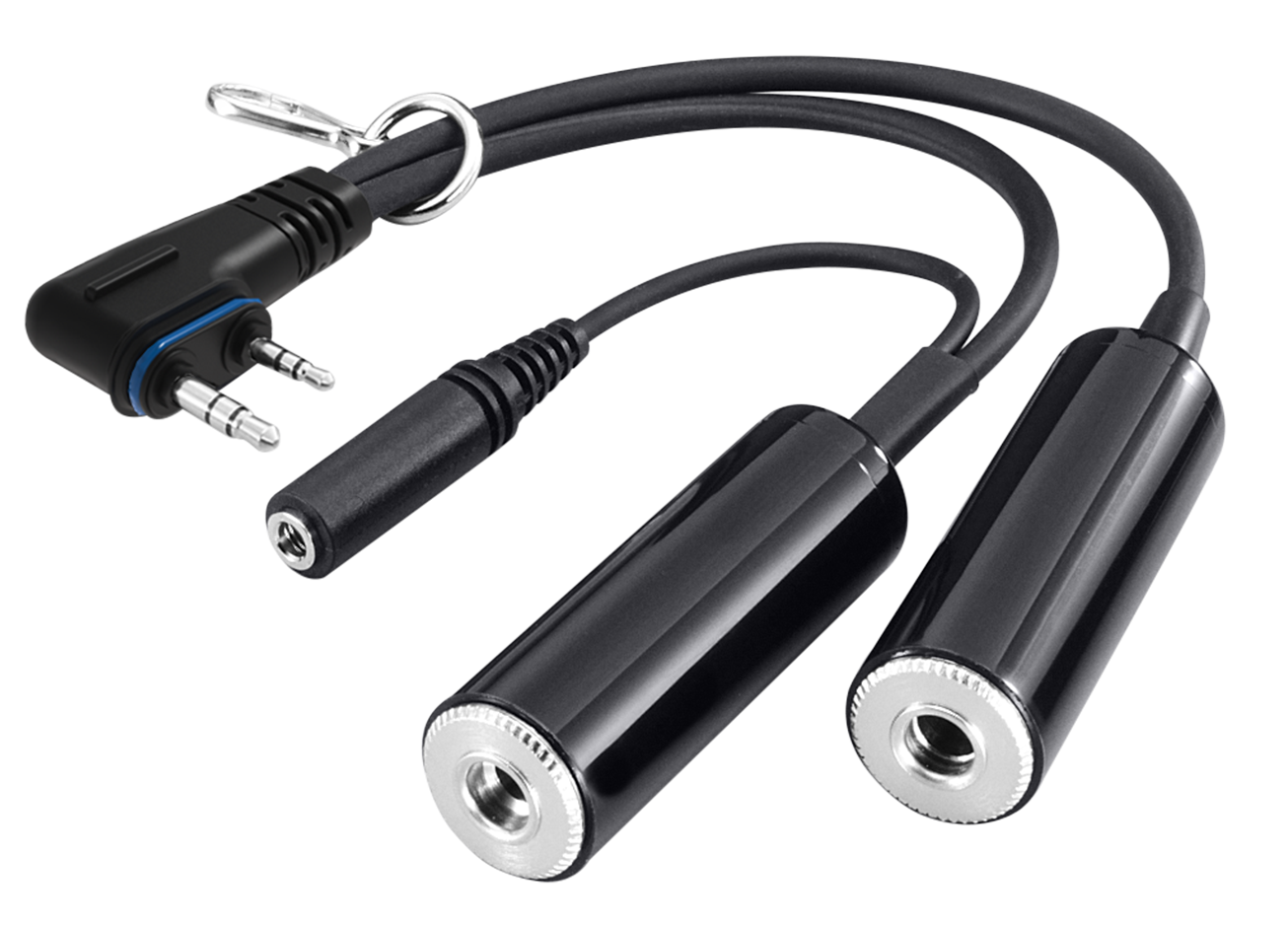

OPC-2379
Aviation headset adapter
Check compatibility with the specific version and appropriate charger or adapter. VS-3 is excluded from the European selection in accordance with ICOM’s official listing.
Support / Download
Official ICOM documents in English. Declarations of Conformity remain unchanged in their original form.
Catalogs / Brochures
Instruction Manuals / Guides
Full / Instruction Manual (EN)
Open PDFBasic Manual (EN)
Open PDFIC-A25NE Navigation Guide (EN)
Open PDF
