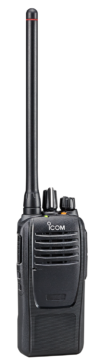

IC-F1100D/F2100D
Compact, Waterproof Durable Design (IP67/55/54 and MIL-STD-810-G)
Over-the-Air Aliases (OAA)
AquaQuake
- Operating Time of Up To 18 Hours with the Supplied Battery (BP-280)
Compact, Waterproof Durable Design (IP67/55/54 and MIL-STD-810-G)
The IC-F1100D/IC-F2100D Series transceiver is IP67 waterproof and dustproof.
1m depth for 30 minutes.
Icom’s Custom High Power Handling Capacity Speaker for 1500 mW of Powerful Audio
The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers a powerful 800mW (typ) sound to pick up all calls in noisy environments.
Over-the-Air Alias (OAA) Function Displays the Caller’s Name without Programming
(IC-F1100DT/DS and IC-F2100DT/DS only)
Optional 1500 mW Speaker-Microphone, HM-222HLWP
AquaQuake
Function Clears Any Water Ingress That May Penetrate the Speaker Grill of the Unit
Motion/Stationary Detection, Man Down and Lone Worker Functions
Operating Time of Up To 18 Hours with the Supplied Battery (BP-280)
General Features
- 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
- 128 Channels / 8 Zones (for LCD types)
- 16 Channels (for non-display types)
- Icom’s customized speaker offers a louder 1500 mW audio output
- An engineered casing that amplifies and improves acoustic sound clarity
- Compact (52.2 (W) × 111.8 (H) mm; 2.1 × 4.4 in) and lightweight
- IP67/55/54 waterproof and dust-tight protection
- Tested to 12 categories of MIL-STD-810-G environmental tests
- AquaQuake™ – Expels water ingress from the speaker grill
- DTMF autodial memories
- 16-position rotary selector and ON/OFF volume knob
- Programmable keys – Increase the number of programmable key assignments by using the “Shift key”
- Operating times of up to 18 hours (with the supplied BP-280 battery pack)
- Eight character alphanumeric display (for LCD types)
- Three color LED
Digital Functions (Voice and Data)
- AMBE+2™ vocoder
- Over-the-Air Alias (OAA) displays the caller’s name without programming (for LCD types)
- Individual, Group and All call
- Late entry for Group call
- Status call and Polling
- Short data messages (for LCD types)
- Call alert (NXDN)
- Radio check (RX only) (NXDN)
- GPS position capabilities (requires HM-171GPW)
- Up to 500 ID numbers for IDAS or MDC 1200 signaling system can be saved in the Call List to show the alias name
Analog Functions
- CTCSS and DTCS tone
- 2-Tone and 5-Tone
- MDC functions*; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
- BIIS PTT ID transmission
Scan Functions
- Priority scan monitors one or two priority channels while scanning non-priority channels
- Voting scan automatically selects the optimal repeater site
- Mode dependent scan automatically changes the scan list, depending on the operating channel
- Power ON scan function
- Talk Back timer
Voice/Audio Functions
- Channel announcement function
- VOX function for hands-free operation
- Siren sound for security alarm
Made in Japan Quality and reliability
All Icom products are checked to pass rigorous internal testing as well as environmental testing at the Wakayama Icom factory before shipment. Our world leading products and quality is a tradition.
- Battery pack, BP-280
- Belt clip, MB-133
- Antenna
- Desktop charger, BC-213*
- AC adapter*, BC-242 or BC-123SE

IC-F1100D/IC-F2100D
VHF AND UHF DIGITAL TRANSCEIVERS
Digital communication with powerful audio in a compact body
IC-F1100D/IC-F2100D: An internal speaker with typical 1500 mW output for noisy workplaces.
Supplied accessories may differ or may not be supplied, depending on version.
Features
Powerful audio
An internal speaker with typical 1500 mW output for noisy workplaces.
Rugged construction
IP67/55/54 protection and MIL-STD-810G construction.
IDAS and analogue FM
NXDN or dPMR according to version, with analogue FM for a gradual digital migration.
Safety alerts
Motion/stationary detection, Man Down and Lone Worker functions.
Specifications
| Frequency coverage | VHF: 136–174 MHz · UHF EUR: 400–470 MHz |
|---|---|
| RF output power | 5 / 2 / 1 W (136–174 and 400–470 MHz versions) |
| Channels / zones | T/S: 128 / 8 · non-display: 16 channels |
| Operating modes | NXDN or dPMR / analogue FM, by version |
| Dimensions | IC-F1100DS/D, IC-F2100DS/D: 52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280) IC-F1100DT, IC-F2100DT: 52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280) |
| Weight, approximate | IC-F1100D, IC-F2100D: 258 g, 9.1 oz (With BP-280 and MB-133) IC-F1100DS, IC-F2100DS: 266 g, 9.4 oz (With BP-280 and MB-133) IC-F1100DT, IC-F2100DT: 277 g, 9.8 oz (With BP-280 and MB-133) |
| Operating temperature | −25 to +55 °C (EUR, radio specifications) |
| Power supply | 7.5V DC nominal |
Specifications refer to the version identified above and are subject to change by ICOM.
Supplied Accessories
Battery pack, BP-280 · Belt clip, MB-133 · Antenna · Desktop charger, BC-213* · AC adapter*, BC-242 (or BC-123SE/SUK/SV)
Optional Accessories

HM-153LA
EARPHONE MICROPHONE

HM-158LA
Speaker Microphone

HM-159LA
Speaker Microphone

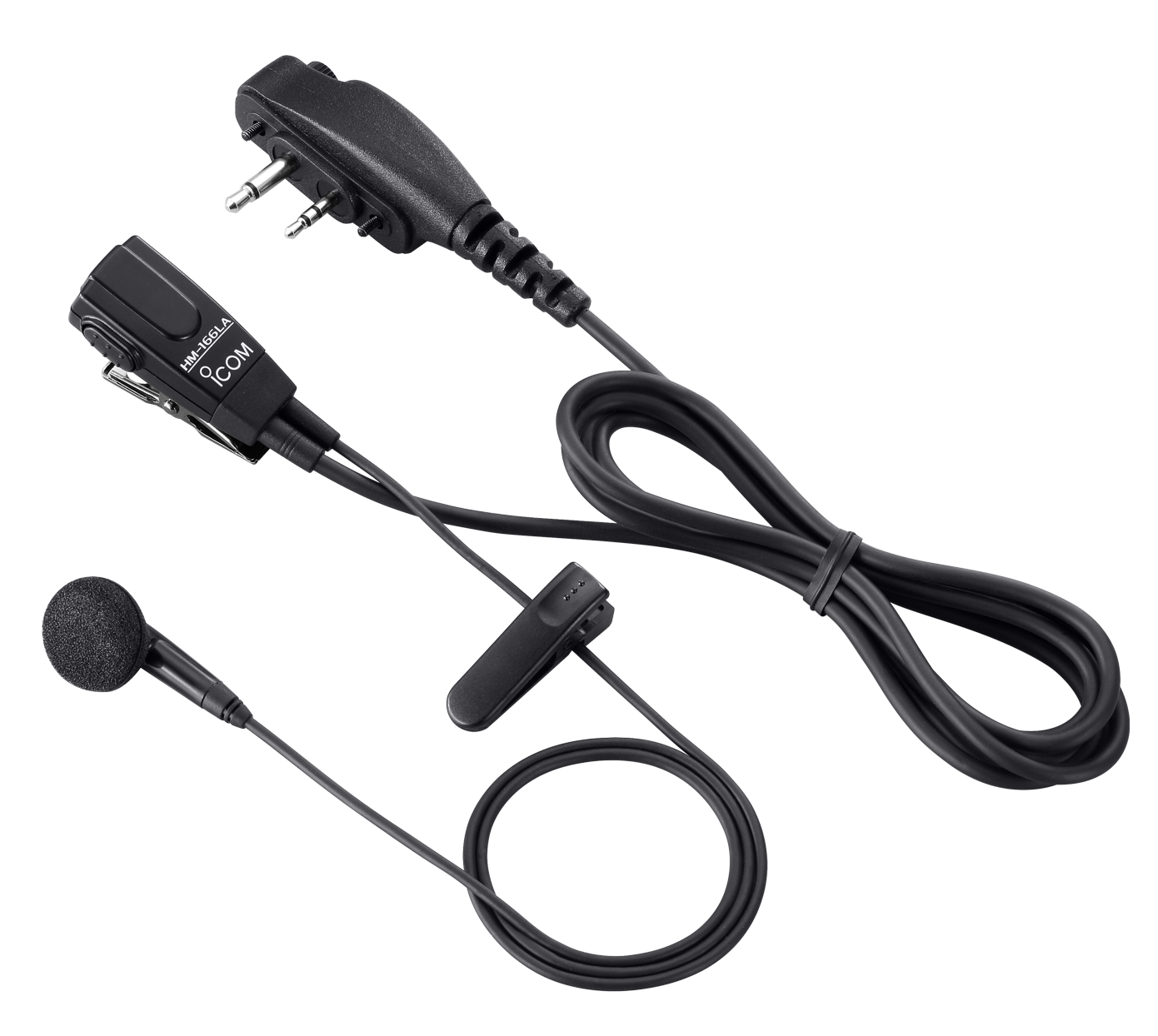

HM-166LA
EARPHONE MICROPHONE

HM-168LWP
Speaker Microphone

HM-171GPW
Speaker Microphone

HM-222HLWP
Speaker Microphone

HM-257LA
EARPHONE MICROPHONE For IC-F1100D/DS/DT EUR Version.

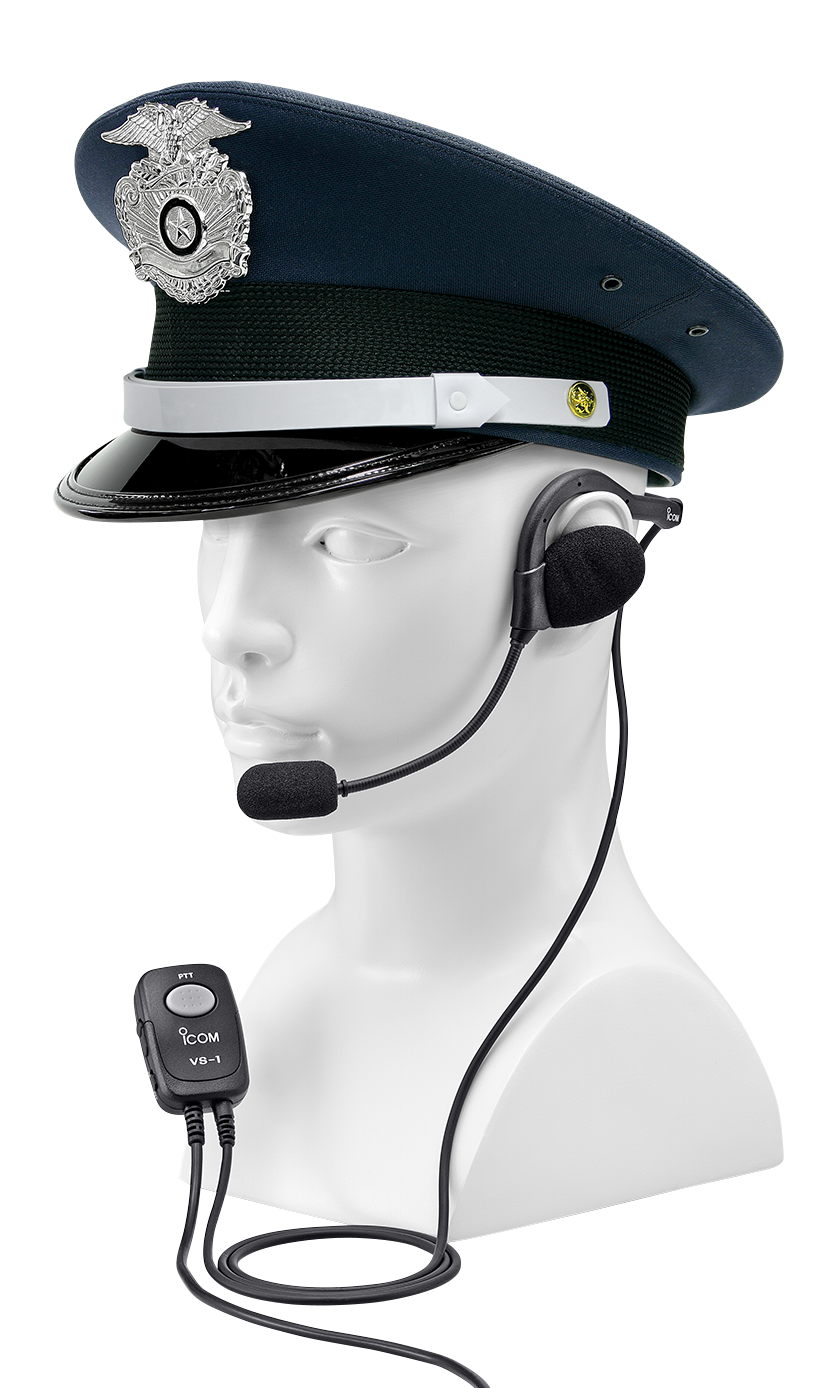

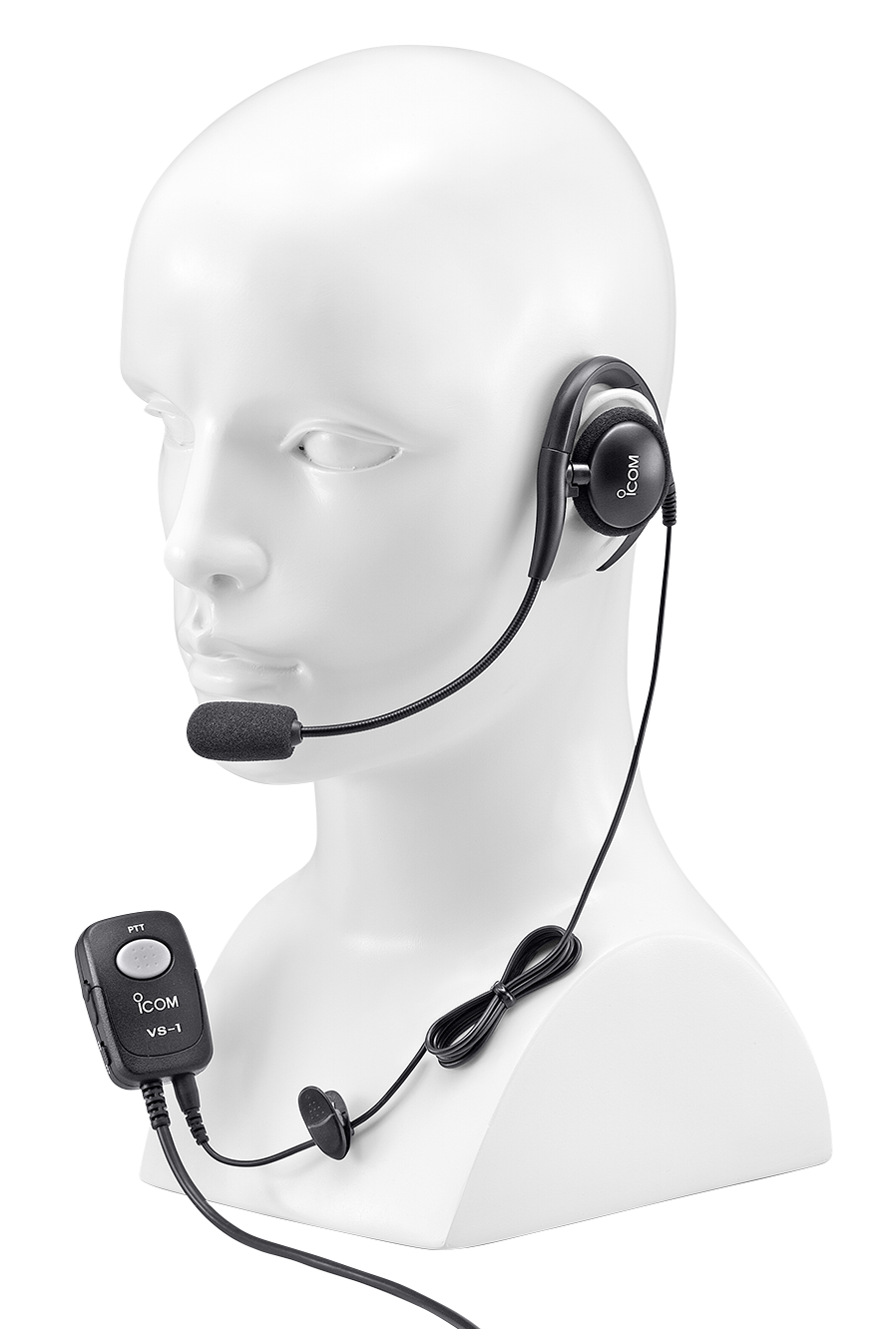

HS-94
EARHOOK TYPE HEADSET

HS-94LWP
EARHOOK TYPE HEADSET

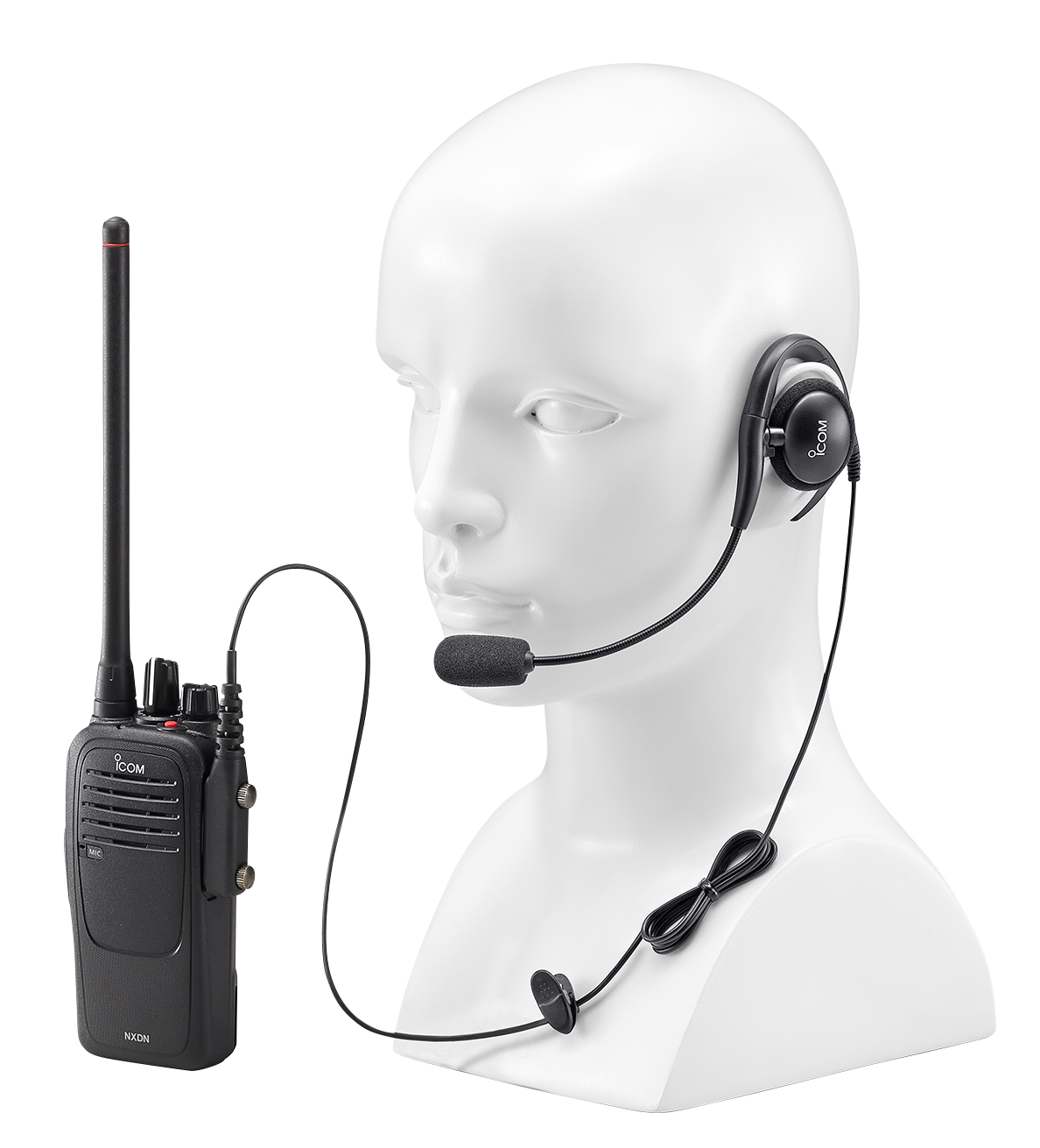

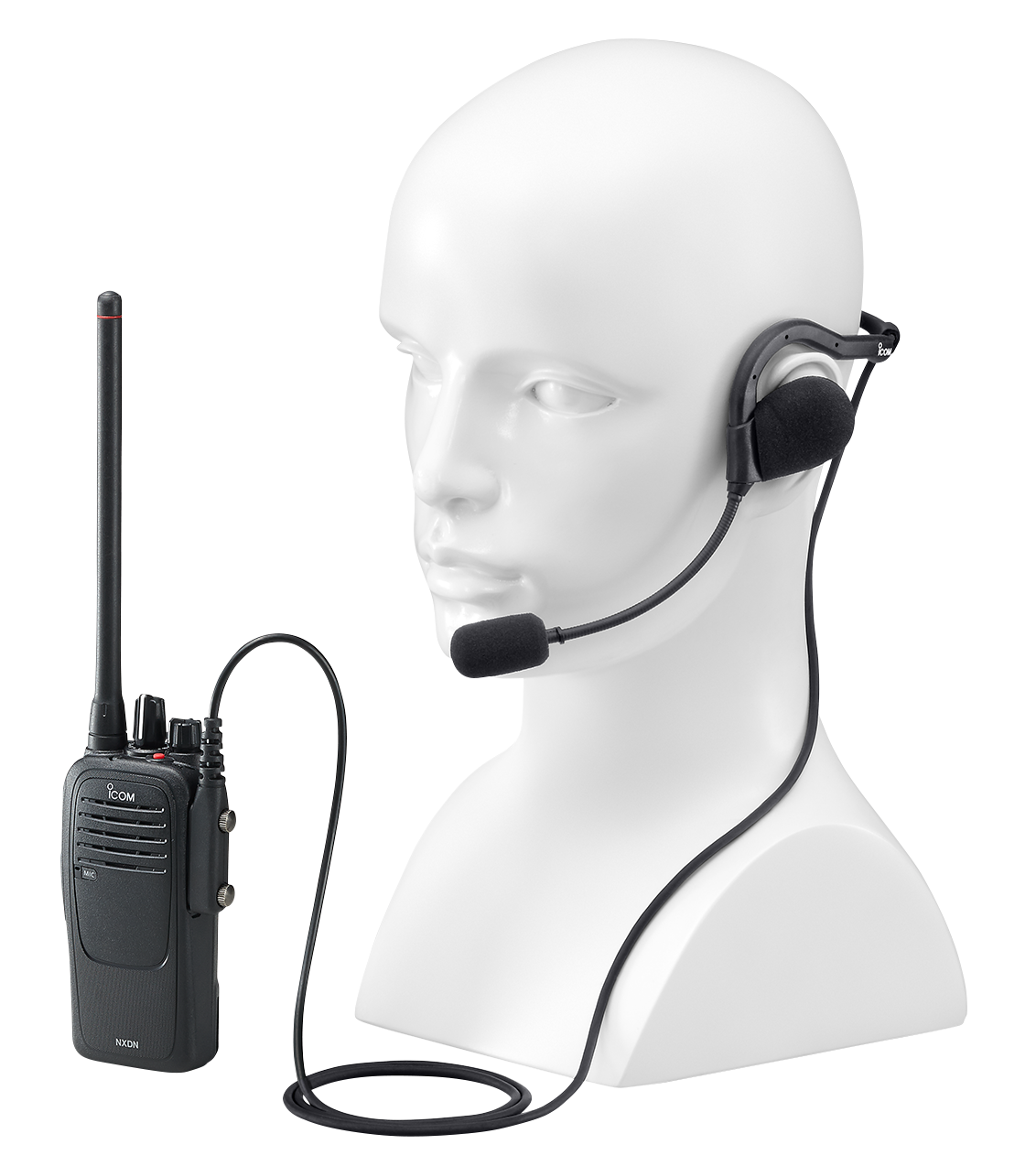

HS-95
NECK ARM TYPE HEADSET

HS-95LWP
NECK ARM TYPE HEADSET

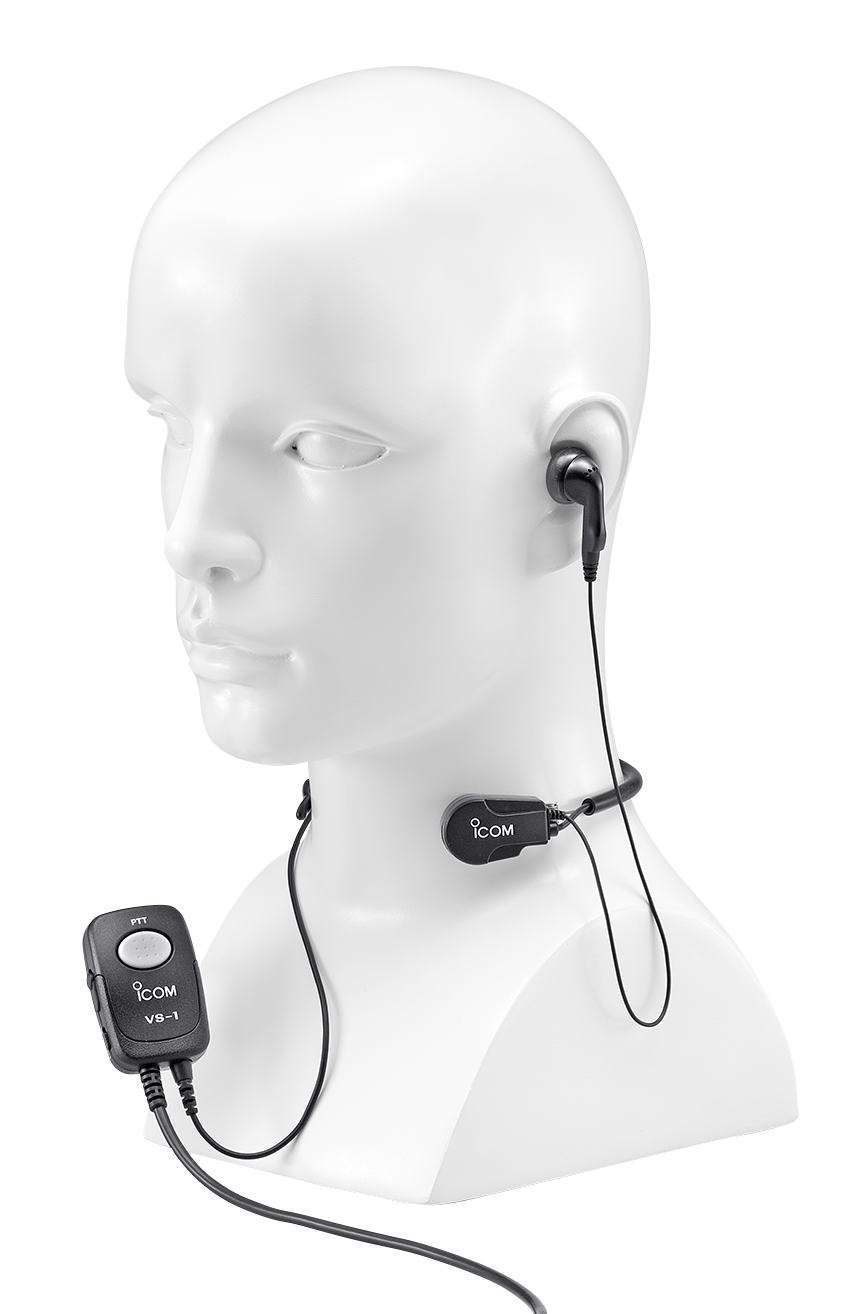

HS-97
HEADSET WITH THROAT MICROPHONE

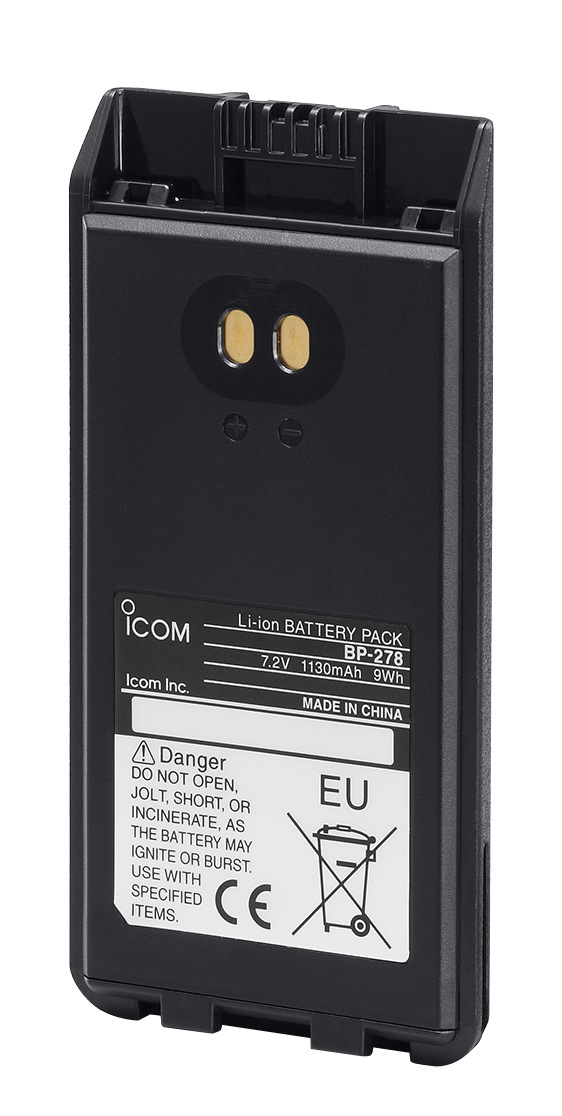

BP-278
Li-Ion Battery Pack

BP-279
Li-Ion Battery Pack

BP-280
Li-Ion Battery Pack

BC-213
Desktop Charger

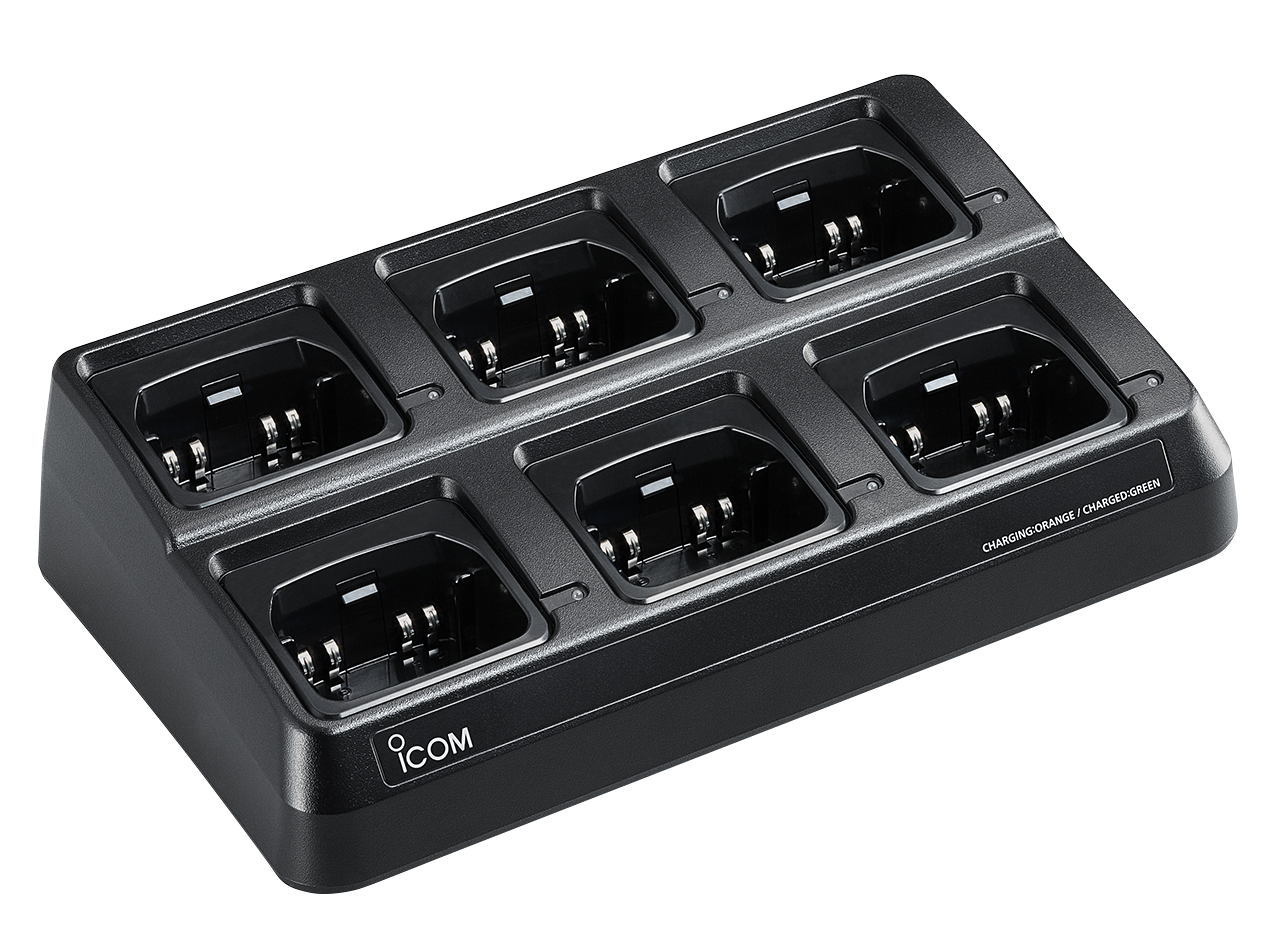

BC-214
#01-#03 MULTI-CHARGER *For BP-278/BP-279/BP-280
The AD-130 charger adapters are supplied.

BC-214N
#41-#43 (EN62368-1 compliant) MULTI-CHARGER * For BP-278/BP-279/BP-280. The AD-130 charger adapters are supplied.

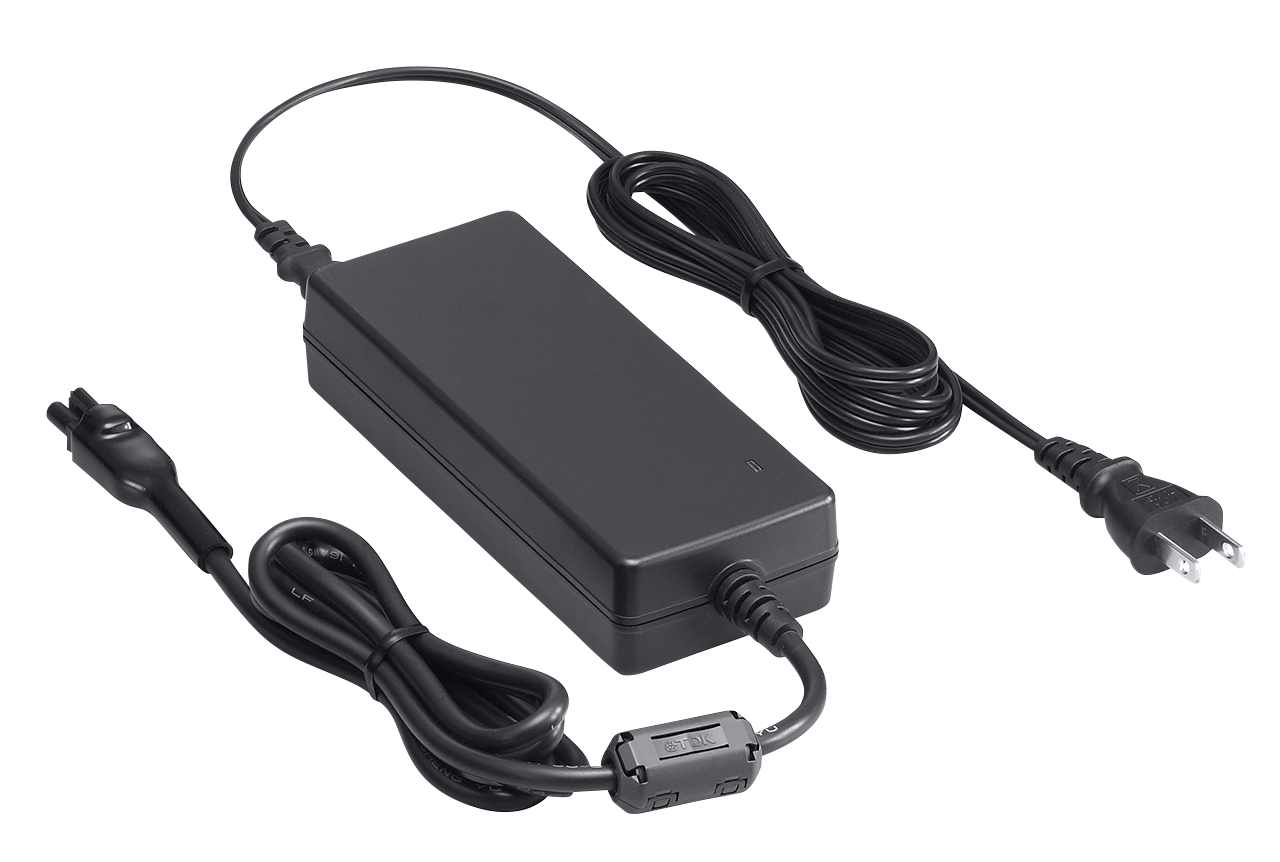

BC-157S
Versions 22 - 24 AC ADAPTER

CP-23L
CIGARETTE LIGHTER CABLE

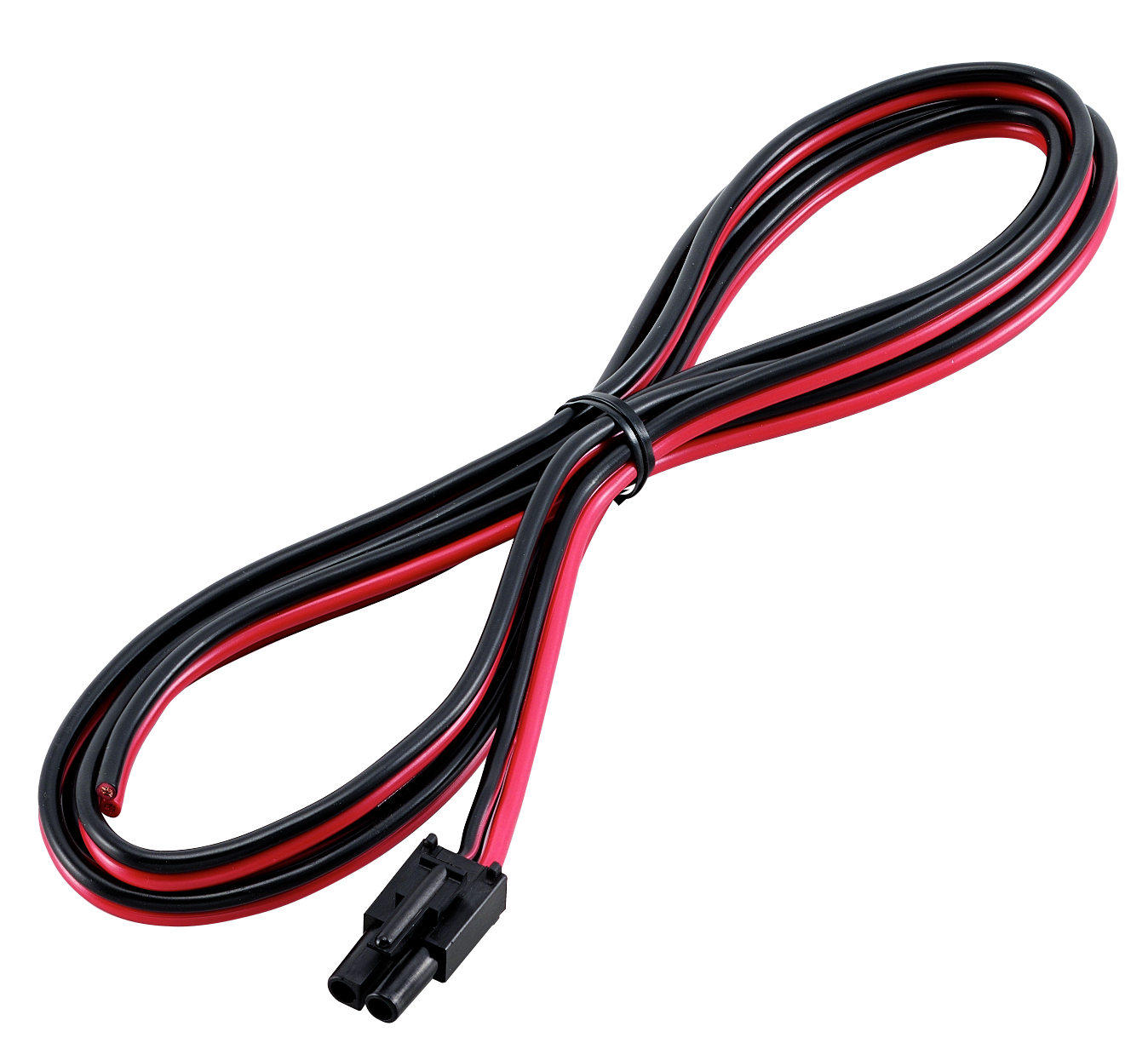

OPC-656
DC POWER CABLE

MB-130
VEHICLE CHARGER BRACKET

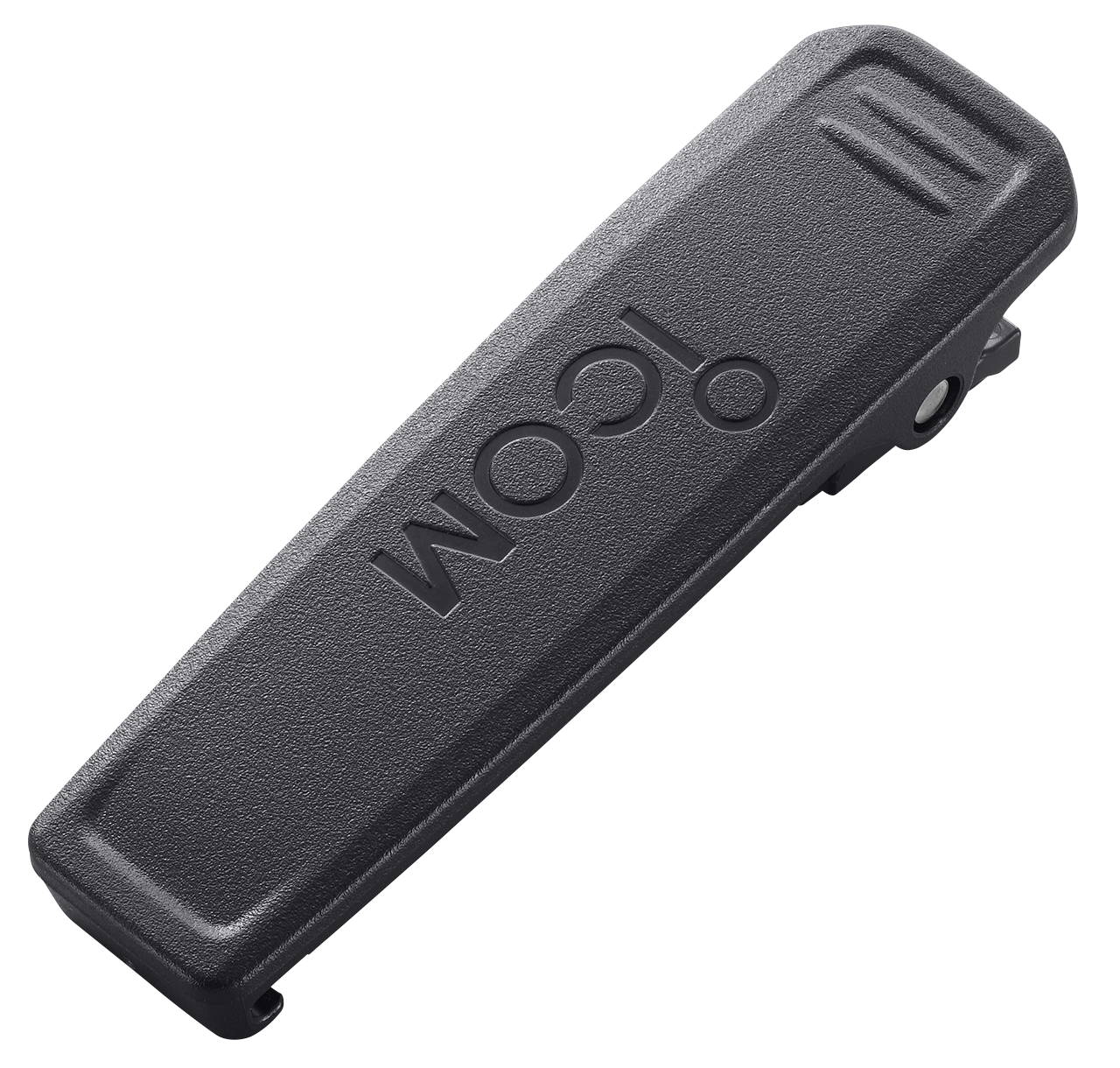

MB-133
Belt Clip

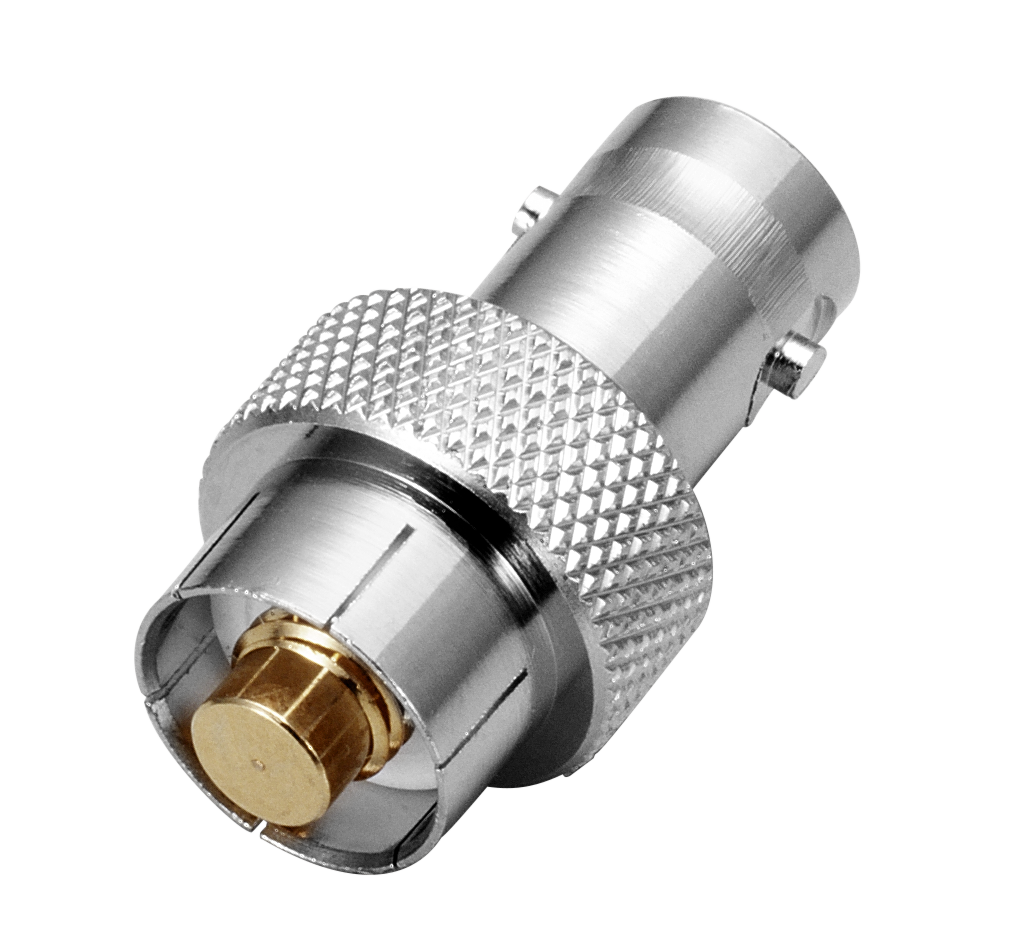

AD-98FSC
ANTENNA CONNECTOR ADAPTER

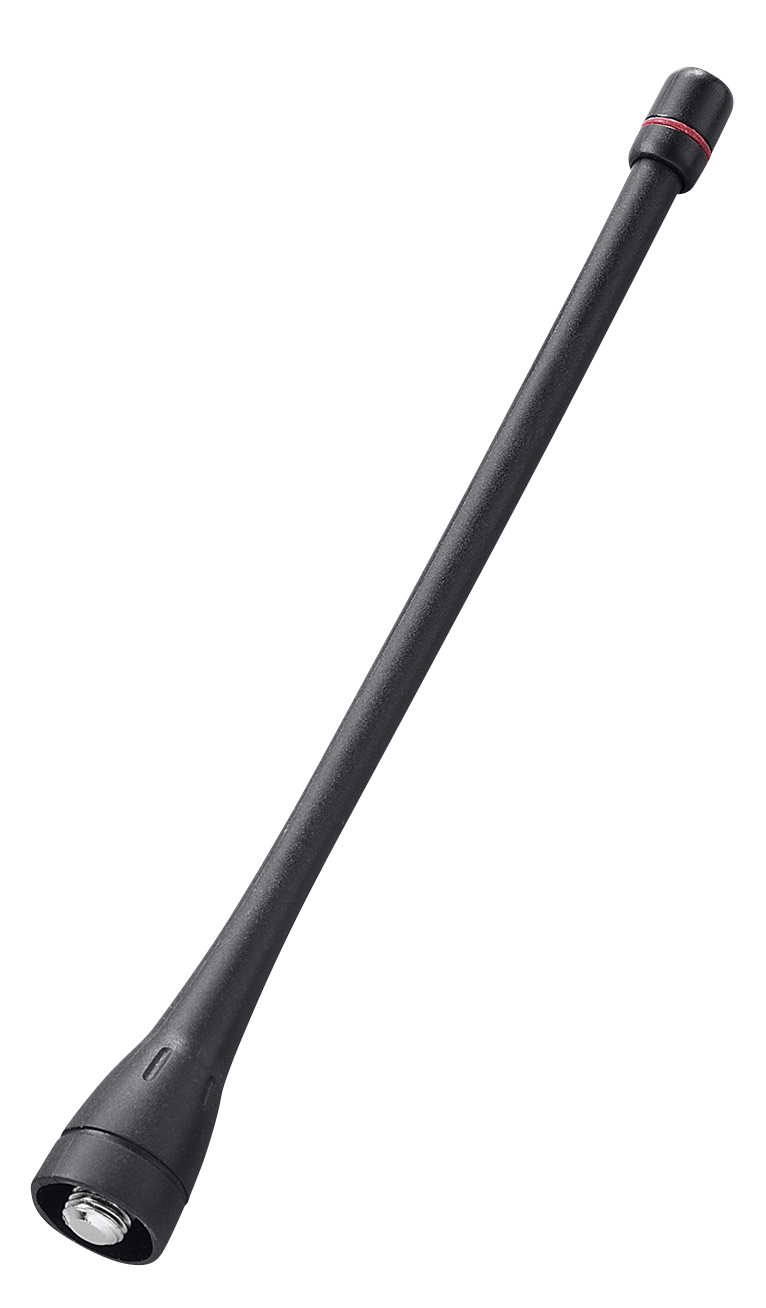

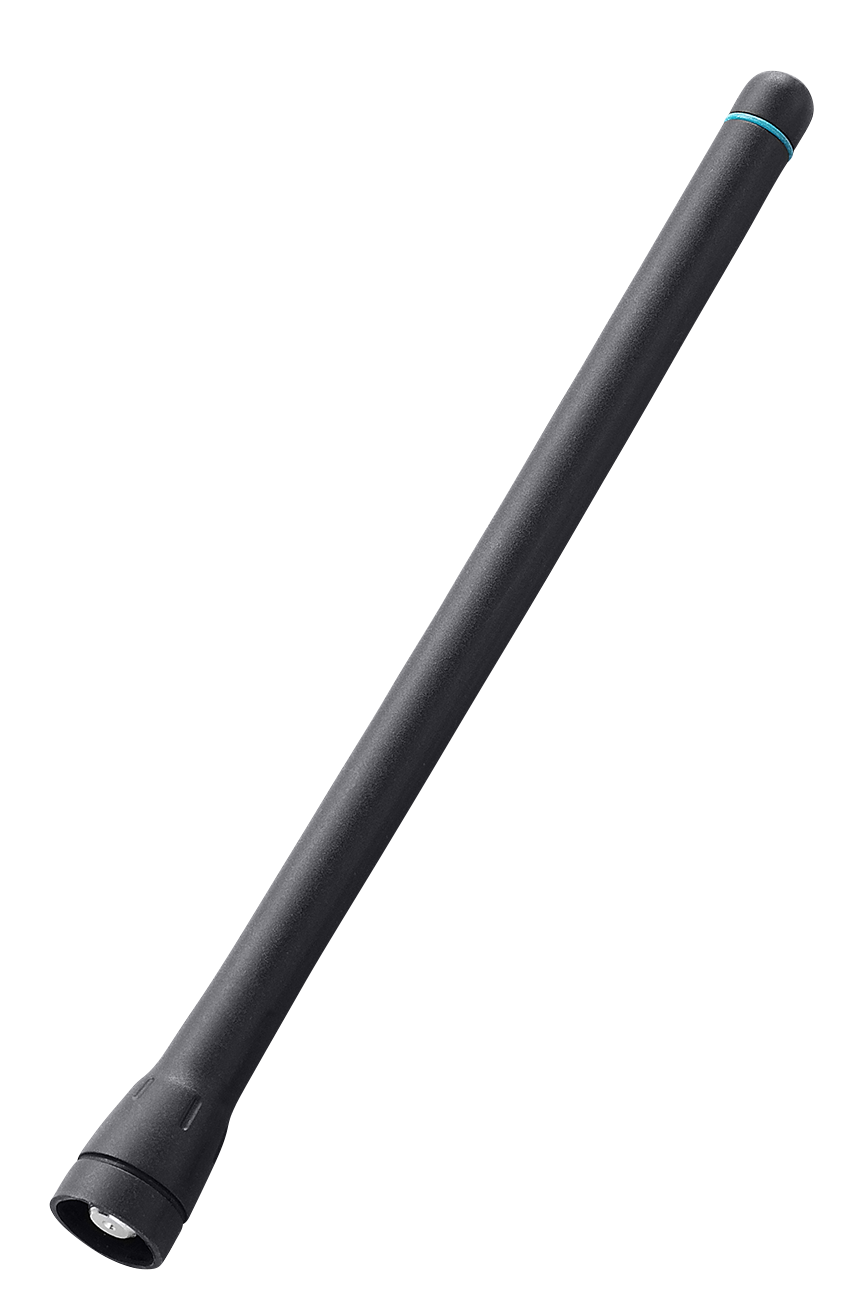

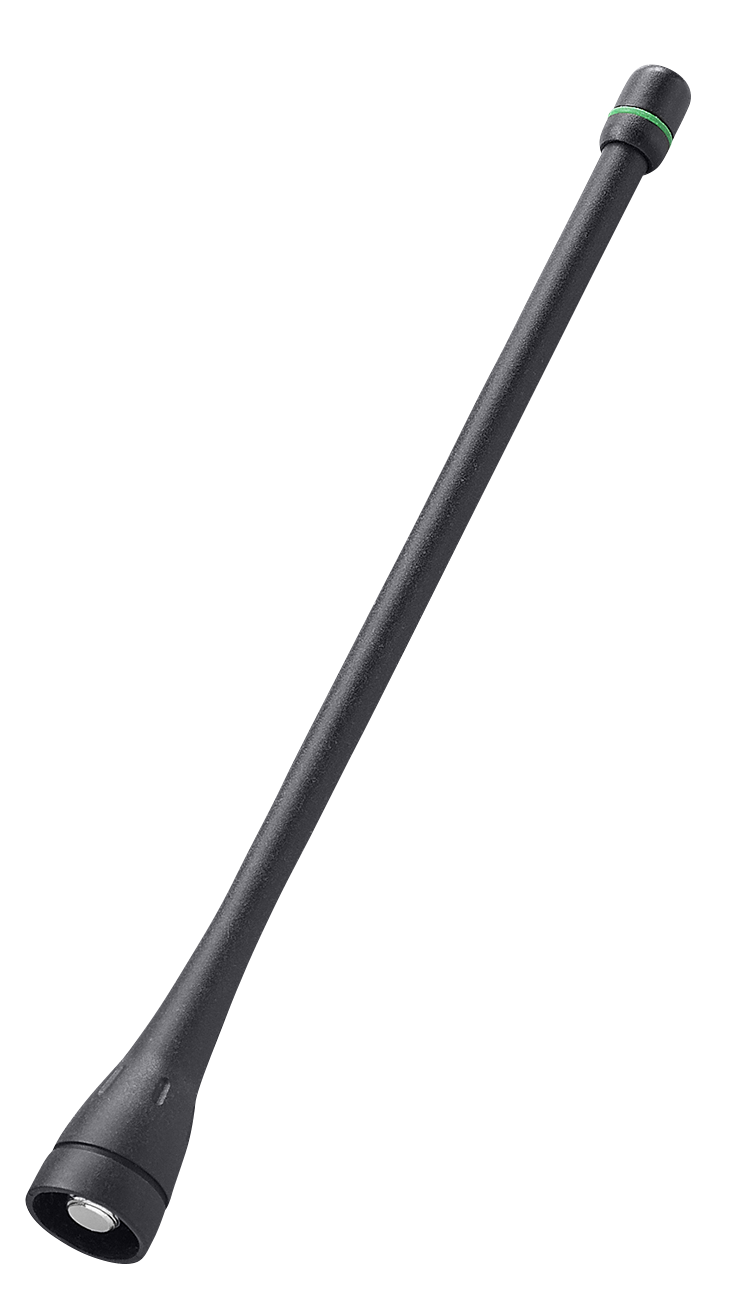

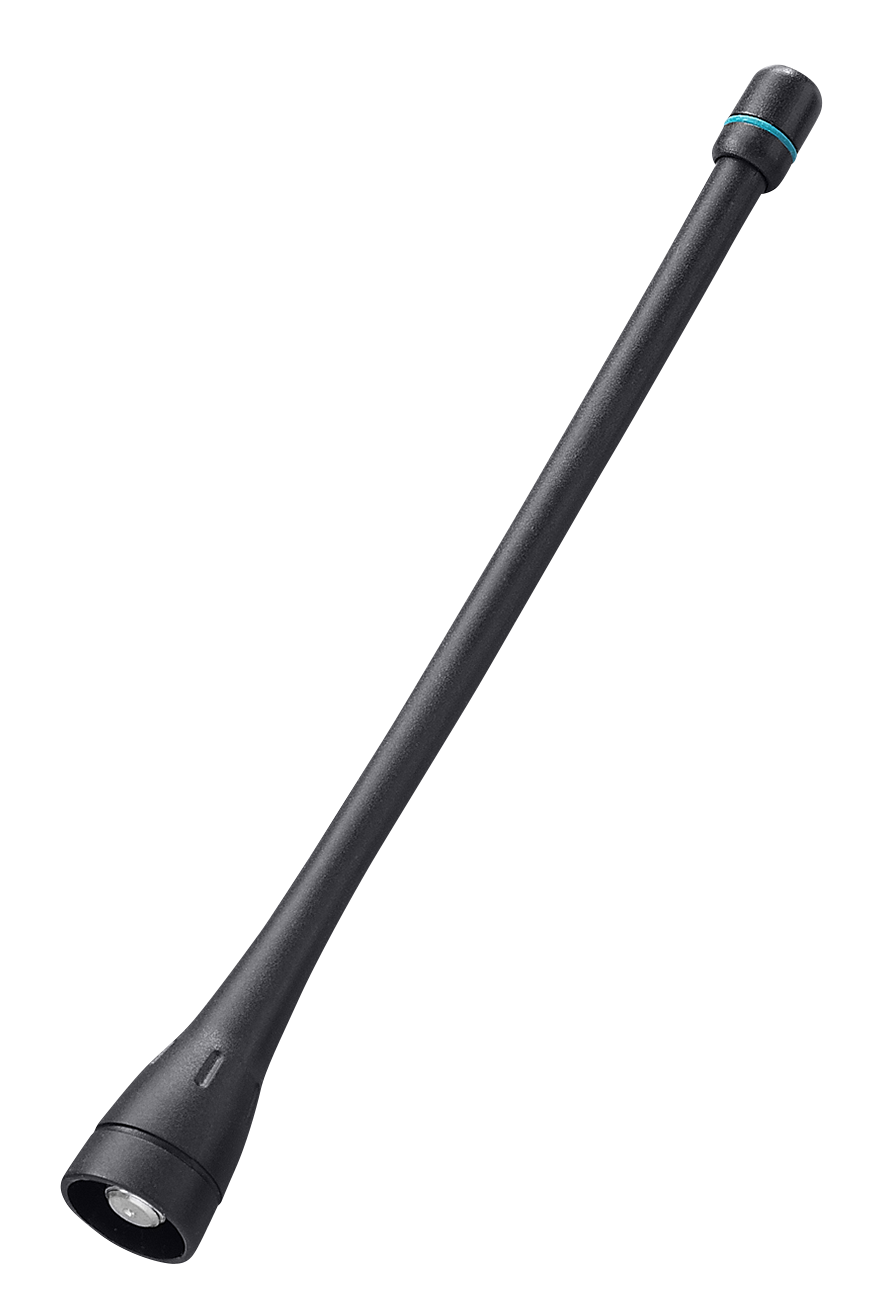

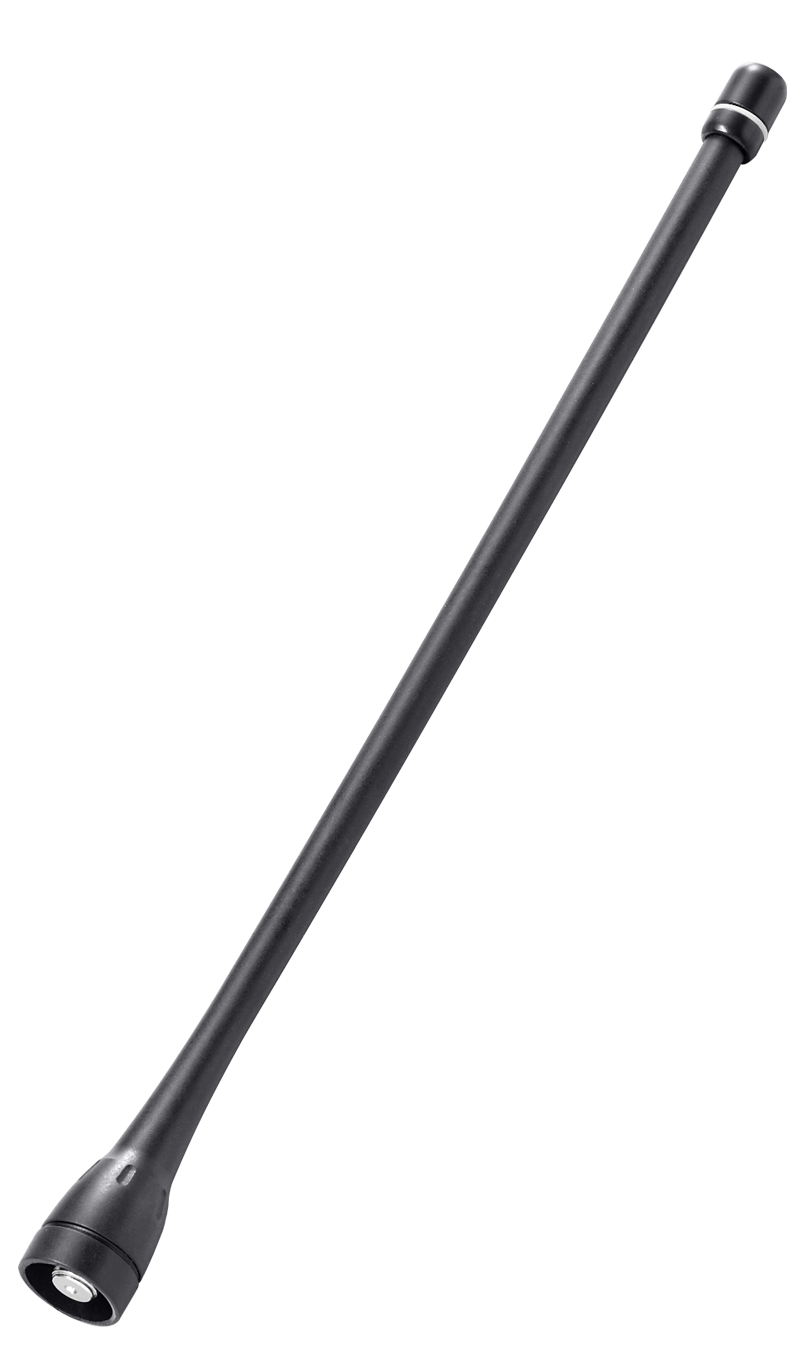

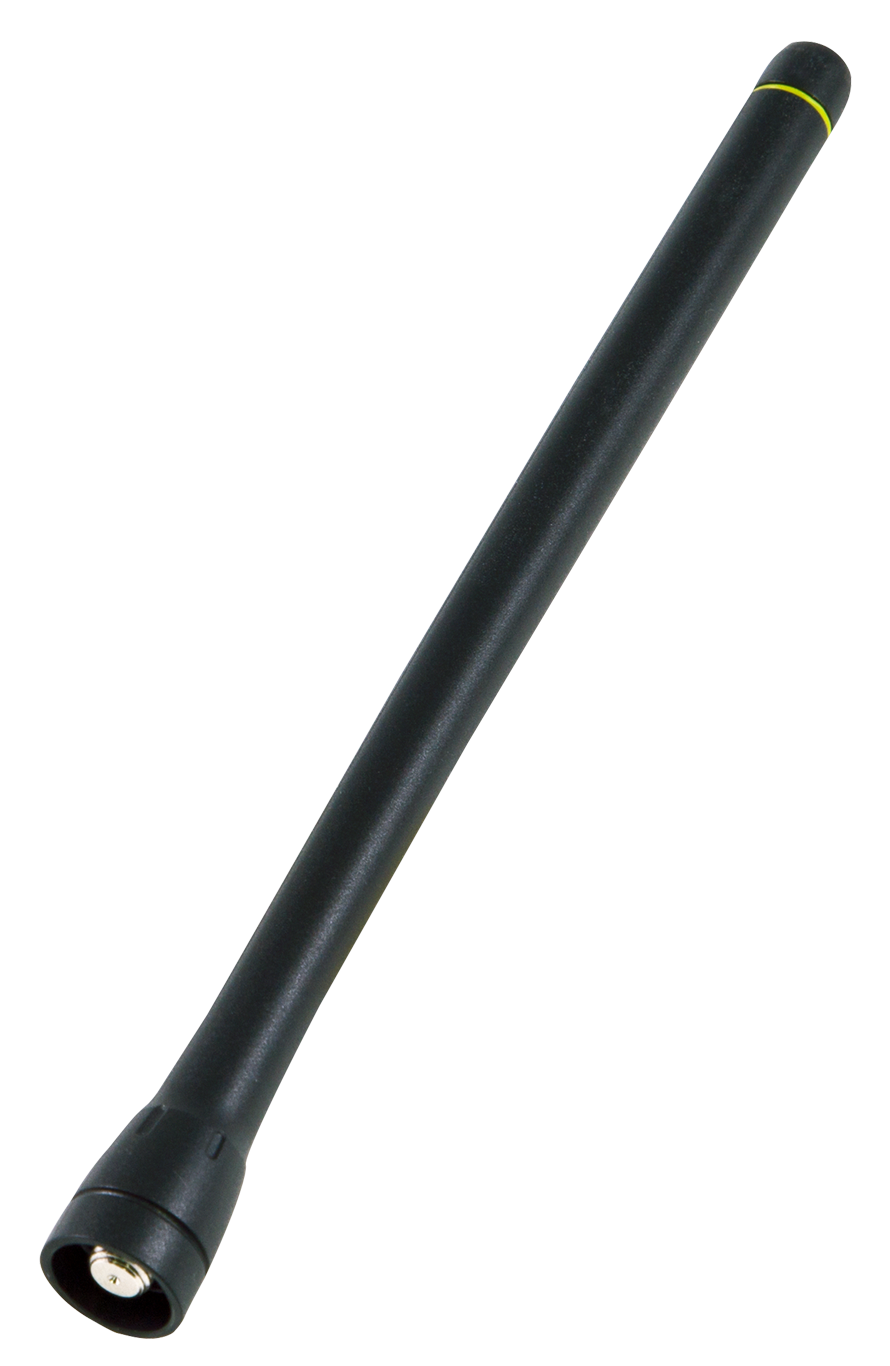

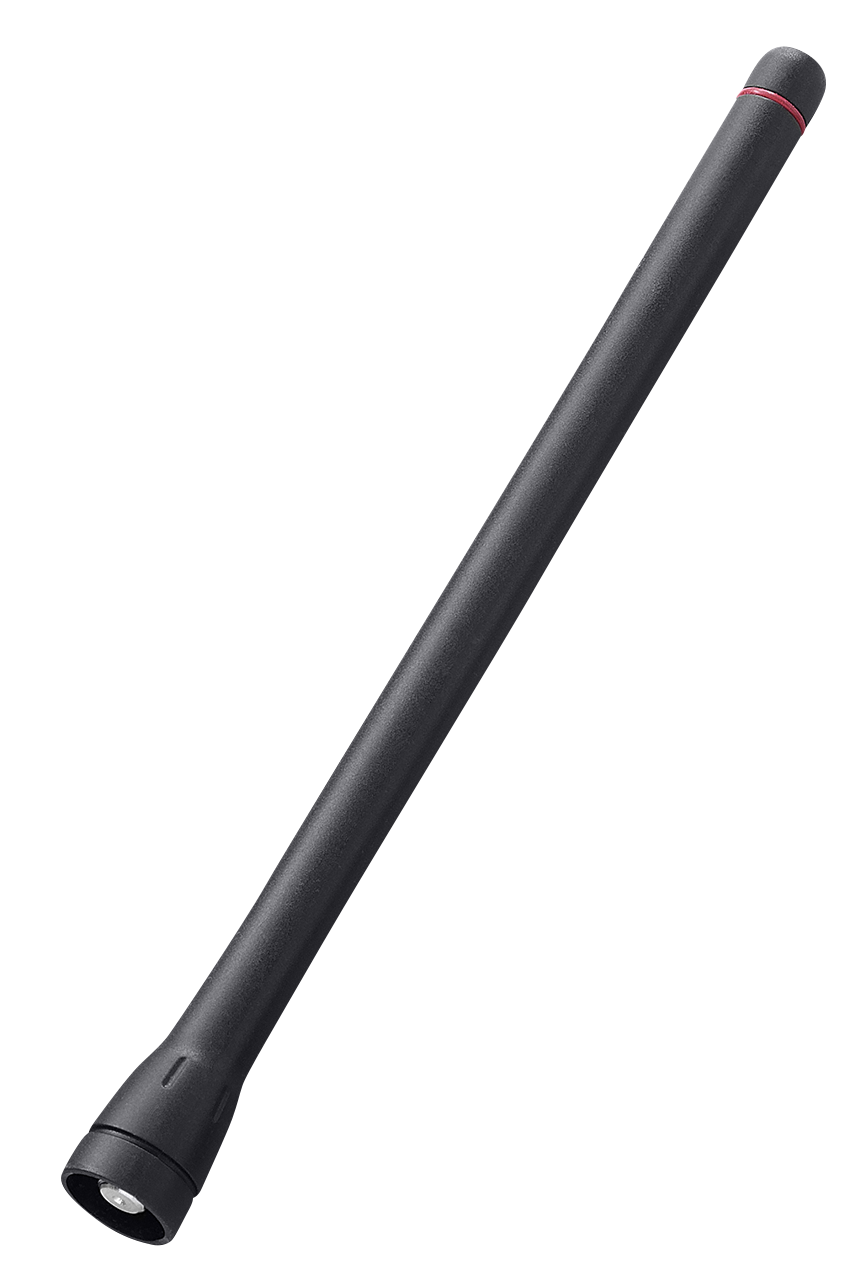

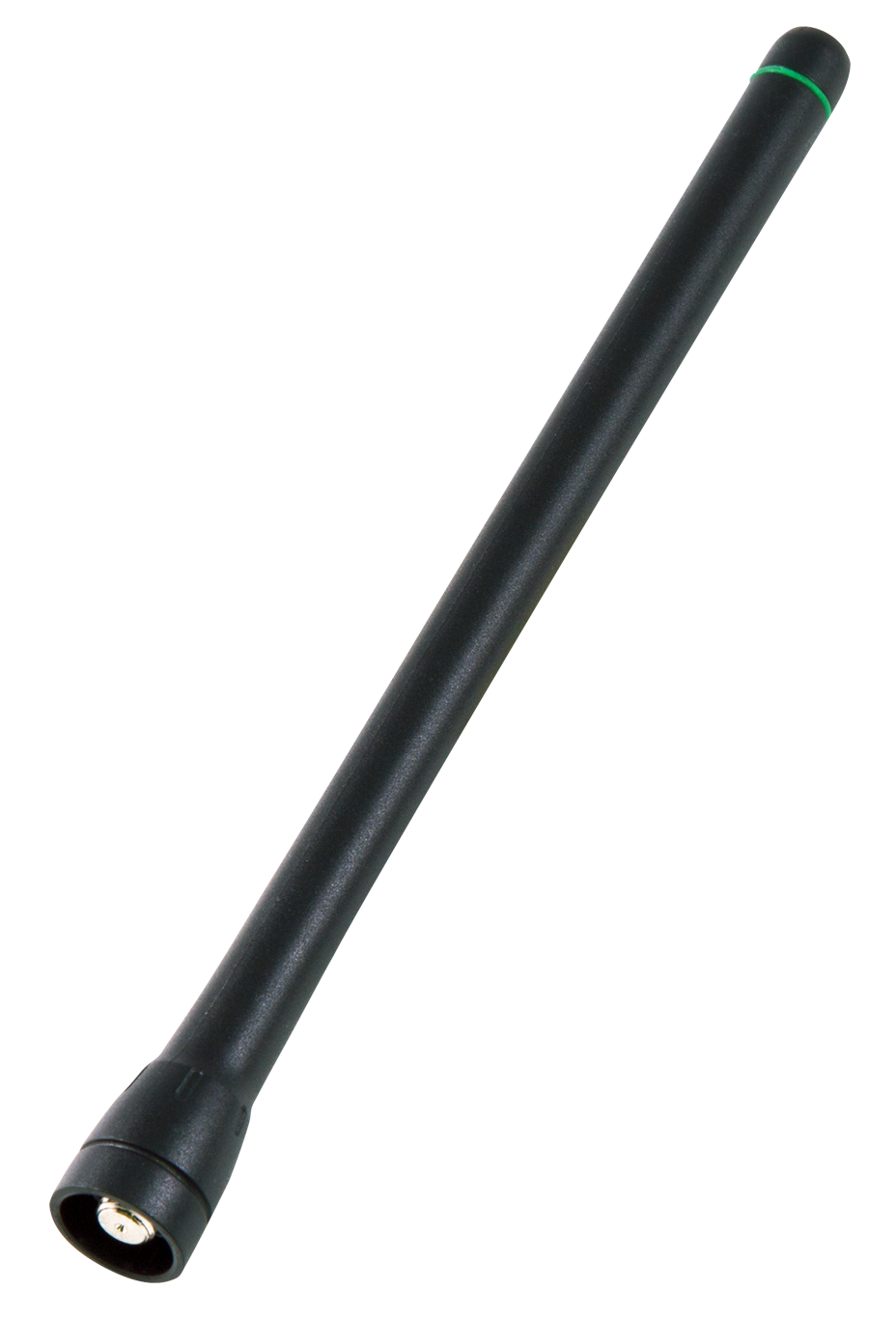

FA-SC01U
FLEXIBLE ANTENNA

FA-SC02U
FLEXIBLE ANTENNA

FA-SC25U
FLEXIBLE ANTENNA

FA-SC25V
FLEXIBLE ANTENNA

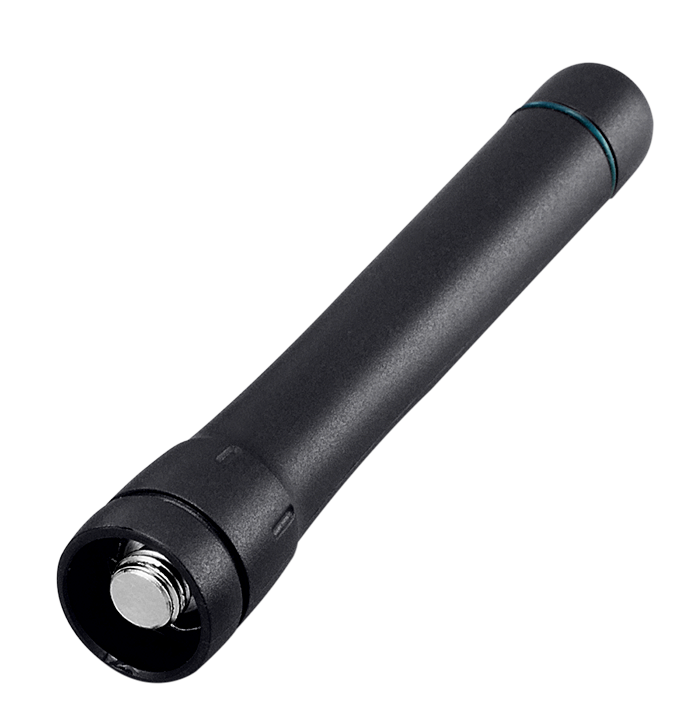

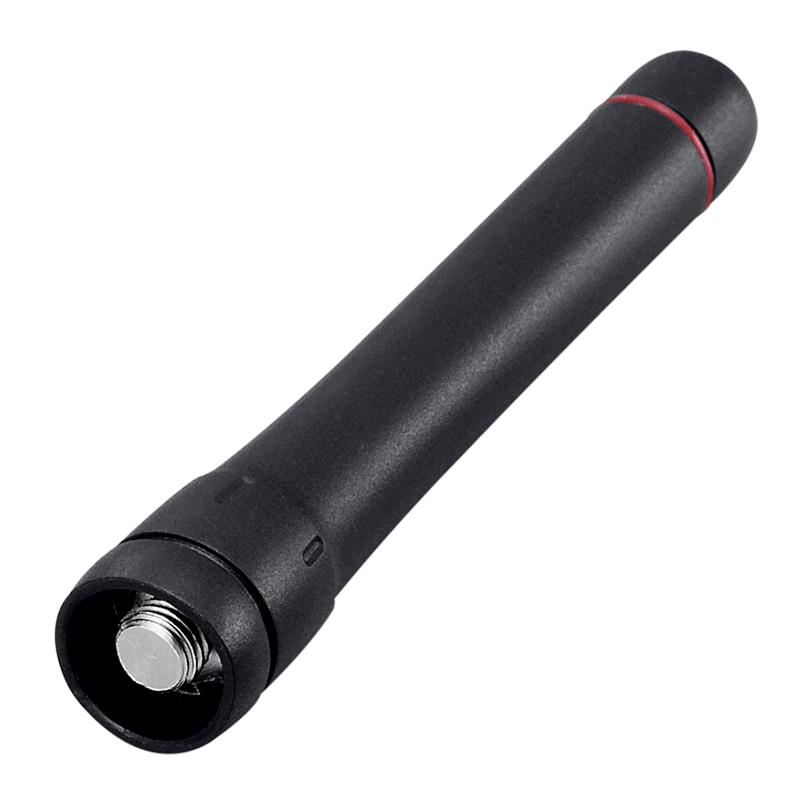

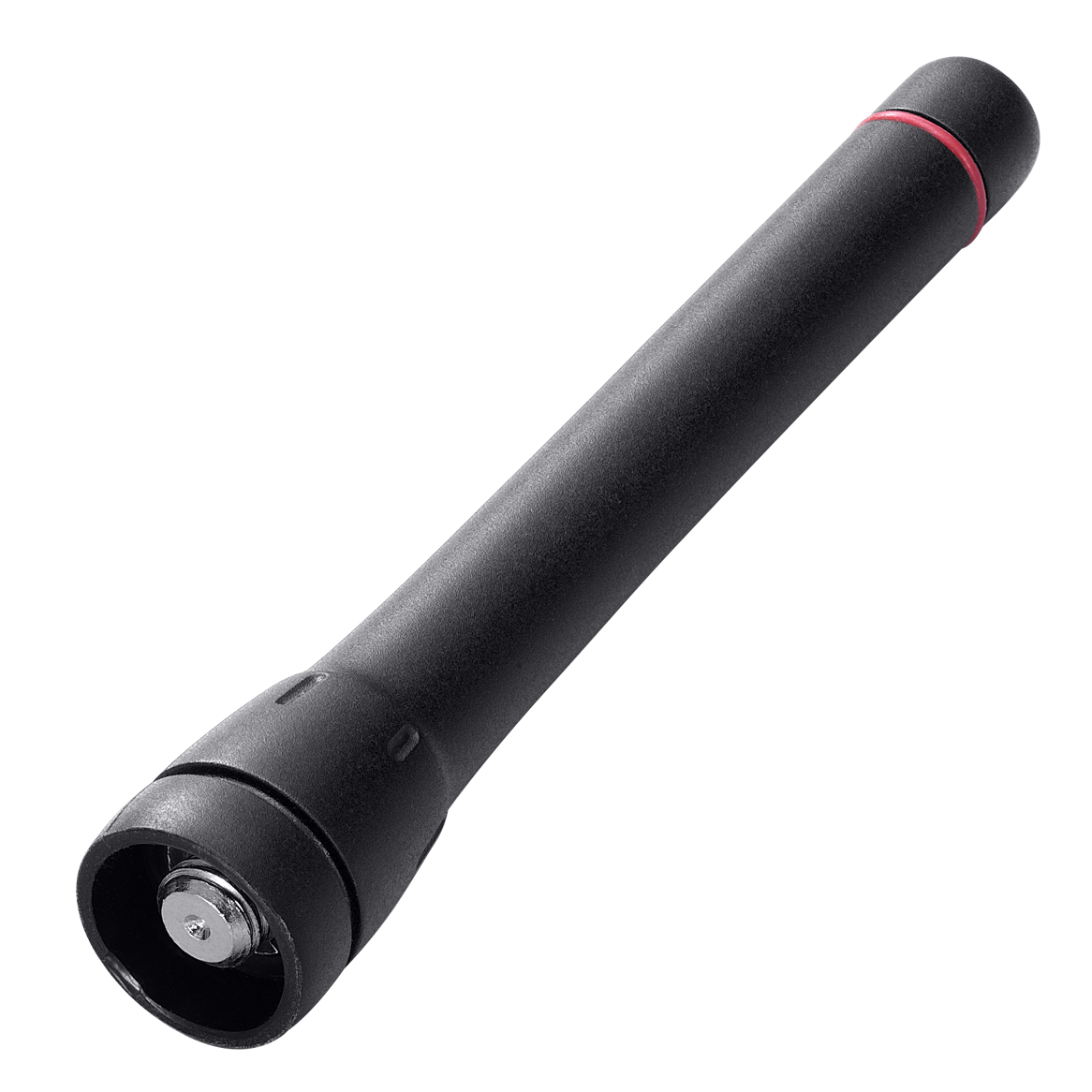

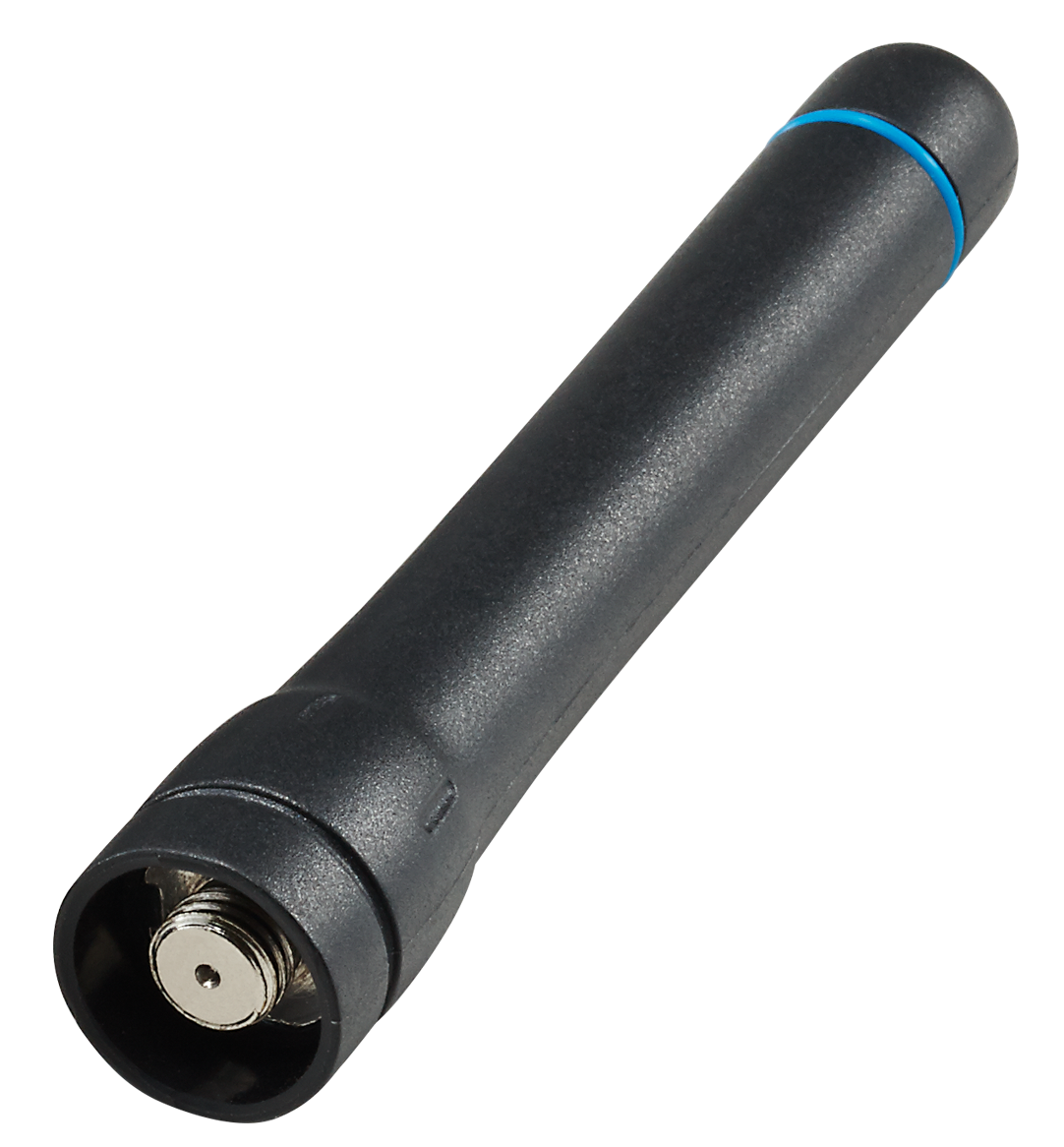

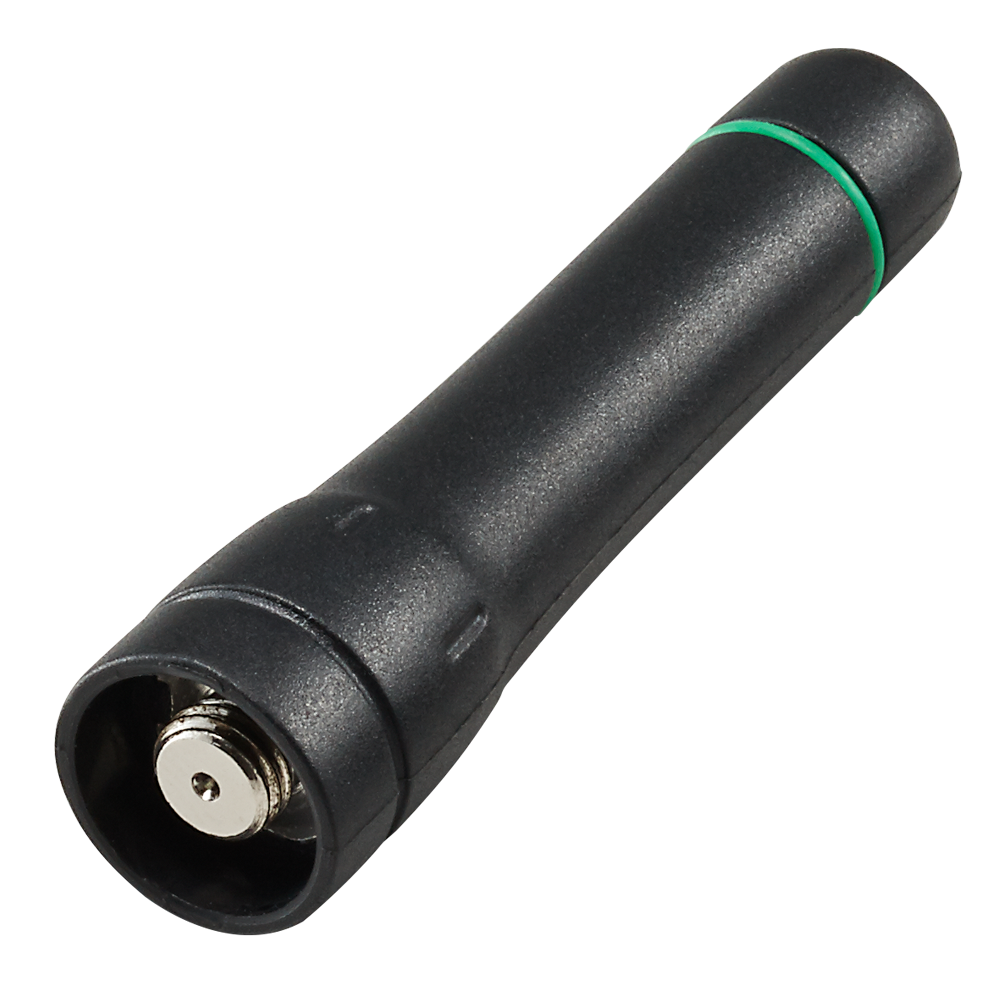

FA-SC26US
STUBBY ANTENNA

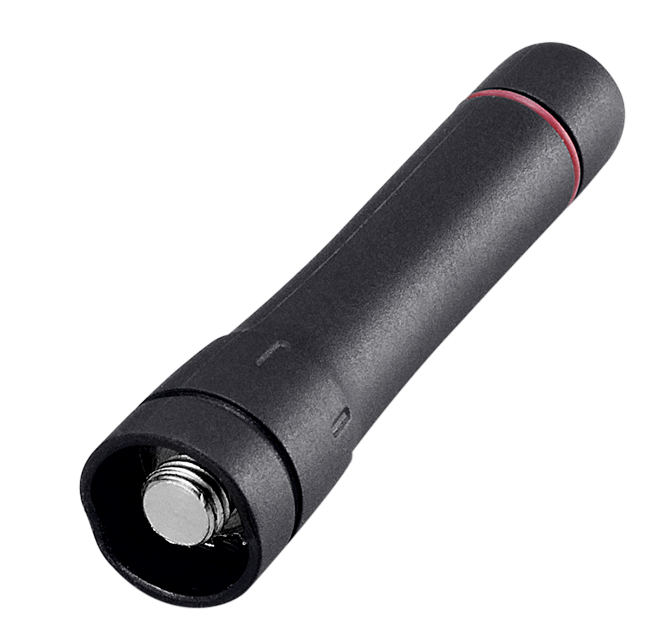

FA-SC26VS
STUBBY ANTENNA

FA-SC27VS
STUBBY ANTENNA

FA-SC28V
FLEXIBLE ANTENNA

FA-SC29V
FLEXIBLE ANTENNA

FA-SC55V
FLEXIBLE ANTENNA

FA-SC56VS
STUBBY ANTENNA

FA-SC57U
FLEXIBLE ANTENNA

FA-SC57VS
STUBBY ANTENNA

FA-SC61UC
CUT TYPE ANTENNA

FA-SC61VC
CUT TYPE ANTENNA

FA-SC72U
FLEXIBLE ANTENNA

FA-SC73US
STUBBY ANTENNA

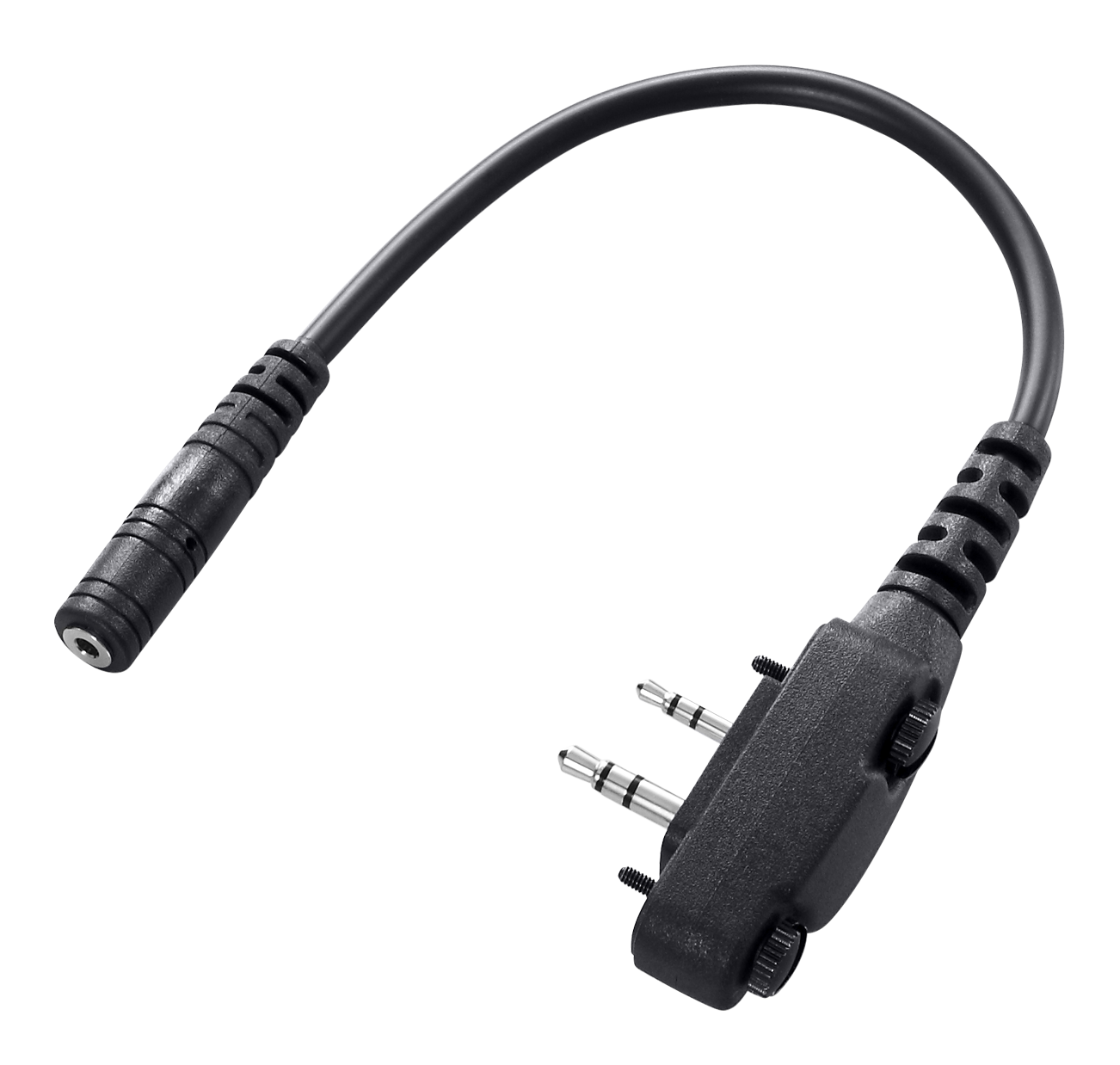

OPC-2004LA
PLUG ADAPTER CABLE

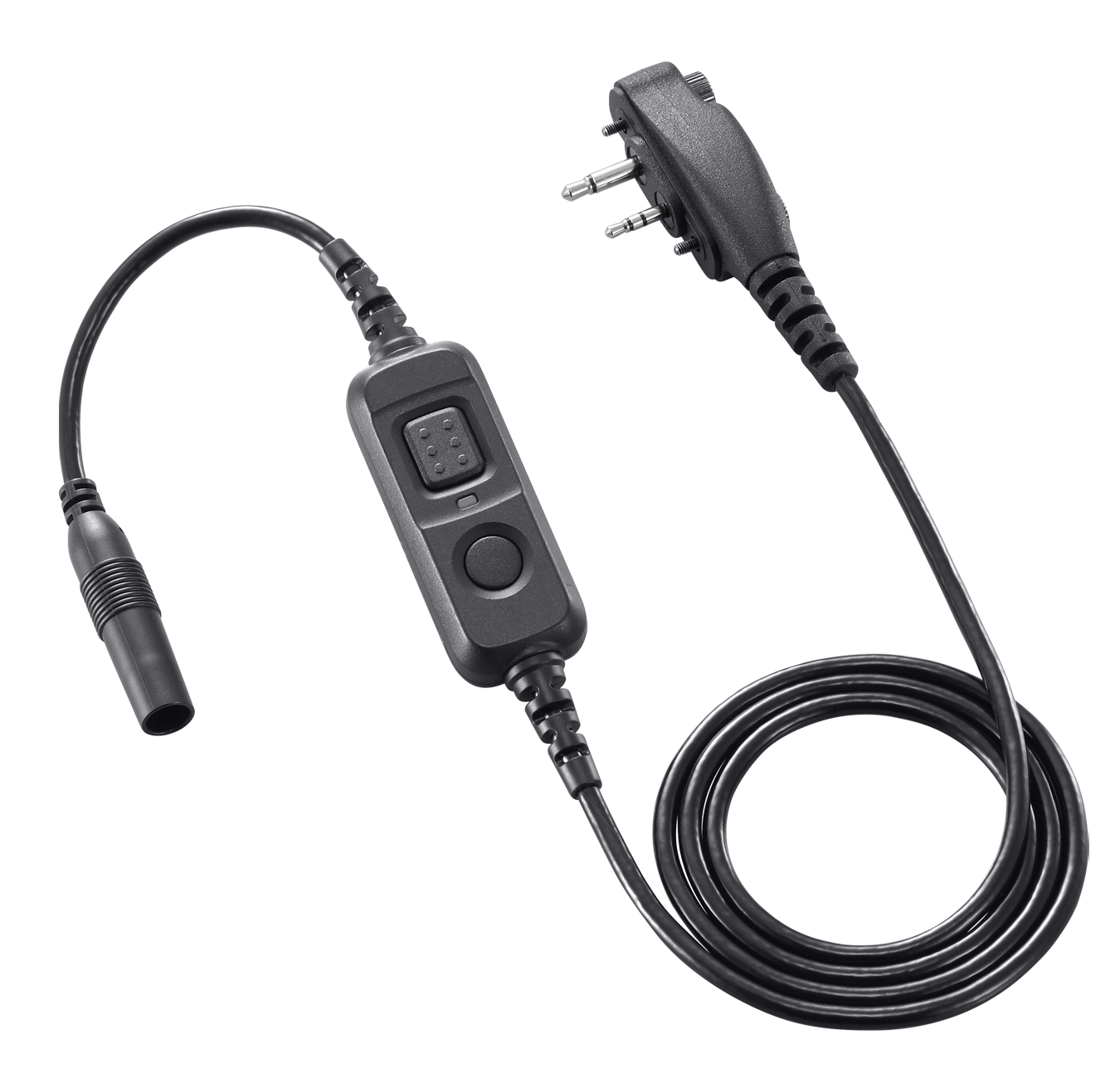

VS-4LA
PTT SWITCH CABLE
Select optional accessories for the transceiver version and follow ICOM connection instructions.
