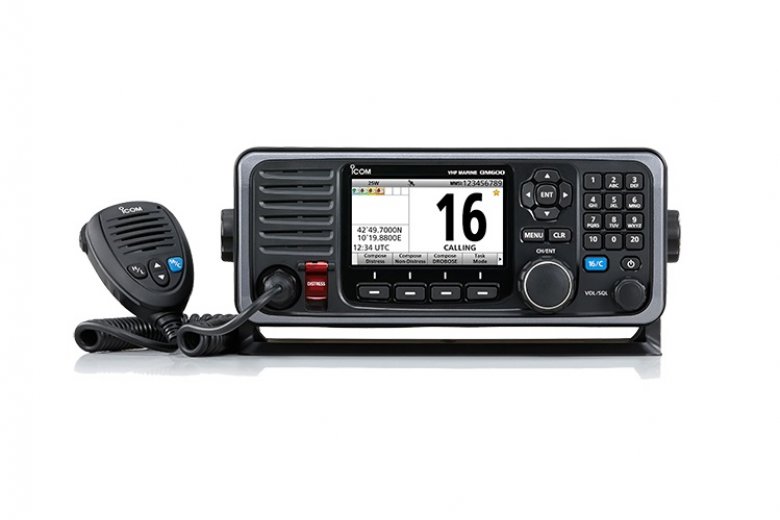

IC-GM600
Meets SOLAS requirements
Meets Strict Environmental Requirements
Meets ITU-R M.493-13 DSC
4.3 inch Wide Viewing Angle Colour TFT LCD
GM600
Meets SOLAS requirements
The GM600 meets the GMDSS requirements defined by the international organization SOLAS for commercial ships on international voyages.
The GM600 has also been certified with a “wheel mark” (Marine Equipment Directive which is required by the European Union for commercial ships). Meets MED 2014/90/EU
Meets Strict Environmental Requirements
The GM600 has passed rigorous environmental testing and quality assurance process.
The GM600 is designed to provide reliable operation and long-lasting durability under harsh maritime environments.
In fact, the front panel has IPX7 protection (1m depth of water for 30 minutes) and the rear panel has corrosion resistance coating.
Meets ITU-R M.493-13 DSC
The built-in DSC provides automated distress and safety communication.
The dedicated DSC watch-keeping receiver continuously monitors the DSC calling channel (CH70).
A total of 100 MMSI numbers for DSC call (Individual ID: 75, Group: 25) can be stored with a 10-character ID name.
Using the DSC Task mode provides straight-forward DSC operation.
DSC Task Mode Operation Example
When receiving a DSC call, a pop-up window appears. Push [Accept] button to send the acknowledgement to the calling station.
After sending or receiving a DSC call, the radio enters the DSC Task mode. Push [Next Task] button to select an other task. Up to 7 tasks can be stored.
4.3 inch Wide Viewing Angle Colour TFT LCD
The 4.3 inch colour TFT LCD provides almost 180 degree very wide viewing angle and displays high resolution characters and function icons.
Even when the radio is installed to the instrument panel, the operator can clearly recognize the display information from various viewing angle.
The night mode display ensures good readability in a dark place.
Provides Loud, Clear Audio
The GM600’s internal speaker enhances intelligibility of received calls.
By adopting a new waterproof paper speaker cone, the speaker provides superior sound quality with a wide frequency range and a flat frequency response.
In addition, the radio delivers powerful 10 W audio when connected to an external speaker.
Intuitive User Interface
A combination of the directional keypad and soft keys provides simple operation. The main 12 functions are assigned to soft keys (at the bottom of the display) and toggled with the left and right keys.
The clearly labelled keypad provides straightforward entry.
The CH16 button offers one-touch access to the CH16.
DC-DC Converter PS-310
The optional DC-DC converter PS-310 supplies a stable 12.6 V of power to the GM600 from either a 12 V or 24 V power source (depending on version) and provides a floating ground connection.
The PS-310 protects the radio from momentary power interruption.
The PS-310 must be used with the GM600 for MED certification compliance.
Made in Japan Quality and Reliability
All Icom products are tested to pass rigorous in-house tests as well as environmental tests at the Wakayama Icom plant before shipping.
Our world-leading products and quality is tradition.
Other Features
- IEC 61162-1 interface for GNSS receiver
- Supports new four-digit marine channels
- Printer plug (D-SUB 25-pin)
- VDR (Voyage Data Recorder)
- Hand microphone, HM-214V
- DC power cable
- Mounting bracket kit
