ID-5100E

ID-5100E

VHF / UHF DUAL BAND DIGITAL TRANSCEIVER

D-STAR with a large touchscreen

A dual-band digital mobile with GPS in the controller and dual-channel monitoring.

50 W VHF/UHF5.5-inch touchIntegrated GPSDV/DV Dualwatch

EUR. Bluetooth requires optional UT-133/A. VS-3 is unavailable for the European market. The official specification table lists 1200 repeater memories while feature text lists 1500.

Features

Touch display

Set frequencies, memories and DR functions directly.

DV/DV Dualwatch

Monitor two digital channels; main-band audio has priority.

GPS and repeaters

Position information helps select nearby repeaters.

SD storage

Record audio and save contact logs and settings on SD.

Specifications

EUR transmit144–146 / 430–440 MHz (EUR)
Receive118–174 / 375–550 MHz
ModesDV, FM, FM-N; AM/AM-N RX (version-dependent)
RF output50 / 15 / 5 W
Memories1000 regular / 4 call / 50 scan edges / 1200 repeater memories (table)
Power supply13.8 V DC ±15%
Frequency stability±2.5 ppm
Operating temperature−10 to +60 °C
Main unit dimensions150 × 40 × 172.6 mm
Controller dimensions182.2 × 81.5 × 24.7 mm
Approximate weight1.3 kg + 260 g controller
Antenna connectorSO-239 / 50 Ω
Display5.5-inch / 320 × 128 pixels
Digital voice4.8 kbps TX; 2.4 kbps voice coding

Specifications refer to the version identified above and are subject to change by ICOM.

Supplied Accessories

HM-207, OPC-1132 DC cable, 3.5 m OPC-837 controller cable, microphone hanger and fuse, depending on version.

Optional Accessories

HM-154

HM-154

Hand Microphone

HM-207

HM-207

Hand Microphone

HM-209

HM-209

Active Noise Cancelling Microphone

HM-232

HM-232

Hand Microphone

HM-249

Hands Free Microphones

SP-30

SP-30

External Speaker

SP-35

SP-35

External Speaker

SP-35L

SP-35L

External Speaker

MBA-2

MBA-2

Controller Bracket

MBF-1

MBF-1

Mounting Base

MBF-4

MBF-4

Mounting Bracket

CS-5100

Programming Software

RS-MS1A

RS-MS1A

Android™ APPLICATION

ST-4002A

Gps Software

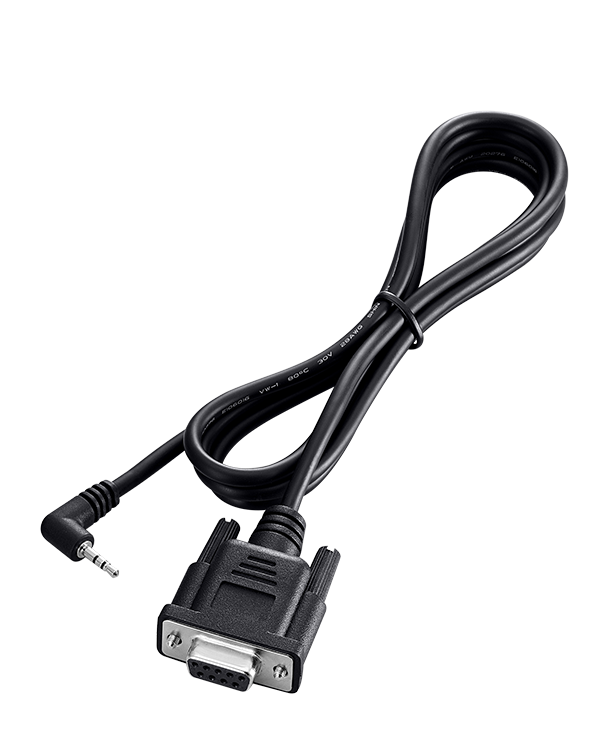

OPC-1529R

OPC-1529R

Data Cable

OPC-2350LU

OPC-2350LU

Data Cable

OPC-478UC

OPC-478UC

Programming Cable

OPC-478UC-1

OPC-478UC-1

Programming Cable

OPC-478UD

Programming Cable

UT-133A

UT-133A

Bluetooth Unit

OPC-2500

Extension Cable

OPC-440

OPC-440

Microphone Extension Cable

OPC-647

OPC-647

Microphone Extension Cable

OPC-1156

OPC-1156

Controller Extension Cable

Select optional accessories for the transceiver version and follow ICOM connection instructions.
