IP501M

  • Nationwide Coverage over LTE (4G) and 3G Networks*

  • Built-in Bluetooth®* and GPS

  • Safety Features with Emergency Call & Lone Worker Functions

  • Text Message Function Allows You to Send and Receive Messages of up to 32 Characters

IP501M

IP501M

IP Transceiver

Mobile LTE/3G radio interoperable with Icom IP handhelds.

Mobile LTE/3G radio interoperable with Icom IP handhelds.

Features

Wide-area vehicle radio

Uses supported LTE/3G networks and communicates with IP501H and IP503H handhelds.

Full-duplex calling

Phone-style simultaneous speech and listening, plus priority interruption.

Vehicle functions

Supports text messages, GPS and an external speaker output exceeding 4 W.

Specifications

NetworkSupported LTE (4G) / 3G service
Dimensions125 × 29 × 156 mm
Main-unit weightApprox. 840 g
Operating temperature−10 °C to +60 °C
Voice codecG.726
External speakerMore than 4 W (4 Ω, 10% distortion)
Microphone impedance600 Ω

Specifications refer to the version identified above and are subject to change by ICOM.

Supplied Accessories

HM-241 speaker microphone · Two LTE antennas · GPS antenna · DC power cable · Mounting bracket kit · Microphone hanger

Optional Accessories

HM-230HB

HM-230HB

COMMAND MICROPHONE

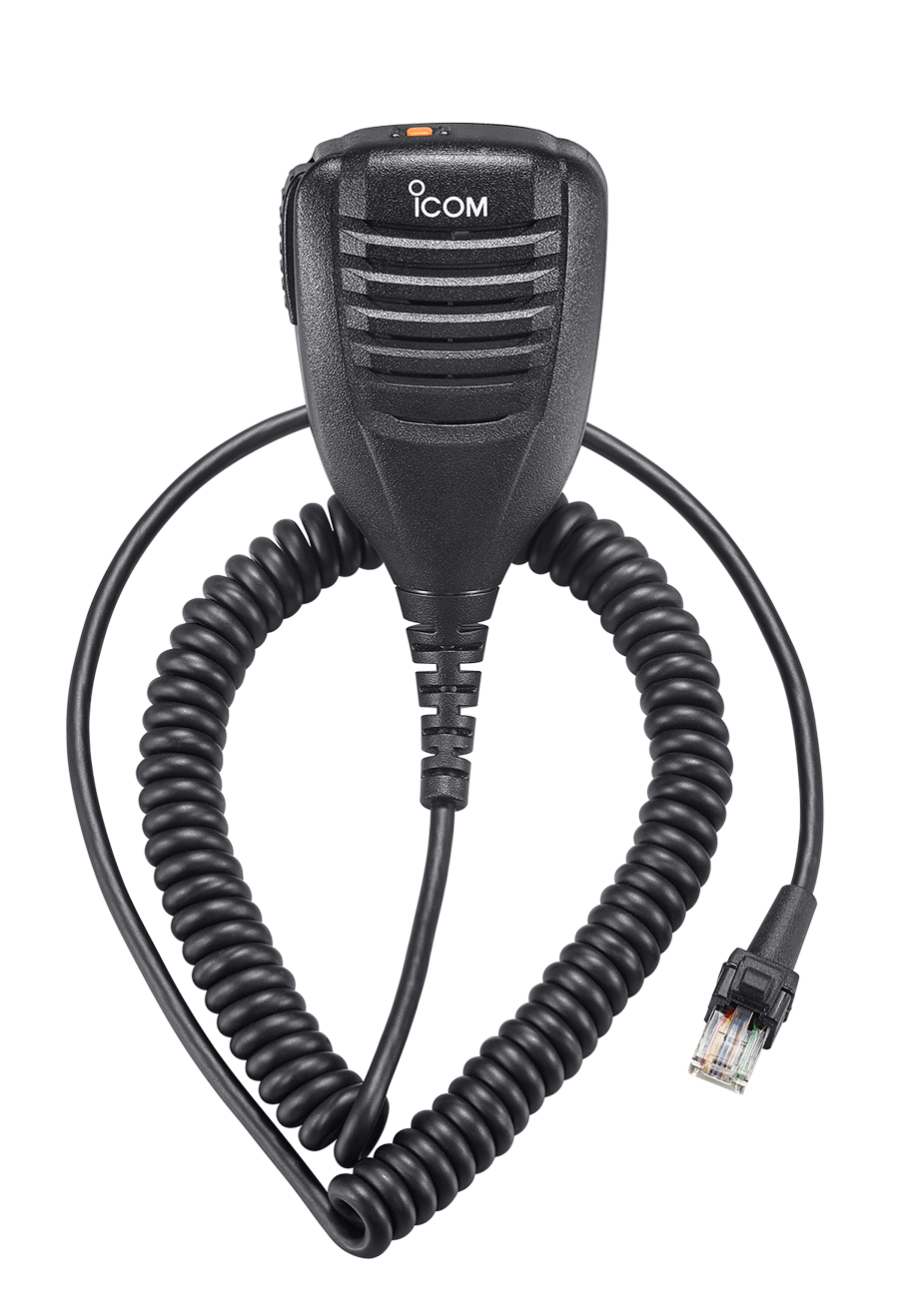

HM-241

HM-241

SPEAKER MICROPHONE

HM-249

HM-249

HANDS FREE MICROPHONES

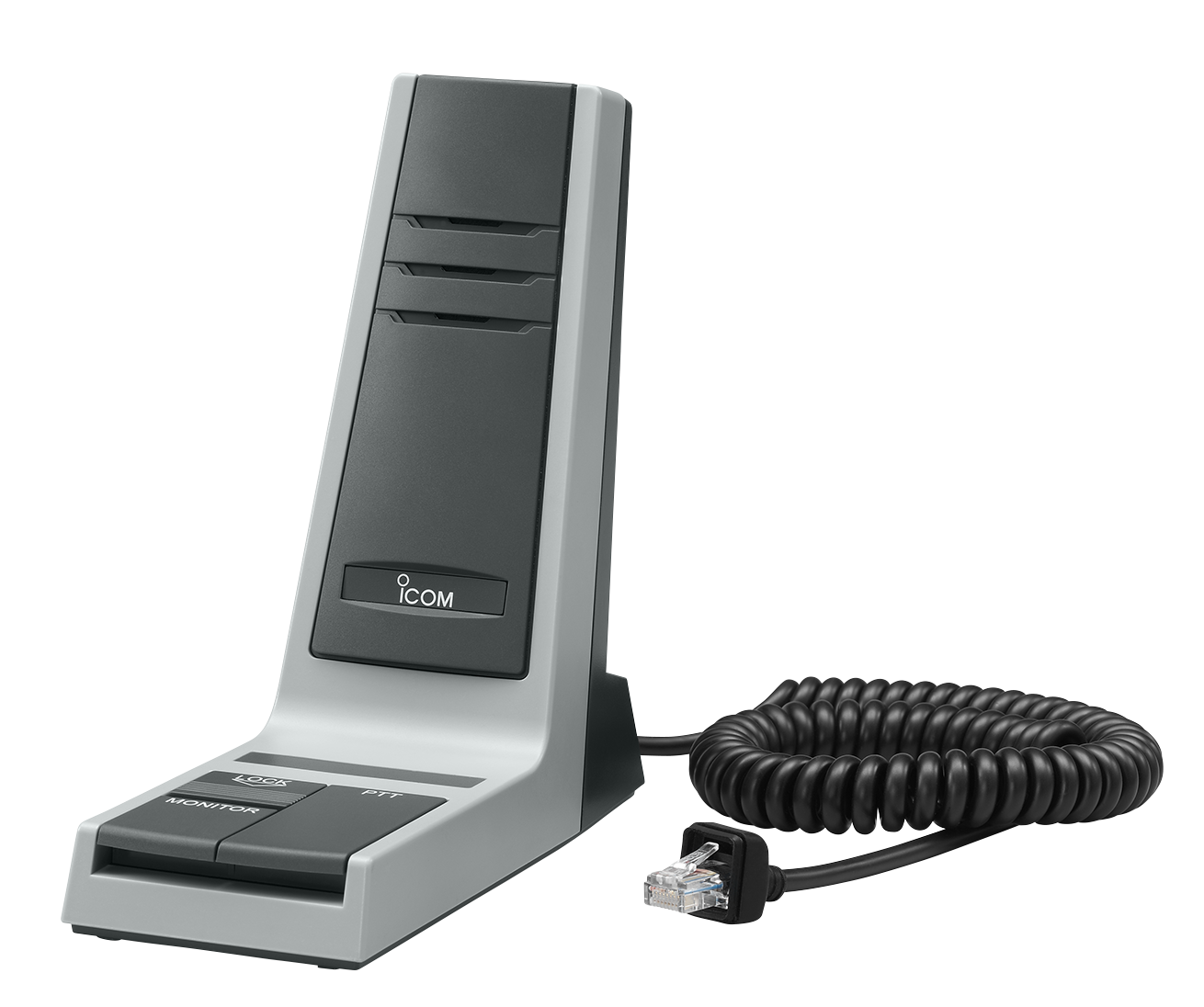

SM-28

SM-28

DESKTOP MICROPHONE

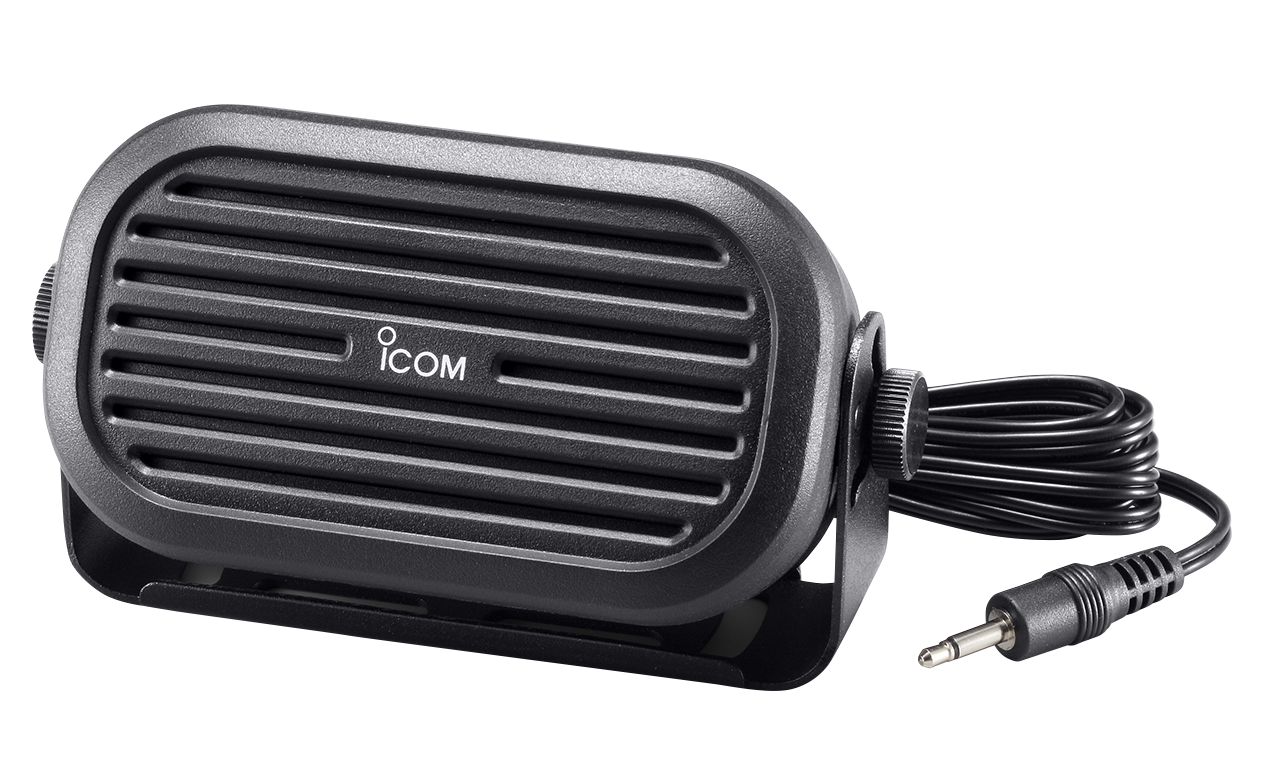

SP-30

SP-30

EXTERNAL SPEAKER

SP-35

SP-35

EXTERNAL SPEAKER

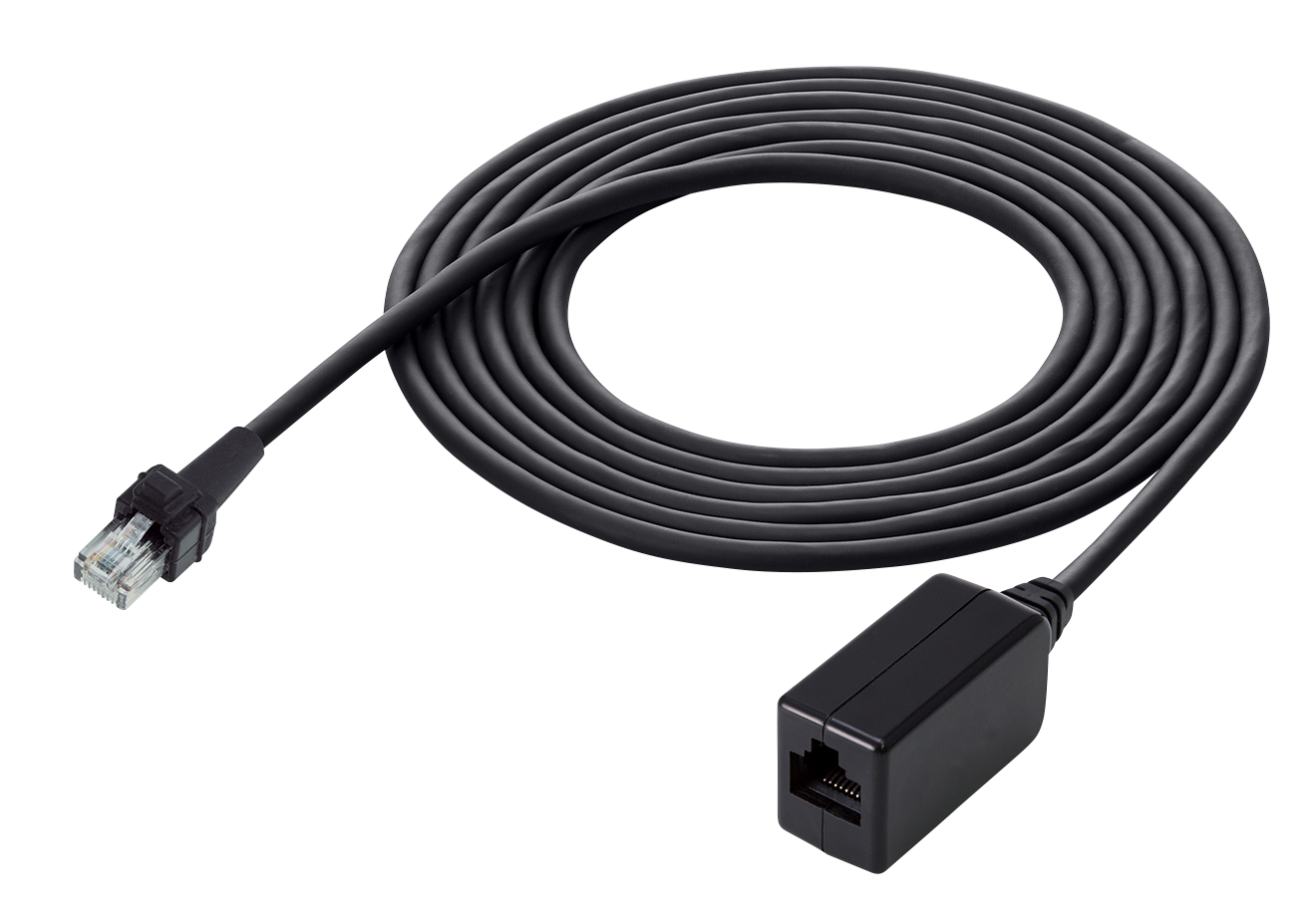

OPC-2355

OPC-2355

MICROPHONE EXTENSION CABLE

OPC-2500

OPC-2500

EXTENSION CABLE

OPC-647

OPC-647

MICROPHONE EXTENSION CABLE

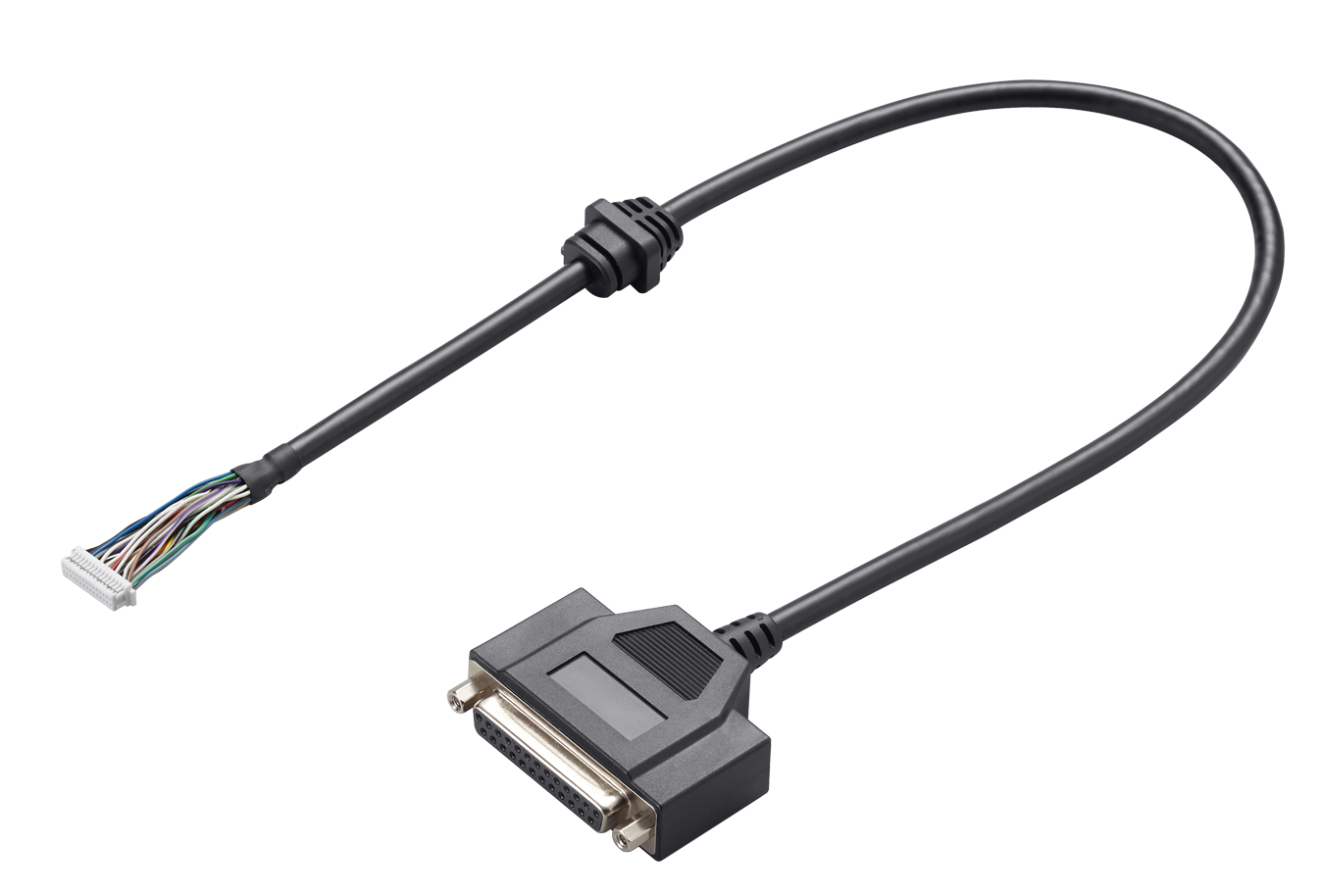

OPC-2407

OPC-2407

ACC CABLE

Select optional accessories for the transceiver version and follow ICOM connection instructions.
