VHF AIR BAND TRANSCEIVER
IC-A16E
Handheld VHF airband radio with powerful 1500 mW audio
A European 8.33/25 kHz transceiver for ground-to-air communications, with 6 W PEP output, IP67/IP54 protection and long battery life. Bluetooth and non-Bluetooth versions are available.
Features
Audio for noisy environments
The internal speaker provides a typical 1500 mW audio output. ANL reduces impulse noise, while side tone and VOX support operation with a compatible headset.
Up to 17 hours of operation
With the BP-280, typical operation reaches 17 hours using a 5:5:90 TX/RX/standby cycle, with Bluetooth and backlight switched off.
Bluetooth version distinction

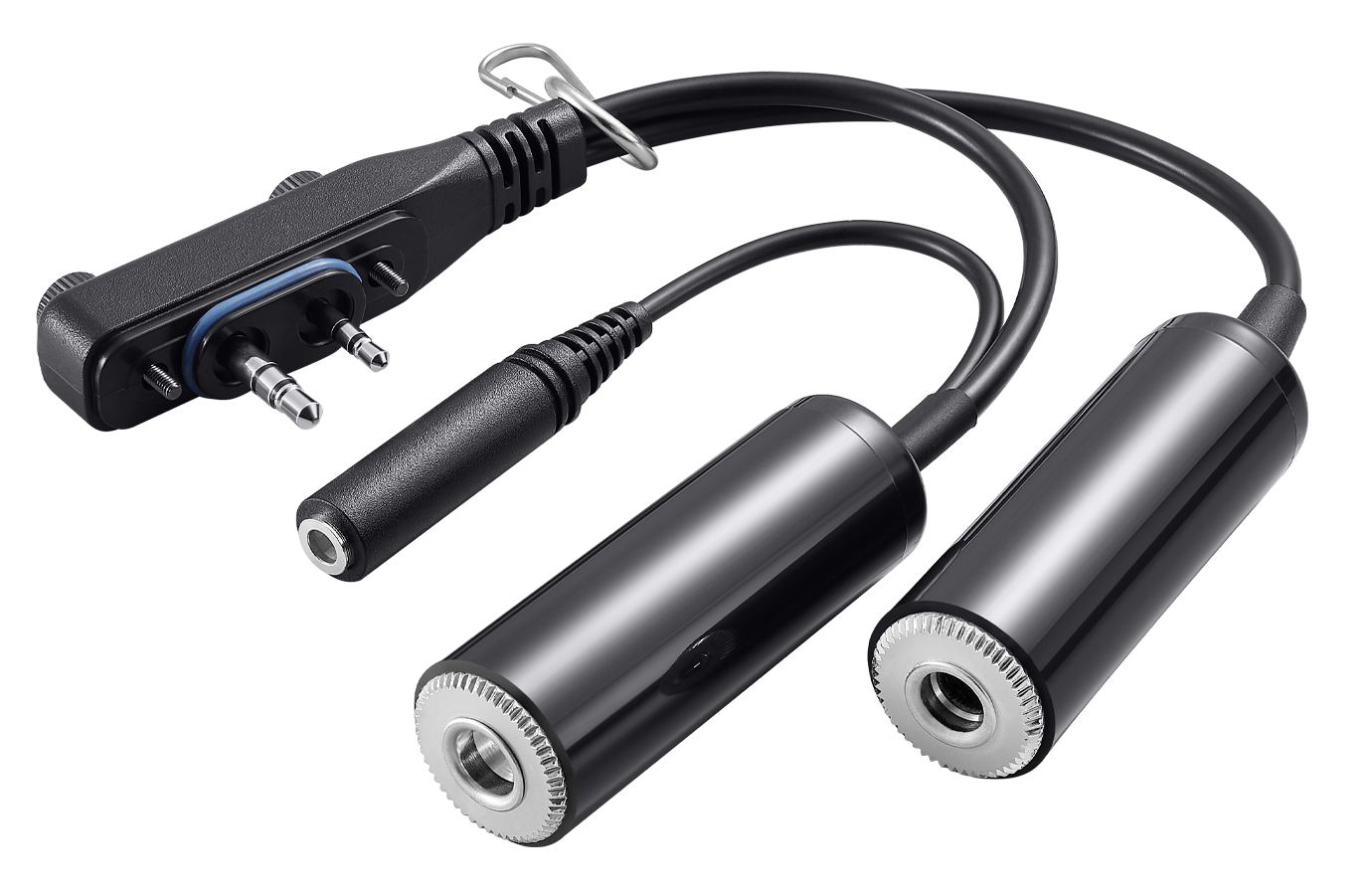

Built-in Bluetooth availability depends on the transceiver version. Third-party wired aviation headsets require the optional OPC-2401 headset adapter.
Compact, durable construction
IP67/IP54 protection, MIL-STD-810-G testing, and illuminated LCD and keys. The 200 memory channels accept names of up to eight characters.
Specifications
General
| Frequency range | TX/RX : 118.000–136.992 MHz | ||
|---|---|---|---|
| Number of memory channels | 200 channels | ||
| Channel spacing | 8.33 kHz*/25 kHz (* May differ depending on the country.) | ||
| Type of emission | 6K80A3E, 5K00A3E | ||
| Power supply requirement | 7.2 V DC | ||
| Current drain (approximate) | TX High | 1.8 A | |
| RX | Stand-by | 65 mA typical | |
| Max. audio | 650 mA | ||
| Antenna impedance | 50 Ω (BNC type antenna connector) | ||
| Operating temperature range | –20°C to +55°C | ||
| Dimensions (W×H×D) (Projections not included) |
52.2 × 111.8 × 34.1 mm (with BP-280) | ||
| Weight (approximate) | 257 g (with BP-280) | ||
Transmitter
| Output power (at 7.2 V DC) | 6.0 W (PEP), 1.8 W (carrier) | |
|---|---|---|
| Audio harmonic distortion | Less than 10% (at 85% + 3 dB modulation) | |
| Harmonics spurious emissions | Less than –36 dBm (Except for operating frequency ±1 MHz.) |
|
| Frequency stability | ±1 ppm | |
Receiver
| Intermediate frequencies |
46.35 MHz (1st), 450 kHz (2nd) |
|
|---|---|---|
| Sensitivity | Less than 0 dBμ (at 12 dB SINAD with CCITT) |
|
| Squelch sensitivity (Threshold) | Less than 0 dBμ | |
| Spurious response | More than 70 dB | |
| Hum and noise | More than 40 dB (at 90% modulation) | |
| Audio output power | INT SP | 1500 mW typical |
| EXT SP | More than 350 mW (AM 8 Ω 60% modulation at 10% distortion) |
|
| External speaker connector | 3 conductor 3.5 (d) mm | |
Measurements made in accordance with EN300 676-2.
Applicable U.S. Military Specifications
| Standard |
MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Dust and Water | IP67/IP54 |
Supplied Accessories
・ BP-280 battery pack
・ BC-213 rapid charger

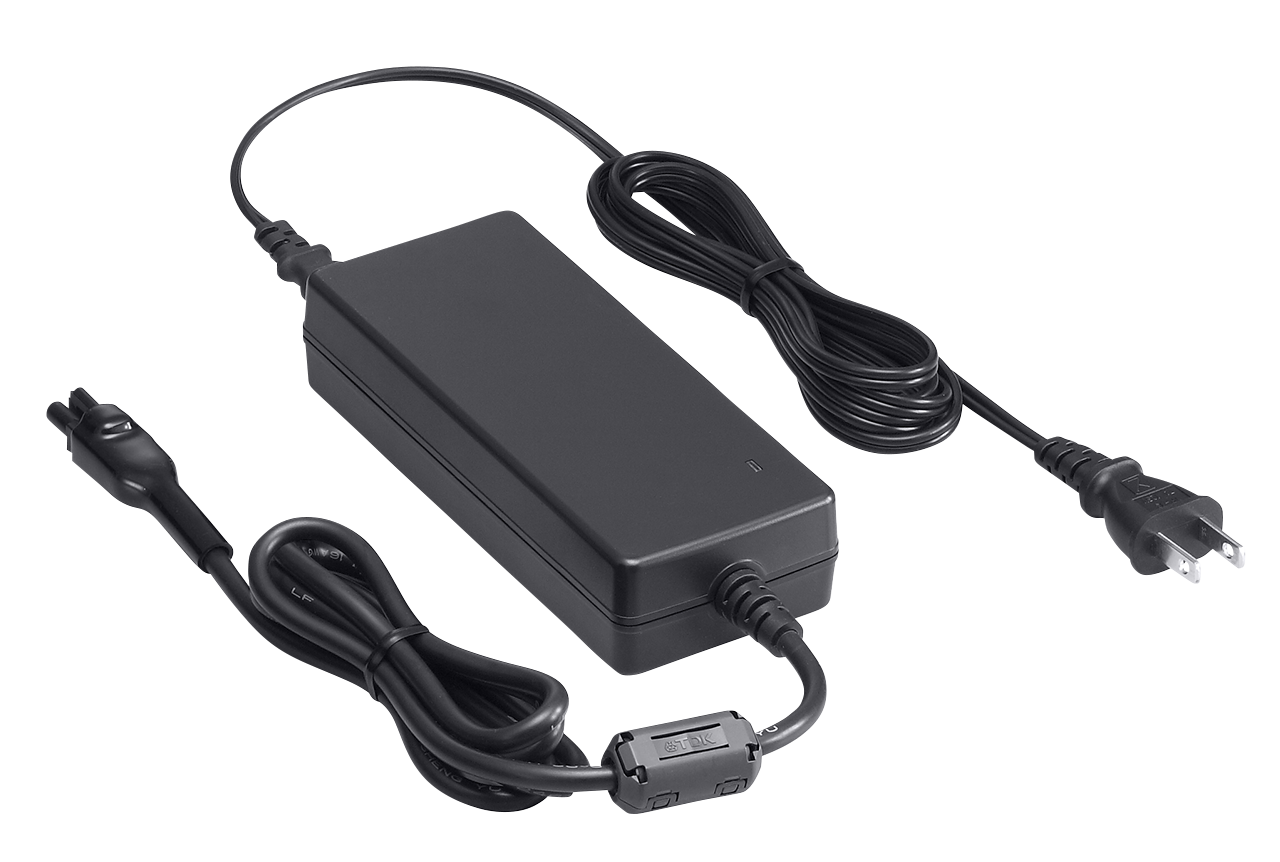

・ BC-242 AC adapter

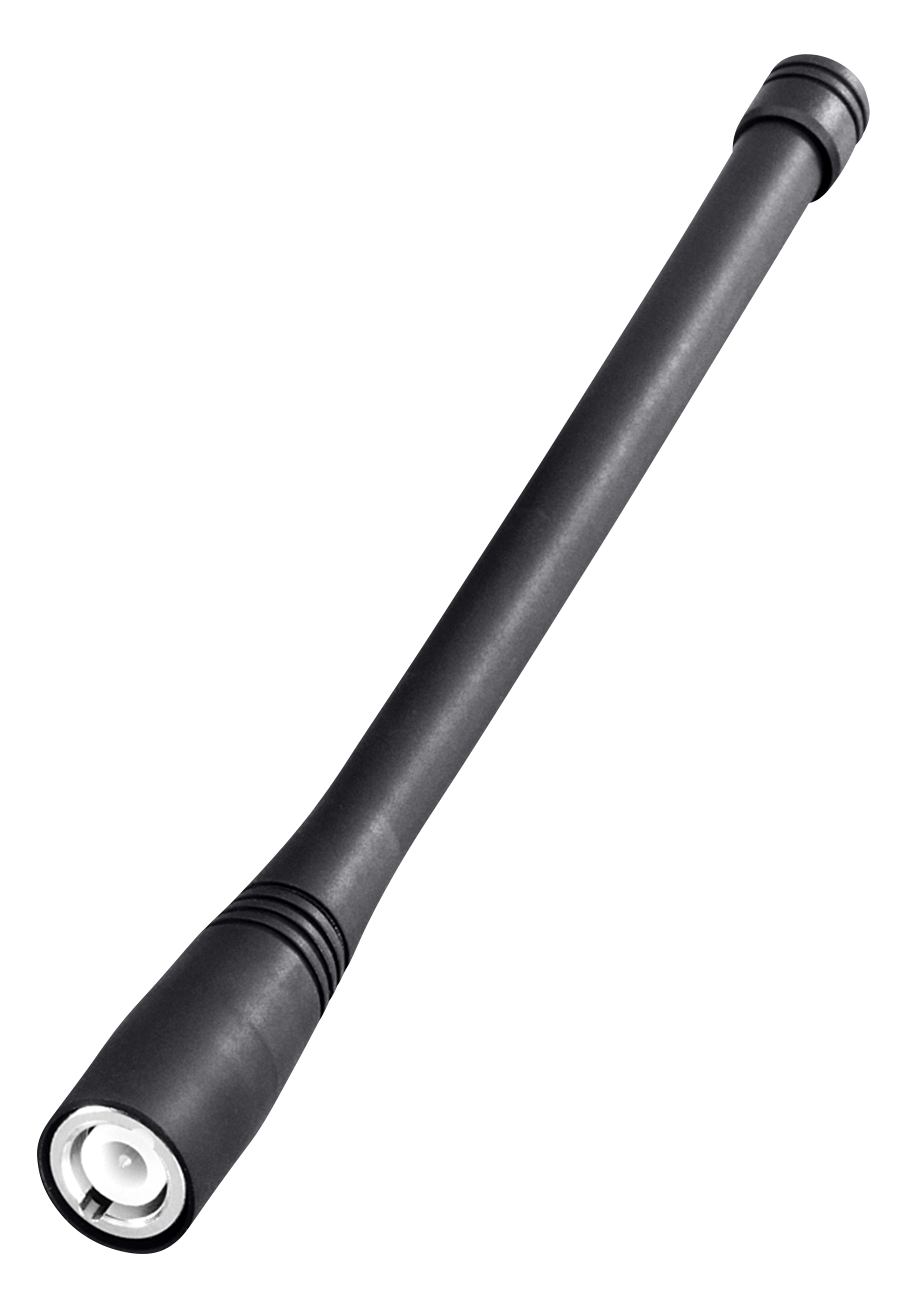

・ FA-B02AR antenna

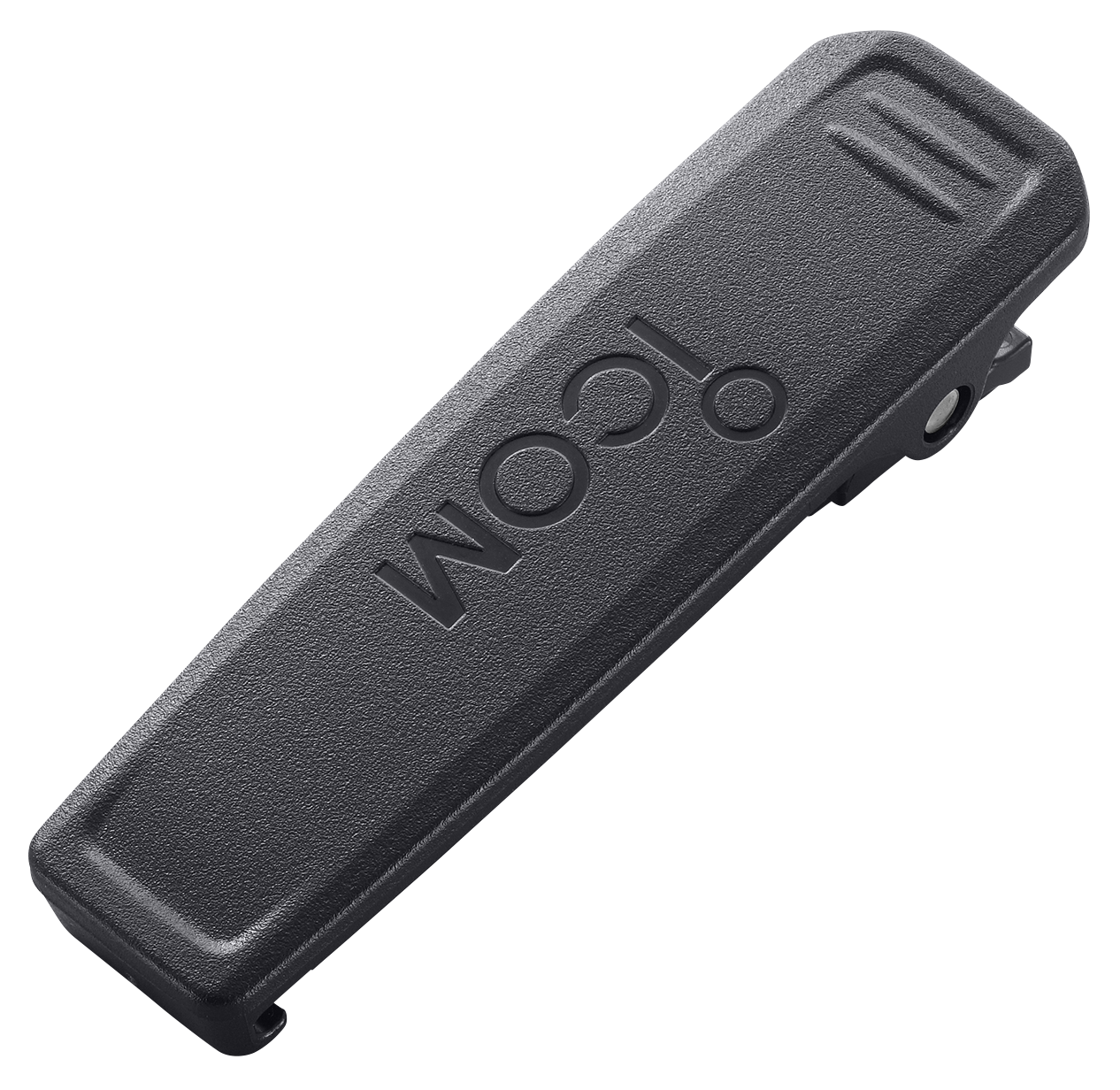

・ MB-133 belt clip
・ Hand strap
Optional Accessories
Archived accessories / European availability restrictions

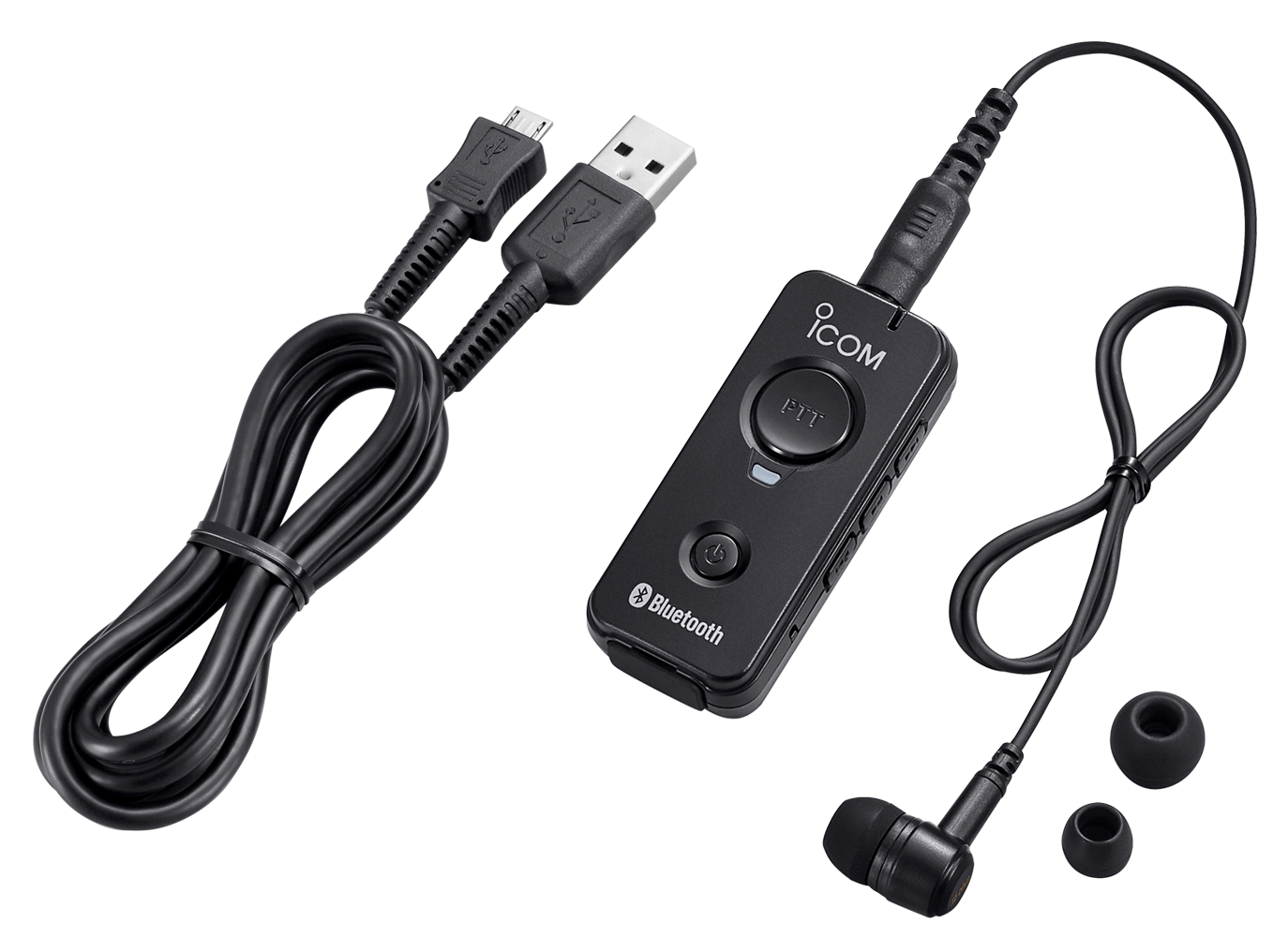

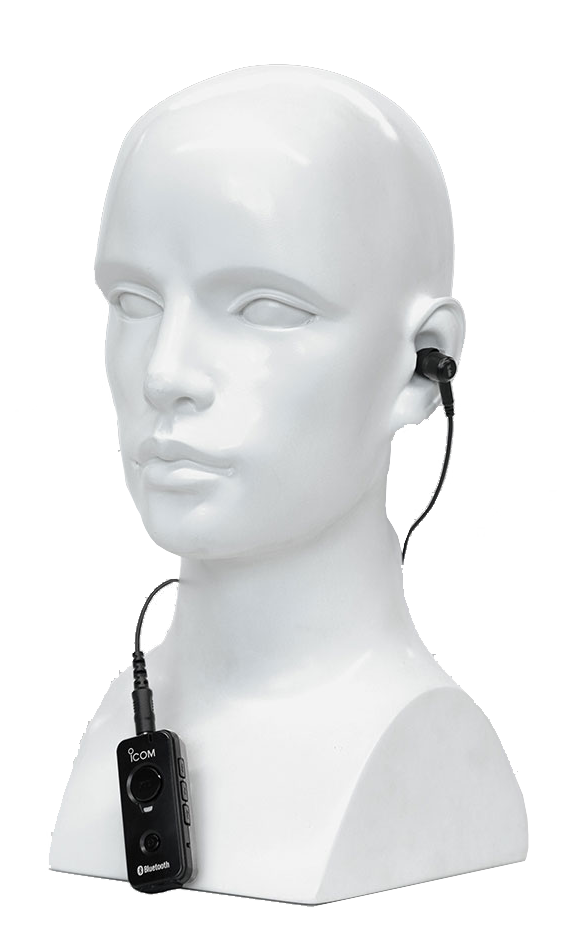

- VS-3 — Discontinued product · Not available for European market — Option for version with Bluetooth function / Not available for European Market (Not compliant with EN62368-1)

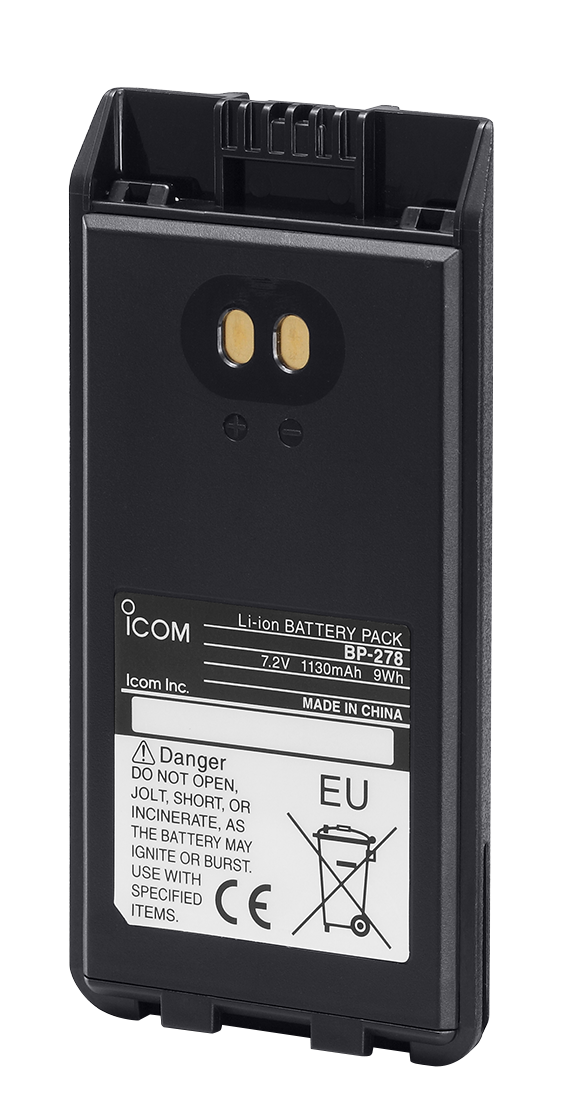

- BP-278 — Discontinued product

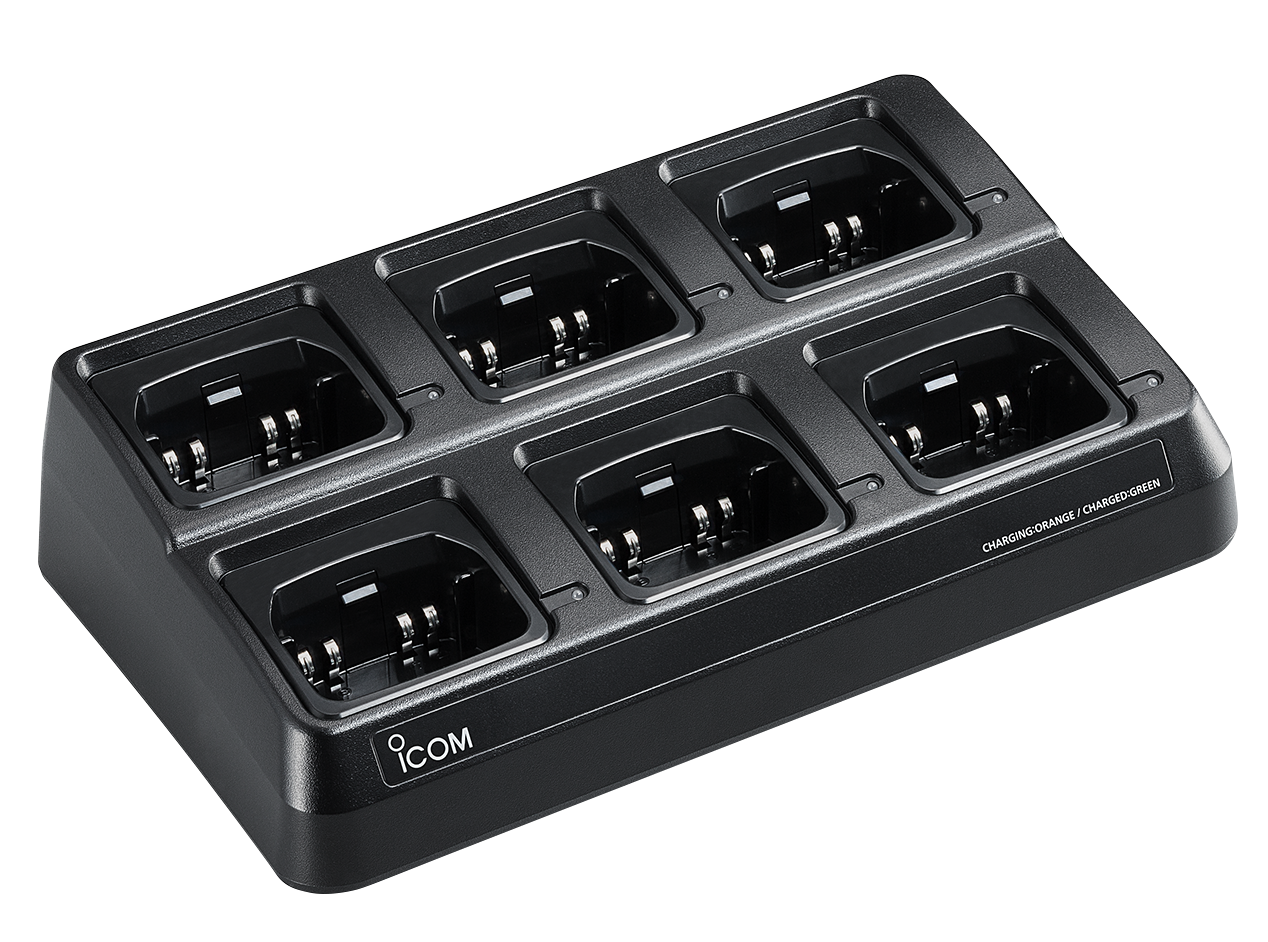

- BC-214 — Discontinued product — MULTI-CHARGER *For BP-278/BP-279/BP-280<br/> The AD-130 charger adapters are supplied. AC adapter supplied depending on versions.
- OPC-656 — Discontinued product
