IC-A120E

VHF AIR BAND TRANSCEIVER

IC-A120E

Mobile VHF airband radio with active noise cancelling

A European transceiver for ground aviation communications and airport vehicles, with 200 memories, 8.33/25 kHz spacing, IP54 protection and support for 12/24 V vehicle systems.

9 W carrier8.33 / 25 kHz200 memoriesIP54

Features

Active noise cancelling

Built-in ANC reduces background noise on transmitted and received audio. ANL suppresses impulse noise such as engine ignition; ANC and ANL cannot operate simultaneously.

Clear display and memories

The full dot-matrix LCD displays channel names of up to 12 characters. The 200 memories and settings can be programmed from the front panel, subject to configured restrictions.

Optional Bluetooth connectivity

Bluetooth requires the optional internal UT-133A unit. Compatible third-party wired headsets use the optional OPC-871A adapter, with side-tone monitoring.

Airport vehicle operation

IP54 protection supports use in open-air vehicles. Dualwatch, priority scan and ON-Hook scan are included; scanning can start when the microphone is placed on its hanger.

Specifications

General

Frequency range (TX/RX) 118.000–136.992 MHz (EUR)
118.000–136.975 MHz (AUS)
Channel spacing 25 kHz/8.33 kHz (EUR)
25 kHz (AUS)
Type of emission 6K80A3E, 5K00A3E (EUR)
6K80A3E (AUS)
Operating temperature range –20˚C to +55˚C
Antenna connector SO-239 (50 Ω)
Number of memory channels 200 channels
Power supply requirements 13.75 V/27.5 V DC
Current drain
(at 13.75 V)
TX 5.0 A (maximum)
RX Stand-by 0.5 A
Max. audio 4.0 A
Dimensions (W×H×D)
(Projections are not included)
161×45×175 (mm)
(approximately)
Weight (approximately) 1.5 kg (main unit)

Transmitter

>Output power (at 13.75 V)
(Carrier Power)
9.0 W+1.5 dB/–3 dB (–20°C to +55°C)
9.0 W±1.5 dB (+15°C to +35°C)
Frequency stability ±1 ppm (0˚C to +40˚C)
Spurious emissions* 9 kHz to 30 MHz Less than –46 dBm
30 MHz to 1 GHz Less than –36 dBm (For Harmonics)
Less than –46 dBm (For Non-Harmonics)
1 GHz to 4 GHz Less than –30 dBm (For Harmonics)
Less than –40 dBm (For Non-Harmonics)
Modulation Linear 85%
Max. 95%
Microphone impedance 600Ω

* Except for operating frequency ±1 MHz.

Receiver

Intermediate frequencies 38.85 MHz/450 kHz (1st/2nd)
Sensitivity (at 12dB SINAD) 1.8 μV (with CCITT filter)
Selectivity 8.33 kHz 2.778/7.37 kHz (6 dB/60 dB)
25 kHz 8/25 kHz (6 dB/60 dB)
Spurious response rejection More than 70 dB
Audio output power
(at 10% distortion,
60% modulation)
Internal SP
(8 Ω load)
1.5 W typical
External SP
(8 Ω load)
More than 10 W
Headphone
(500 Ω load)
More than 100 mW

Measurements made in accordance with EN 300 676-1. All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 G
Method Procedure
Low Pressure 500.5 I, II
High Temperature 501.5 I, II
Low Temperature 502.5 I, II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Humidity 507.5 II
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810-C, -D -E and -F.

Applicable IP Rating

Ingress Protection Standard
Dust & Water IP54 (Dust-protection and water resistance)

All stated specifications are subject to change without notice or obligation.

Supplied Accessories

  • Hand microphone, HM-216
  • DC power cable
  • Mounting bracket kit
  • Microphone hanger kit
  • Fuses

Optional Accessories

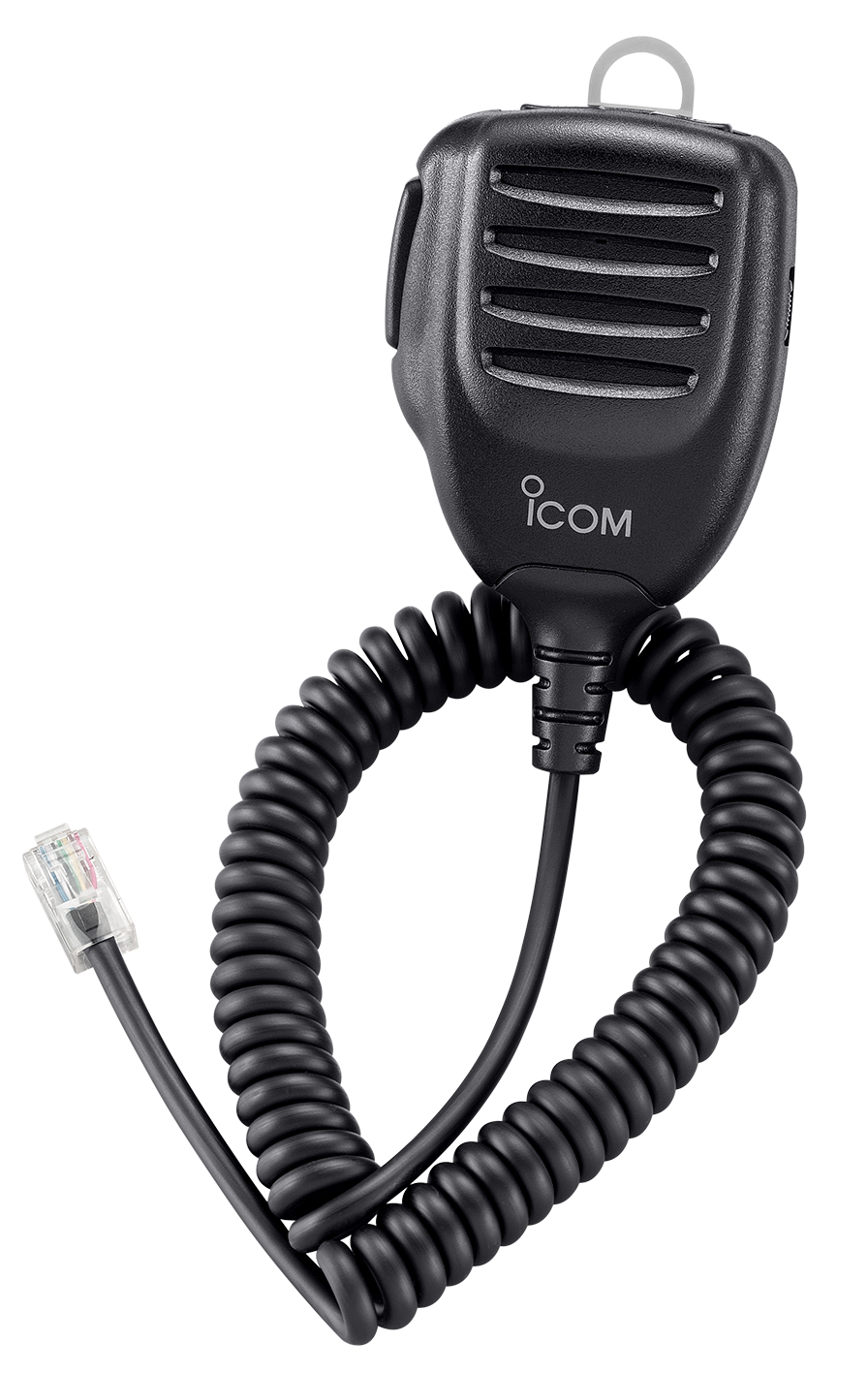

HM-216

HM-216

HAND MICROPHONE

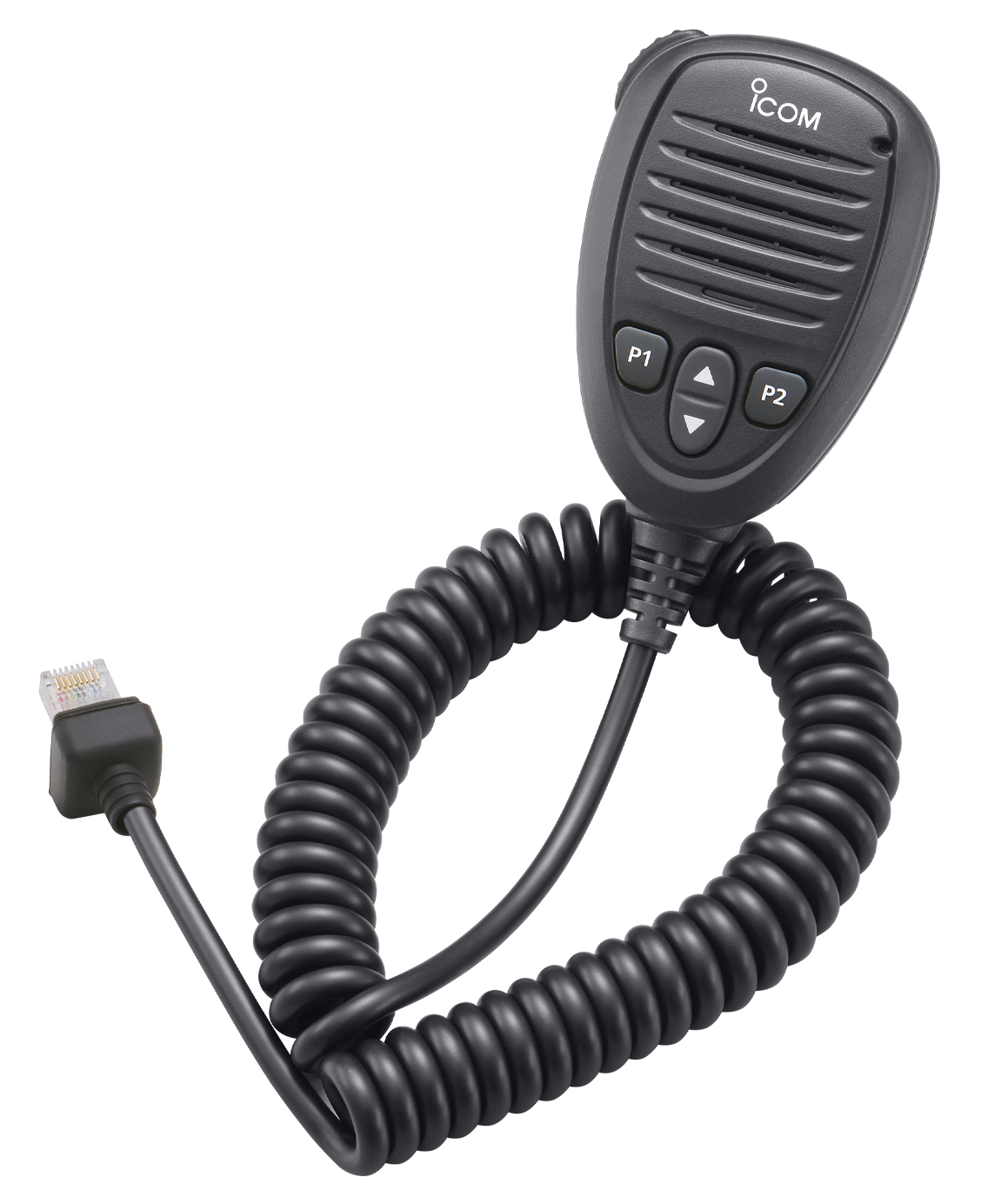

HM-217

HM-217

SPEAKER MICROPHONE

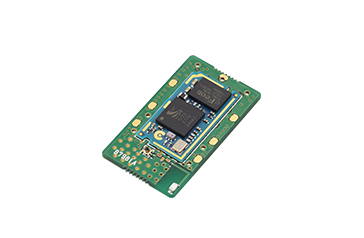

UT-133A

UT-133A

BLUETOOTH UNIT

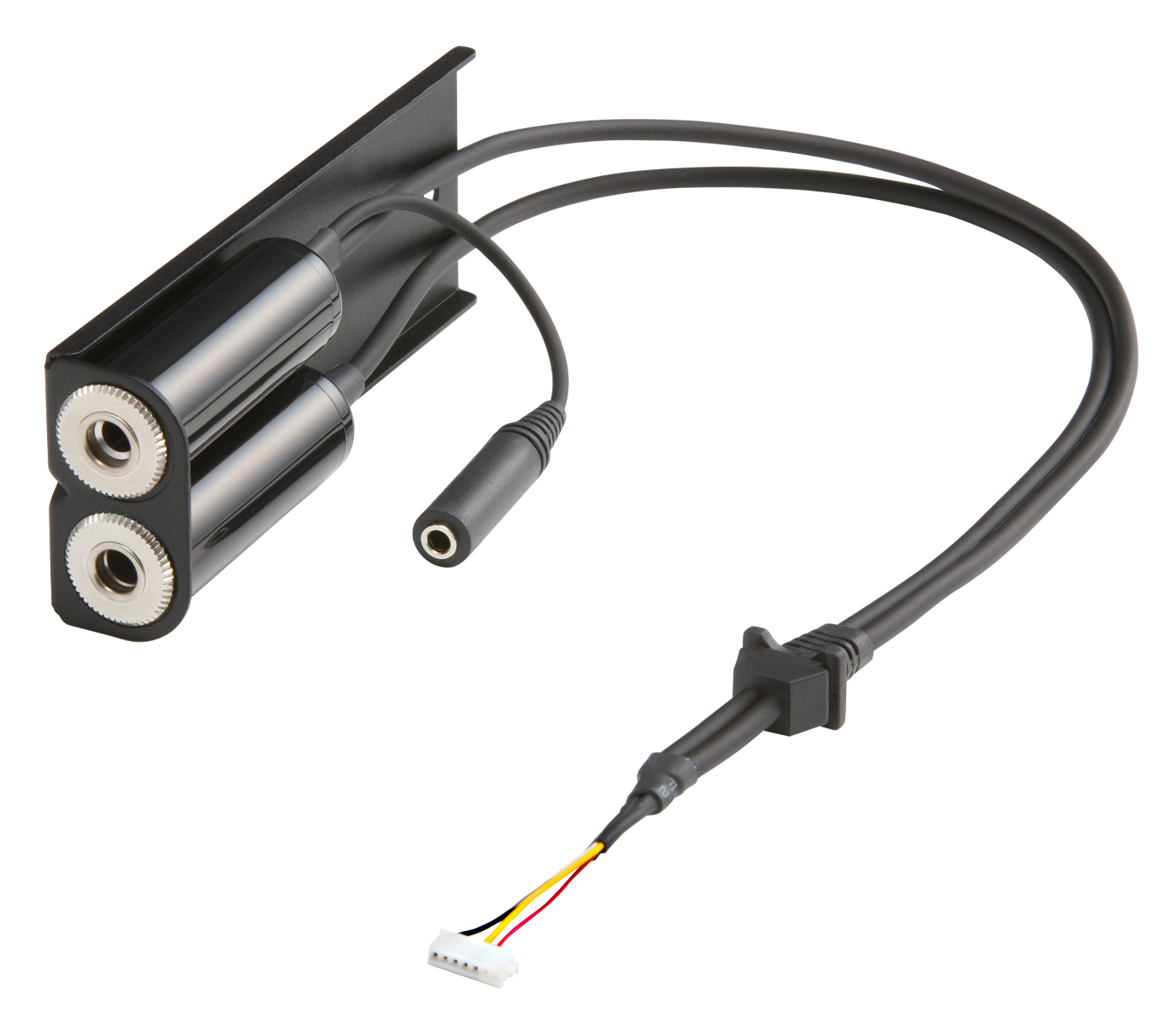

OPC-871A

OPC-871A

HEADSET ADAPTER CABLE

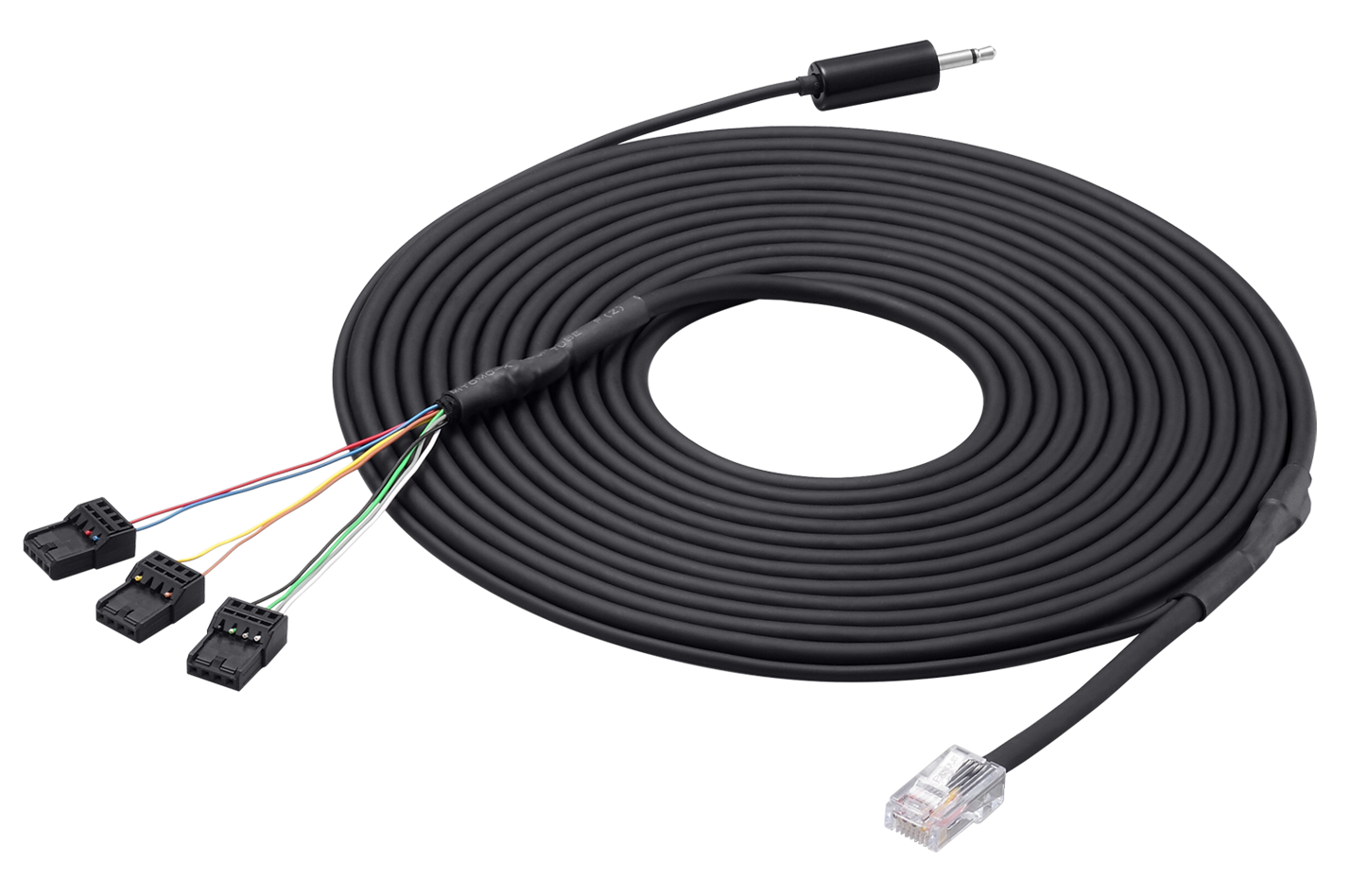

OPC-2275

OPC-2275

CONNECTION CABLE

Archived accessories / European availability restrictions

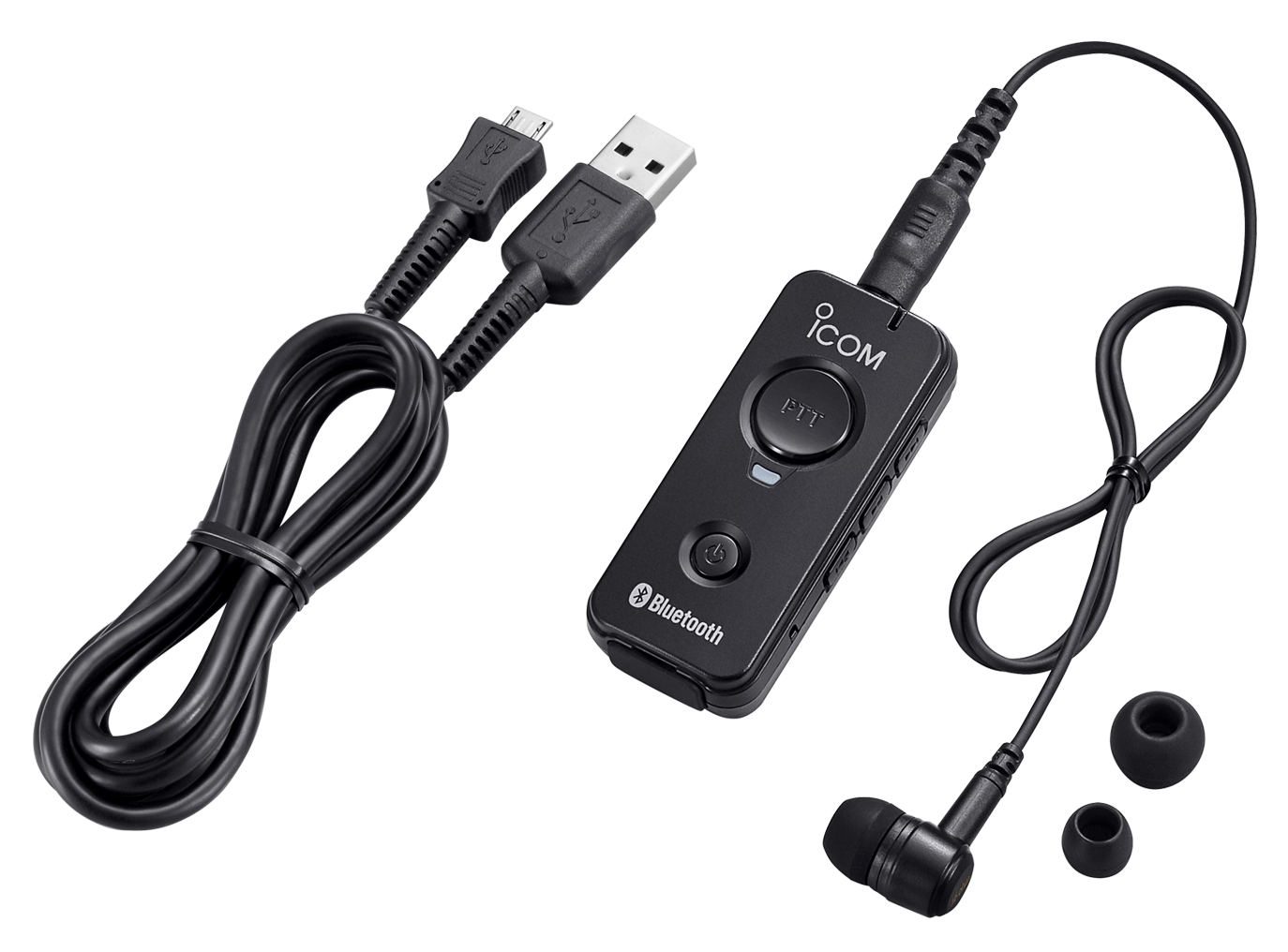

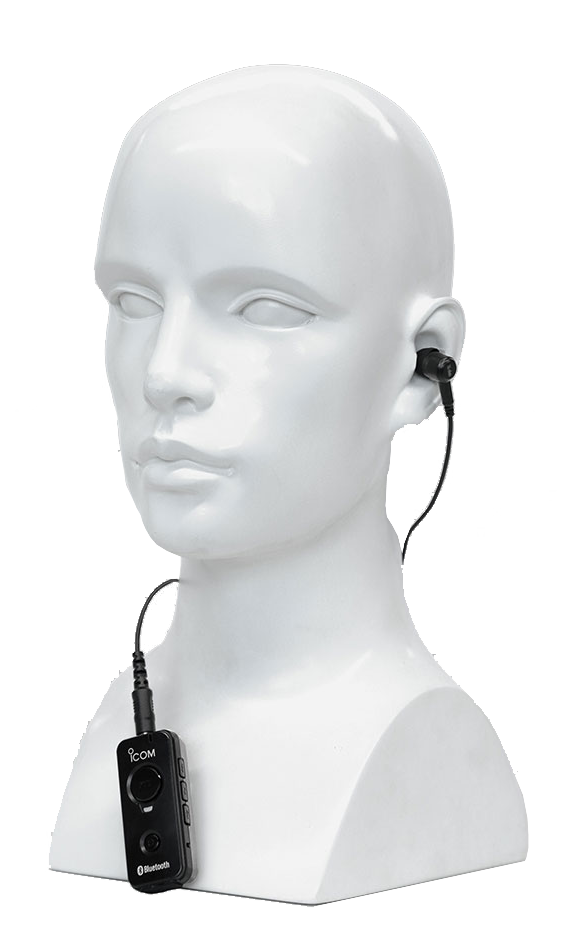

  • VS-3 — Discontinued product · Not available for European market — Not available for European Market (Not compliant with EN62368-1)
