IC-F5062D/F6062D
Built-in Versatile Tone Signaling
Dot-Matrix, Multi-Function LCD
IDAS Digital Mode Ready
Optional Active Noise Canceling Microphone
Built-in Versatile Tone Signaling
Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or BIIS 1200 capability to set up your own talk groups, and have your radio standby quietly when other groups are talking.
Up to 10 2-Tone, 8 5-Tone codes can be decoded on a single memory channel.
Dot-Matrix, Multi-Function LCD
The IC-F5062D series has a large dot-matrix display to show information with high visibility characters.
4 watts (typ.) front mounted speaker delivers clear and loud audio.
IP54 Dust-Protection and Splash Resistance (Controller only)
When used with the optional separation kit, RMK-3, and separation cable, the front panel of the IC-F5062D series can be detached from the main unit.
The control head has dust-protection and splash resistance construction equivalent to IP54.
IDAS Digital Mode Ready
IDAS (Icom Digital Advanced System) is Icom’s digital land mobile system using the 6.25kHz narrowband FDMA technology.
IDAS has choice of an NXDN™ protocol or an ETSI dPMR™ protocol.
Mode Dependent Scan
In the normal mode scan, you can select a scanning list independent to the channel setting.
In the mode dependent setting, the scanning list is automatically selected according to the operating channel.
It is convenient when you change operating channels or move to a different operating area, you don’t need to change the scanning setting.
Optional Active Noise Canceling Microphone
The optional active noise canceling microphone HM-211 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio.
Other Features
- Nuisance delete
- Built-in inversion-type voice scrambler and optional UT-109R/UT-110R available
- Built-in basic LTR™ trunking and MDC 1200 capability* (* Depending on version)
- 8 DTMF autodialing memories and ANI function
- D-Sub accessory connector, ignition sensing line
and more…
Made in Japan Quality and reliability
All Icom products are checked to pass rigorous internal testing as well as environmental testing at the Wakayama Icom factory before shipment. Our world leading products and quality is a tradition.
- Microphone, HM-152
- Microphone hanger and its cable
- Mounting bracket kit
- DC power cable
- Function name sticker

IC-F5062D/IC-F6062D
VHF AND UHF DIGITAL TRANSCEIVERS
Multi-featured professional IDAS mobile transceiver
IC-F5062D/IC-F6062D: NXDN or dPMR support according to version and system.
Supplied accessories may differ or may not be supplied, depending on version.
Features
IDAS digital operation
NXDN or dPMR support according to version and system.
Multi-function display
A large dot-matrix display and typical 4 W front-facing speaker.
Detached controller
The controller detaches with the optional RMK-3 and cable; the controller has IP54 protection.
Optional noise reduction
The optional HM-211 microphone actively reduces noise during transmission.
Specifications
| Frequency coverage | VHF: 136–174 MHz · UHF: 400–470 MHz |
|---|---|
| RF output power | 25 W |
| Channels / zones | 512 / 128 |
| Operating modes | NXDN or dPMR / analogue FM, by version |
| Dimensions | 160×45×150 mm |
| Weight, approximate | 1.3kg |
Specifications refer to the version identified above and are subject to change by ICOM.
Supplied Accessories
Microphone, HM-152 · Microphone hanger and its cable · Mounting bracket kit · DC power cable · Function name sticker
Optional Accessories

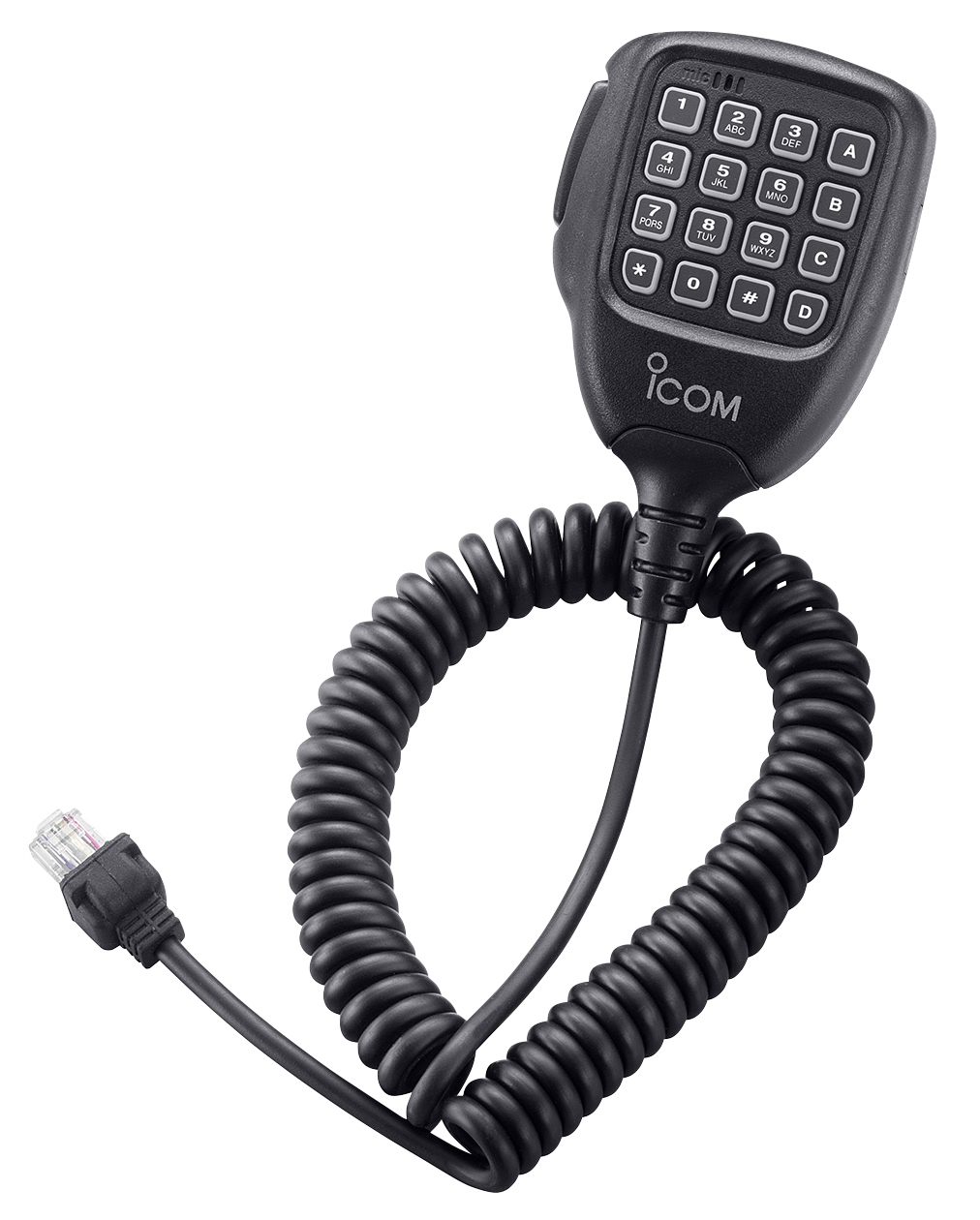

HM-148G
HAND MICROPHONE

HM-148T
HAND MICROPHONE

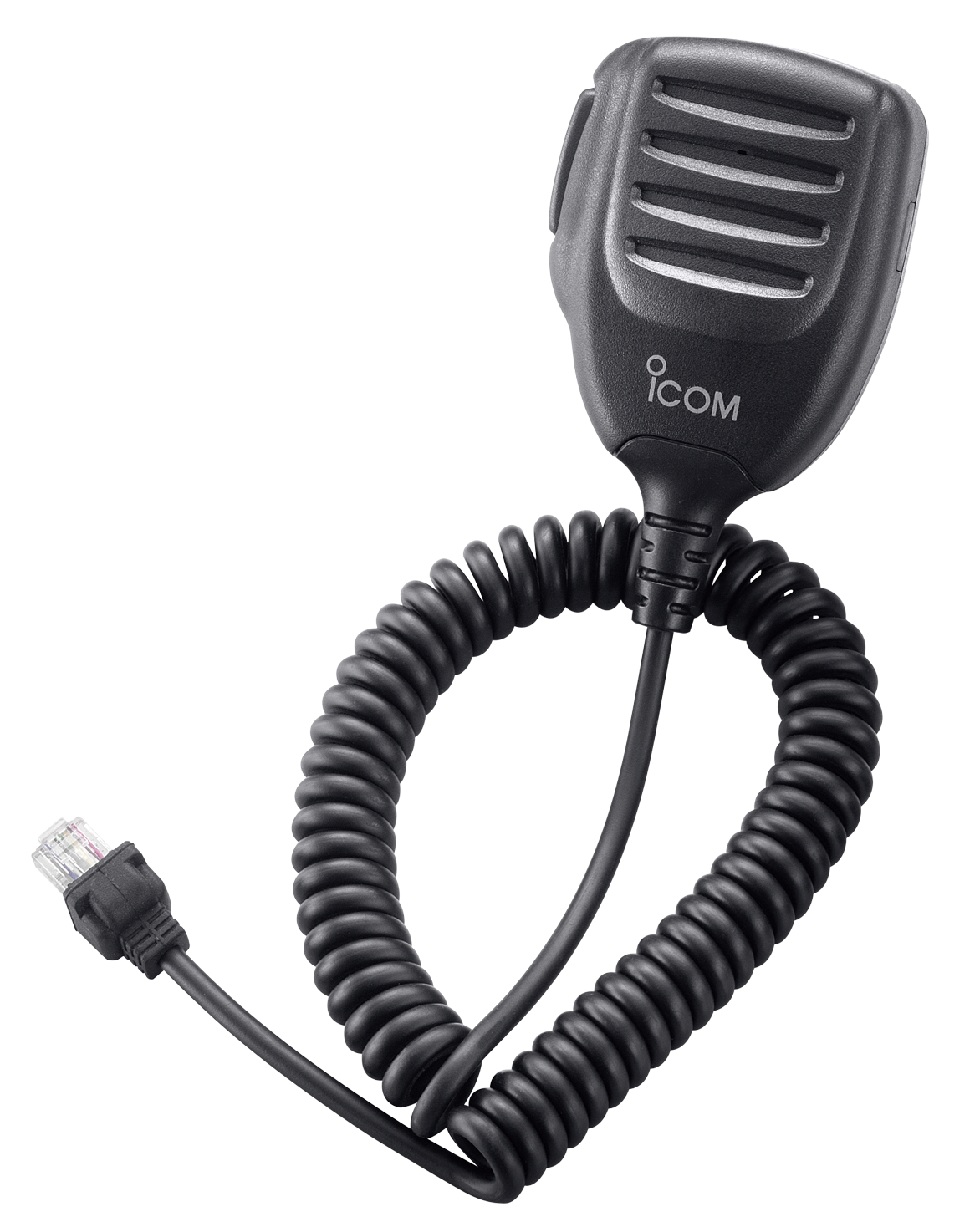

HM-152
HAND MICROPHONE

HM-152T
HAND MICROPHONE

HM-211
ACTIVE NOISE CANCELING MICROPHONE

HM-249
HANDS FREE MICROPHONES

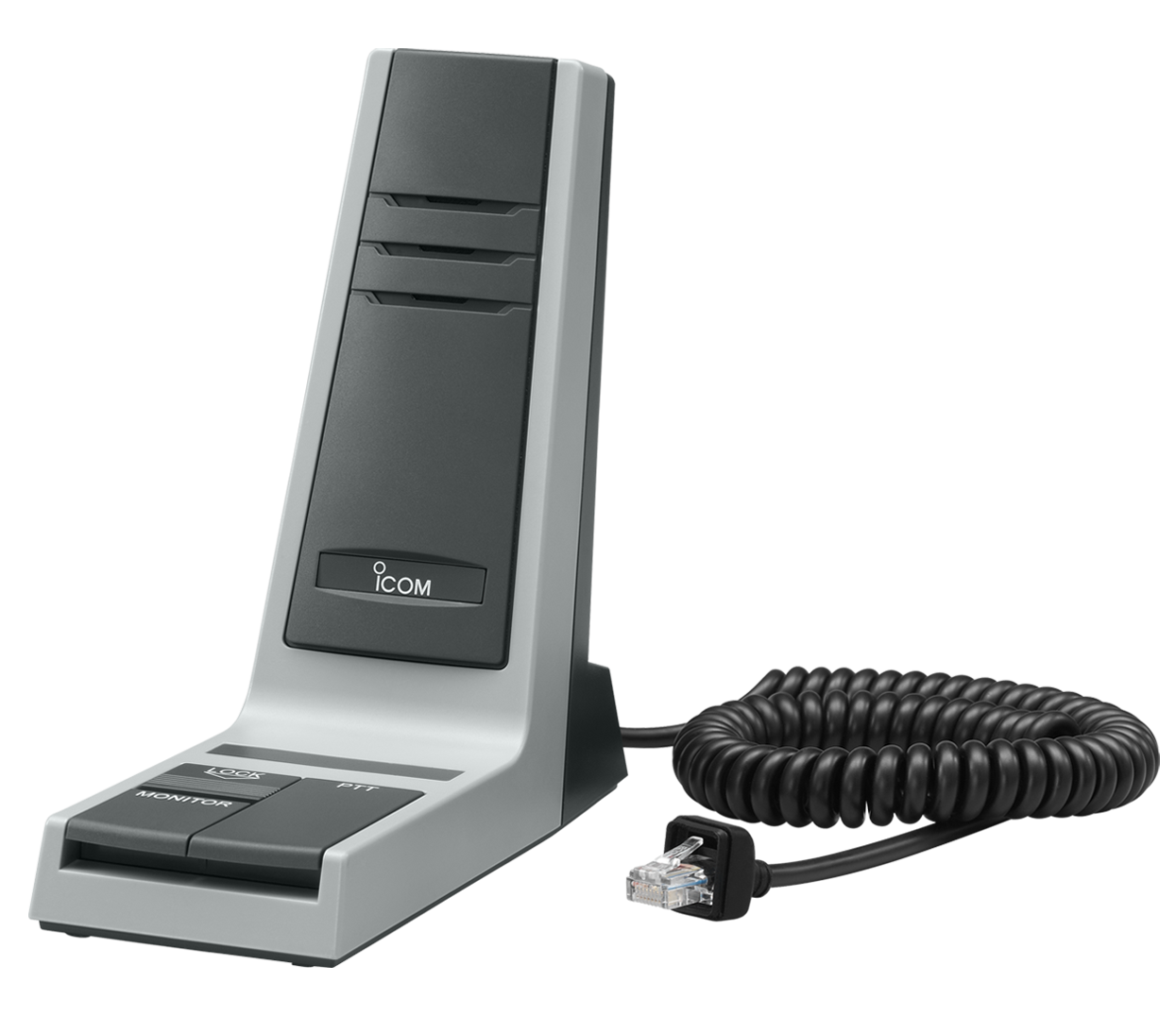

SM-26
DESKTOP MICROPHONE

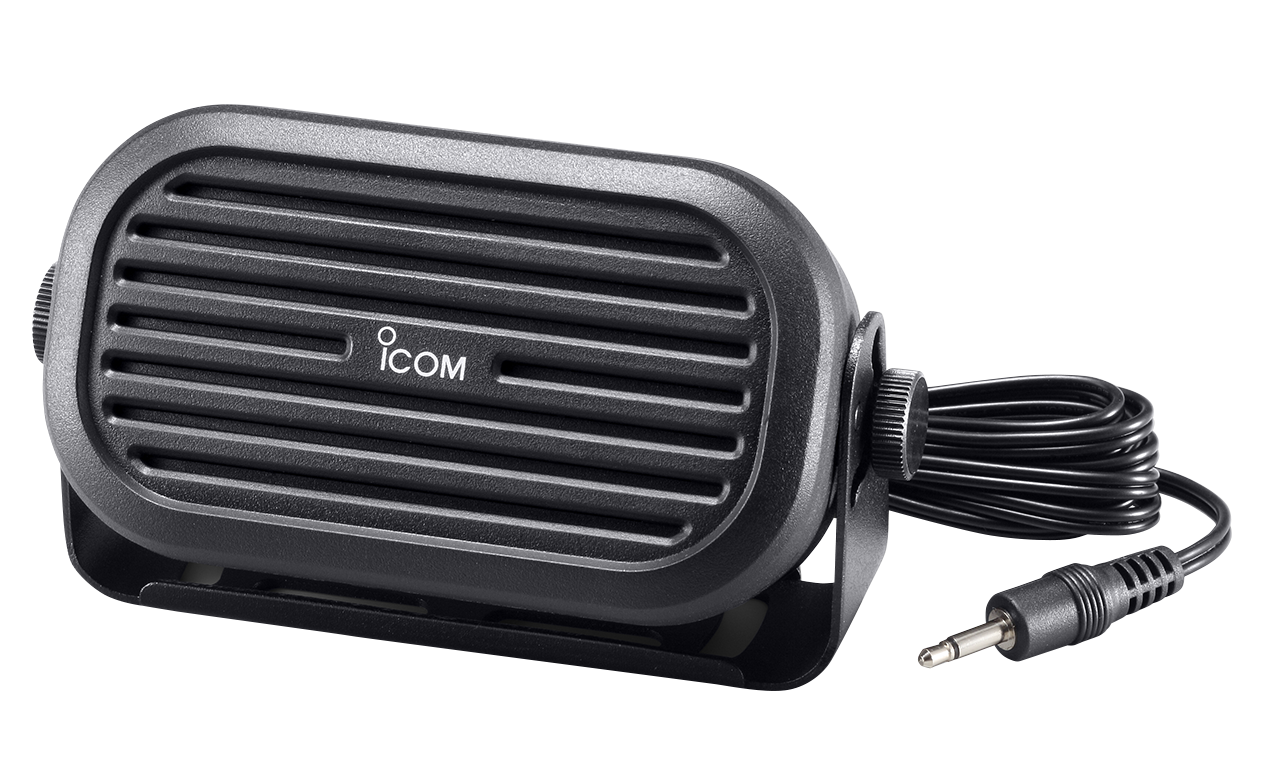

SP-30
External Speaker

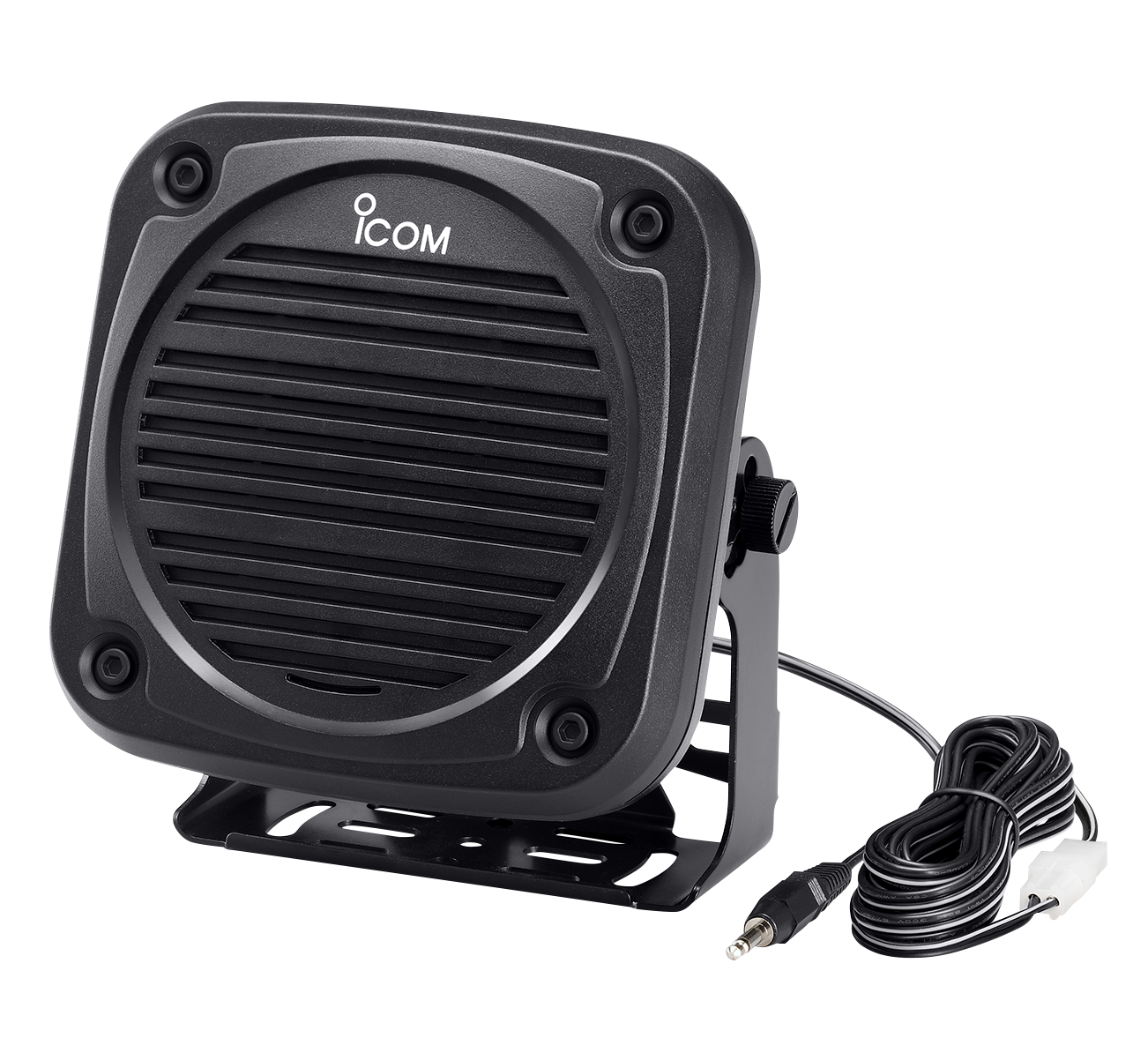

SP-35
External Speaker

SP-35L
External Speaker

OPC-1132
DC POWER CABLE

OPC-347
DC POWER CABLE

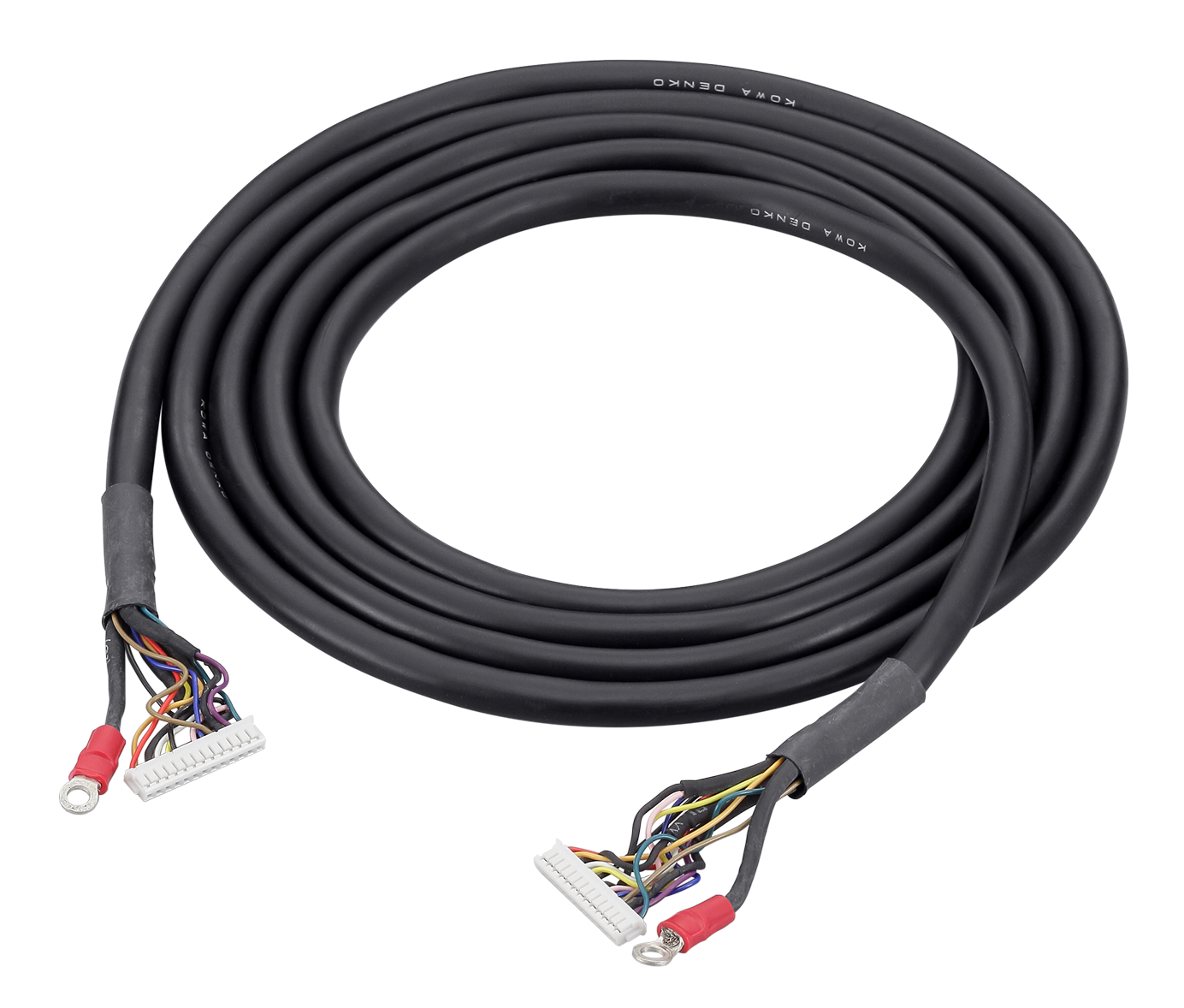

OPC-609
SEPARATION CABLE (1.9 m)

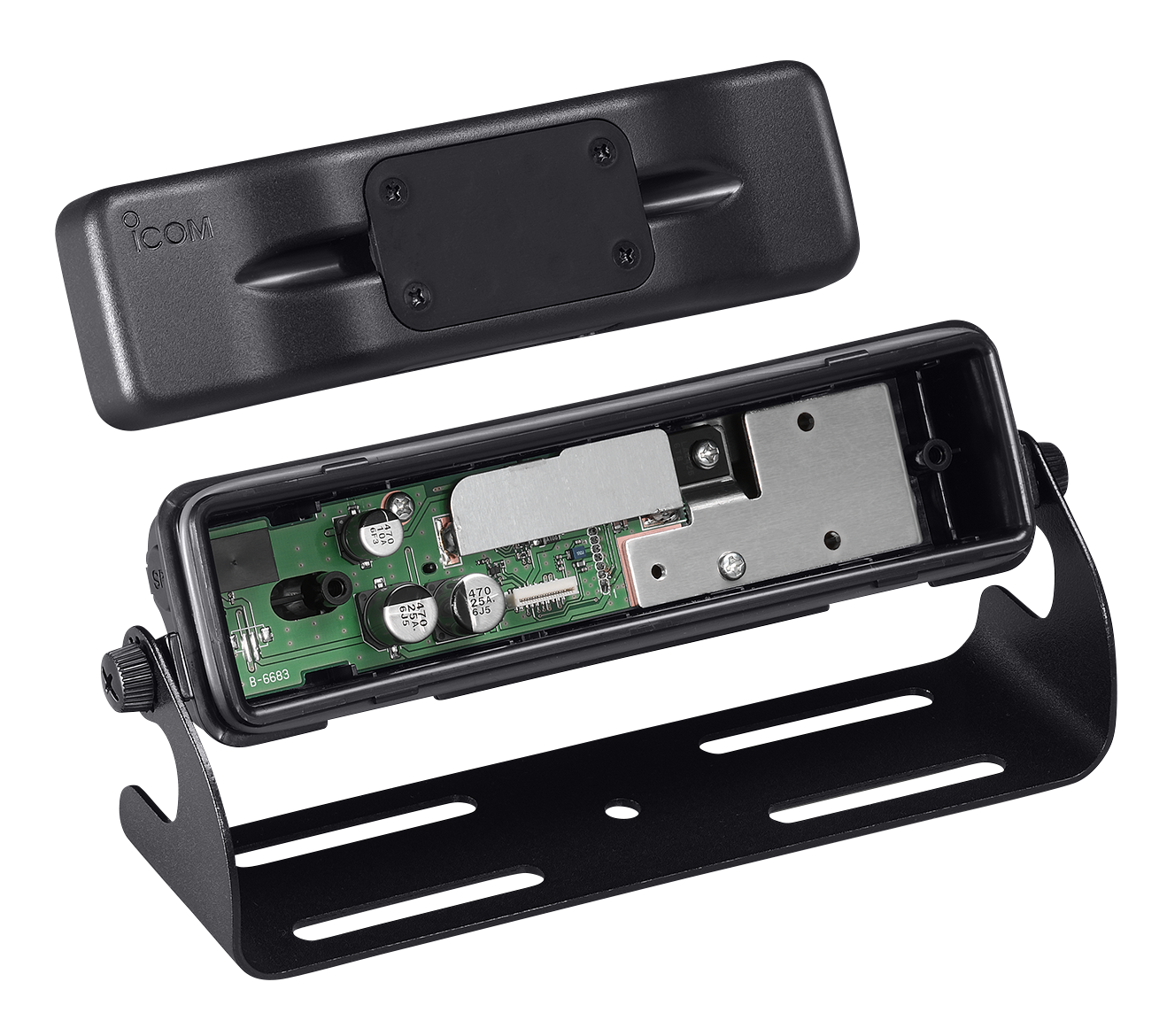

RMK-3
FRONT PANEL SEPARATION KIT

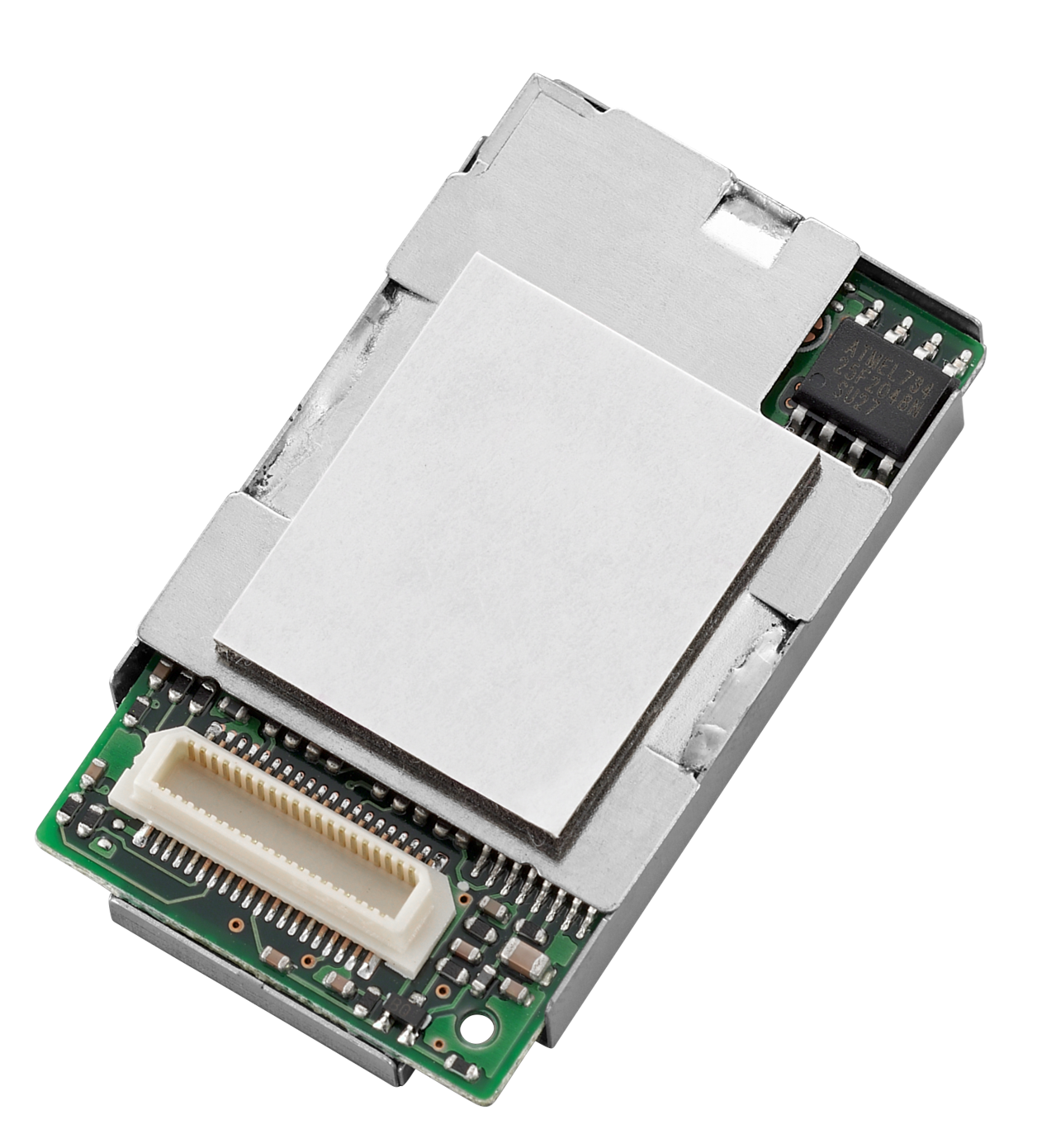

UT-126H
IDAS digital unit

UT-126HL
IDAS digital unit

OPC-2500
EXTENSION CABLE
Select optional accessories for the transceiver version and follow ICOM connection instructions.
