IC-F29SDR
Licence-Free Digital Radio
Class Leading 1500 mW Powerful Audio Output
Information at a Glance with LCD Display
IP67 Waterproof and Dust-Tight Protections
Licence-Free Digital Radio
The IC-F29SDR’s digital channels offer stable communication that is the most suitable for professional use. There is no need to apply for a licence so you can immediately use it as required. The radio contains both 32 digital channels and 16 analogue channels, making it compatible with existing PMR446 radios.
Class Leading 1500 mW Powerful Audio Output
The newly designed internal speaker provides louder and clearer audio, allowing you to get your message across even in noisy environments.
Information at a Glance with LCD Display
The IC-F29SDR has an LCD display that makes easy and quick setting changes such as Common ID or Key Beep. Additionally, in a situation where you cannot talk, you can send a PC configurable status message* to initiate a quick response.
IP67 Waterproof and Dust-Tight Protections
The IC-F29SDR can withstand submersion in 1 m depth of water for 30 minutes. This rugged construction provides dust-tight protection, making it suitable for outdoor use.
Other Features
- 32 Digital dPMR 446 channels and 16 Analogue PMR 446 channels
- Up to 16 assignable favourite channels
- 254 Common IDs for Group Communications*1
- All scan or selected zone scan
- CTCSS/DTCS compatible*2
- AQUAQUAKE™ expels water from the speaker grill
- Call-Ring sends ringer sounds
- Answers back with Smart-Ring*2
- Voice Announcement function
- Break-in request call*1
- VOX for hands-free operation*3
- Optional programming software for radio parameter setting*4
*1 For only the Digital mode
*2 For only the Analogue mode
*3 Optional headset required
*4 Optional programming cable required
Made in Japan Quality and reliability
All Icom products are checked to pass rigorous internal testing as well as environmental testing at the Wakayama Icom factory before shipment. Our world leading products and quality is a tradition.
- Battery pack, BP-280
- Belt clip, MB-133
- Rapid charger, BC-213
- AC adapter, BC-242

IC-F29SDR
dPMR 446/PMR446 TRANSCEIVER
Digital and analogue 446 communication with an LCD
IC-F29SDR: 32 digital dPMR446 channels and 16 analogue PMR446 channels.
Supplied accessories may differ or may not be supplied, depending on version.
Features
Digital and analogue 446
32 digital dPMR446 channels and 16 analogue PMR446 channels.
1500 mW audio
Powerful internal-speaker audio with typical 1500 mW output.
LCD information display
An LCD provides operating information for easy communication monitoring.
IP67 protection
Dust-tight and waterproof construction, with Alert-Ring and Lone Worker.
Specifications
| Frequency coverage | PMR446 / dPMR446 |
|---|---|
| RF output power | 500 mW ERP |
| Channels / zones | 32 digital / 16 analogue |
| Operating modes | dPMR446 / analogue PMR446 |
| Dimensions | 52.2 (W) × 111.8 (H) × 29.4 (D) mm (with BP-280) |
| Weight, approximate | 270 g (with MB-133, BP-280) |
| Operating temperature | –25˚C to +55˚C |
| Protection | IP67 / IP55 / IP54 |
Specifications refer to the version identified above and are subject to change by ICOM.
Supplied Accessories
Battery pack, BP-280 · Belt clip, MB-133 · Rapid charger, BC-213 · AC adapter, BC-242
Optional Accessories

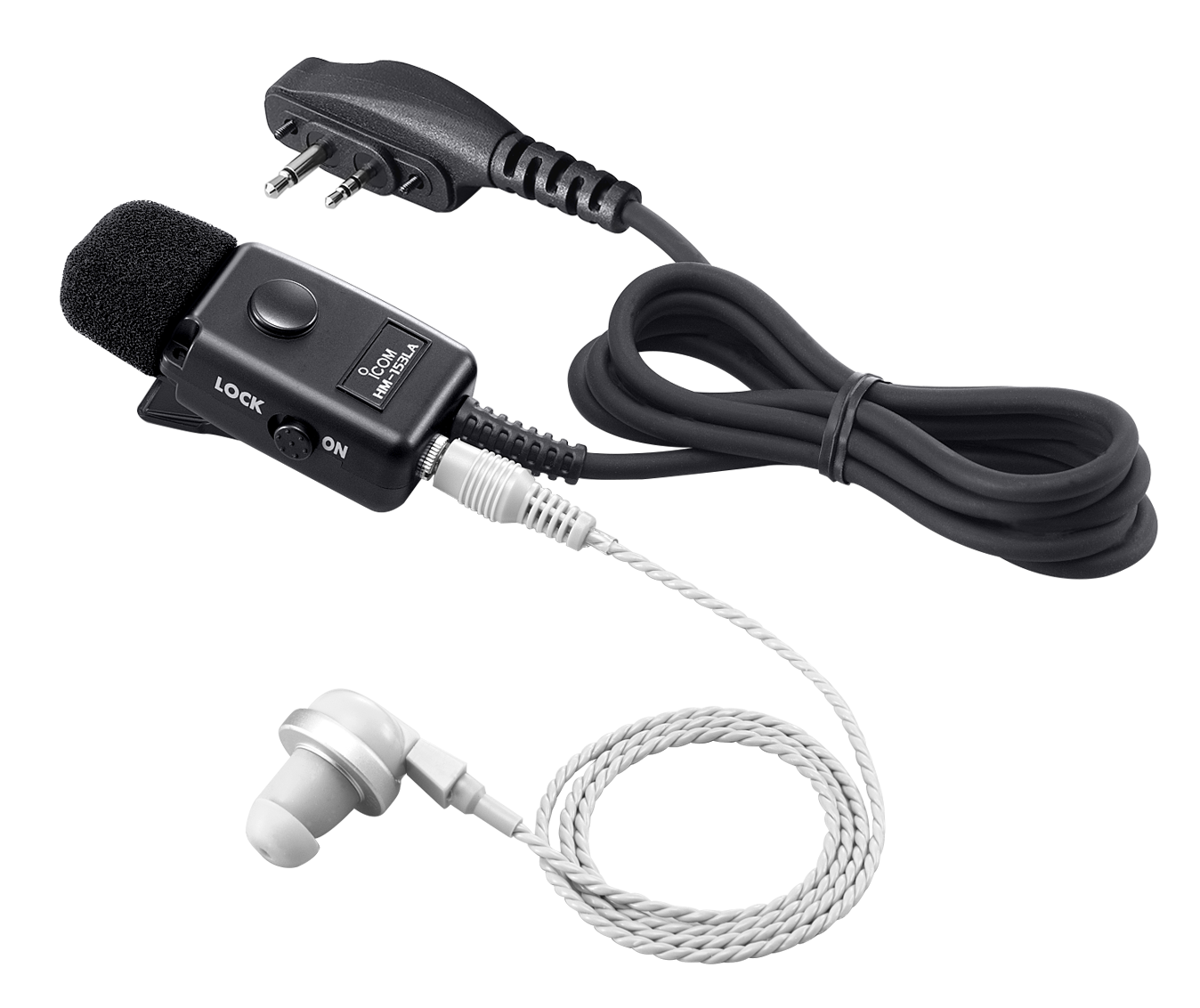

HM-153LA
EARPHONE MICROPHONE

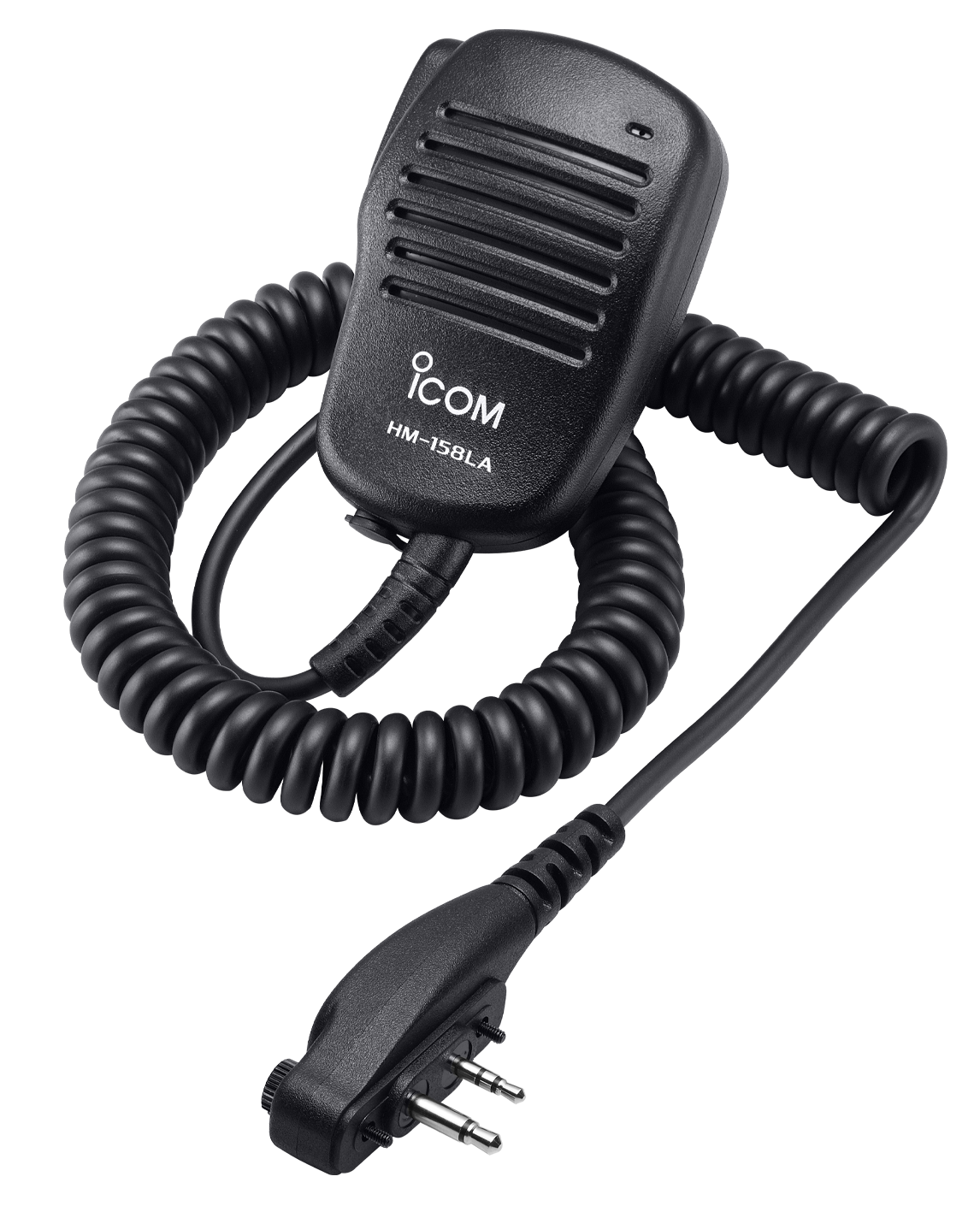

HM-158LA
SPEAKER MICROPHONE Compact speaker microphone with 3.5 mm earphone jack

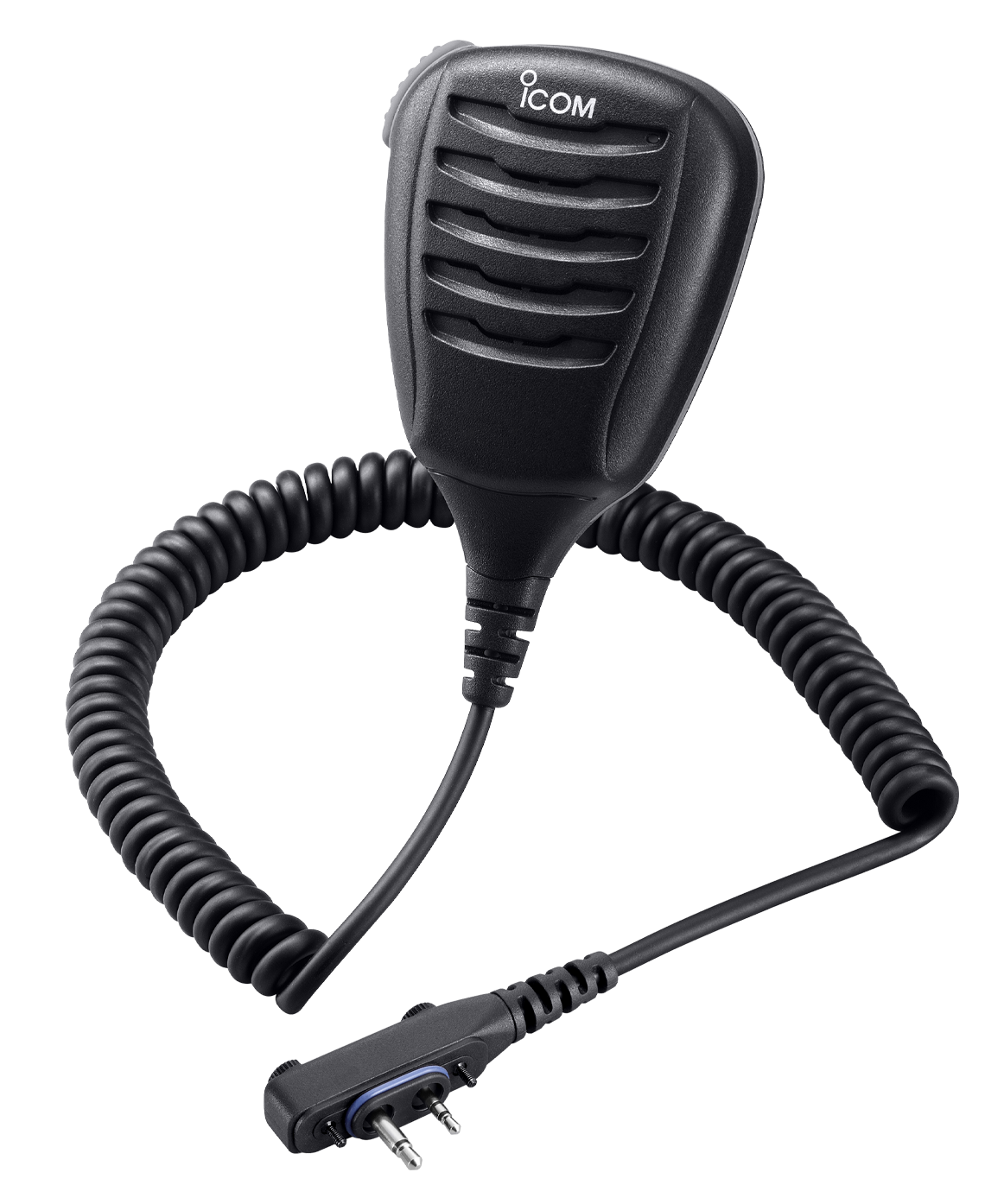

HM-159LA
SPEAKER MICROPHONE Loud and clear audio speaker microphone

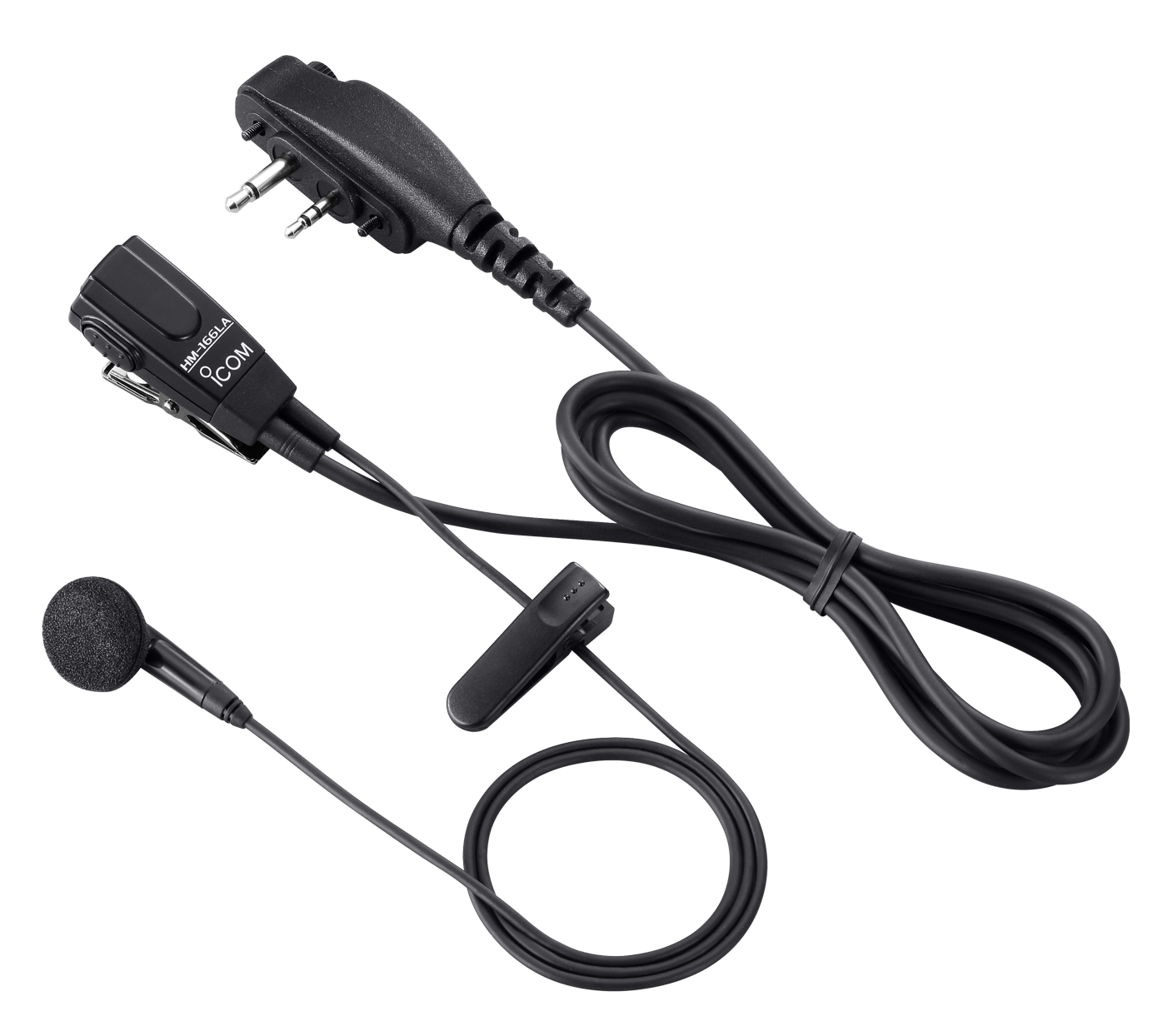

HM-166LA
EARPHONE MICROPHONE

HM-168LWP
Speaker Microphone

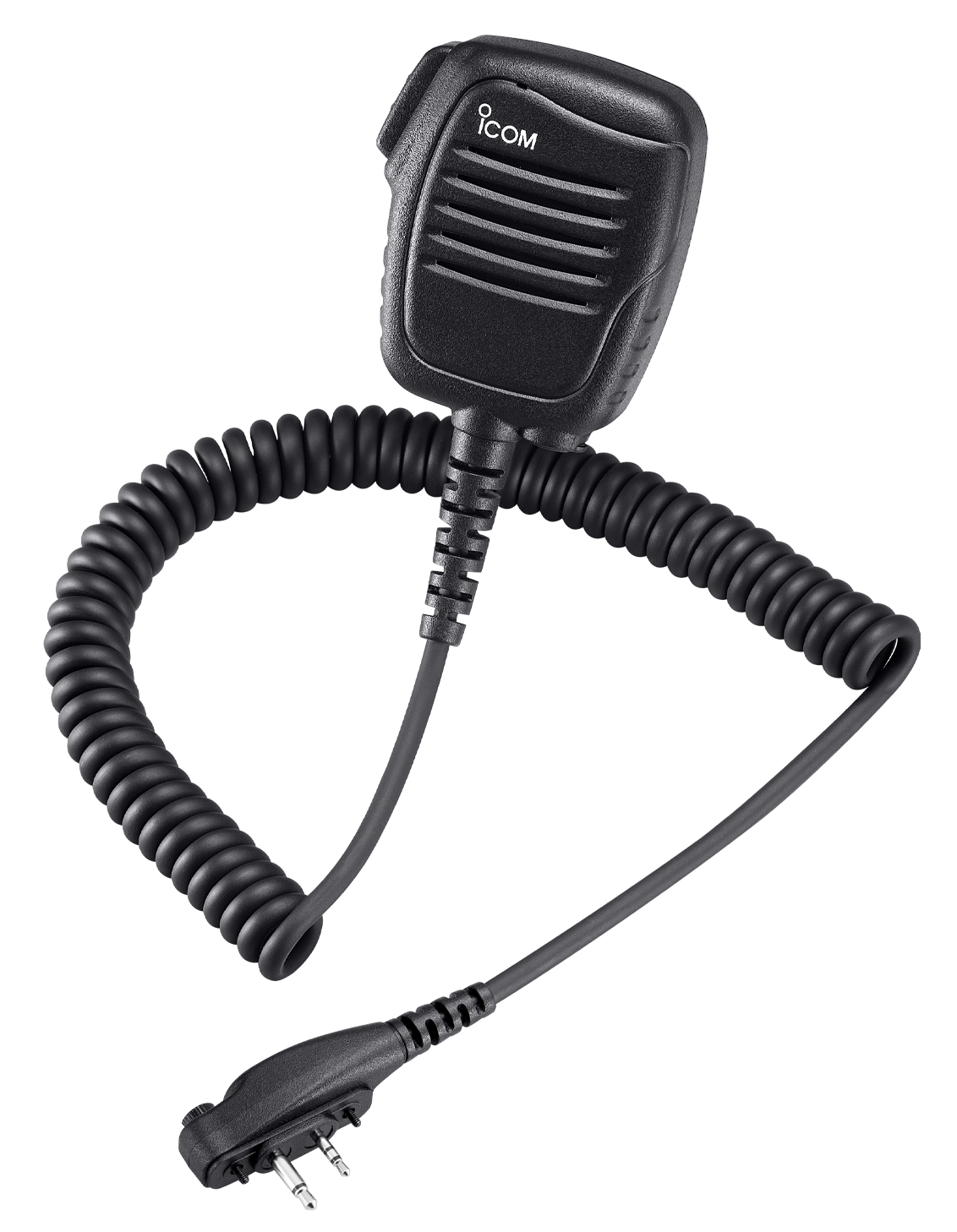

HM-222HLWP
Speaker Microphone

HM-257LA
EARPHONE MICROPHONE

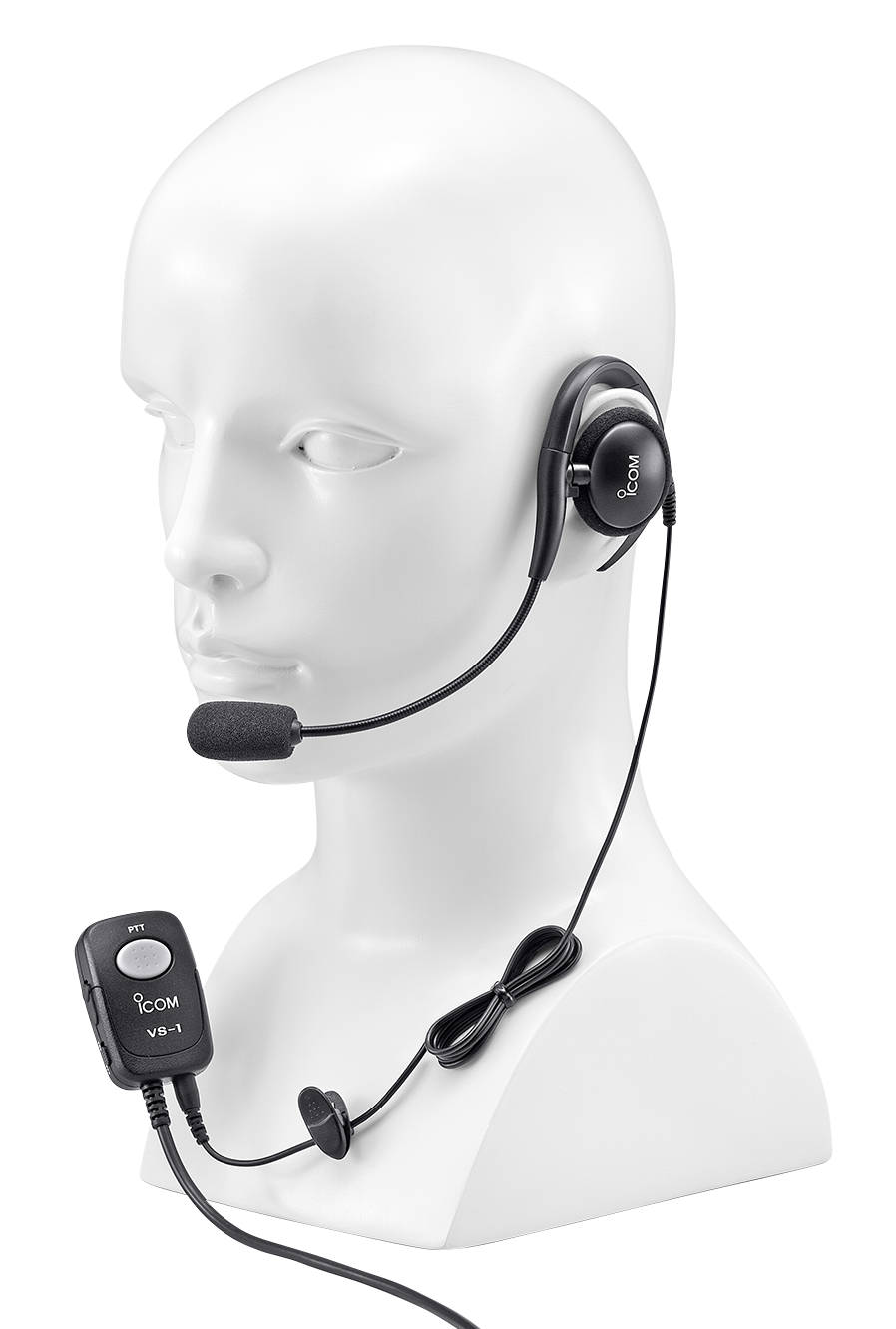

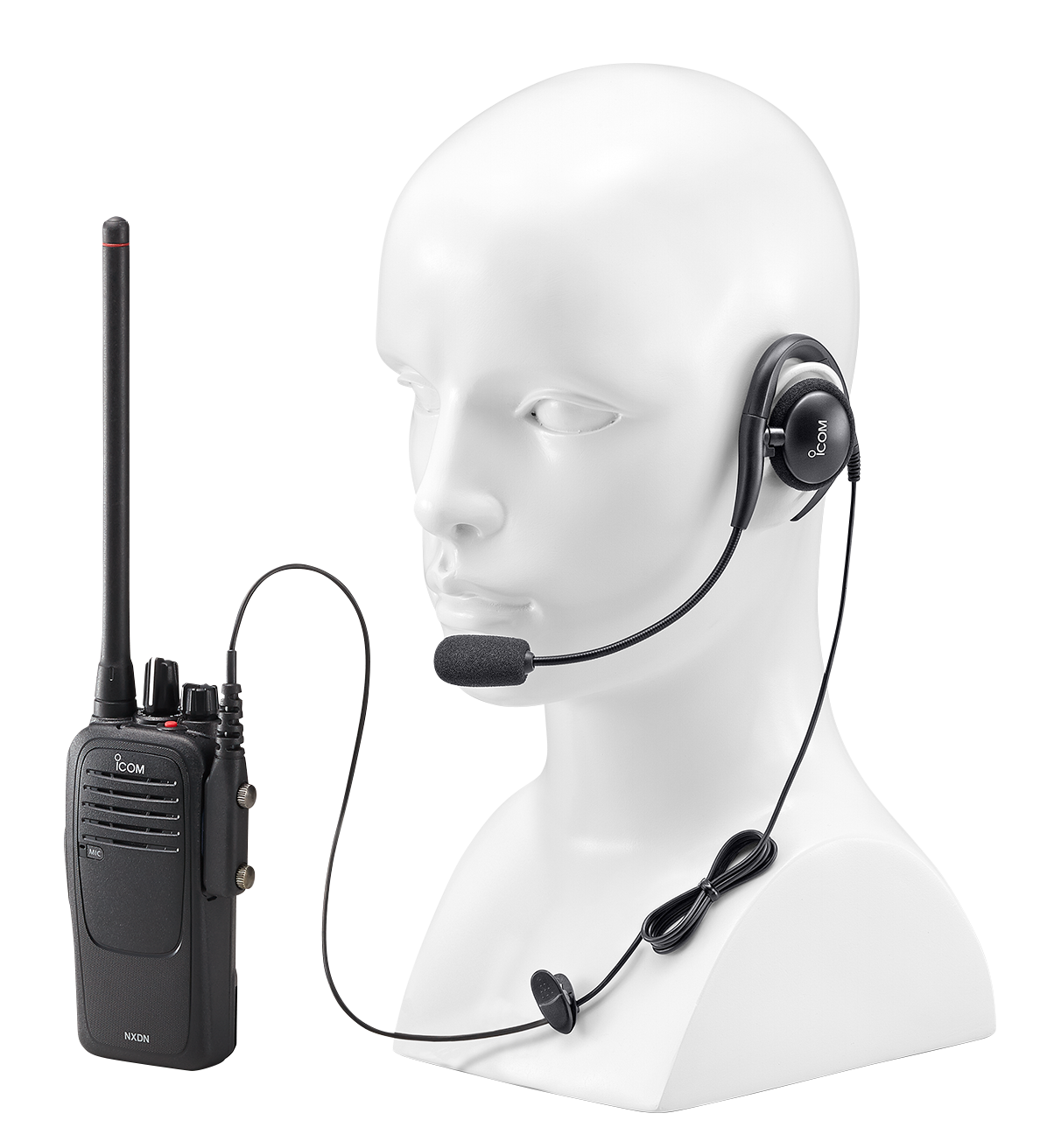

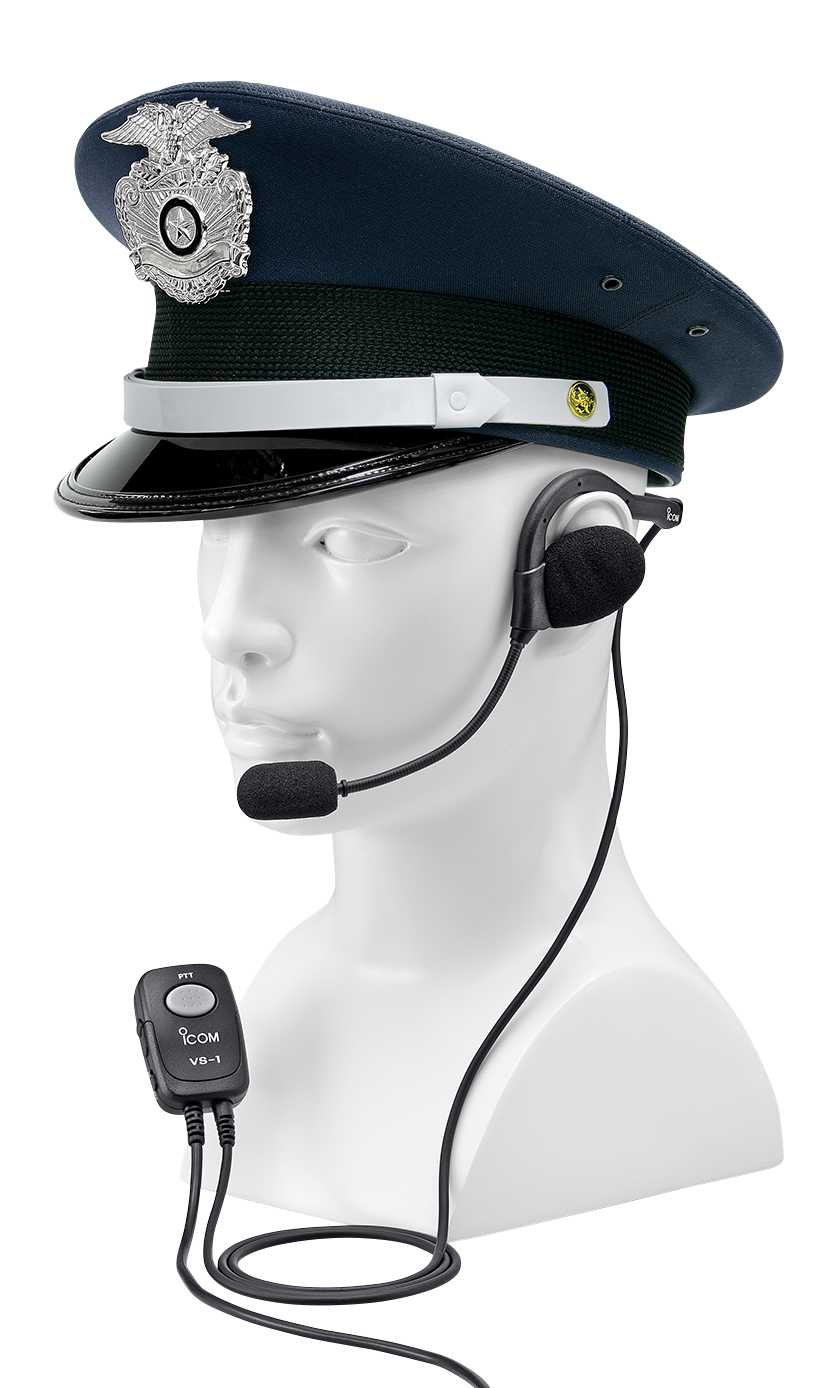

HS-94
EARHOOK TYPE HEADSET

HS-94LWP
EARHOOK TYPE HEADSET

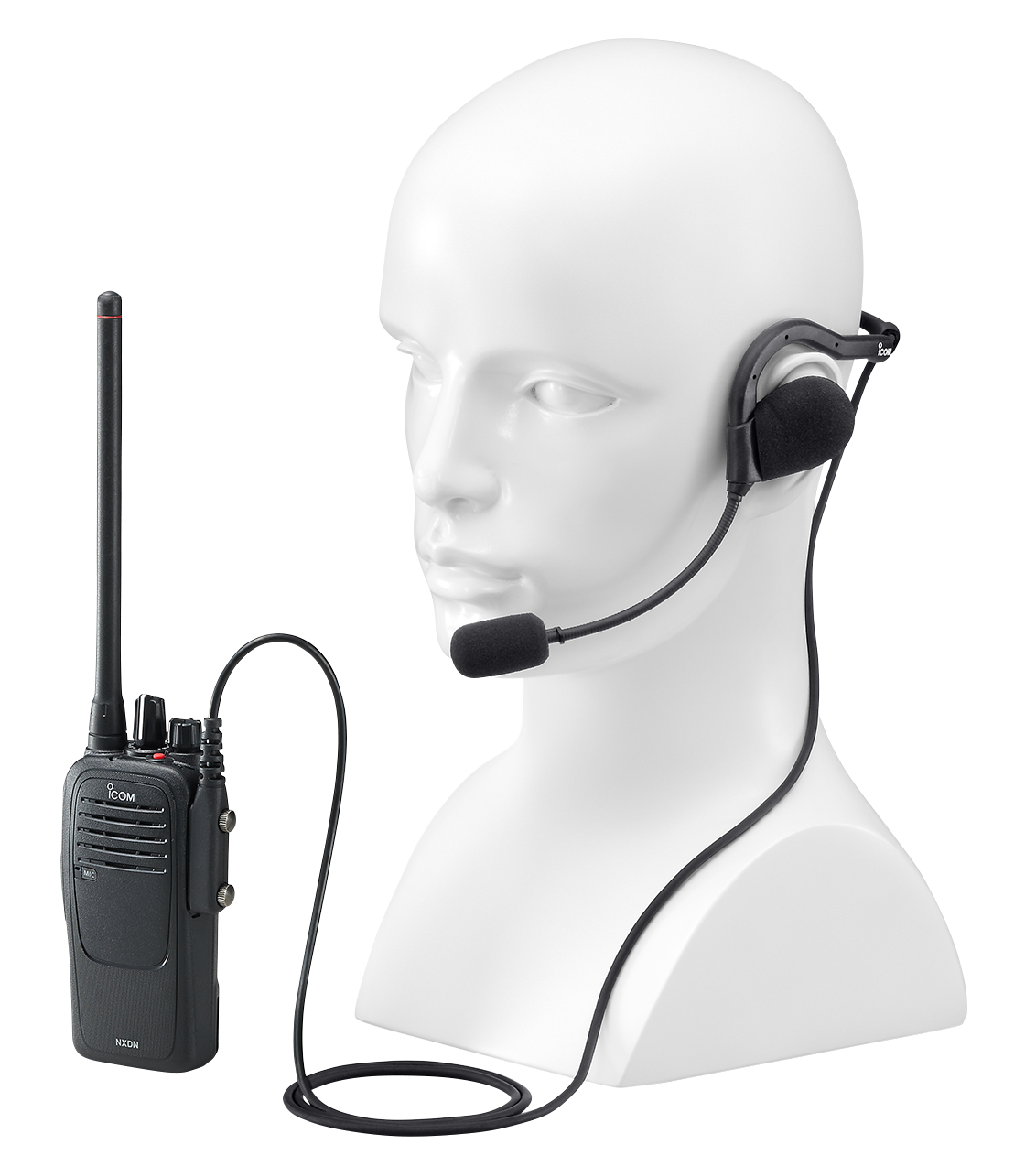

HS-95
NECK ARM TYPE HEADSET

HS-95LWP
NECK ARM TYPE HEADSET

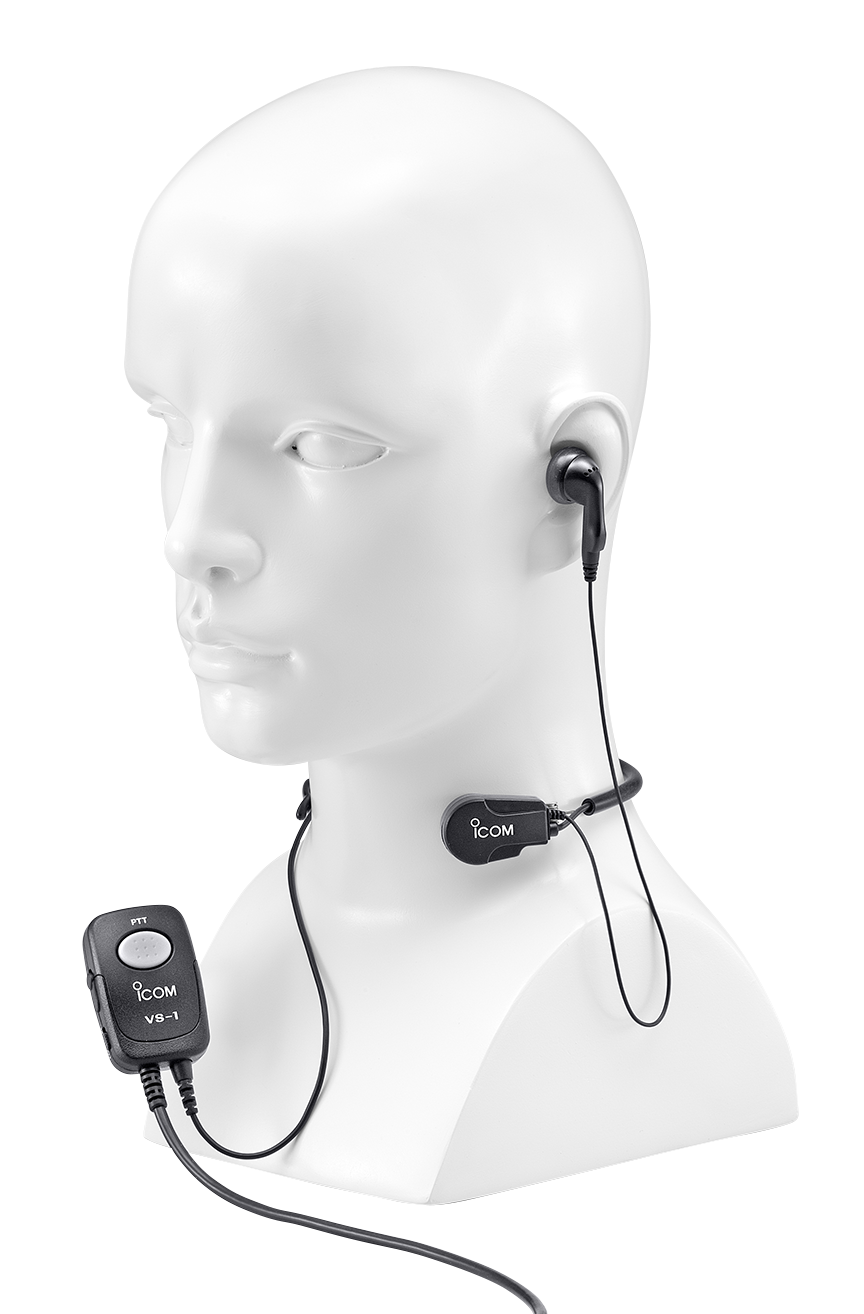

HS-97
HEADSET WITH THROAT MICROPHONE

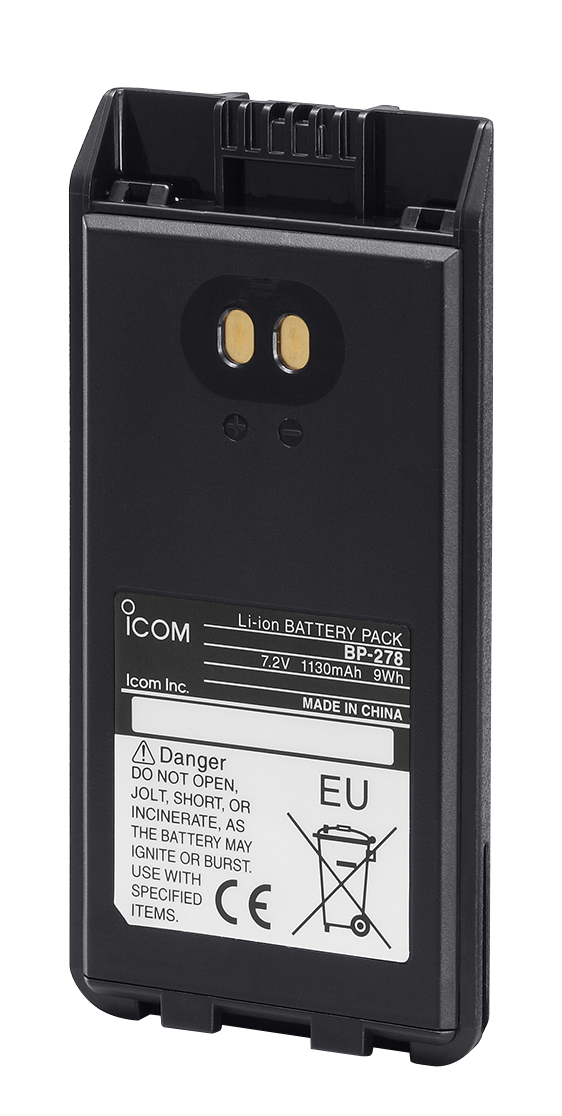

BP-278
Li-Ion Battery Pack

BP-279
Li-Ion Battery Pack

BP-280
Li-Ion Battery Pack

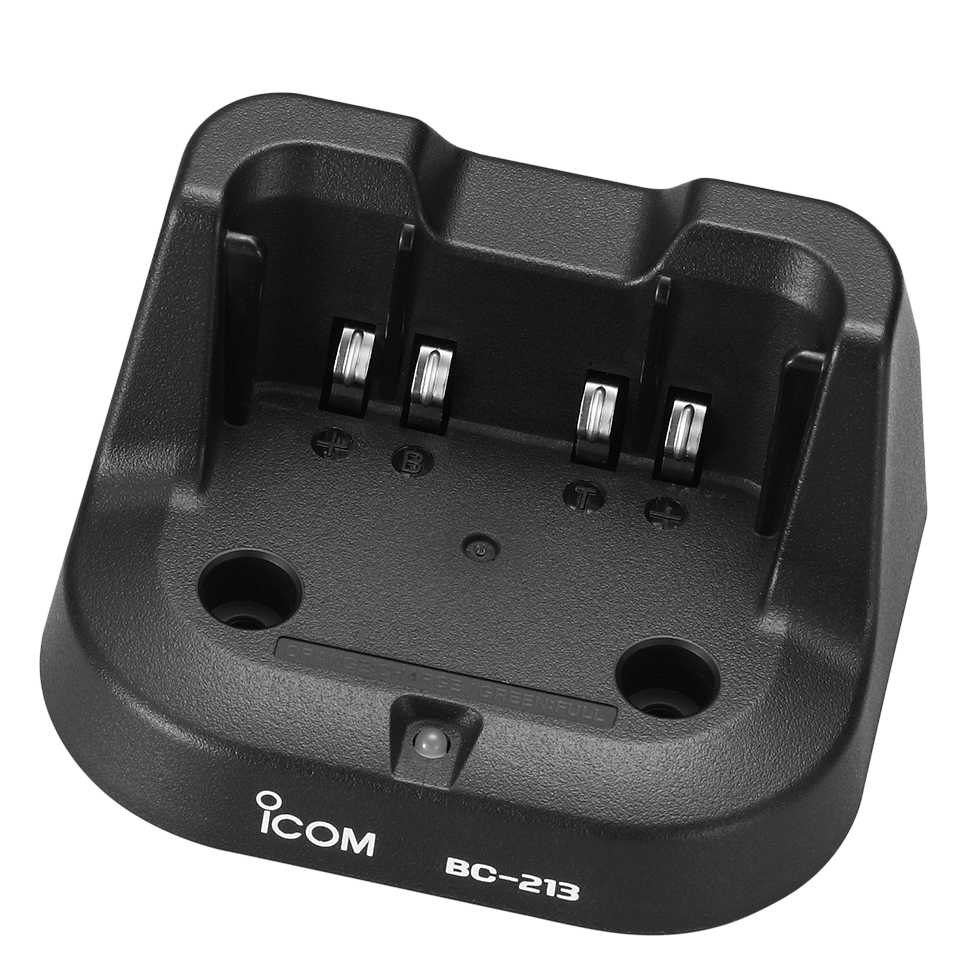

BC-213
DESKTOP CHARGER AC adapter supplied depending on version.

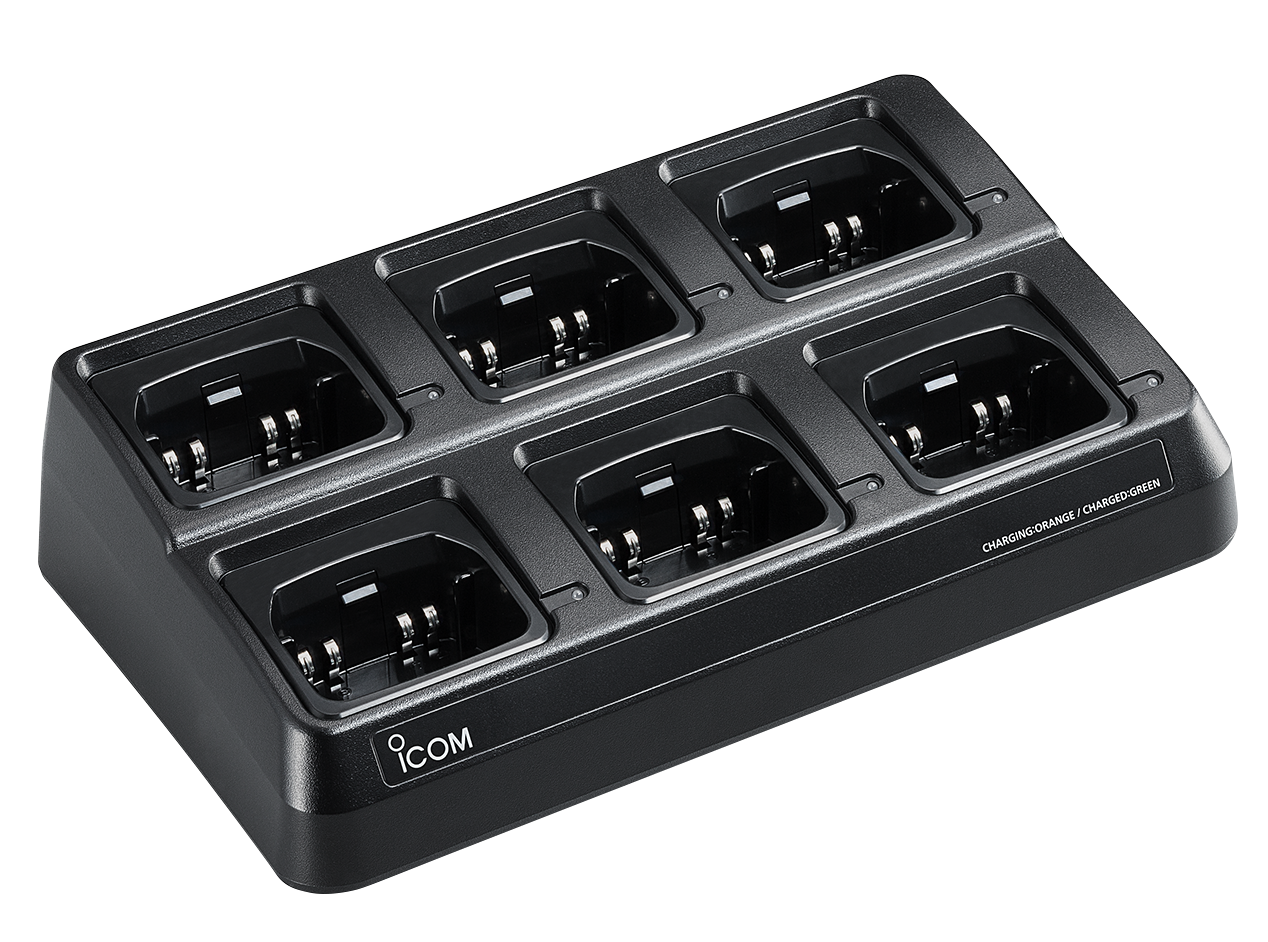

BC-214
#01-#03 MULTI-CHARGER *For BP-278/BP-279/BP-280
The AD-130 charger adapters are supplied. AC adapter supplied depending on versions.

BC-214N
#41-#43 (EN62368-1 compliant) MULTI-CHARGER * For BP-278/BP-279/BP-280. The AD-130 charger adapters are supplied. AC adapter supplied depending on versions.

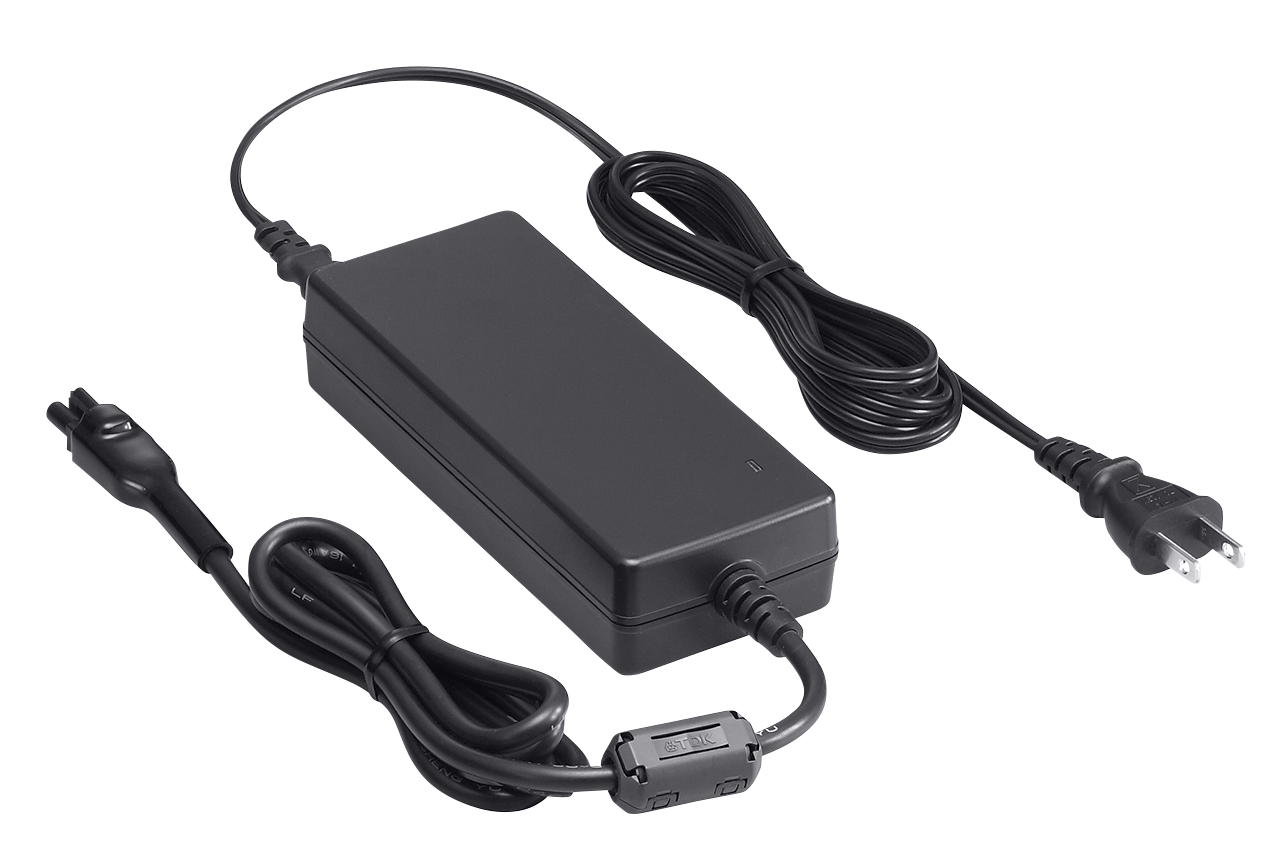

BC-157S
Versions 22 - 24 AC ADAPTER

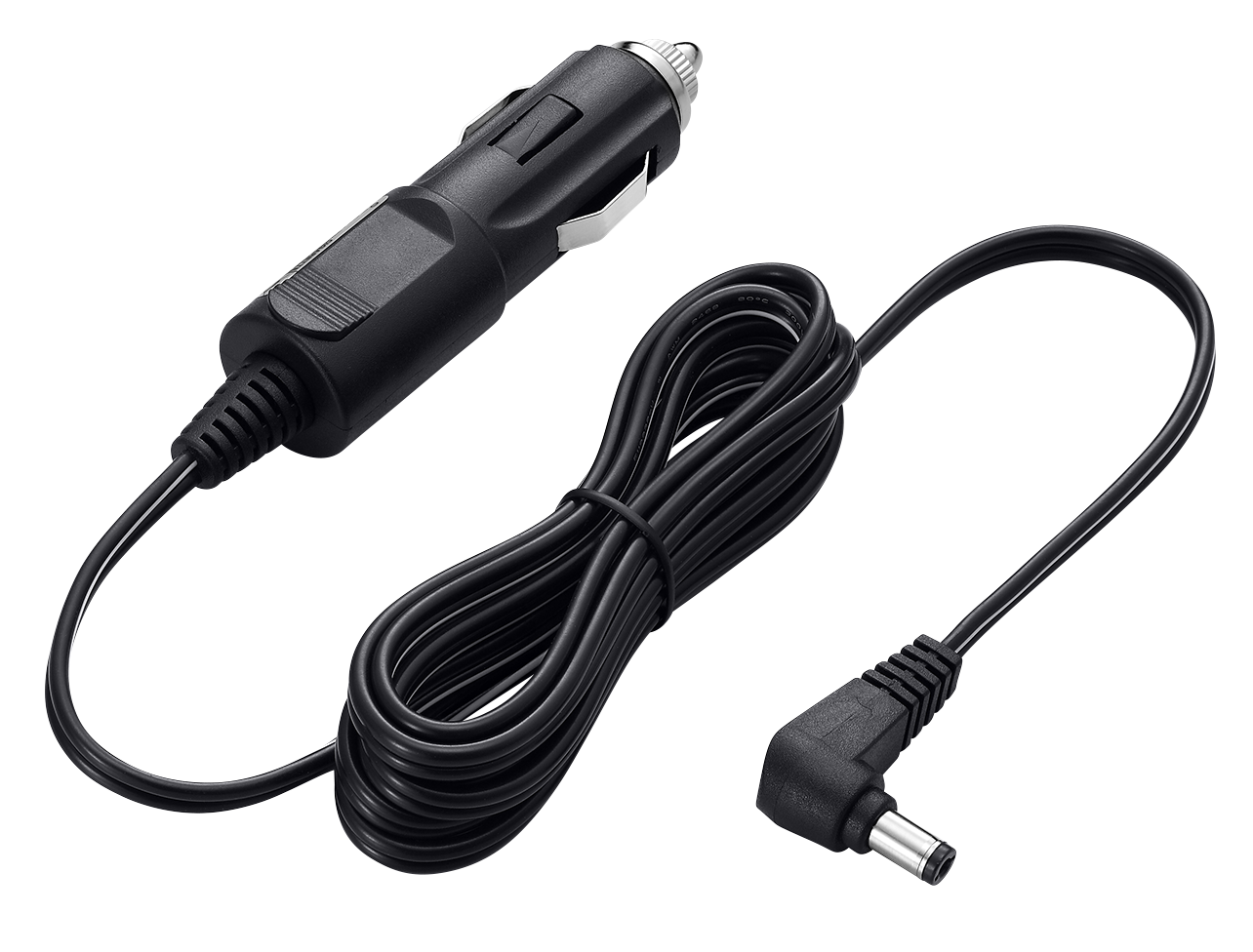

CP-23L
CIGARETTE LIGHTER CABLE For 12V DC input

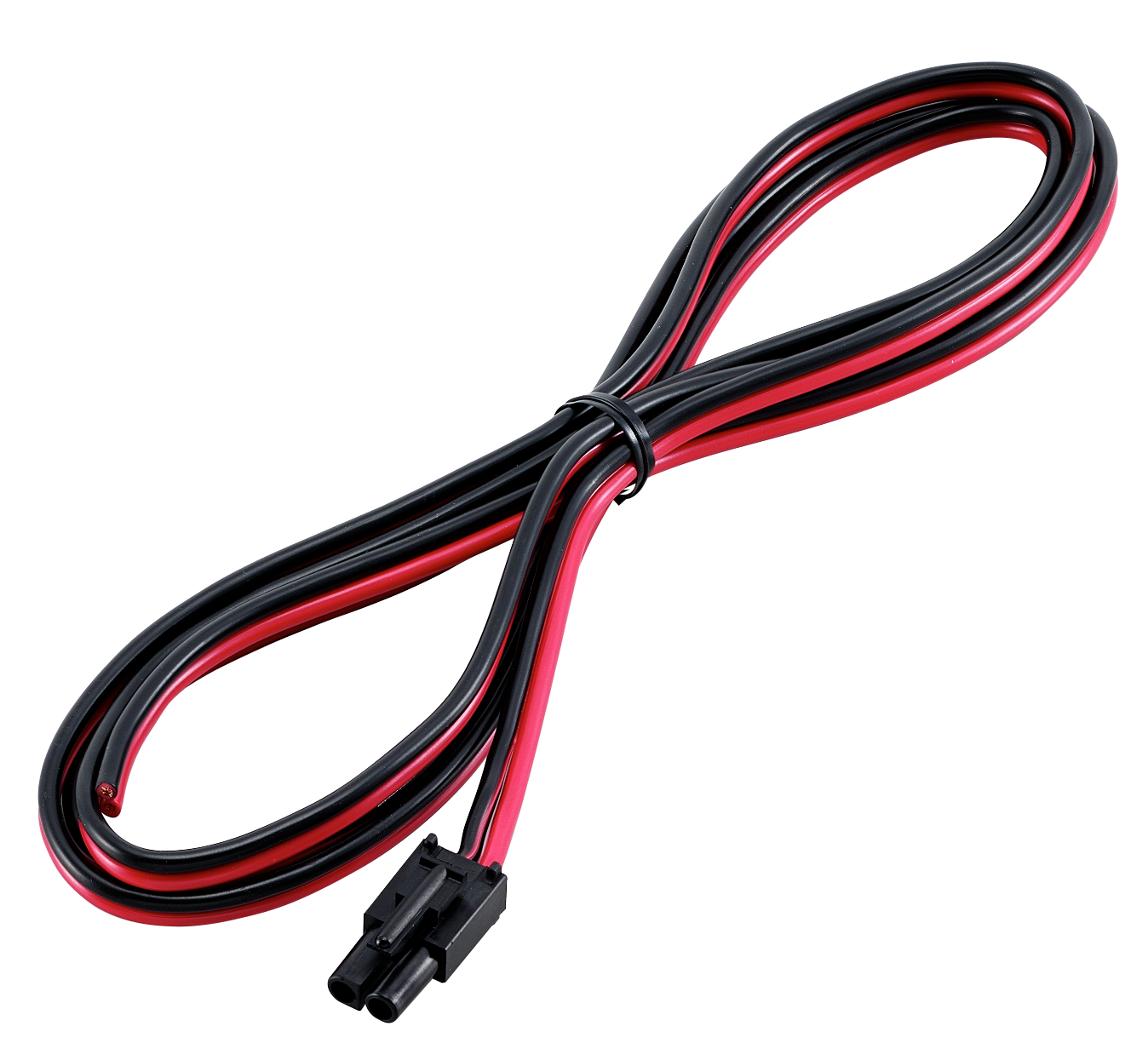

OPC-656
DC POWER CABLE

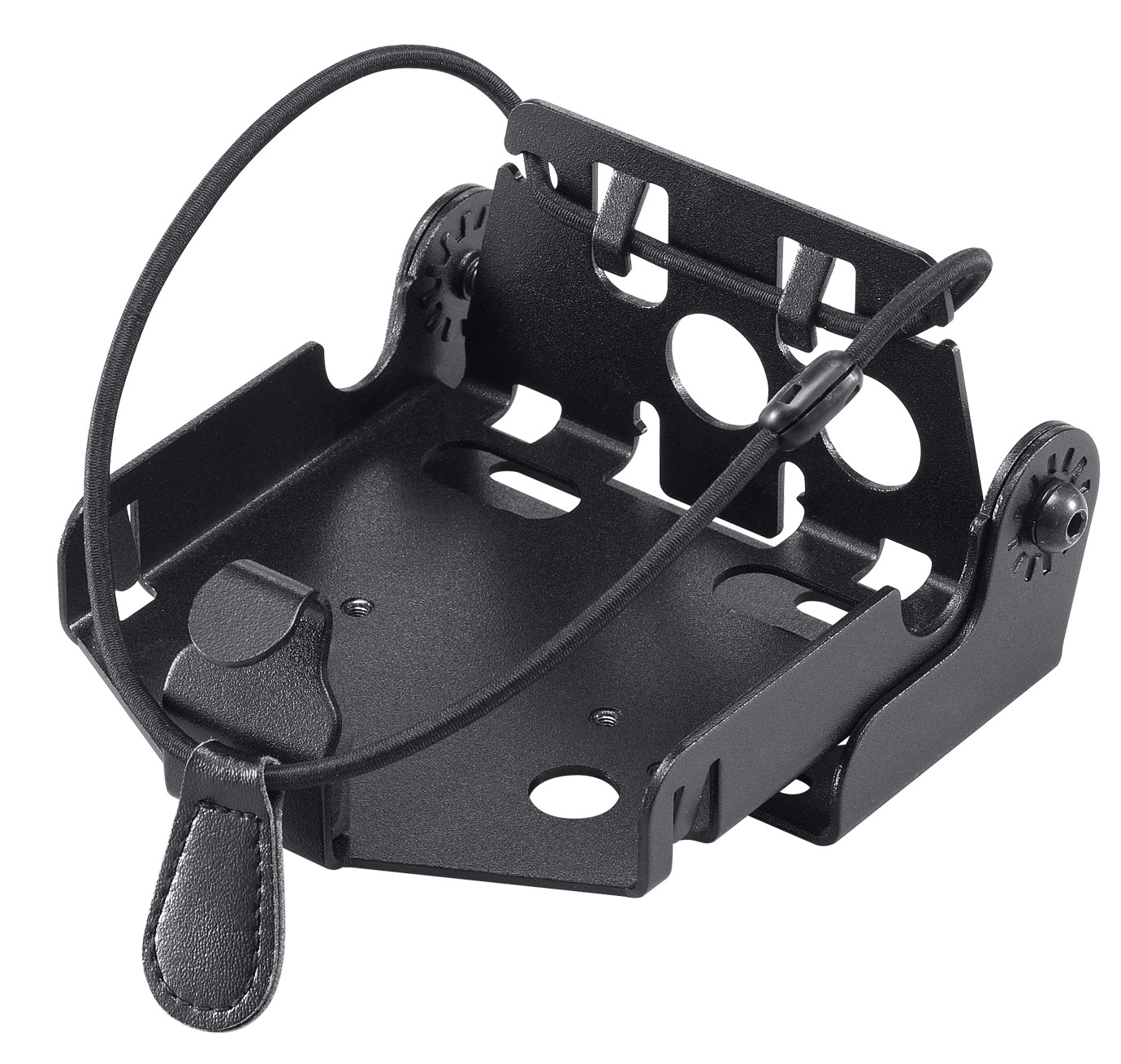

MB-130
VEHICLE CHARGER BRACKET

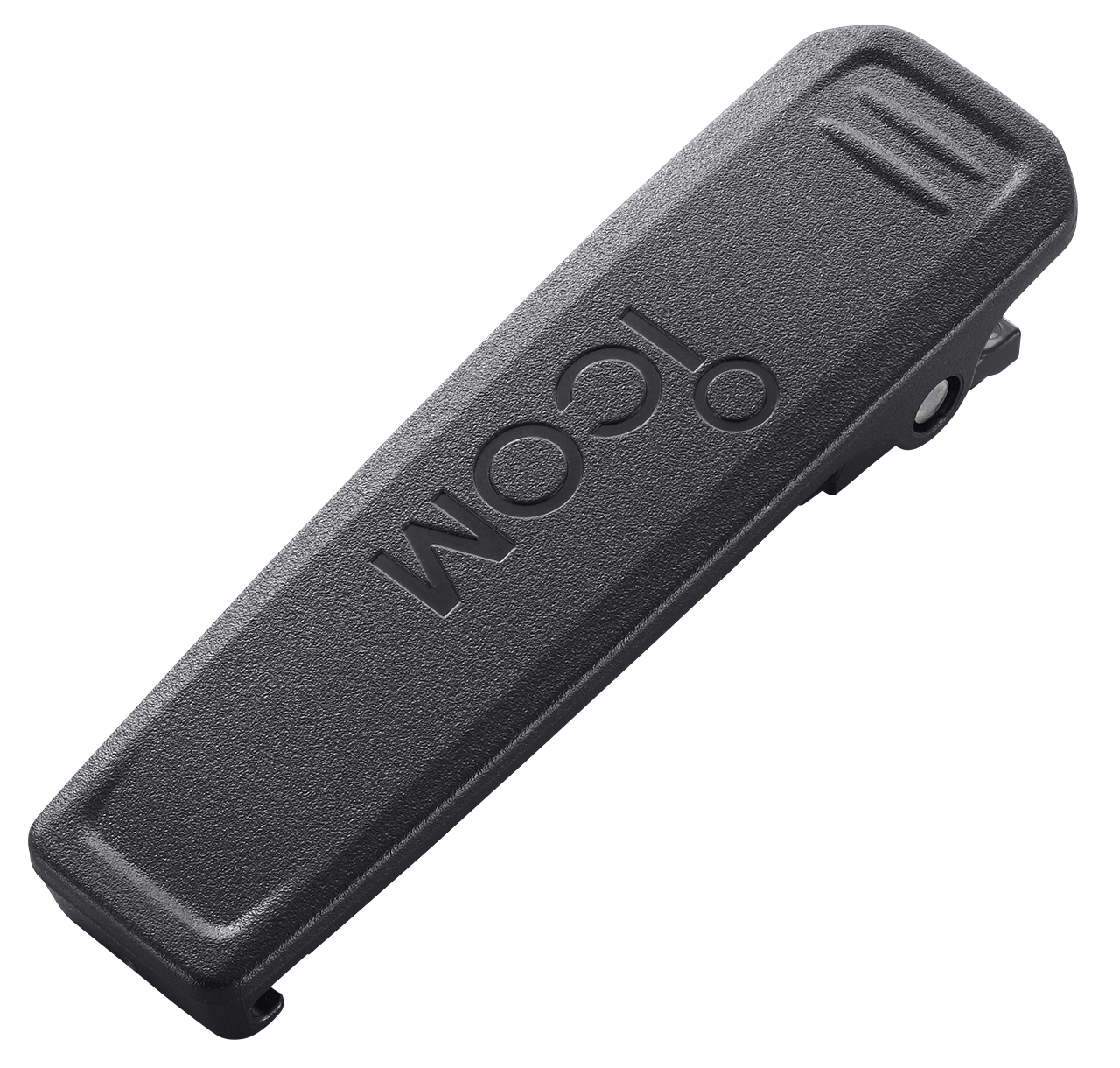

MB-133
Belt Clip

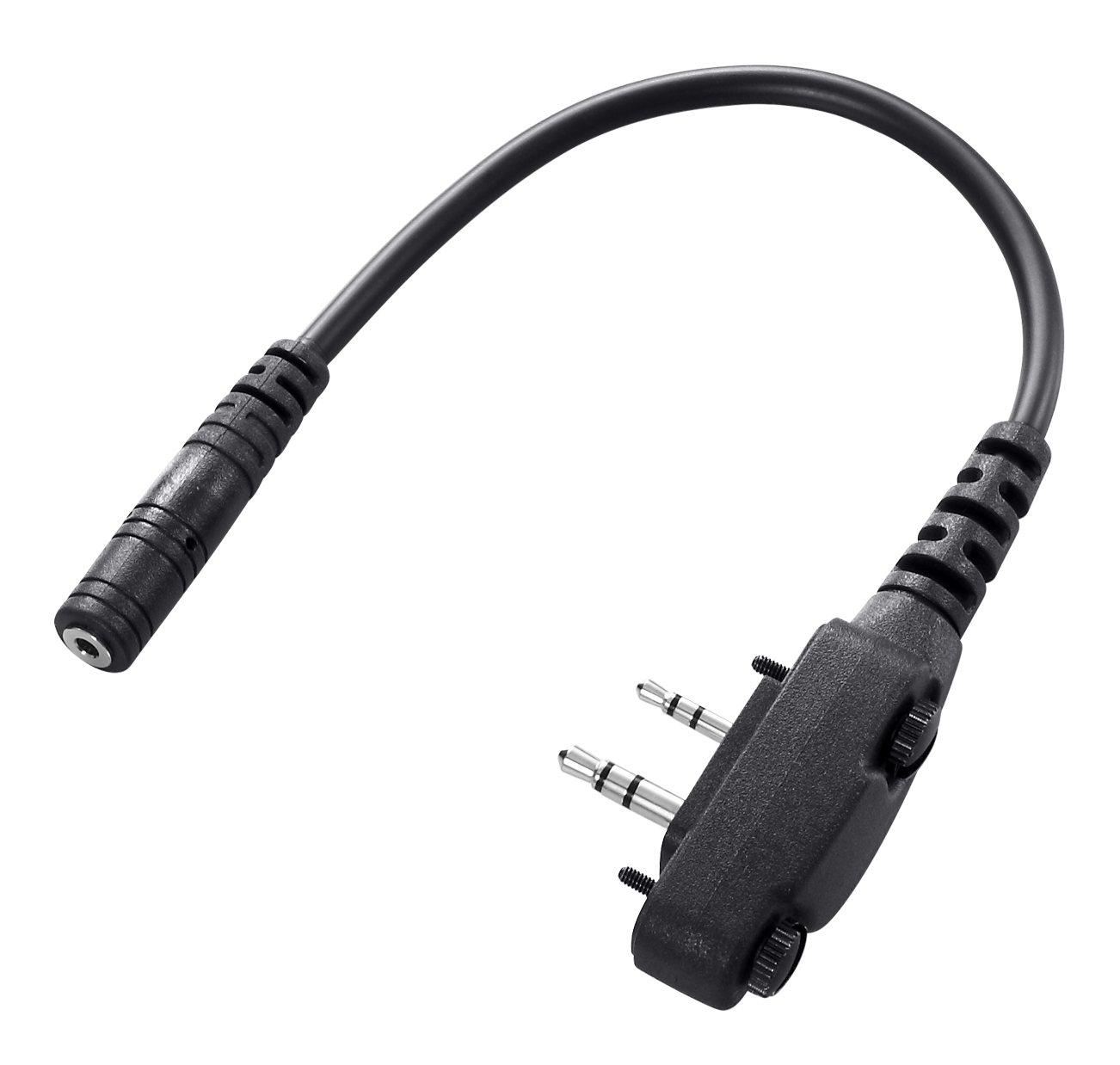

OPC-2004LA
PLUG ADAPTER CABLE

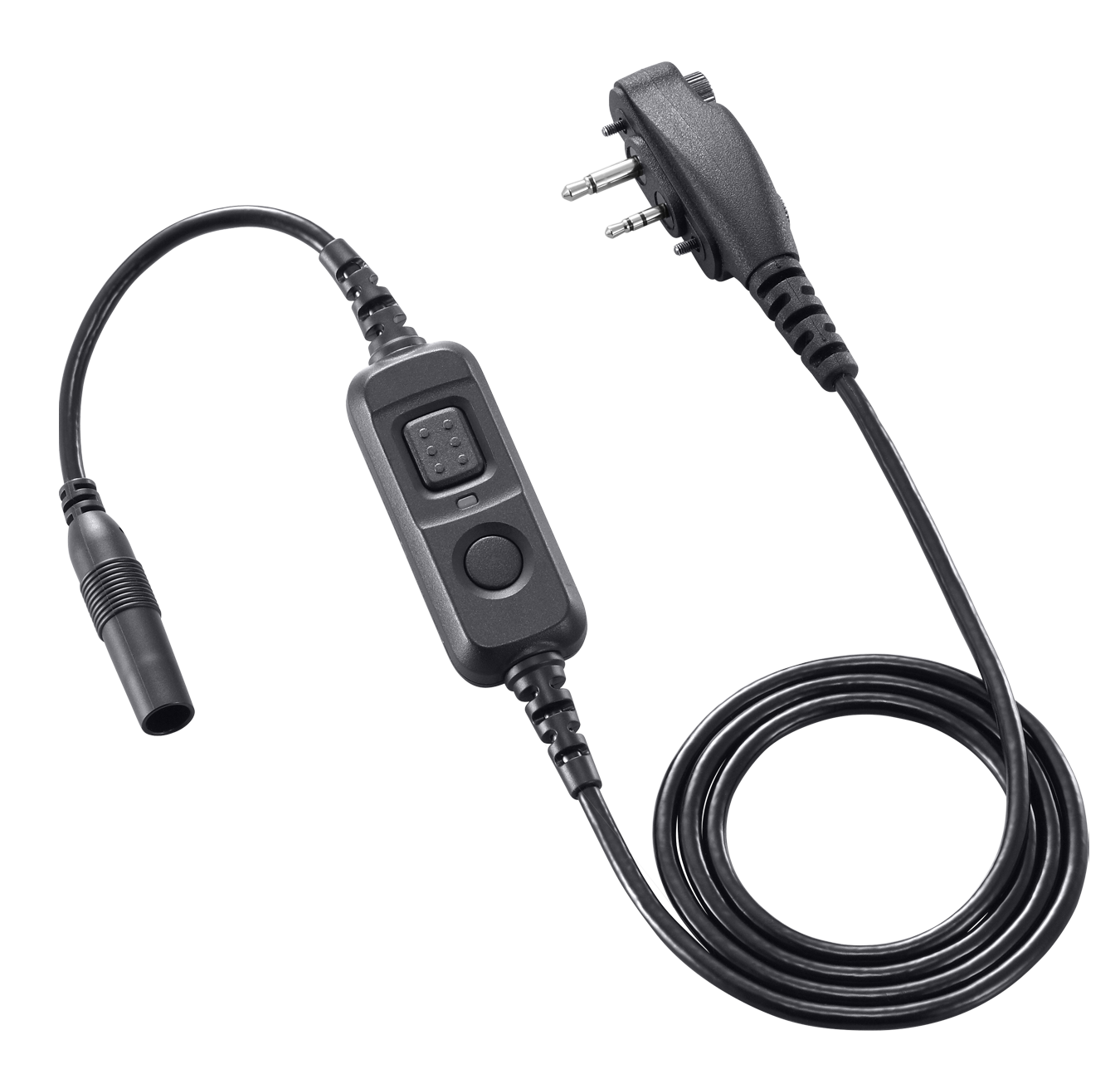

VS-4LA
PTT SWITCH CABLE
Select optional accessories for the transceiver version and follow ICOM connection instructions.
