IC-F5122D/F6122D
IDAS™ digital mode function
Lone Worker mode
6 Programmable buttons
Front speaker
128 channels divided into 8 memory zones
128 channels divided into 8 memory zones.
Memory channels can be identified by the 8-character channel name and easily selected with the up/down buttons.
Front speaker
The 4 watt (typ.) front speaker delivers clear and powerful sound. With the speaker facing the operator, sound can be heard clearly without obstruction during operation.
6 Programmable buttons
A pair of function-programmable up/down and P0–P3 buttons allow you to customize functions to meet specific needs.
An independent volume knob offers simple, convenient operation.
Durable MIL construction
The tough die-cast aluminum chassis and polycarbonate front are tested to MIL 810F.
With this heavy-duty construction, the IC-F5022 series provides reliable long-term operation in any kind of environment.
IDAS™ digital mode function
The IC-F5122D series provides IDAS™ digital operation based on NXDN™ CAI.
It is also compatible with the conventional IDAS™ multi-site system and IDAS™ single-site trunking.
The following IDAS™ features are programmable.
PTT-ID
Individual/Discussion Group List (Max 500)
RAN (Transceiver Access Number)
Condition
SDM (Short Data Message)
alarm call
Radio Control (RX)
Stun/Kill/Revive (RX)
Remote Display (RX)
Emergency (No ACK)
Digital voice redirection
GPS data (computer and software required to display received location data)
The most popular embedded signals
Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talkgroups, PTT ID and silent standby when others are talking.
Compatible with MDC 1200
The following MDC features are available with built-in MDC signaling.
PTT ID (TX/RX)
Radio Control (RX)
Radio stun (RX)
Radio Revive (RX)
Emergency TX/RX (No ACK)
Table of 5 aliases (Max)
Multiple 2 tons, multiple 5 tons
Up to ten 2-Tone and eight 5-Tone codes can be decoded on one channel.
When a matching tone is received, the following items can be programmed for each code.
Beep sound
Answer back
Scan
Bell icon
Radio stun/kill/revive
500 aliases (Max)
Lone Worker mode
When the transceiver is idle for a predetermined period, the transceiver beeps and requires you to press any button.
If the transceiver is still inoperative for a set waiting period, an emergency signal automatically transmits and informs co-workers that something may have happened to the worker.
Scan
In normal scan mode, you can select a scan list regardless of the channel setting.
In mode-dependent scanning, the scan list is automatically selected according to the mode channel.
It is convenient when you change operating channels or move to a different operating area.
Optional Active Noise Canceling Microphone
The optional active noise-canceling microphone HM-211 can automatically reduce noise in extremely noisy environments and help transmit clear and accurate sound.
Other characteristics
Broadcast BIIS 1200 PTT ID
Programmable microphone hook
Wide, medium and narrow channel spacing (25, 20, 12.5 kHz) programmable
Optional DTMF microphone (HM-152T)
Timeout timer, lockout penalty timer and more
8 DTMF auto dial memories
Activation password function
Nuisance deletion function
Embedded ESN
What else
Made in Japan Quality and reliability
All Icom products are checked to pass rigorous internal testing as well as environmental testing at the Wakayama Icom factory before shipment. Our world leading products and quality is a tradition
- Microphone, HM-152
- Microphone hook
- support base
- DC power cord
- Sticker with function names

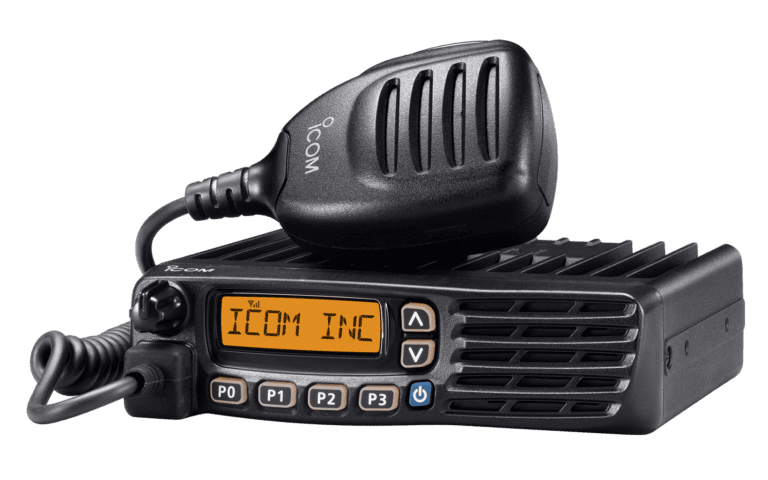

IC-F5122D/IC-F6122D (NXDN)
VHF AND UHF DIGITAL/ANALOG TRANSCEIVERS
Compact NXDN digital mobile transceiver
IC-F5122D/IC-F6122D: Organises 128 channels in eight zones for different workgroups.
Supplied accessories may differ or may not be supplied, depending on version.
Features
128 channels
Organises 128 channels in eight zones for different workgroups.
NXDN operation
NXDN IDAS with multi-site conventional and single-site trunking operation.
Easy-to-read display
An eight-character LCD and backlit programmable buttons.
Front-facing speaker
Typical 4 W audio output for clear calls in the vehicle cabin.
Specifications
General
IC-F5122D |
IC-F6122D |
|||
|---|---|---|---|---|
| Frequency coverage |
136-174MHz |
400-470MHz |
||
| Number of channels |
128 channels (8 zones) |
|||
| Channel spacing |
6.25/12.5/20kHz, 6.25/12.5/25kHz |
|||
| Type of emission |
16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E/F1D |
|||
| Current drain (approx.) |
Tx | 25W |
5A |
|
| Rx | Stand-by |
300mA |
||
| Max. audio |
1.2A |
|||
| Dimensions (projections not included; W×H×D) |
150×40×117.5 mm |
|||
| Weight |
800 g |
|||
Transmitter
IC-F5122D |
IC-F6122D |
|
|---|---|---|
| RF output power (at 13.2V DC) |
25W, 10W, 2.5W (Hi, L2, L1) |
|
| Spurious emissions |
0.25μV (≤1GHz) |
|
| Frequency stability |
±1.0ppm |
|
| Maximum frequency deviation |
± 5.0 kHz (W), ±4.0 kHz (M), ±2.5 kHz (N) |
|
| Audio harmonic distortion |
3% typ. |
|
| Digital FSK error | 5% max. | |
Receiver
IC-F5122D |
IC-F6122D |
||
|---|---|---|---|
| Sensitivity | (at 20dB SINAD) |
–4dBμV typ. (emf) |
|
| (at 5% BER) |
–8dBμV typ. (emf) |
||
| Adjacent channel selectivity |
80/80/70dB typ. (W/M/N), |
75/75/70dB typ. (W/M/N), |
|
| Spurious response rejection |
70dB min. |
||
| Intermodulation rejection |
67dB typ. (W/M/N), |
||
| AF output power (at 5% distortion with an 4Ω load) |
4W (typ.) |
||
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 F Method, Proc. |
|---|---|
| Low Pressure Storage |
500.4 I |
| Low Pressure Operation |
500.4 II |
| High Temperature Storage |
501.4 I |
| High Temperature Operation |
501.4 II |
| Low Temperature Storage |
502.4 I |
| Low Temperature Operation |
502.4 II |
| Temperature Shock |
503.4 I |
| Solar Radiation |
505.4 I |
| Humidity Induced |
507.4 |
| Settling Dust |
510.4 III |
| Vibration |
514.5 I |
| Shock Functional |
516.5 I |
| Shock Transit Drop |
516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Microphone, HM-152
- Microphone hanger and its cable
- Mounting bracket kit
- DC power cable
- Function name sticker
Optional Accessories

HM-148G
HAND MICROPHONE

HM-148T
HAND MICROPHONE

HM-152
HAND MICROPHONE

HM-152T
HAND MICROPHONE

SM-26
DESKTOP MICROPHONE

SP-30
EXTERNAL SPEAKER

SP-35
EXTERNAL SPEAKER

OPC-1939
ACC CABLE

OPC-2078
ACC CABLE
Archived accessories / European availability restrictions
- HM-211 — Discontinued product
Support / Download
- IC-F5120D/IC-F6120D Digital Series — English · PDF
- INSTRUCTIONS — IC-F5122D/IC-F6122D — English · PDF
- IC-F5122D — DOC (DECLARATION OF CONFORMITY) — Original · PDF
- IC-F6122D — DOC (DECLARATION OF CONFORMITY) — Original · PDF
